Ws Sensor Analysis Report - Day 80

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 138.57 L
Avg Total Drain Amount: 21.58 L
Avg In-Fertigation Drain Amount: 5.60 L
Avg Post-Fertigation Drain Amount: 15.98 L
Avg Drainage Rate: 15.57%

Detail Section

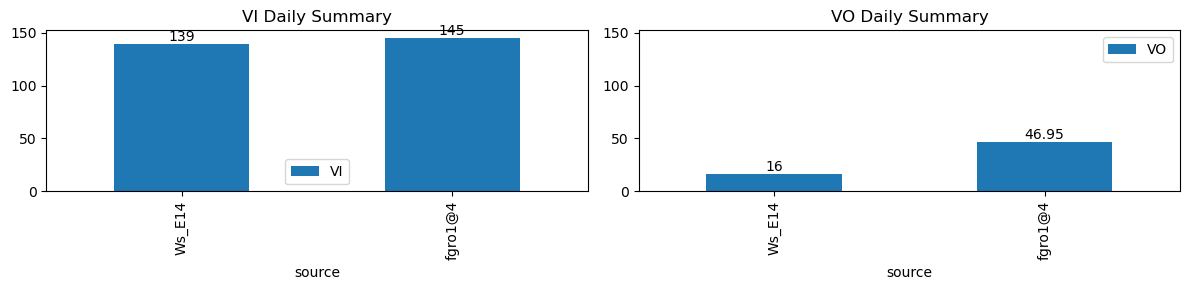

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 7
Number of Fertigation Events detected: 6
Total Fertigation Amount: 138.57 L
Total Drain Amount: 21.58 L
In-Fertigation Drain Amount: 5.60 L
Post-Fertigation Drain Amount: 15.98 L
Drainage Rate: 15.57%

Ws Cleaning Summary Table - Ws_E14

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E14	17266	196	12488	196	5

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-25 10:15:00+08:00	80	615	Ws_E14	0.518885	30	615.00	615.250000	615.60	616.583333	NaN	NaN	NaN	13972.000000	14080.0	36	-0.041102	-0.043333	-0.090556	0.405714	0.600000	21.600000	15.0	59.0	21.600000	0.0	-2.037835	NaN	-2.037835
2025-12-25 10:55:00+08:00	80	655	Ws_E14	0.518885	30	655.00	655.333333	655.60	656.583333	NaN	NaN	NaN	14053.000000	14159.0	36	-0.072360	-0.065833	-0.059630	0.414286	0.588889	21.200000	20.0	59.0	21.200000	0.0	-1.397218	NaN	-1.397218
2025-12-25 11:45:00+08:00	80	705	Ws_E14	0.518885	30	705.00	705.250000	705.60	706.583333	NaN	NaN	NaN	14126.000000	14232.0	36	-0.039901	-0.080972	-0.025417	0.394857	0.588889	21.200000	15.0	59.0	21.200000	0.0	1.799834	NaN	1.799834
2025-12-25 12:31:01+08:00	80	751	Ws_E14	0.518885	30	751.02	751.333333	751.62	755.166667	NaN	NaN	NaN	14197.166667	14297.0	36	-0.063912	NaN	-0.056905	0.424286	0.554630	19.966667	18.8	212.8	19.966667	0.0	0.220435	NaN	0.220435
2025-12-25 13:15:00+08:00	80	795	Ws_E14	0.518885	30	795.00	795.333333	795.60	796.500000	NaN	NaN	NaN	14269.000000	14362.0	36	-0.054358	-0.302222	-0.047917	0.412000	0.516667	18.600000	20.0	54.0	18.600000	0.0	8.071177	14321.644117	8.071177
2025-12-25 14:00:00+08:00	80	840	Ws_E14	0.518885	30	840.00	NaN	840.60	NaN	NaN	NaN	NaN	14294.000000	14358.0	36	-0.066199	-0.184667	-0.066528	NaN	0.355556	12.800000	NaN	NaN	18.000000	5.2	NaN	NaN	NaN
2025-12-25 14:55:00+08:00	80	895	Ws_E14	0.518885	30	895.00	895.250000	895.60	896.416667	NaN	NaN	NaN	14297.000000	14385.0	36	-0.050895	-0.350833	-0.034468	0.412286	0.488889	17.600000	15.0	49.0	18.000000	0.4	9.324106	14338.379471	9.724106

Figures - Ws_E14

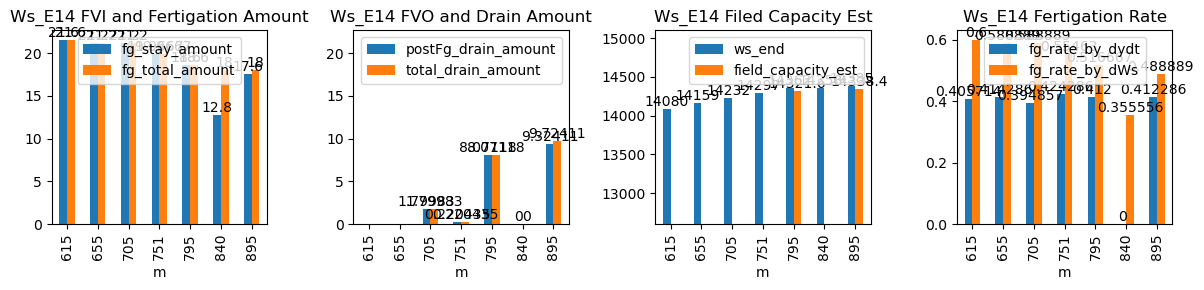

Figure figure_9.png

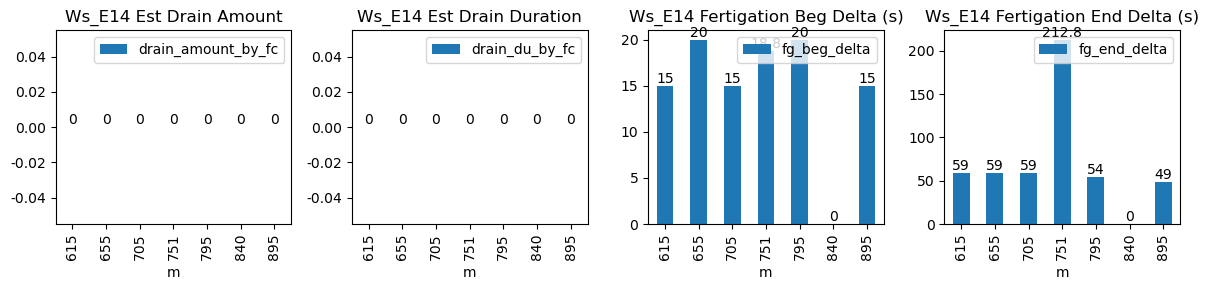

Figure figure_8.png

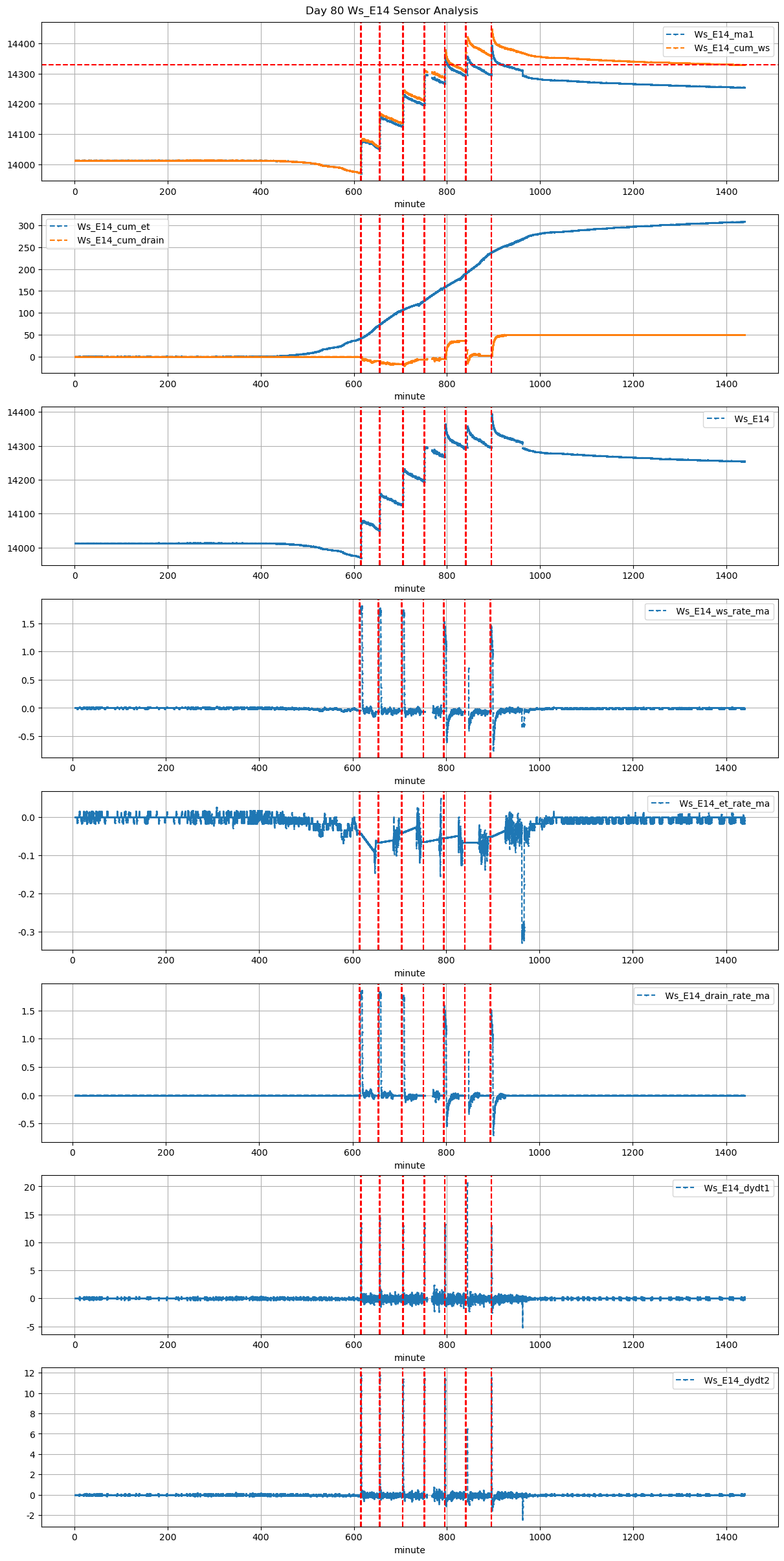

Figure figure_7.png

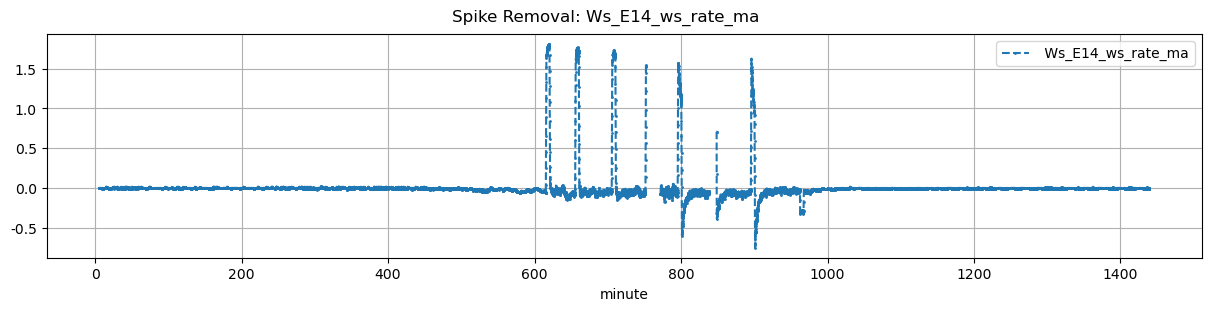

Figure figure_6.png

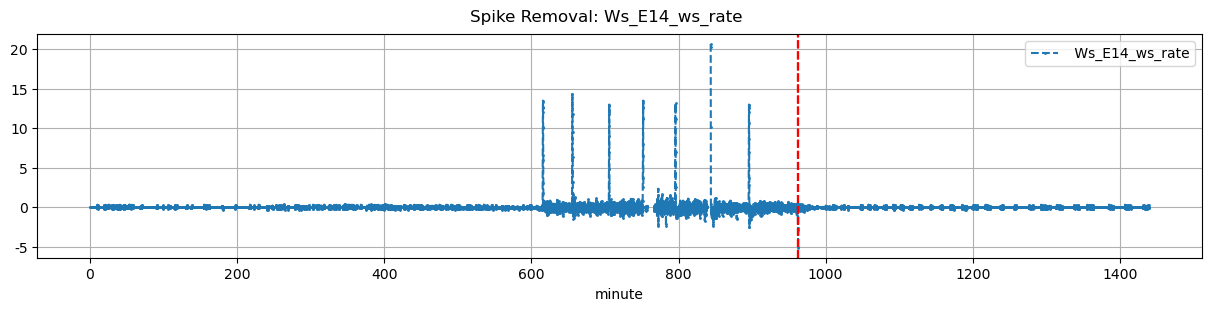

Figure figure_5.png

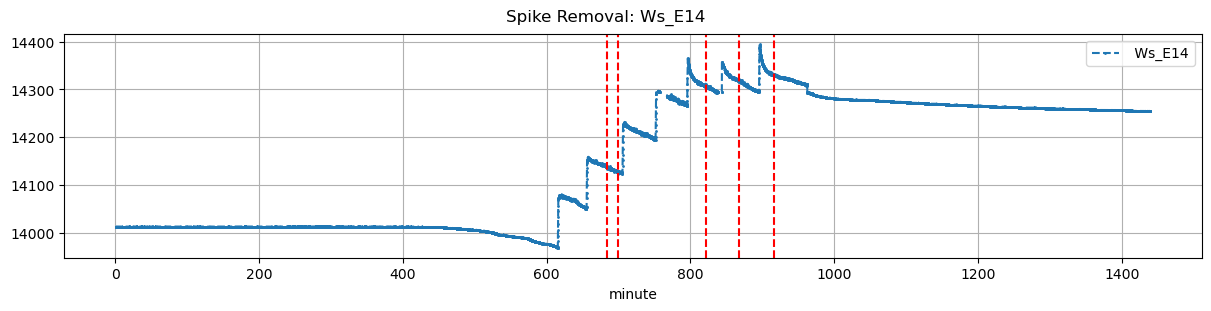

Figure figure_4.png
