Ws Sensor Analysis Report - Day 97

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 173.80 L
Avg Total Drain Amount: 17.86 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 17.86 L
Avg Drainage Rate: 10.28%

Detail Section

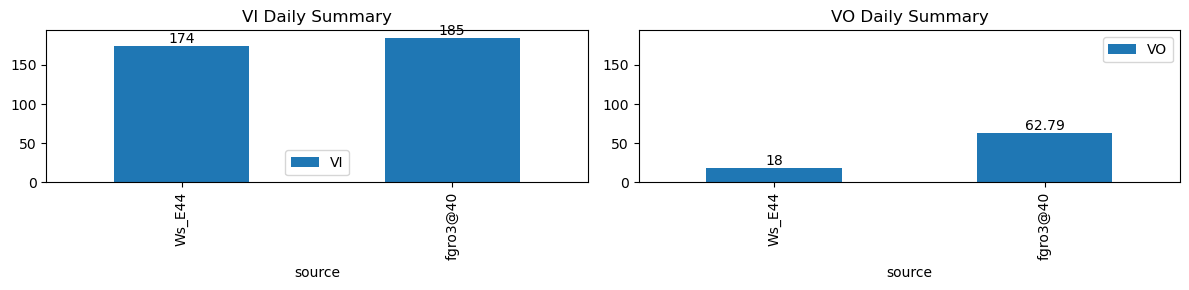

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 173.80 L
Total Drain Amount: 17.86 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 17.86 L
Drainage Rate: 10.28%

Ws Cleaning Summary Table - Ws_E44

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E44	17262	118	13635	118	0

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-11 08:51:38+08:00	97	531	Ws_E44	0.618296	30	531.63	532.000000	532.16	533.666667	NaN	NaN	NaN	3730.0	3825.0	32	NaN	-0.167778	-0.066684	0.276667	0.59375	19.0	22.2	90.4	19.0	0.0	NaN	NaN	NaN
2026-01-11 09:36:12+08:00	97	576	Ws_E44	0.618296	30	576.20	576.583333	576.73	577.916667	NaN	NaN	NaN	3768.0	3862.0	32	-0.079861	-0.191250	-0.113142	0.396333	0.58750	18.8	23.0	71.2	18.8	0.0	3.211047	NaN	3.211047
2026-01-11 10:47:17+08:00	97	647	Ws_E44	0.618296	30	647.28	647.666667	647.81	649.333333	NaN	NaN	NaN	3747.0	3846.0	32	-0.104514	-0.195139	-0.118889	0.346667	0.61875	19.8	23.2	91.4	19.8	0.0	2.160504	NaN	2.160504
2026-01-11 11:30:00+08:00	97	690	Ws_E44	0.618296	30	690.00	690.416667	690.53	692.083333	NaN	NaN	NaN	3778.0	3873.0	32	-0.146117	-0.203194	-0.155476	0.335000	0.59375	19.0	25.0	93.2	19.0	0.0	1.303790	NaN	1.303790
2026-01-11 12:10:00+08:00	97	730	Ws_E44	0.618296	30	730.00	730.416667	730.53	731.916667	NaN	NaN	NaN	3802.0	3899.0	32	-0.148951	-0.237500	0.000000	0.366000	0.60625	19.4	25.0	83.2	19.4	0.0	1.597279	NaN	1.597279
2026-01-11 12:45:00+08:00	97	765	Ws_E44	0.618296	30	765.00	765.416667	765.53	766.916667	NaN	NaN	NaN	3832.0	3927.0	32	-0.156603	-0.219306	-0.145238	0.369333	0.59375	19.0	25.0	83.2	19.0	0.0	2.226853	NaN	2.226853
2026-01-11 13:25:00+08:00	97	805	Ws_E44	0.618296	30	805.00	805.333333	805.53	807.000000	NaN	NaN	NaN	3851.0	3945.0	32	-0.146434	-0.229722	-0.141898	0.366667	0.58750	18.8	20.0	88.2	18.8	0.0	1.941139	NaN	1.941139
2026-01-11 14:05:00+08:00	97	845	Ws_E44	0.618296	30	845.00	845.416667	845.53	846.916667	NaN	NaN	NaN	3875.0	3972.0	32	-0.128967	-0.223611	-0.084444	0.372667	0.60625	19.4	25.0	83.2	19.4	0.0	3.140163	NaN	3.140163
2026-01-11 14:55:00+08:00	97	895	Ws_E44	0.618296	30	895.00	895.333333	895.53	897.083333	NaN	NaN	NaN	3902.0	4005.0	32	-0.075706	-0.151944	-0.052083	0.362667	0.64375	20.6	20.0	93.2	20.6	0.0	2.278662	NaN	2.278662

Figures - Ws_E44

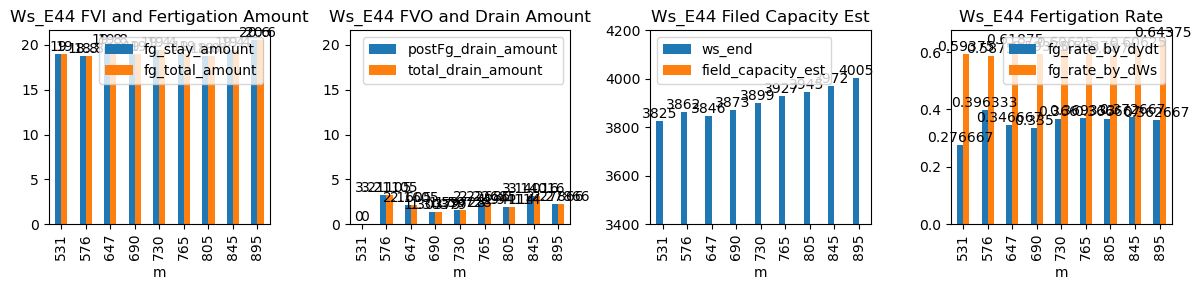

Figure figure_9.png

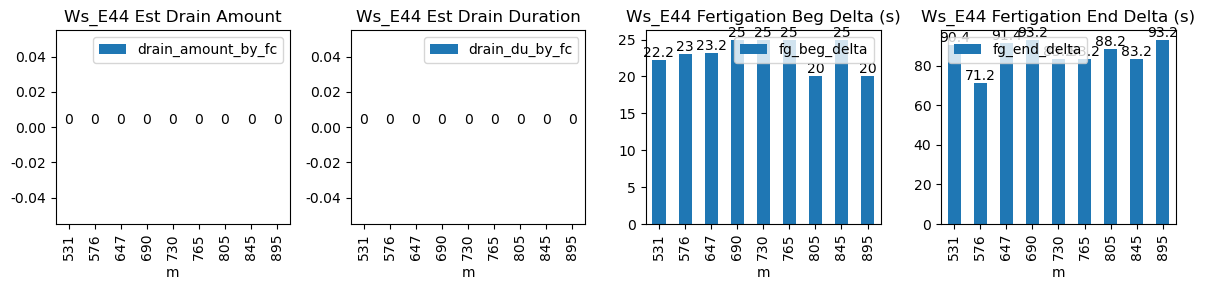

Figure figure_8.png

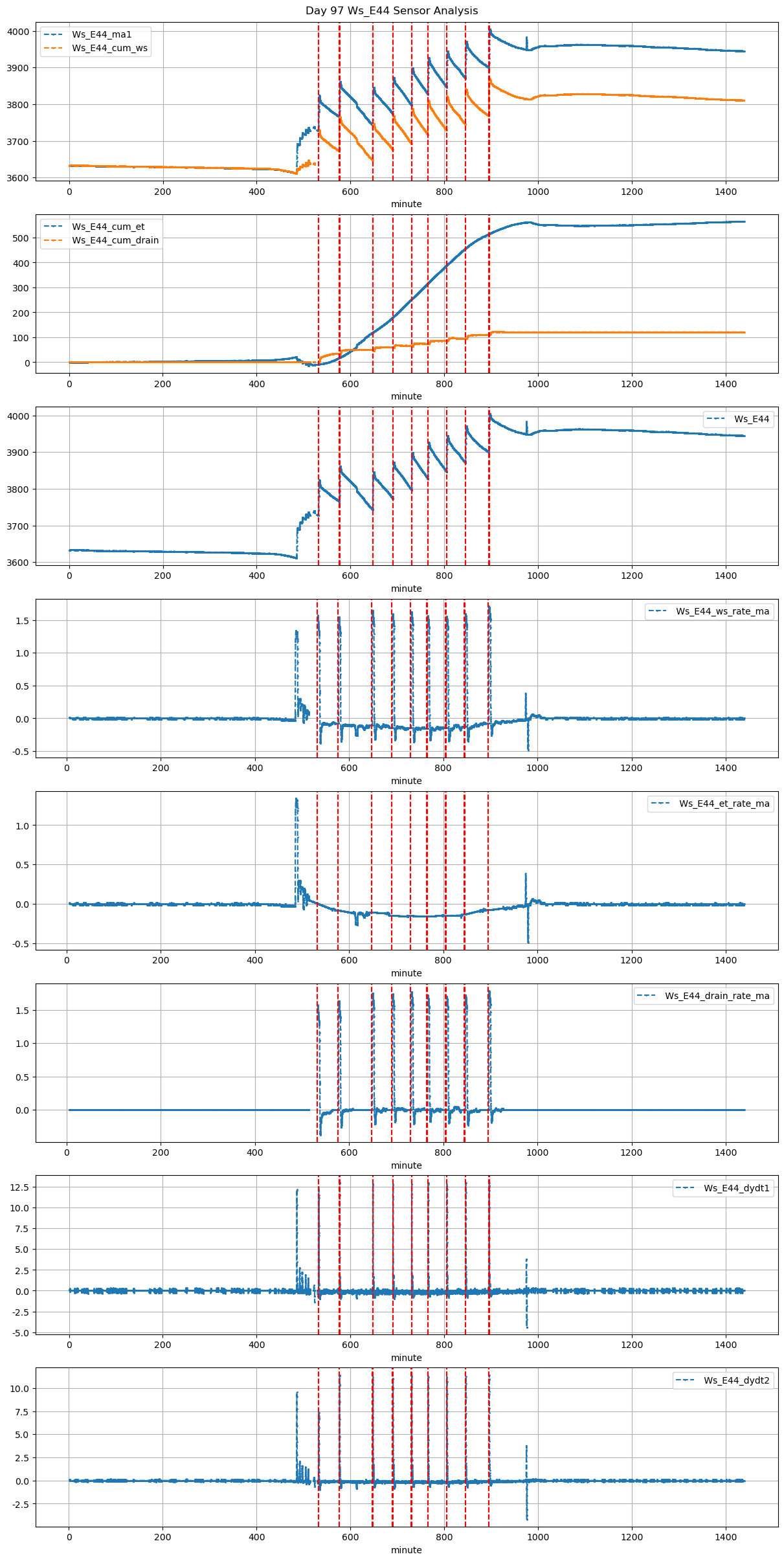

Figure figure_7.png

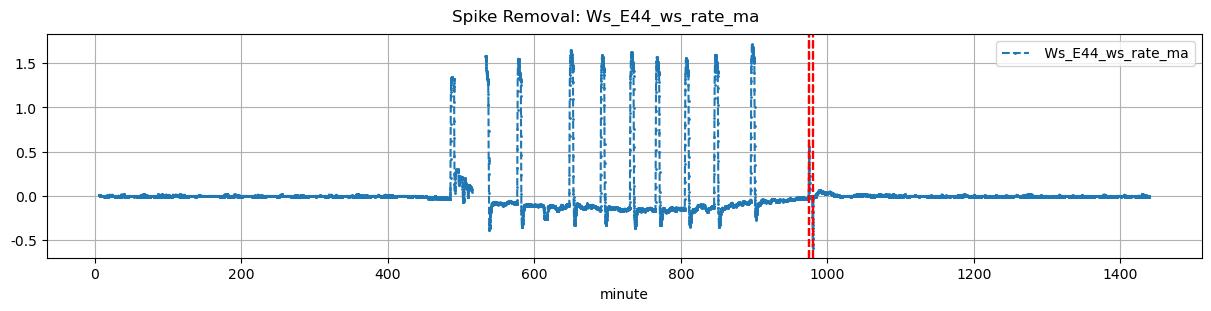

Figure figure_6.png

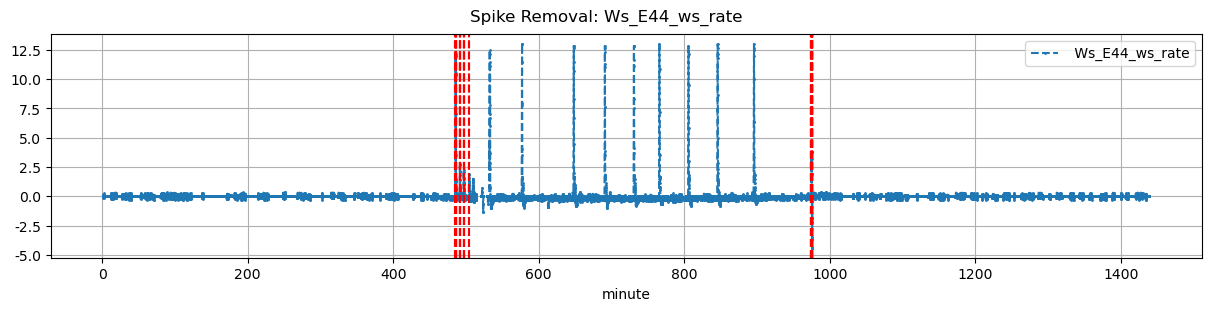

Figure figure_5.png

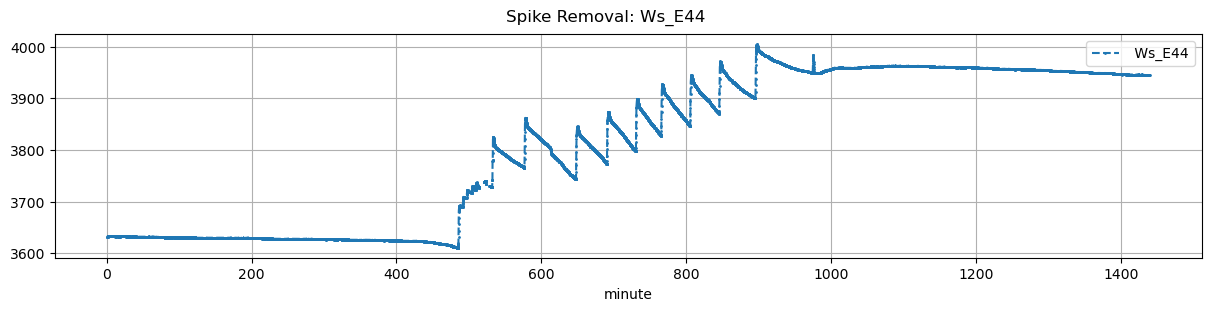

Figure figure_4.png
