Ws Sensor Analysis Report - Day 101

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 186.53 L
Avg Total Drain Amount: 19.64 L
Avg In-Fertigation Drain Amount: 3.06 L
Avg Post-Fertigation Drain Amount: 16.58 L
Avg Drainage Rate: 10.53%

Detail Section

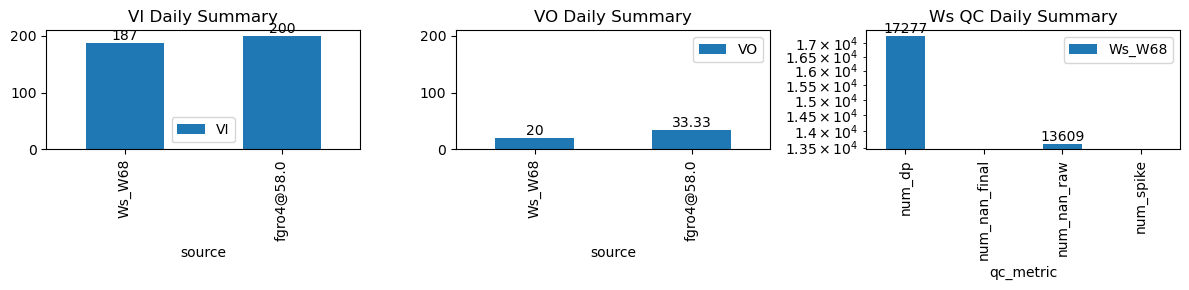

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 186.53 L
Total Drain Amount: 19.64 L
In-Fertigation Drain Amount: 3.06 L
Post-Fertigation Drain Amount: 16.58 L
Drainage Rate: 10.53%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,277	13,609	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-01-15 08:05:00+08:00	101	485	Ws_W68	0.453193	30	485.0	485.416667	485.72	490.000000	4756.000000	4837.000000	43	-0.012484	0.000000	-0.014799	0.123500	0.376744	16.200000	True	25.0	256.8	20.554000	0.000000	0.000000	0.000000	360	1246	-0.024887	NaN
2026-01-15 09:45:00+08:00	101	585	Ws_W68	0.453193	30	585.0	585.500000	585.72	586.666667	4775.600000	4879.450000	43	-0.127143	-0.165185	-0.140693	0.383792	0.483023	20.770000	True	30.0	56.8	20.770000	0.000000	2.628476	2.628476	1680	61	-0.058699	4866.307618
2026-01-15 10:40:00+08:00	101	640	Ws_W68	0.453193	30	640.0	640.416667	640.72	641.750000	4781.433333	4882.375000	43	-0.161177	-0.215852	-0.183693	0.353750	0.469496	20.188333	True	25.0	61.8	20.554000	0.400000	2.644860	3.044860	1155	66	-0.064003	4869.150701
2026-01-15 11:30:00+08:00	101	690	Ws_W68	0.453193	30	690.0	690.500000	690.72	692.000000	4774.000000	4873.625000	43	-0.163494	-0.212788	-0.190473	0.337938	0.463372	19.925000	True	30.0	76.8	20.554000	0.600000	2.170645	2.770645	994	81	-0.059216	4862.771773
2026-01-15 12:15:00+08:00	101	735	Ws_W68	0.453193	30	735.0	735.416667	735.72	736.916667	4773.150000	4874.166667	43	-0.181818	-0.225370	-0.199957	0.332250	0.469845	20.203333	True	25.0	71.8	20.554000	0.400000	2.117257	2.517257	590	76	-0.059662	4863.580383
2026-01-15 12:55:00+08:00	101	775	Ws_W68	0.453193	30	775.0	775.500000	775.72	776.750000	4778.000000	4876.700000	43	-0.201945	-0.228901	-0.201243	0.352500	0.459070	19.740000	True	30.0	61.8	20.554000	0.562411	1.124822	1.687233	330	66	-0.054420	4871.075889
2026-01-15 13:35:00+08:00	101	815	Ws_W68	0.453193	30	815.0	815.500000	815.72	817.000000	4782.000000	4883.000000	43	-0.199095	-0.244630	-0.188926	0.349583	0.469767	20.200000	True	30.0	76.8	20.554000	0.400000	2.037712	2.437712	714	81	-0.059507	4872.811442
2026-01-15 14:20:00+08:00	101	860	Ws_W68	0.453193	30	860.0	860.500000	860.72	861.750000	4777.000000	4876.375000	43	-0.168898	-0.191008	-0.120012	0.361875	0.462209	19.875000	True	30.0	61.8	20.554000	0.700000	1.427379	2.127379	1020	356	-0.043205	4869.238104
2026-01-15 15:05:00+08:00	101	905	Ws_W68	0.453193	30	905.0	905.416667	905.72	906.833333	4797.228571	4906.625000	43	-0.117894	-0.149630	-0.083454	0.359375	0.508821	21.879286	True	25.0	66.8	21.879286	0.000000	2.429781	2.429781	910	71	-0.060317	4894.476097

Figures - Ws_W68

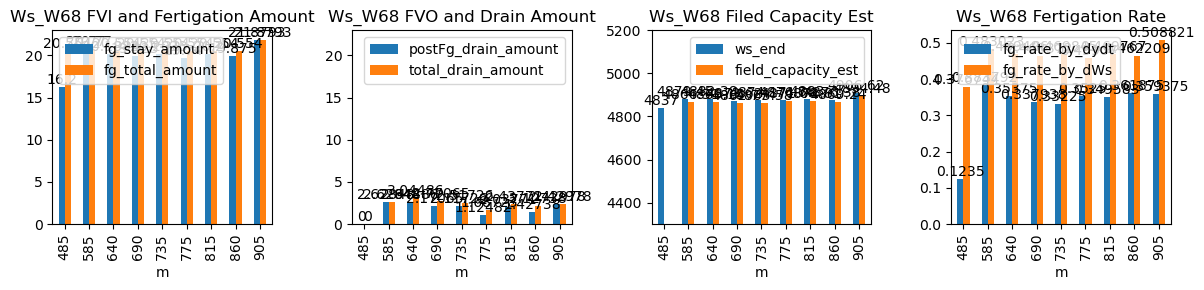

Figure figure_7.png

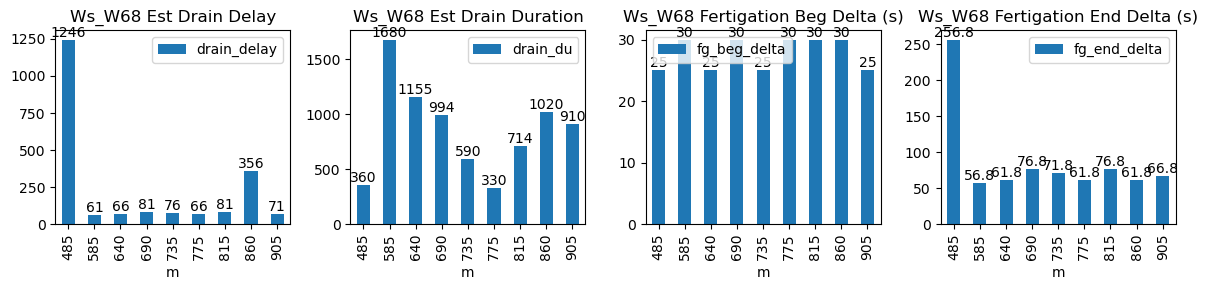

Figure figure_6.png

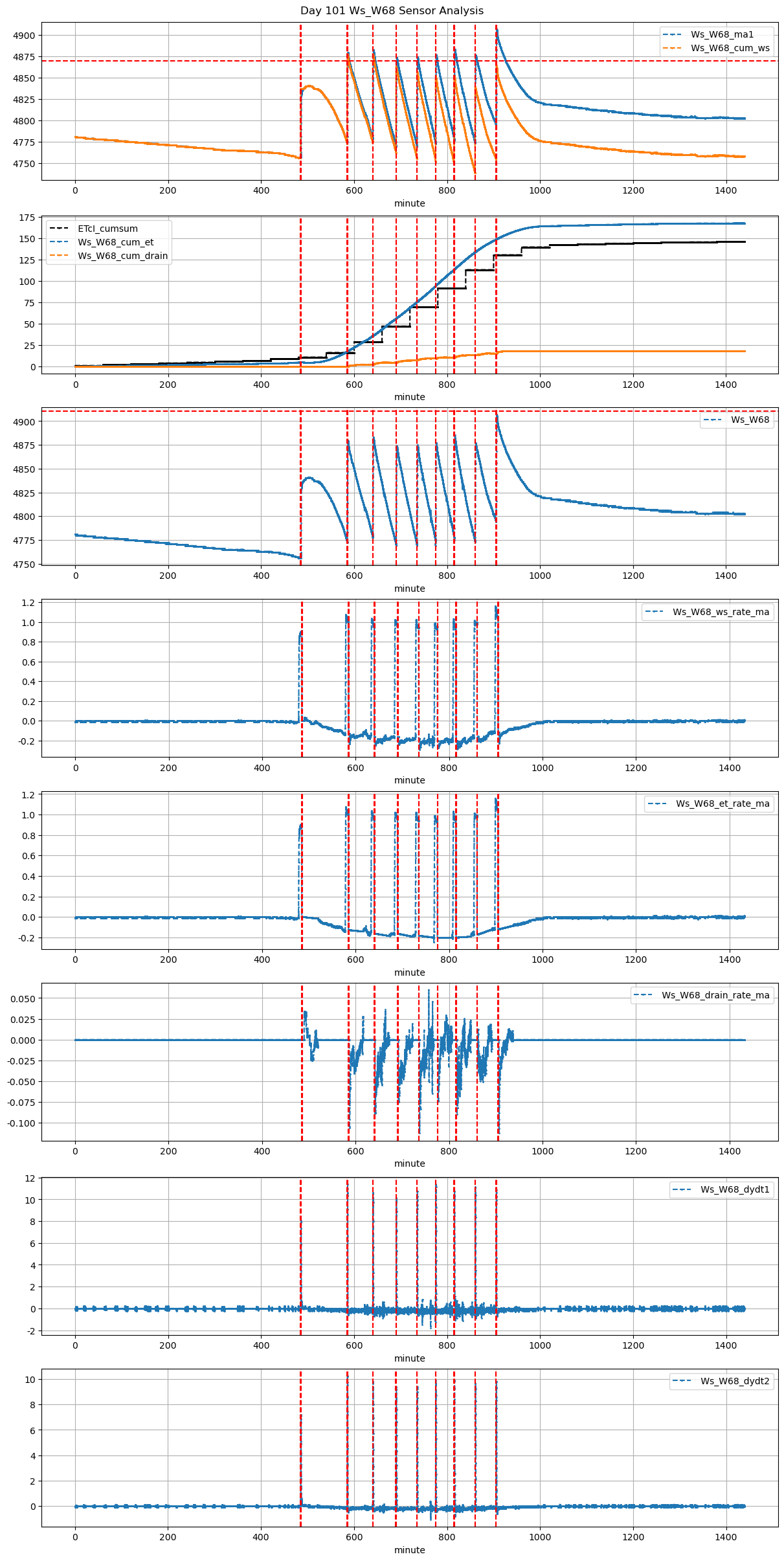

Figure figure_5.png

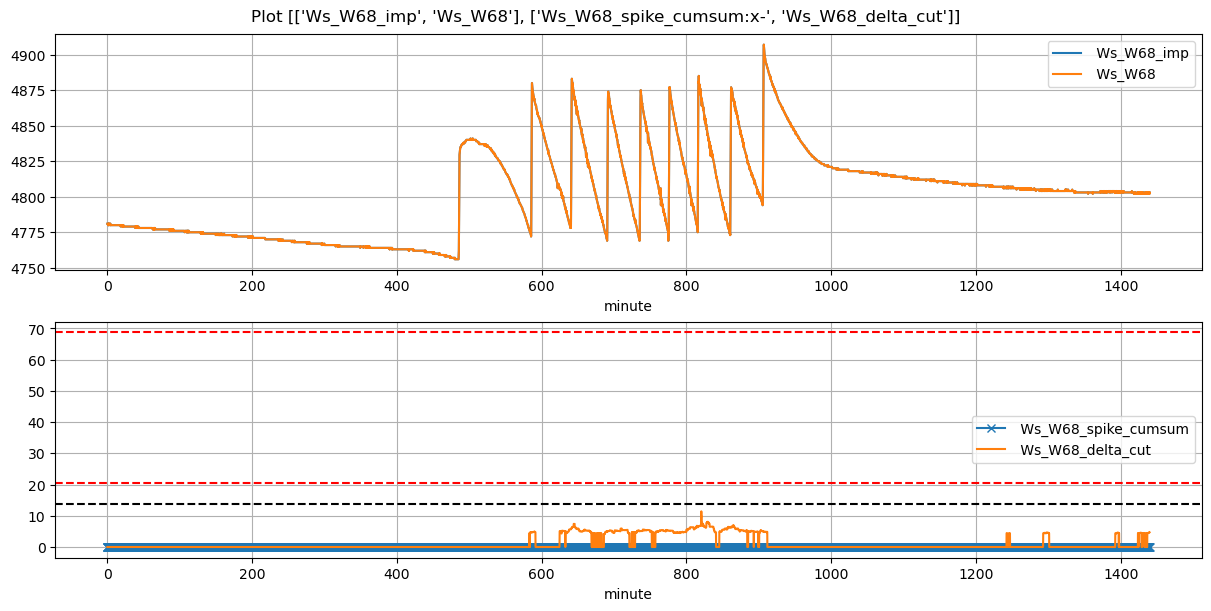

Figure figure_4.png
