Ws Sensor Analysis Report - Day 138

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 10.0
Avg Fertigation Amount: 304.38 L
Avg Total Drain Amount: 5.50 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 5.50 L
Avg Drainage Rate: 1.81%

Detail Section

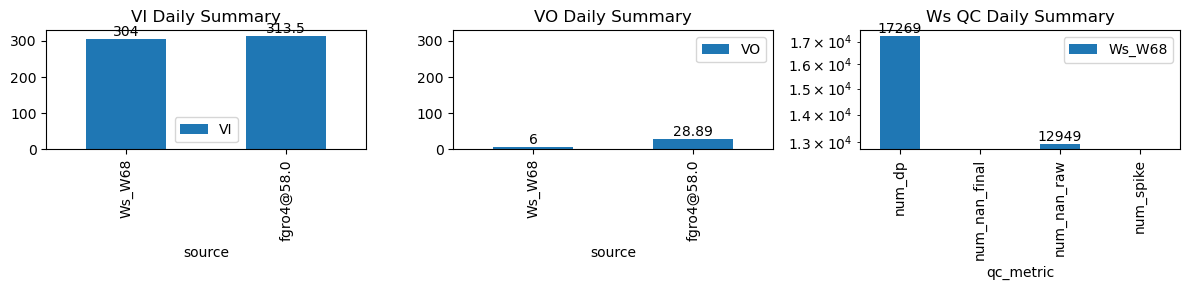

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 10
Number of Fertigation Events detected: 10
Total Fertigation Amount: 304.38 L
Total Drain Amount: 5.50 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 5.50 L
Drainage Rate: 1.81%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,269	12,949	0	0	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-02-21 08:10:00+08:00	138	490	Ws_W68	0.600438	30	490.0	490.166667	491.08	494.500000	4778.000000	4917.0	65	-0.051061	-0.043734	-0.109218	0.232821	0.427692	27.800000	True	10.0	205.2	30.225	0.0	0.000000	0.000000	185	1610	-0.015871	NaN
2026-02-21 09:50:00+08:00	138	590	Ws_W68	0.600438	30	590.0	590.250000	591.08	592.500000	4775.650000	4930.4	65	-0.204903	-0.247299	-0.219907	0.360923	0.476154	30.950000	True	15.0	85.2	30.950	0.0	0.000000	0.000000	405	90	-0.071911	NaN
2026-02-21 10:35:00+08:00	138	635	Ws_W68	0.600438	30	635.0	635.250000	636.08	636.833333	4818.085714	4968.0	65	-0.228355	-0.287016	-0.254588	0.387077	0.461275	29.982857	True	15.0	45.2	30.225	0.0	0.000000	0.000000	395	50	-0.114975	NaN
2026-02-21 11:20:00+08:00	138	680	Ws_W68	0.600438	30	680.0	680.250000	681.08	681.833333	4830.300000	4980.7	65	-0.233733	-0.280444	-0.269455	0.387923	0.462769	30.080000	True	15.0	45.2	30.225	0.0	0.000000	0.000000	320	50	-0.076035	NaN
2026-02-21 12:10:00+08:00	138	730	Ws_W68	0.600438	30	730.0	730.250000	731.08	732.083333	4819.200000	4968.1	65	-0.278532	-0.274074	-0.279352	0.363538	0.458154	29.780000	True	15.0	60.2	30.225	0.0	0.000000	0.000000	100	65	-0.037639	NaN
2026-02-21 12:55:00+08:00	138	775	Ws_W68	0.600438	30	775.0	775.250000	776.08	777.000000	4828.300000	4977.0	65	-0.270974	-0.294183	0.000000	0.377385	0.457538	29.740000	True	15.0	55.2	30.225	0.0	0.000000	0.000000	390	1240	-0.217838	NaN
2026-02-21 13:30:00+08:00	138	810	Ws_W68	0.600438	30	810.0	810.250000	811.08	811.833333	4869.200000	5018.9	65	-0.185207	-0.278261	-0.256420	0.394205	0.460615	29.940000	True	15.0	45.2	30.225	0.0	0.000000	0.000000	1375	50	-0.097023	NaN
2026-02-21 14:15:00+08:00	138	855	Ws_W68	0.600438	30	855.0	855.250000	856.08	856.916667	4876.720000	5028.3	65	-0.253095	-0.248645	-0.207284	0.379615	0.466400	30.316000	True	15.0	50.2	30.316	0.0	0.000000	0.000000	65	55	-0.034621	NaN
2026-02-21 15:00:00+08:00	138	900	Ws_W68	0.600438	30	900.0	900.250000	901.08	901.833333	4910.000000	5063.5	65	-0.202310	-0.204574	-0.140509	0.382308	0.472308	30.700000	True	15.0	45.2	30.700	0.0	2.413408	2.413408	125	50	-0.047679	5051.432960
2026-02-21 15:50:00+08:00	138	950	Ws_W68	0.600438	30	950.0	950.250000	951.08	951.750000	4960.575000	5115.9	65	-0.133427	-0.151127	-0.112854	0.396615	0.477923	31.065000	True	15.0	40.2	31.065	0.0	3.090991	3.090991	204	45	-0.080157	5100.445043

Figures - Ws_W68

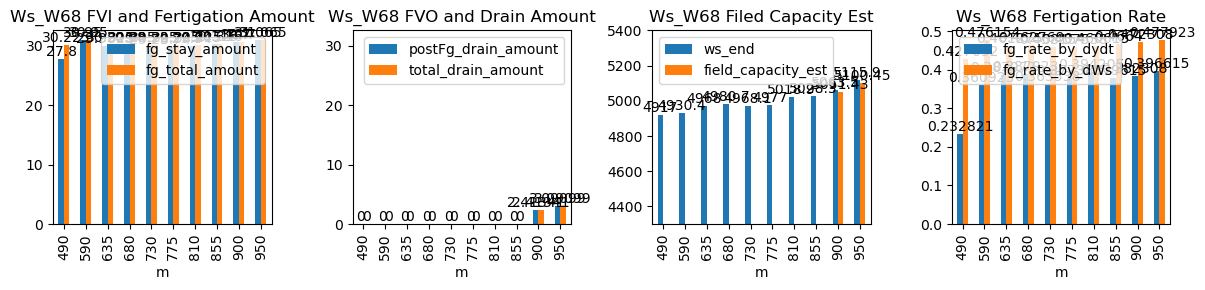

Figure figure_7.png

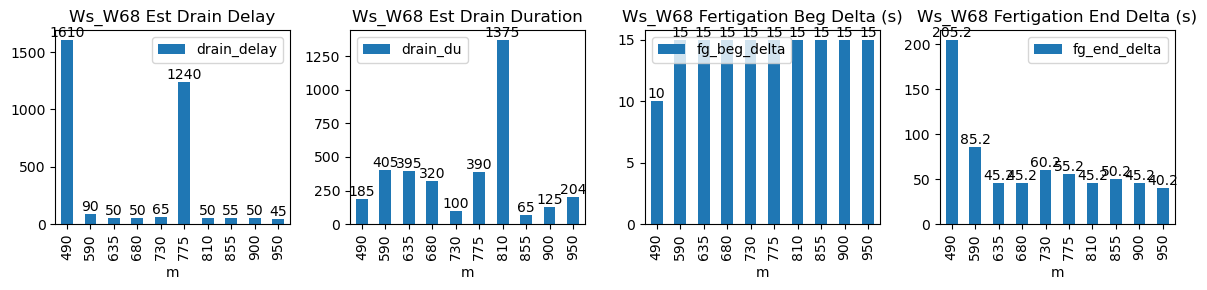

Figure figure_6.png

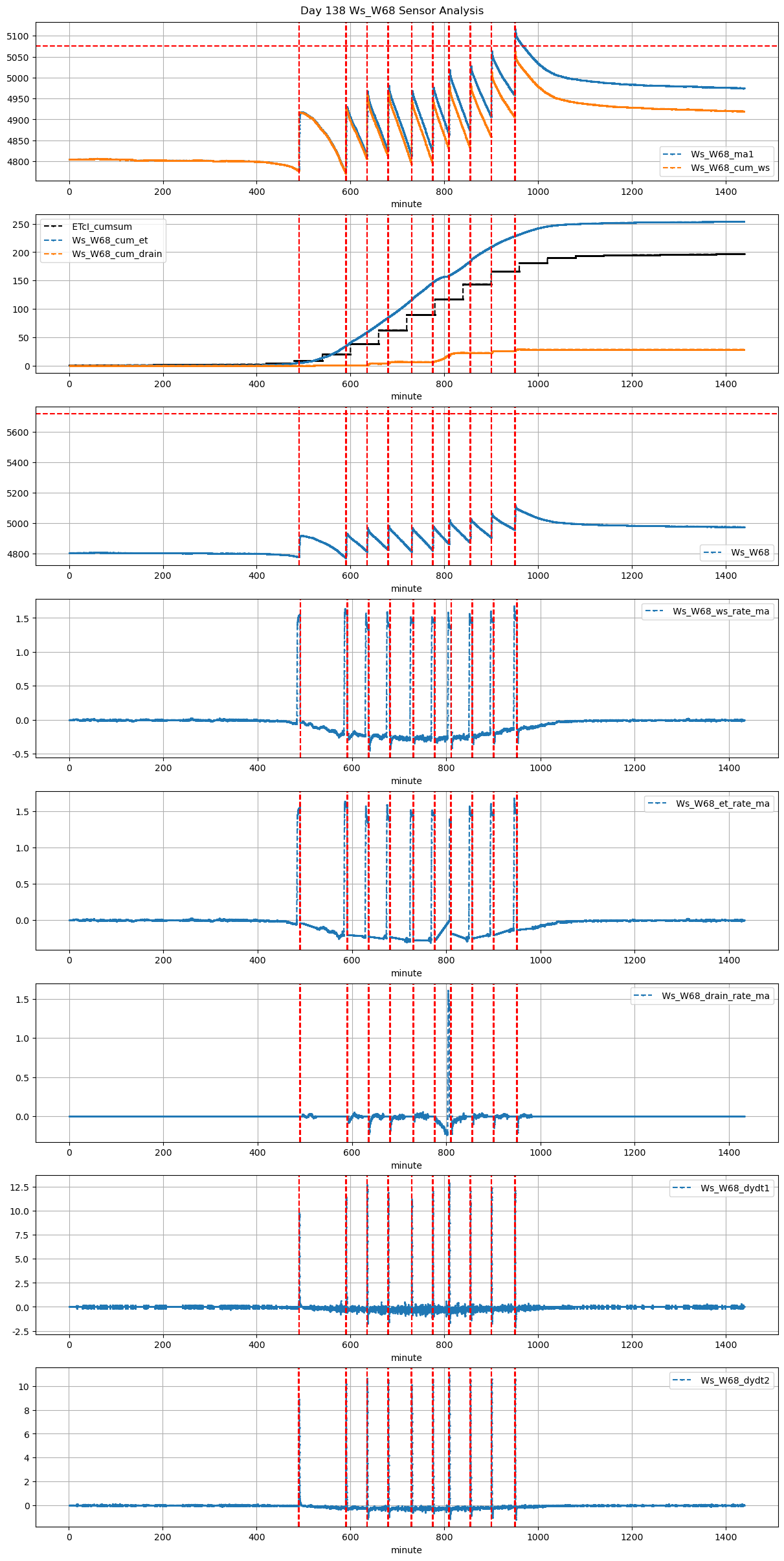

Figure figure_5.png

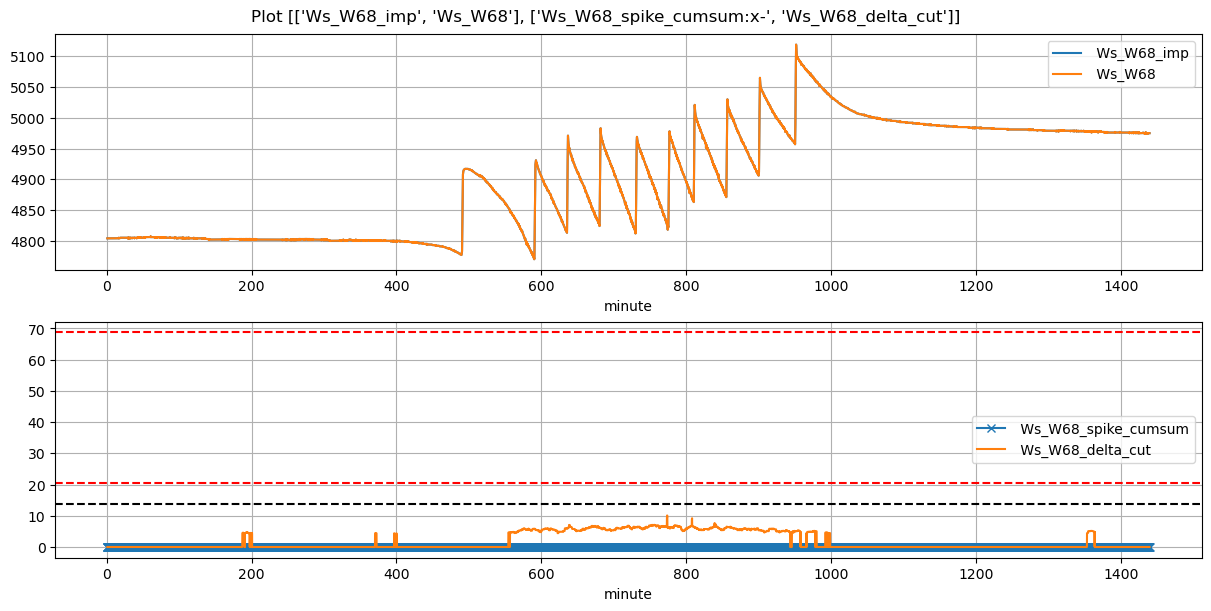

Figure figure_4.png
