Ws Sensor Analysis Report - Day 139

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 268.95 L
Avg Total Drain Amount: 2.89 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 2.89 L
Avg Drainage Rate: 1.07%

Detail Section

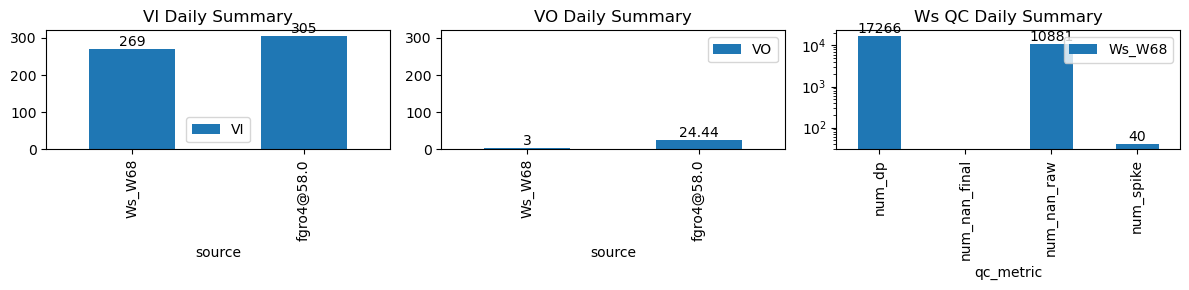

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 268.95 L
Total Drain Amount: 2.89 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 2.89 L
Drainage Rate: 1.07%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,266	10,881	0	40	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-02-22 08:10:00+08:00	139	490	Ws_W68	0.702435	30	490.0	490.250000	491.07	495.500000	4924.603571	5062.500000	64	-0.050156	-0.028912	-0.086428	0.207167	0.430926	27.579286	True	15.0	265.8	29.760000	0.0	0.00000	0.00000	250	930	-0.031245	NaN
2026-02-22 09:50:00+08:00	139	590	Ws_W68	0.702435	30	590.0	590.250000	591.07	592.250000	4952.766667	5102.200000	64	-0.165460	-0.176091	-0.215494	0.355500	0.466979	29.886667	True	15.0	70.8	29.886667	0.0	0.00000	0.00000	229	75	-0.033946	NaN
2026-02-22 10:45:00+08:00	139	645	Ws_W68	0.702435	30	645.0	645.333333	646.07	646.916667	4977.000000	5126.233333	64	-0.233198	-0.271667	0.000000	0.386833	0.466354	29.846667	True	20.0	50.8	29.846667	0.0	0.00000	0.00000	324	1300	-0.180520	NaN
2026-02-22 11:20:00+08:00	139	680	Ws_W68	0.702435	30	680.0	680.333333	681.07	681.750000	5025.650000	5175.100000	64	-0.153083	-0.260648	-0.242918	0.401417	0.467031	29.890000	True	20.0	40.8	29.890000	0.0	0.00000	0.00000	1164	45	-0.119900	NaN
2026-02-22 12:15:00+08:00	139	735	Ws_W68	0.702435	30	735.0	735.333333	736.07	737.083333	5004.866667	5150.200000	64	-0.258583	-0.279856	-0.258505	0.369667	0.454167	29.066667	True	20.0	60.8	29.760000	0.0	0.00000	0.00000	135	80	-0.052623	NaN
2026-02-22 13:00:00+08:00	139	780	Ws_W68	0.702435	30	780.0	780.333333	781.07	782.000000	5017.800000	5161.460000	64	-0.252575	-0.288261	-0.252109	0.384583	0.448937	28.732000	True	20.0	55.8	29.760000	0.0	0.00000	0.00000	169	60	-0.081463	NaN
2026-02-22 13:50:00+08:00	139	830	Ws_W68	0.702435	30	830.0	830.333333	831.07	832.166667	5014.000000	5160.800000	64	-0.233708	-0.217037	-0.192191	0.369333	0.458750	29.360000	True	20.0	65.8	29.760000	0.0	0.00000	0.00000	195	580	-0.053131	NaN
2026-02-22 14:35:00+08:00	139	875	Ws_W68	0.702435	30	875.0	875.333333	876.07	876.916667	5056.000000	5206.300000	64	-0.189045	-0.216286	-0.190782	0.394167	0.469688	30.060000	True	20.0	50.8	30.060000	0.0	0.00000	0.00000	69	55	-0.078639	NaN
2026-02-22 15:20:00+08:00	139	920	Ws_W68	0.702435	30	920.0	920.333333	921.07	921.750000	5103.866667	5255.000000	64	-0.181461	-0.164496	-0.109969	0.401000	0.472292	30.226667	True	20.0	40.8	30.226667	0.0	2.88715	2.88715	144	45	-0.099216	5240.56425

Figures - Ws_W68

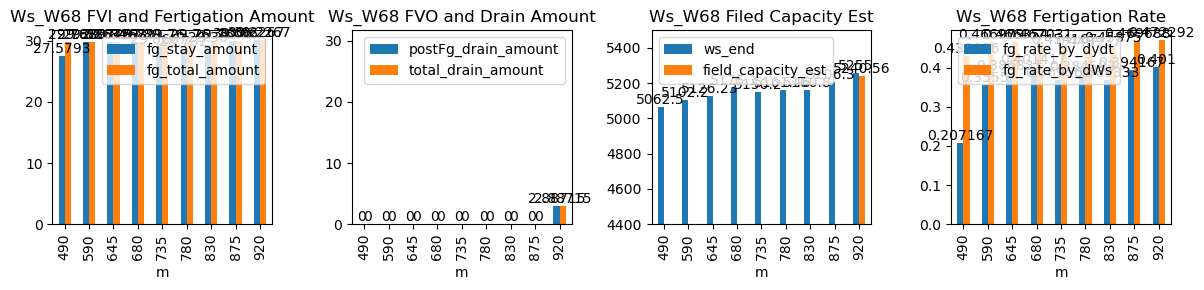

Figure figure_7.png

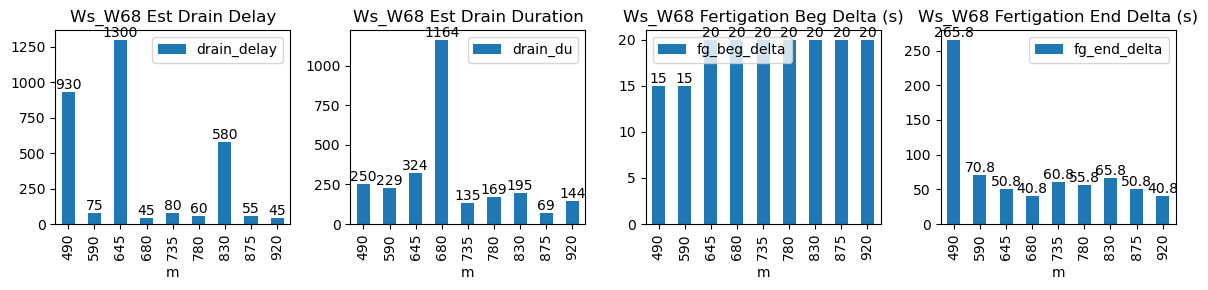

Figure figure_6.png

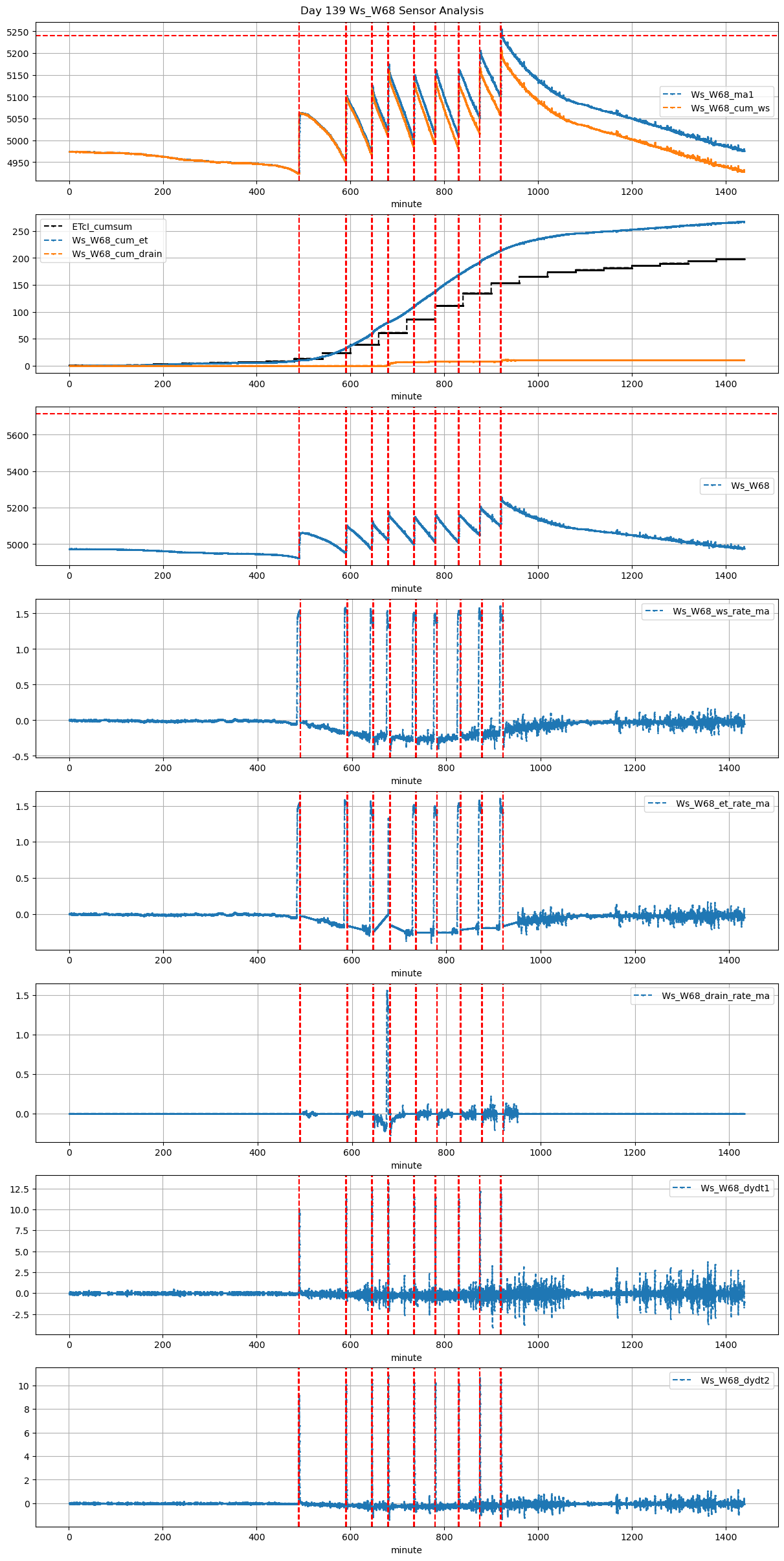

Figure figure_5.png

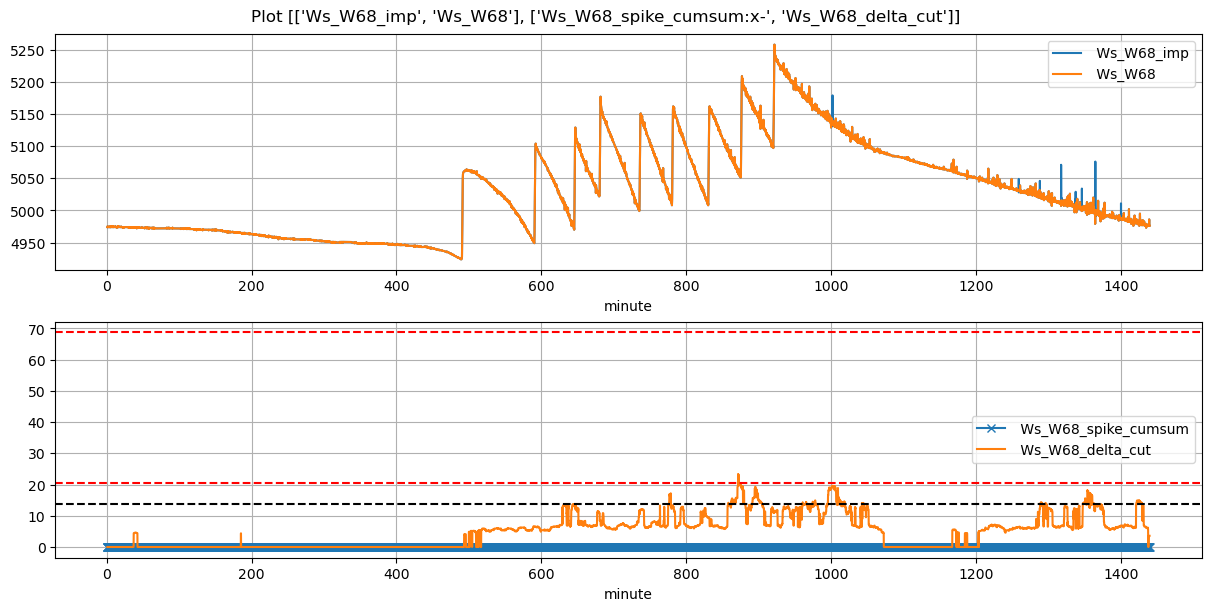

Figure figure_4.png
