Ws Sensor Analysis Report - Day 140

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 243.91 L
Avg Total Drain Amount: 3.17 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 3.17 L
Avg Drainage Rate: 1.30%

Detail Section

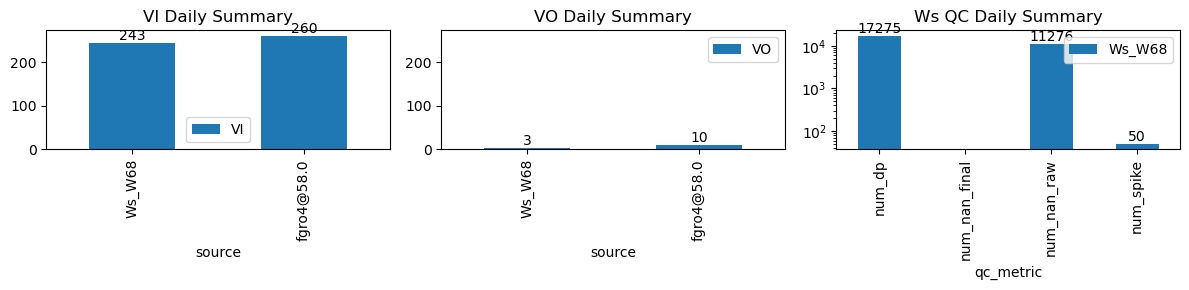

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 243.91 L
Total Drain Amount: 3.17 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 3.17 L
Drainage Rate: 1.30%

Ws Cleaning Summary Table - Ws_W68

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W68	17,275	11,276	0	50	0.00

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-02-23 08:10:00+08:00	140	490	Ws_W68	0.593014	30	490.0	490.250000	491.07	492.583333	4860.00	4994.0	64	-0.048493	0.000000	-0.053472	0.287083	0.418750	26.800	True	15.0	90.8	30.336	0.0	0.000000	0.000000	15	265	-0.801955	NaN
2026-02-23 09:45:00+08:00	140	585	Ws_W68	0.593014	30	585.0	585.333333	586.07	590.000000	4906.00	5045.0	64	-0.165577	-0.074769	-0.165185	0.232583	0.434375	27.800	True	20.0	235.8	30.336	0.0	0.000000	0.000000	20	245	-0.292538	NaN
2026-02-23 11:05:00+08:00	140	665	Ws_W68	0.593014	30	665.0	665.333333	666.07	667.166667	4904.00	5041.0	64	-0.183658	-0.175667	-0.253944	0.354117	0.428125	27.400	True	20.0	65.8	30.336	0.0	0.000000	0.000000	15	735	-0.284302	NaN
2026-02-23 11:50:00+08:00	140	710	Ws_W68	0.593014	30	710.0	710.333333	711.07	712.333333	4940.20	5082.0	64	-0.240205	-0.181782	-0.213639	0.350833	0.443125	28.360	True	20.0	75.8	30.336	0.0	0.000000	0.000000	15	1275	-0.622111	NaN
2026-02-23 12:40:00+08:00	140	760	Ws_W68	0.593014	30	760.0	760.333333	761.07	762.583333	4977.00	5124.0	64	-0.185427	-0.184965	-0.115694	0.339750	0.459375	29.400	True	20.0	90.8	30.336	0.0	0.000000	0.000000	15	680	-0.385277	NaN
2026-02-23 13:45:00+08:00	140	825	Ws_W68	0.593014	30	825.0	825.333333	826.07	827.083333	5016.90	5164.0	64	-0.172128	-0.174167	-0.138299	0.356333	0.459688	29.420	True	20.0	60.8	30.336	0.0	0.000000	0.000000	15	690	-0.563245	NaN
2026-02-23 14:55:00+08:00	140	895	Ws_W68	0.593014	30	895.0	895.333333	896.07	897.333333	5040.00	5195.0	64	-0.163983	-0.181898	-0.094537	0.347917	0.484375	31.000	True	20.0	75.8	31.000	0.0	0.000000	0.000000	9	85	-0.788672	NaN
2026-02-23 15:50:00+08:00	140	950	Ws_W68	0.593014	30	950.0	950.333333	951.07	951.916667	5108.52	5263.0	64	-0.083969	-0.145046	-0.059722	0.377875	0.482750	30.896	True	20.0	50.8	30.896	0.0	3.167298	3.167298	129	60	-0.689146	NaN

Figures - Ws_W68

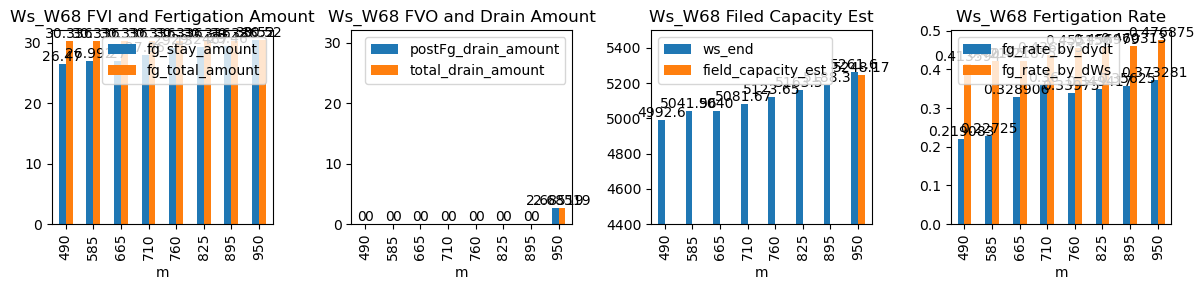

Figure figure_7.png

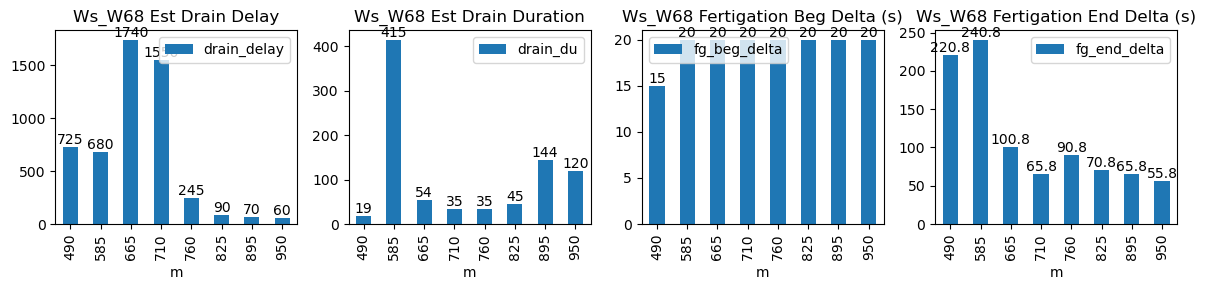

Figure figure_6.png

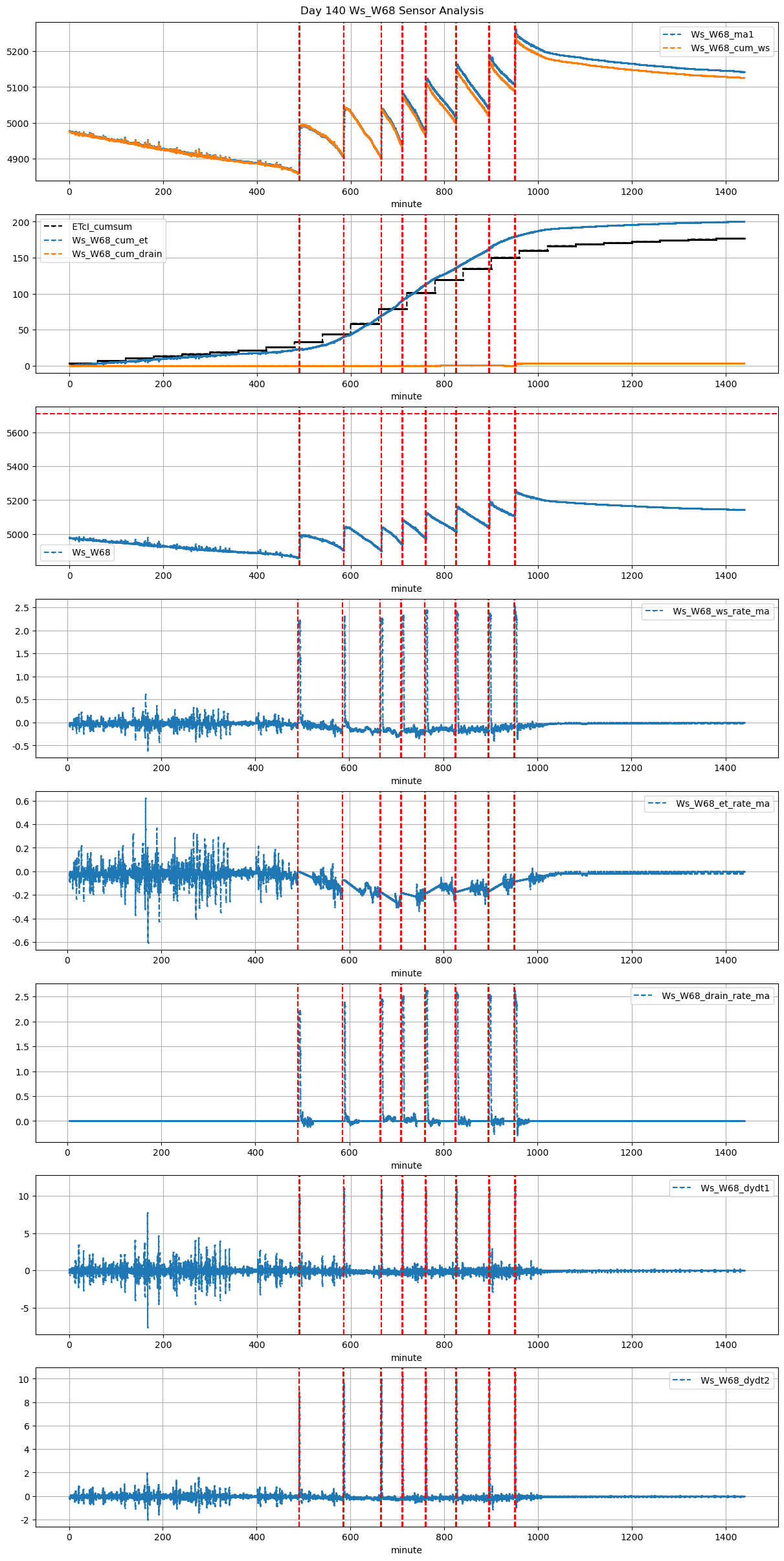

Figure figure_5.png

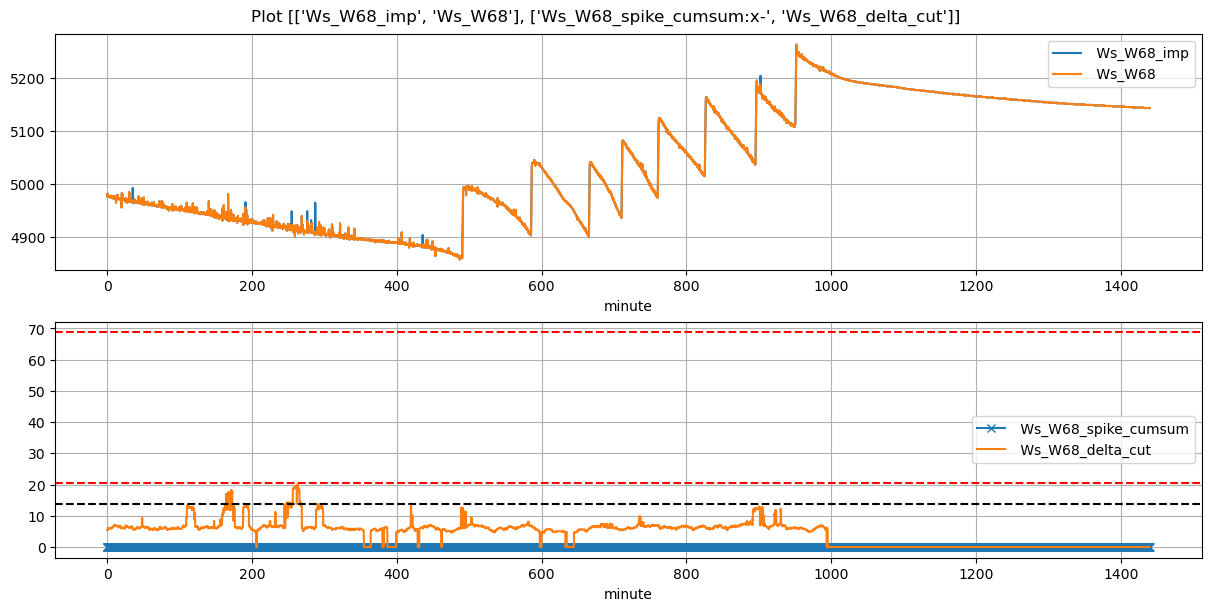

Figure figure_4.png
