Ws Sensor Analysis Report - Day 70

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 140.00 L
Avg Total Drain Amount: 15.91 L
Avg In-Fertigation Drain Amount: 6.90 L
Avg Post-Fertigation Drain Amount: 9.01 L
Avg Drainage Rate: 11.36%

Detail Section

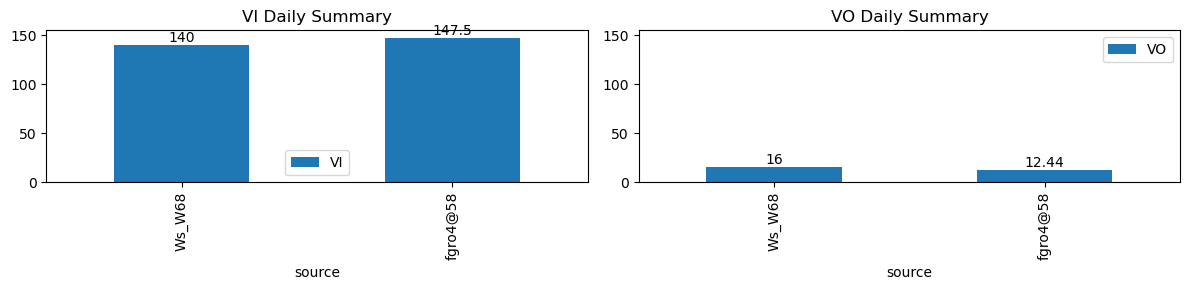

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 140.00 L
Total Drain Amount: 15.91 L
In-Fertigation Drain Amount: 6.90 L
Post-Fertigation Drain Amount: 9.01 L
Drainage Rate: 11.36%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17280	179	13984	179	0

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-15 09:21:09+08:00	70	561	Ws_W68	0.358537	30	561.15	561.500000	561.82	562.916667	NaN	NaN	NaN	3902.0	3991.0	40	-0.070708	-0.050278	-0.107656	0.32900	0.4450	17.8	21.0	65.8	20.0	2.2	-0.565841	NaN	1.634159
2025-12-15 10:01:09+08:00	70	601	Ws_W68	0.358537	30	601.15	601.500000	601.82	602.916667	NaN	NaN	NaN	3956.5	4054.0	40	-0.106590	-0.133750	-0.083704	0.34400	0.4875	19.5	21.0	65.8	20.0	0.5	1.345072	NaN	1.845072
2025-12-15 11:00:00+08:00	70	660	Ws_W68	0.358537	30	660.00	660.250000	660.67	661.750000	NaN	NaN	NaN	3976.0	4072.0	40	-0.127825	-0.166944	-0.131345	0.34500	0.4800	19.2	15.0	64.8	20.0	0.8	1.158707	NaN	1.958707
2025-12-15 11:56:09+08:00	70	716	Ws_W68	0.358537	30	716.15	716.500000	716.82	718.000000	NaN	NaN	NaN	3983.0	4077.0	40	-0.125315	-0.181806	-0.130093	0.34050	0.4700	18.8	21.0	70.8	20.0	1.2	2.268333	NaN	3.468333
2025-12-15 12:45:00+08:00	70	765	Ws_W68	0.358537	30	765.00	765.333333	765.67	766.833333	NaN	NaN	NaN	3999.0	4094.0	40	-0.141008	-0.174861	-0.124722	0.33200	0.4750	19.0	20.0	69.8	20.0	1.0	1.883766	NaN	2.883766
2025-12-15 13:41:09+08:00	70	821	Ws_W68	0.358537	30	821.15	821.500000	821.82	823.000000	NaN	NaN	NaN	4002.0	4098.0	40	-0.128009	-0.121806	-0.112917	0.34450	0.4800	19.2	21.0	70.8	20.0	0.8	1.226531	NaN	2.026531
2025-12-15 14:35:00+08:00	70	875	Ws_W68	0.358537	30	875.00	875.333333	875.67	876.833333	NaN	NaN	NaN	4026.0	4124.0	40	-0.095198	-0.108056	-0.063056	0.35925	0.4900	19.6	20.0	69.8	20.0	0.4	1.693104	NaN	2.093104

Figures - Ws_W68

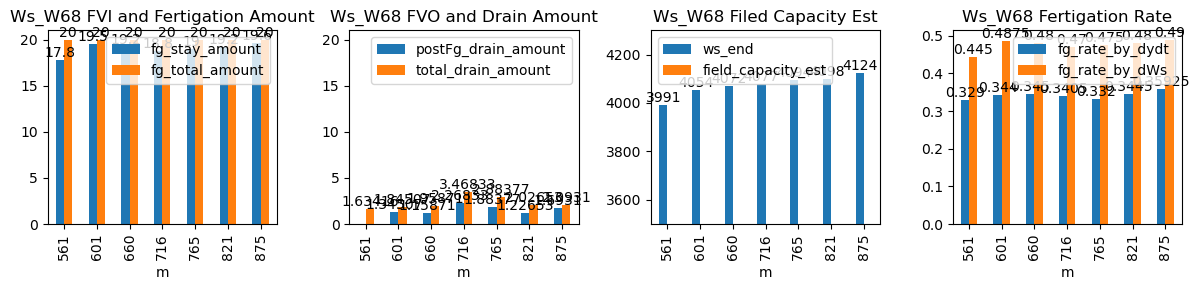

Figure figure_9.png

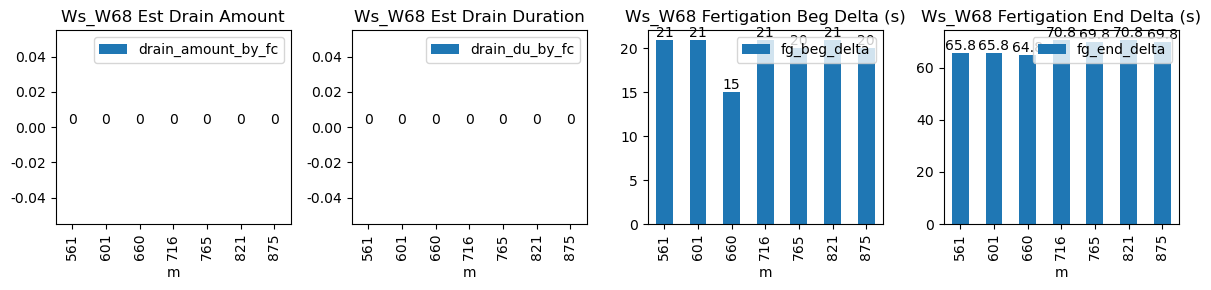

Figure figure_8.png

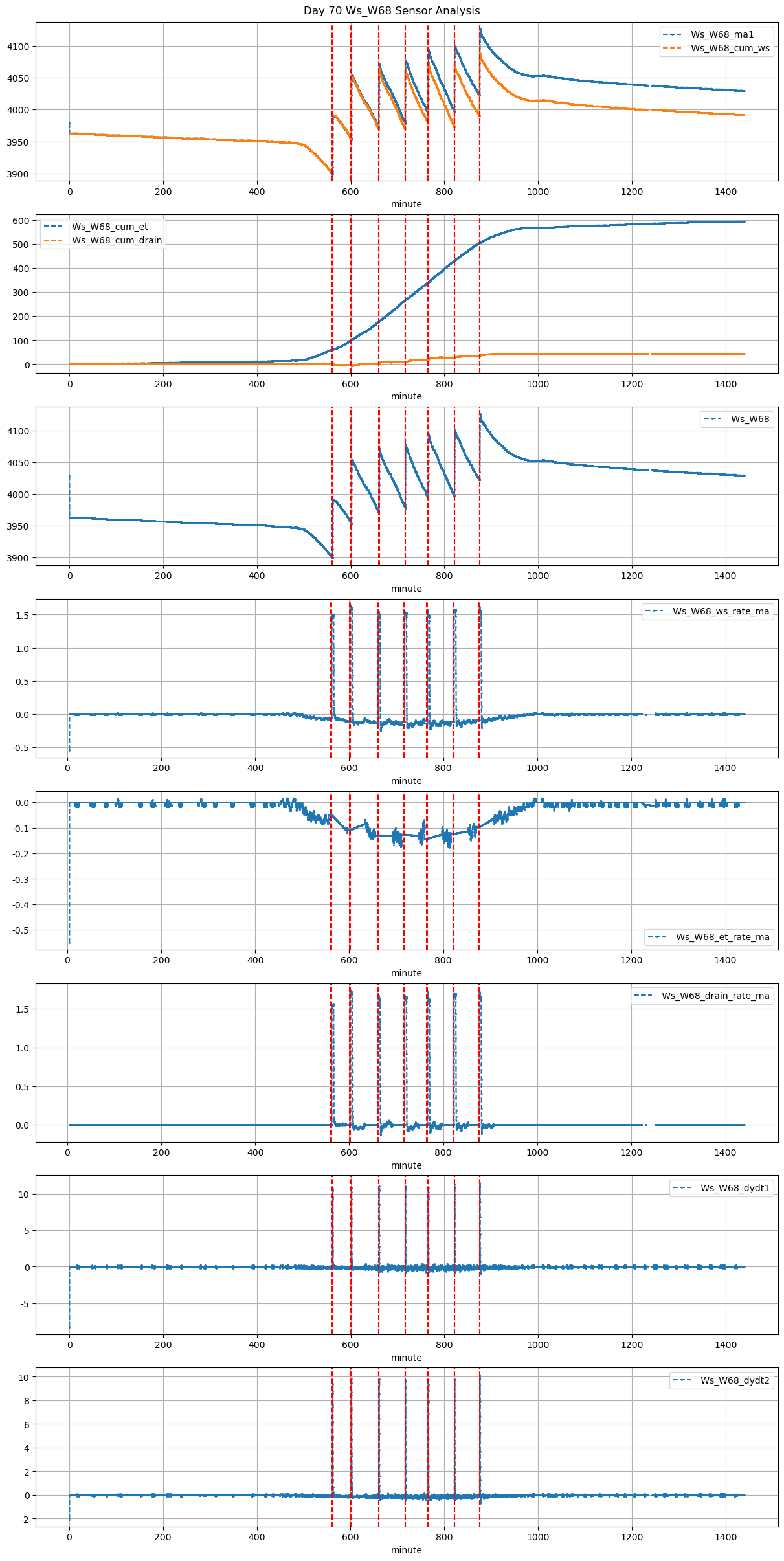

Figure figure_7.png

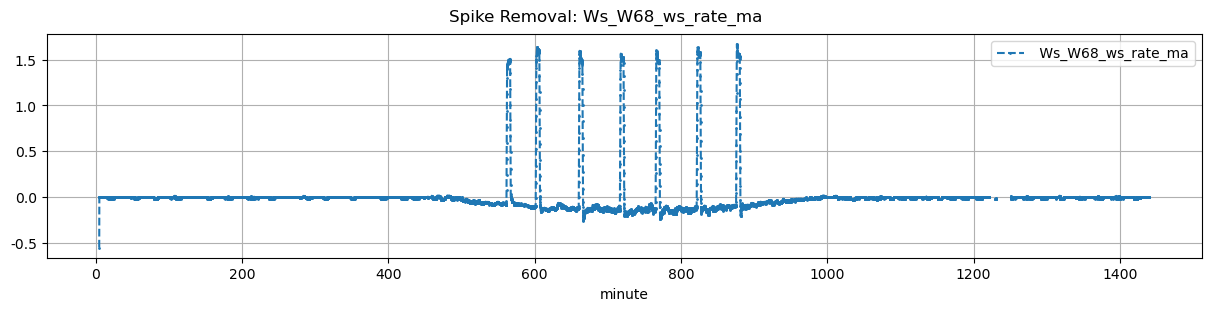

Figure figure_6.png

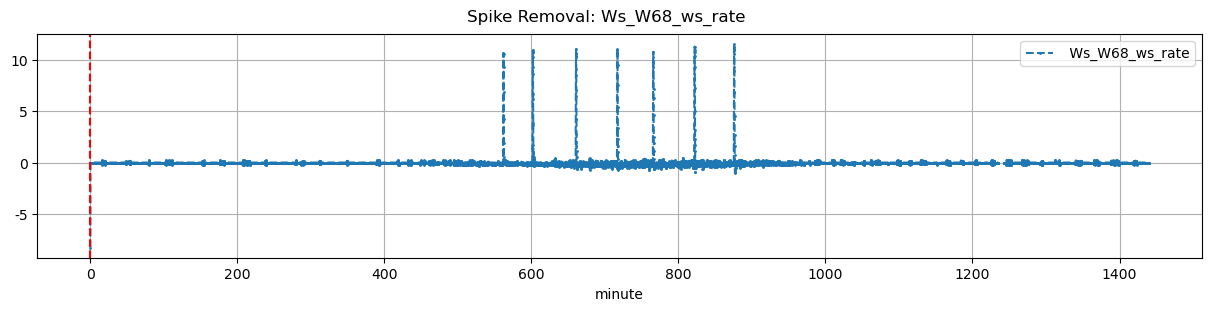

Figure figure_5.png

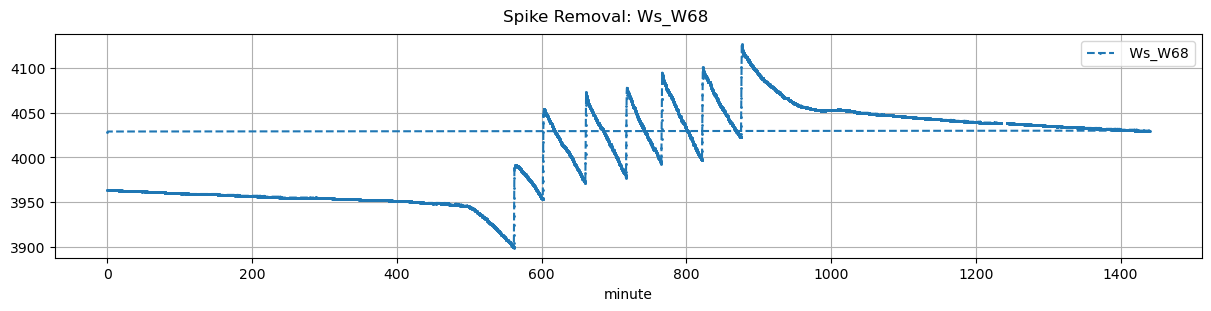

Figure figure_4.png
