Ws Sensor Analysis Report - Day 95

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 147.00 L
Avg Total Drain Amount: 34.83 L
Avg In-Fertigation Drain Amount: 15.84 L
Avg Post-Fertigation Drain Amount: 18.99 L
Avg Drainage Rate: 23.69%

Detail Section

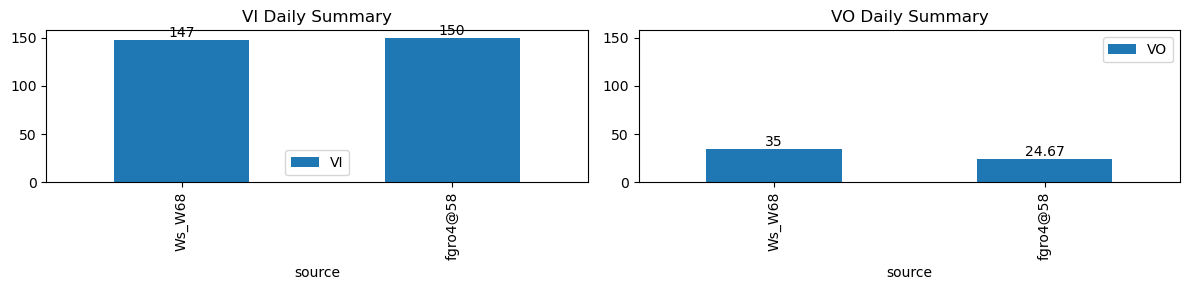

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 147.00 L
Total Drain Amount: 34.83 L
In-Fertigation Drain Amount: 15.84 L
Post-Fertigation Drain Amount: 18.99 L
Drainage Rate: 23.69%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17265	49	13710	48	0

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-09 10:05:00+08:00	95	605	Ws_W68	0.343962	30	605.0	605.333333	605.7	606.750000	NaN	NaN	NaN	4517.0	4606.0	42	-0.101585	-0.072500	0.000000	0.32875	0.423810	17.80	20.0	63.0	21.0	3.20	1.477801	NaN	4.677801
2026-01-09 10:40:00+08:00	95	640	Ws_W68	0.343962	30	640.0	640.333333	640.7	641.916667	NaN	NaN	NaN	4571.2	4668.0	42	-0.063701	-0.162778	-0.139468	0.33800	0.460952	19.36	20.0	73.0	21.0	1.64	3.759028	NaN	5.399028
2026-01-09 11:35:00+08:00	95	695	Ws_W68	0.343962	30	695.0	695.333333	695.7	696.916667	NaN	NaN	NaN	4580.0	4673.0	42	-0.126362	-0.167500	-0.164925	0.32100	0.442857	18.60	20.0	73.0	21.0	2.40	1.540529	NaN	3.940529
2026-01-09 12:25:00+08:00	95	745	Ws_W68	0.343962	30	745.0	745.333333	745.7	746.833333	NaN	NaN	NaN	4586.0	4676.0	42	-0.135358	-0.179722	-0.127569	0.32325	0.428571	18.00	20.0	68.0	21.0	3.00	3.001122	NaN	6.001122
2026-01-09 13:15:00+08:00	95	795	Ws_W68	0.343962	30	795.0	795.333333	795.7	796.833333	NaN	NaN	NaN	4589.0	4681.0	42	-0.154868	-0.182778	-0.140112	0.32500	0.438095	18.40	20.0	68.0	21.0	2.60	1.147633	NaN	3.747633
2026-01-09 14:00:00+08:00	95	840	Ws_W68	0.343962	30	840.0	840.333333	840.7	841.833333	NaN	NaN	NaN	4608.0	4705.0	42	-0.102731	-0.121806	-0.029236	0.34425	0.461905	19.40	20.0	68.0	21.0	1.60	3.347538	NaN	4.947538
2026-01-09 15:05:00+08:00	95	905	Ws_W68	0.343962	30	905.0	905.333333	905.7	906.750000	NaN	NaN	NaN	4641.0	4739.0	42	-0.024044	-0.099444	-0.050525	0.34800	0.466667	19.60	20.0	63.0	21.0	1.40	4.713217	4715.433915	6.113217

Figures - Ws_W68

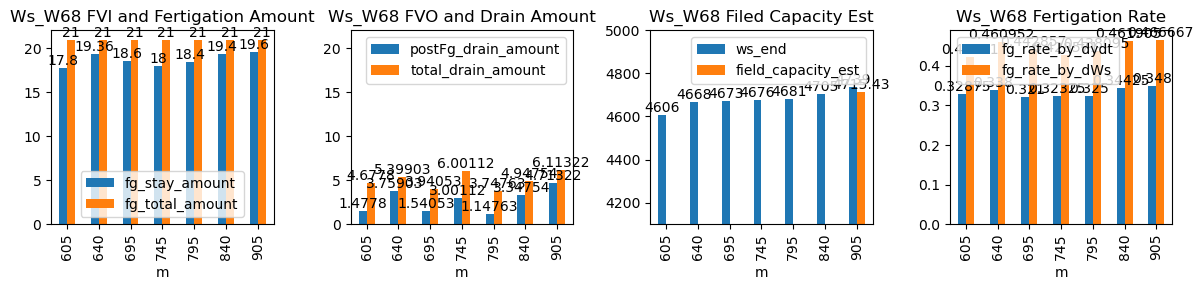

Figure figure_9.png

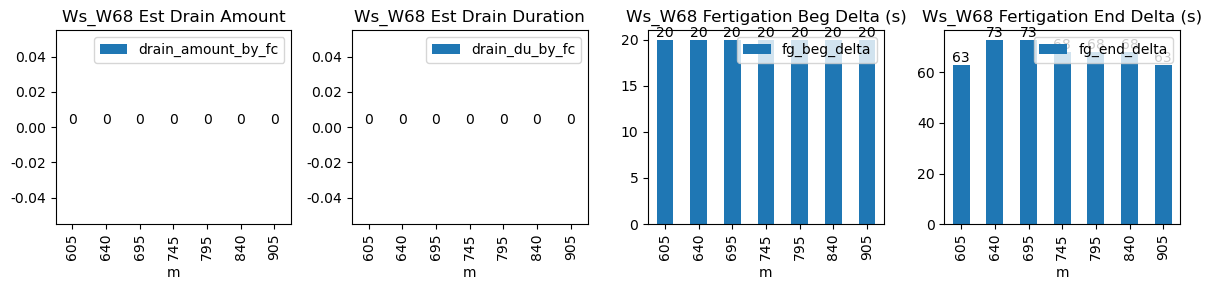

Figure figure_8.png

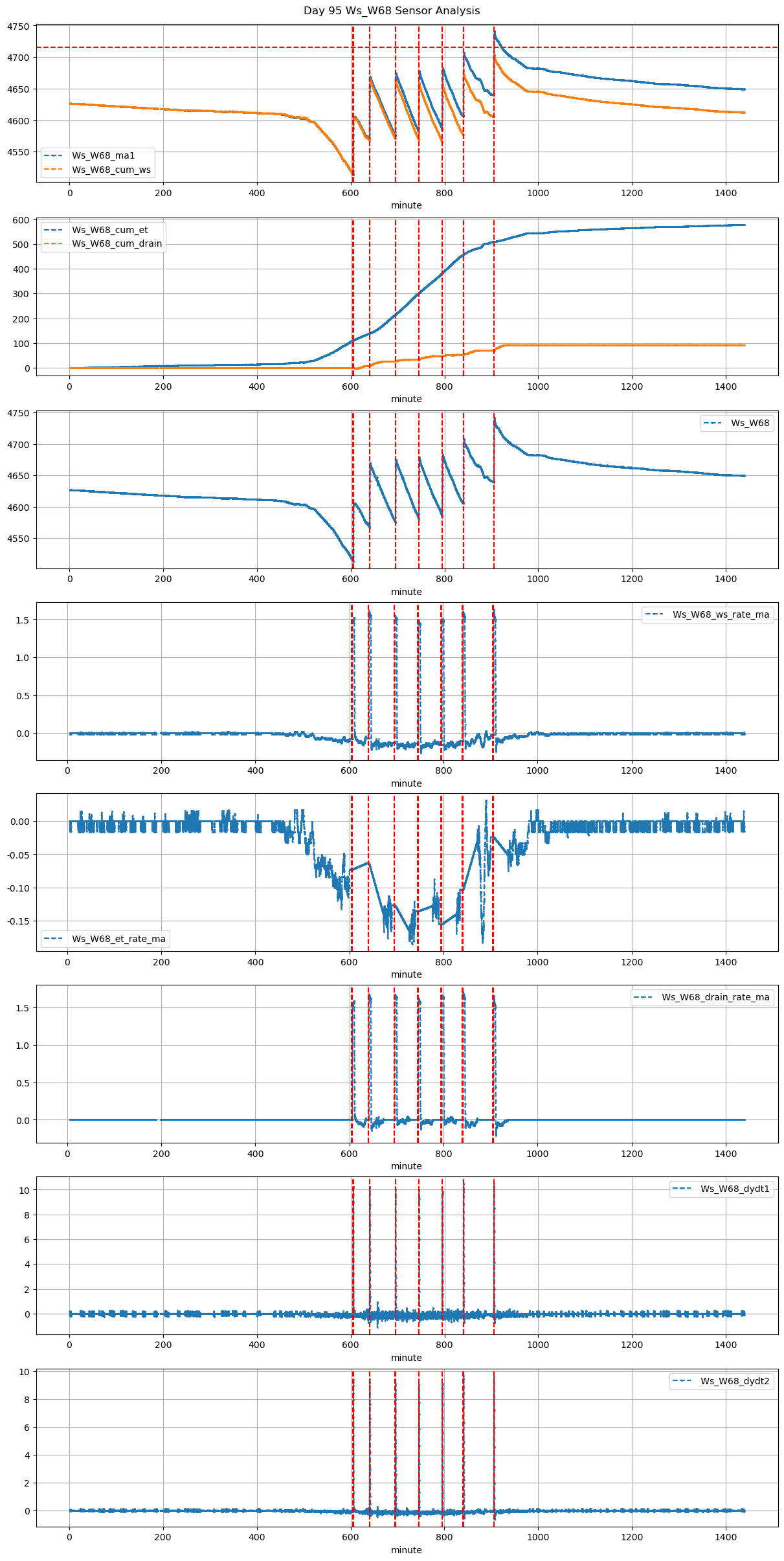

Figure figure_7.png

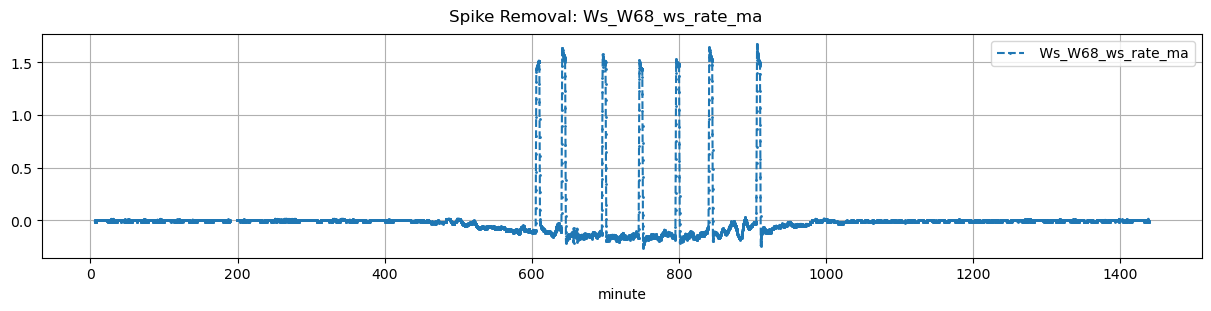

Figure figure_6.png

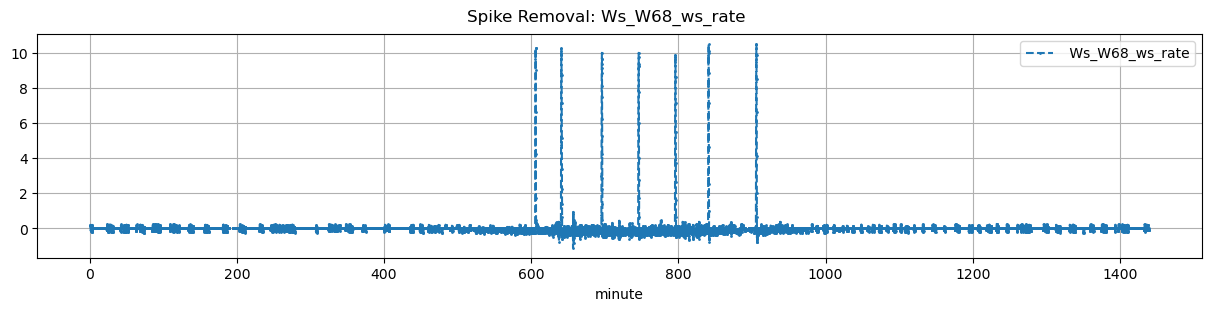

Figure figure_5.png

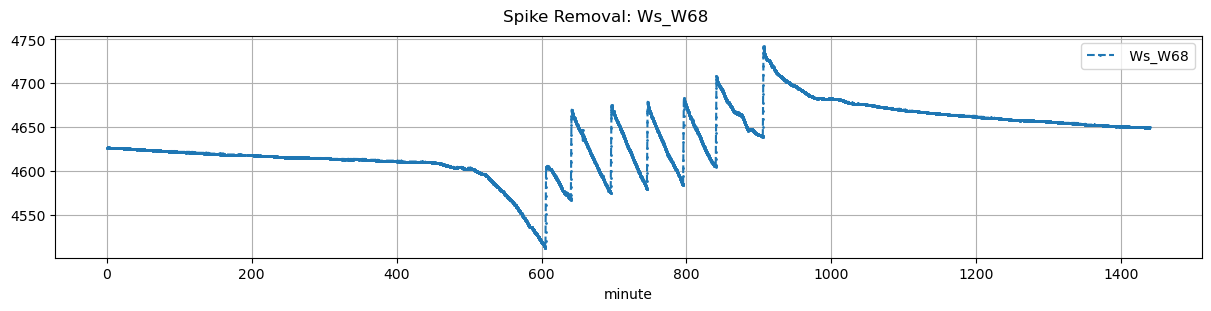

Figure figure_4.png
