Ws Sensor Analysis Report - Day 85

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 126.00 L
Avg Total Drain Amount: 32.45 L
Avg In-Fertigation Drain Amount: 13.03 L
Avg Post-Fertigation Drain Amount: 19.42 L
Avg Drainage Rate: 25.75%

Detail Section

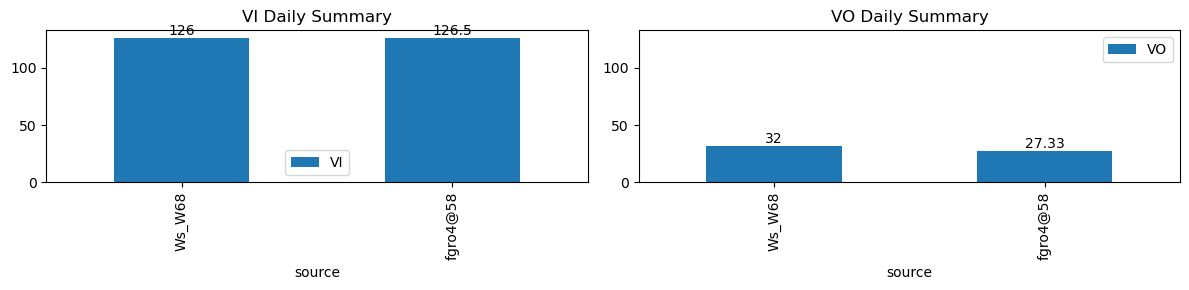

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 126.00 L
Total Drain Amount: 32.45 L
In-Fertigation Drain Amount: 13.03 L
Post-Fertigation Drain Amount: 19.42 L
Drainage Rate: 25.75%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17270	0	13446	0	2

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-30 08:35:00+08:00	85	515	Ws_W68	0.588706	30	515.0	515.250000	515.6	516.583333	NaN	NaN	NaN	4712.000000	4784.0	36	-0.016102	0.000000	-0.021823	0.264000	0.400000	14.400000	15.0	59.0	18.0	3.600000	-1.442644	NaN	2.157356
2025-12-30 09:55:00+08:00	85	595	Ws_W68	0.588706	30	595.0	595.333333	595.6	596.750000	NaN	NaN	NaN	4760.000000	4850.0	36	-0.052954	-0.126667	-0.026111	0.330571	0.500000	18.000000	20.0	69.0	18.0	0.000000	3.750804	4831.245980	3.750804
2025-12-30 10:40:00+08:00	85	640	Ws_W68	0.588706	30	640.0	640.333333	640.6	641.500000	NaN	NaN	NaN	4808.000000	4881.0	36	-0.088206	-0.204722	-0.131583	0.375714	0.405556	14.600000	20.0	54.0	18.0	3.400000	4.390012	4859.049942	7.790012
2025-12-30 11:40:00+08:00	85	700	Ws_W68	0.588706	30	700.0	700.250000	700.6	701.666667	NaN	NaN	NaN	4793.000000	4881.0	36	-0.077316	-0.209028	-0.075367	0.302857	0.488889	17.600000	15.0	64.0	18.0	0.400000	3.969275	4861.153626	4.369275
2025-12-30 12:40:00+08:00	85	760	Ws_W68	0.588706	30	760.0	760.250000	760.6	761.500000	NaN	NaN	NaN	4800.000000	4878.0	36	-0.109322	-0.131250	-0.144107	0.330000	0.433333	15.600000	15.0	54.0	18.0	2.400000	0.718409	NaN	3.118409
2025-12-30 13:45:00+08:00	85	825	Ws_W68	0.588706	30	825.0	825.333333	825.6	826.583333	NaN	NaN	NaN	4792.166667	4874.0	36	-0.098411	-0.174861	-0.073025	0.335714	0.454630	16.366667	20.0	59.0	18.0	1.633333	4.052915	4853.735424	5.686249
2025-12-30 14:40:00+08:00	85	880	Ws_W68	0.588706	30	880.0	880.250000	880.6	881.500000	NaN	NaN	NaN	4805.000000	4887.0	36	-0.074153	-0.151528	-0.062963	0.332857	0.455556	16.400000	15.0	54.0	18.0	1.600000	3.977454	4867.112729	5.577454

Figures - Ws_W68

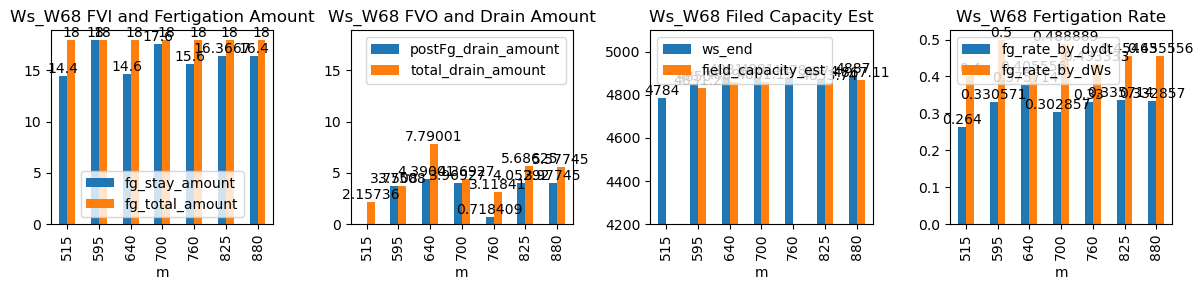

Figure figure_9.png

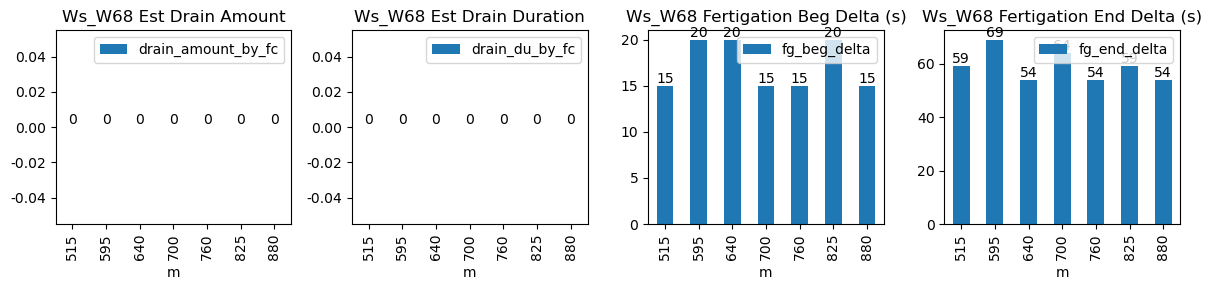

Figure figure_8.png

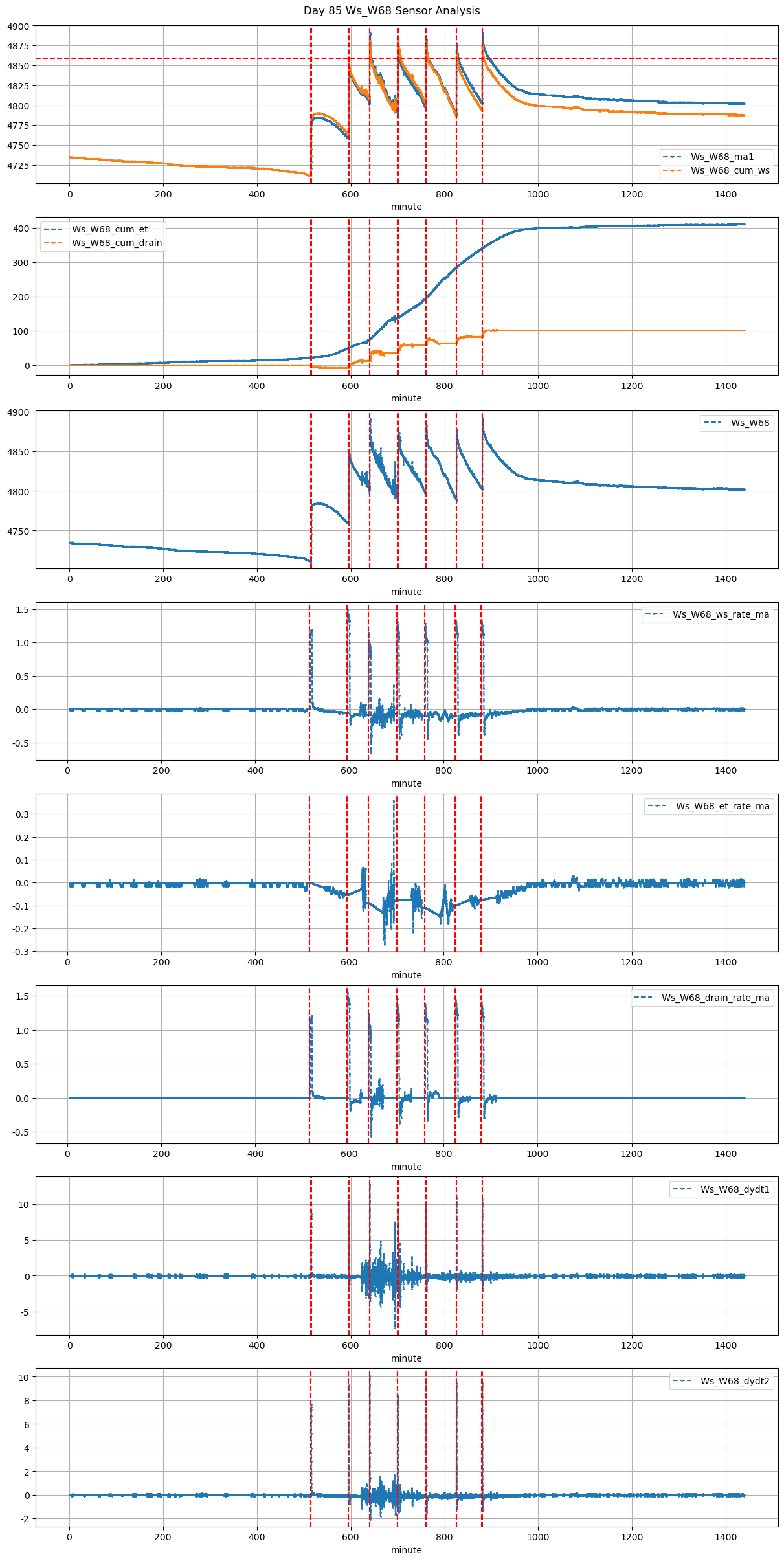

Figure figure_7.png

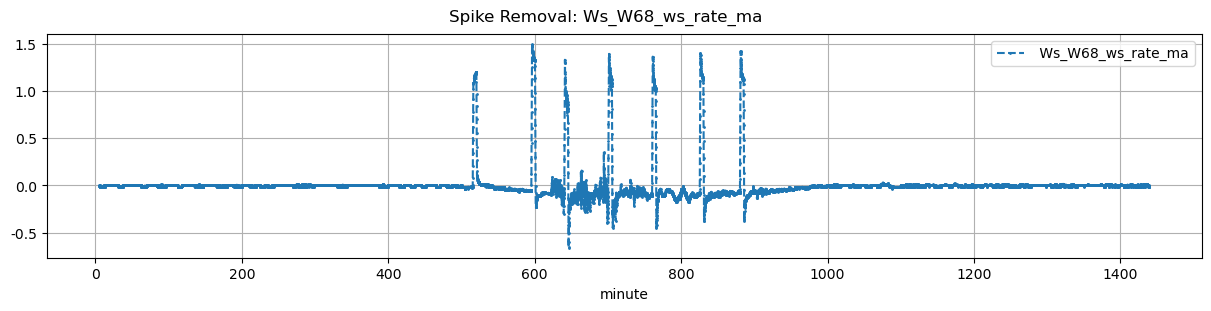

Figure figure_6.png

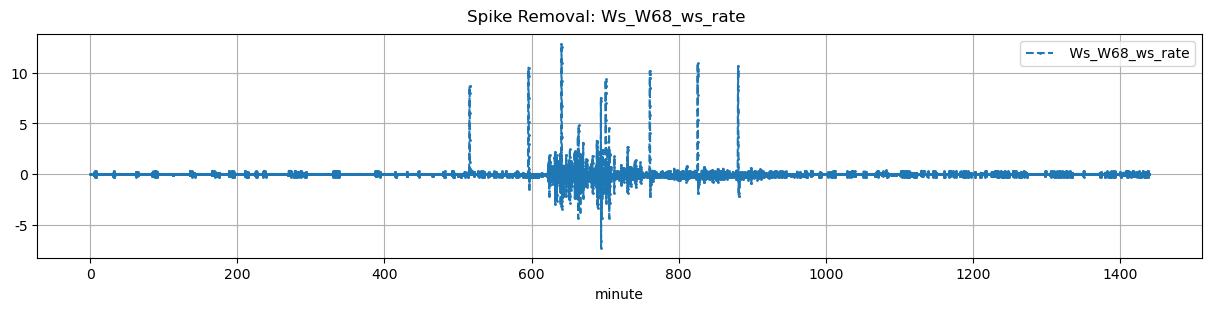

Figure figure_5.png

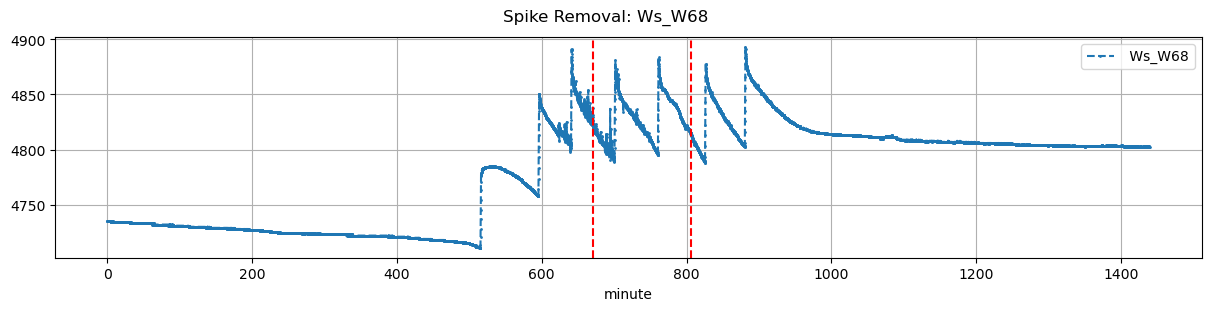

Figure figure_4.png
