Ws Sensor Analysis Report - Day 186

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 183.61 L
Avg Total Drain Amount: 81.68 L
Avg In-Fertigation Drain Amount: 25.45 L
Avg Post-Fertigation Drain Amount: 56.23 L
Avg Drainage Rate: 44.48%

Detail Section

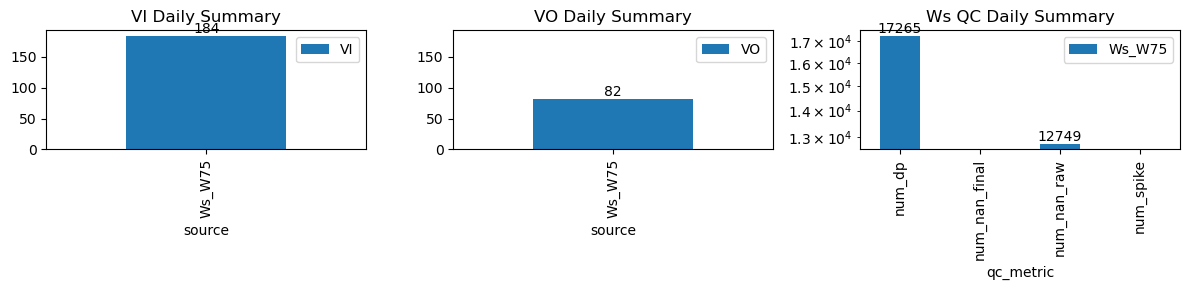

VI and VO Daily Summary

Summary Statistics - Ws_W75

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 183.61 L
Total Drain Amount: 81.68 L
In-Fertigation Drain Amount: 25.45 L
Post-Fertigation Drain Amount: 56.23 L
Drainage Rate: 44.48%

Ws Cleaning Summary Table - Ws_W75

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W75	17,265	12,749	0	0	0.00

Fertigation Events Details Table - Ws_W75

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-10 07:25:01+08:00	186	445	Ws_W75	0.809458	30.00	445.02	444.833333	446.19	447.000000	3779.000000	3928.858333	70	-0.014576	-0.024421	-0.019815	0.329783	0.428167	29.971667	True	-11.2	48.6	30.030	0.000000	0.000000	0.000000	174	193	-0.018110	NaN
2026-04-10 08:09:27+08:00	186	489	Ws_W75	0.809458	29.25	489.45	489.250000	490.62	490.750000	3918.000000	4039.058333	70	-0.014825	-0.171888	0.000000	0.298958	0.345881	24.211667	True	-12.0	7.8	30.030	5.800000	13.061231	18.861231	1105	12	-0.283484	3973.752176
2026-04-10 08:40:00+08:00	186	520	Ws_W75	0.809458	29.75	520.00	519.750000	521.17	521.250000	3961.828571	4072.733333	70	-0.055165	-0.166097	0.000000	0.285190	0.316871	22.180952	True	-15.0	4.8	30.030	6.715237	13.430475	20.145712	1380	9	-0.181843	4005.580958
2026-04-10 09:11:39+08:00	186	551	Ws_W75	0.809458	30.00	551.65	551.416667	552.92	552.833333	3988.120000	4092.066667	76	-0.055165	-0.201214	-0.113992	0.279381	0.273544	20.789333	True	-14.0	-5.2	32.604	7.731413	15.462826	23.194239	1635	4	-0.195946	4014.752538
2026-04-10 10:05:01+08:00	186	605	Ws_W75	0.809458	30.00	605.02	604.833333	606.20	606.250000	3957.150000	4086.500000	71	-0.103003	-0.240667	-0.150123	0.332159	0.364366	25.870000	True	-11.2	3.0	30.459	4.600000	12.357664	16.957664	735	7	-0.181932	4024.711681
2026-04-10 11:50:01+08:00	186	710	Ws_W75	0.809458	30.00	710.02	709.833333	711.20	711.583333	3856.460000	4005.700000	71	-0.145230	-0.202762	-0.144033	0.352881	0.420394	29.848000	True	-11.2	23.0	30.459	0.600000	1.916407	2.516407	525	27	-0.078999	3996.117963

Figures - Ws_W75

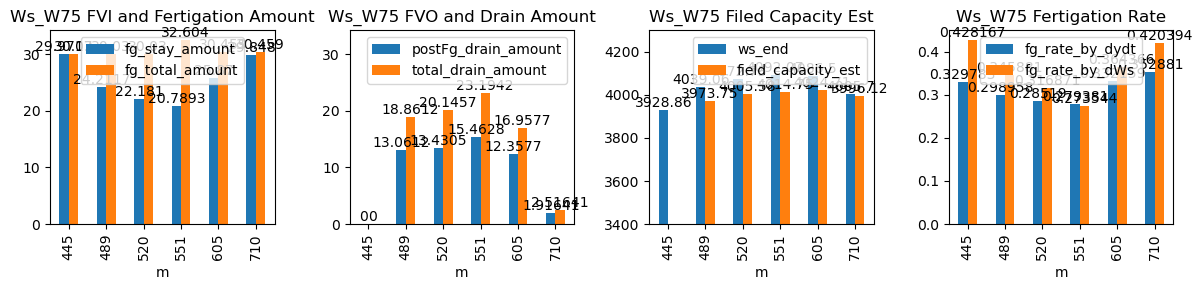

Figure figure_7.png

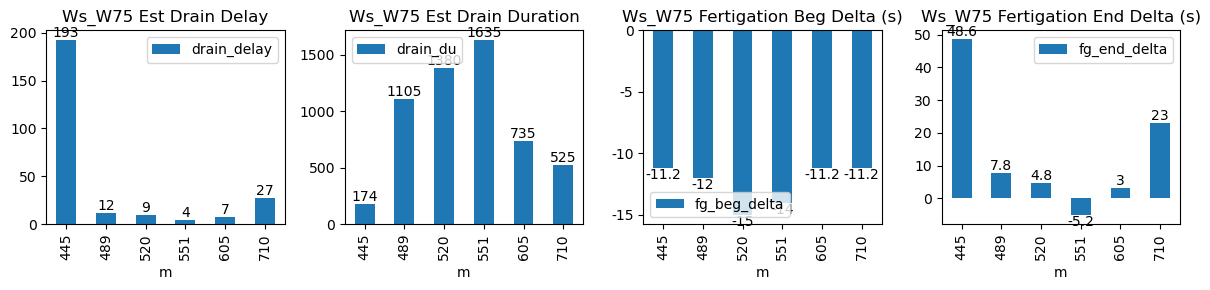

Figure figure_6.png

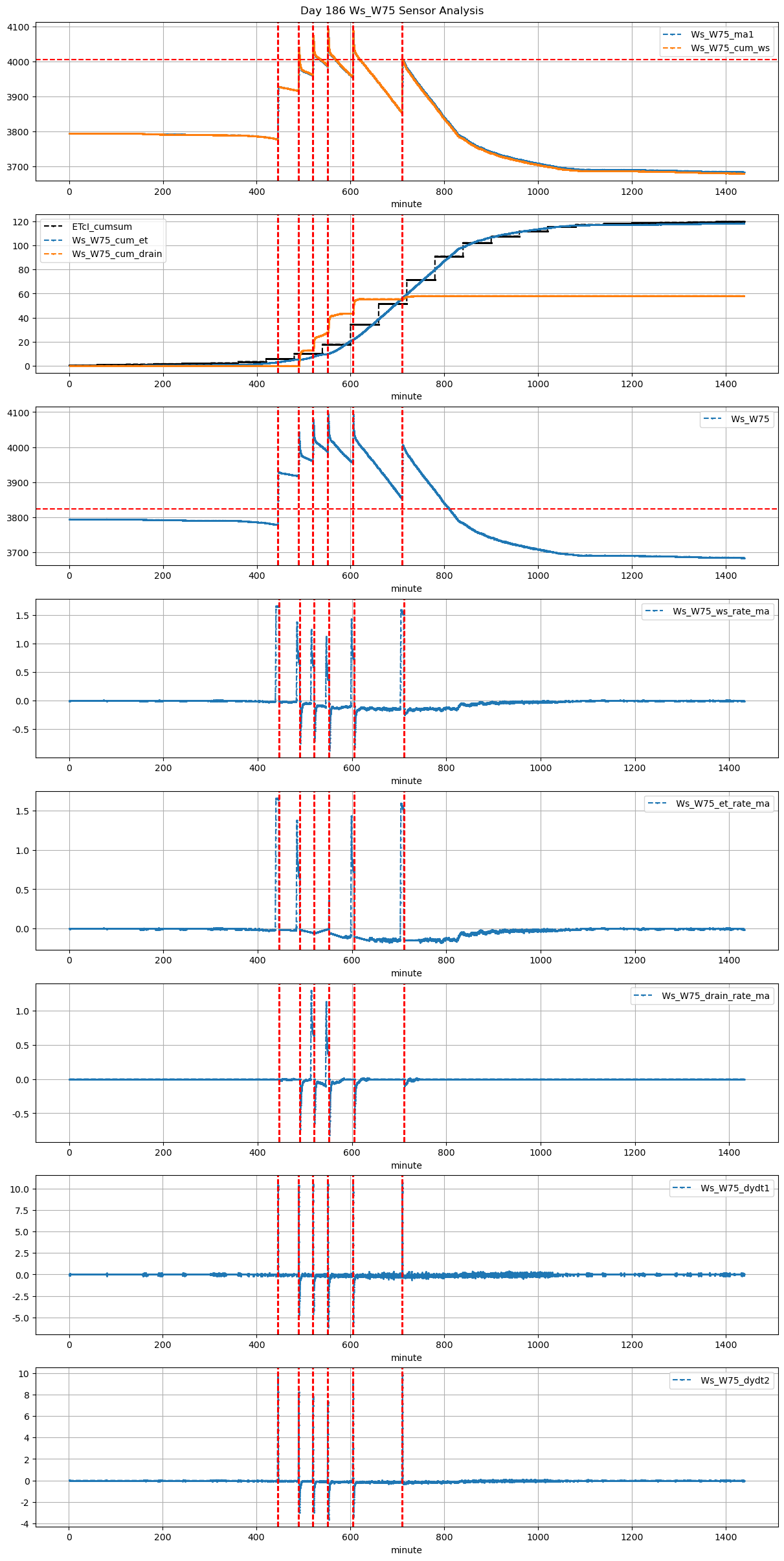

Figure figure_5.png

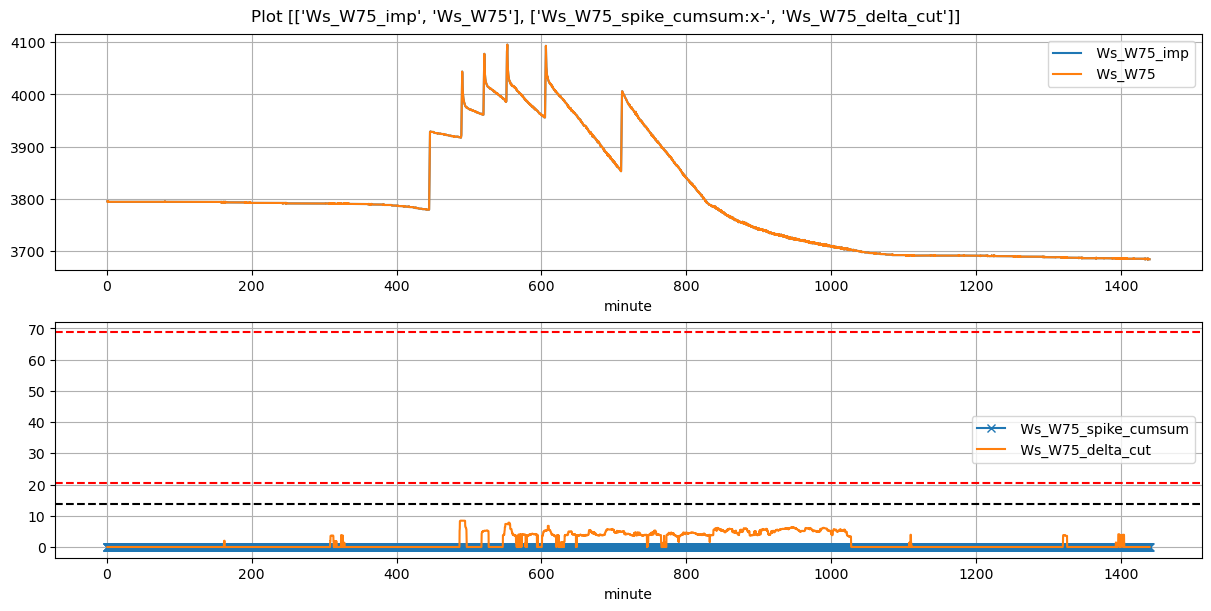

Figure figure_4.png
