Ws Sensor Analysis Report - Day 178

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 200.17 L
Avg Total Drain Amount: 0.00 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 0.00 L
Avg Drainage Rate: 0.00%

Detail Section

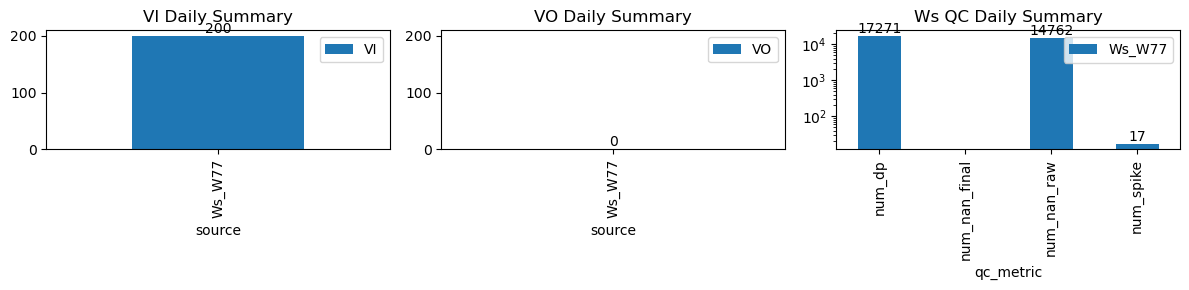

VI and VO Daily Summary

Summary Statistics - Ws_W77

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 200.17 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_W77

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W77	17,271	14,762	0	17	-20.00

Fertigation Events Details Table - Ws_W77

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-02 08:16:06+08:00	178	496	Ws_W77	1.702952	24.50	496.10	496.083333	497.27	497.500000	4108.476190	4260.000000	70	-0.012484	-0.065226	0.000000	0.411250	0.432925	30.304762	True	-1.0	13.8	30.304762	0.0	0.0	0.0	45	1008	-0.107102	NaN
2026-04-02 08:42:12+08:00	178	522	Ws_W77	1.702952	30.00	522.20	522.166667	523.38	523.333333	4237.000000	4365.000000	71	-0.055514	-0.120071	-0.093210	0.434792	0.360563	25.600000	True	-2.0	-2.8	30.459000	0.0	0.0	0.0	140	2	-0.128473	NaN
2026-04-02 10:10:00+08:00	178	610	Ws_W77	1.702952	30.00	610.00	610.000000	610.67	610.916667	4220.000000	4310.000000	40	-0.110903	-0.189841	-0.159774	0.360208	0.450000	18.000000	True	0.0	14.8	18.000000	0.0	0.0	0.0	275	19	-0.132417	NaN
2026-04-02 10:57:12+08:00	178	657	Ws_W77	1.702952	30.00	657.20	657.166667	658.38	658.500000	4220.000000	4351.666667	71	-0.142218	-0.203604	-0.148894	0.388750	0.370892	26.333333	True	-2.0	7.2	30.459000	0.0	0.0	0.0	84	12	-0.151258	NaN
2026-04-02 12:29:23+08:00	178	749	Ws_W77	1.702952	29.25	749.38	749.333333	750.56	750.750000	4170.000000	4317.250000	71	-0.154859	-0.181173	0.000000	0.416250	0.414789	29.450000	True	-2.8	11.4	30.459000	0.0	0.0	0.0	199	586	-0.126908	NaN
2026-04-02 13:00:00+08:00	178	780	Ws_W77	1.702952	30.00	780.00	780.000000	781.17	781.166667	4258.522727	4368.750000	70	-0.116016	-0.150000	-0.144136	0.391667	0.314935	22.045455	True	0.0	-0.2	30.030000	0.0	0.0	0.0	80	4	-0.123660	NaN
2026-04-02 16:02:11+08:00	178	962	Ws_W77	1.702952	30.00	962.18	962.166667	963.36	963.583333	4130.000000	4280.000000	71	-0.070017	-0.012654	-0.003704	0.400000	0.422535	30.000000	True	-0.8	13.4	30.459000	0.0	0.0	0.0	174	913	-0.102931	NaN

Figures - Ws_W77

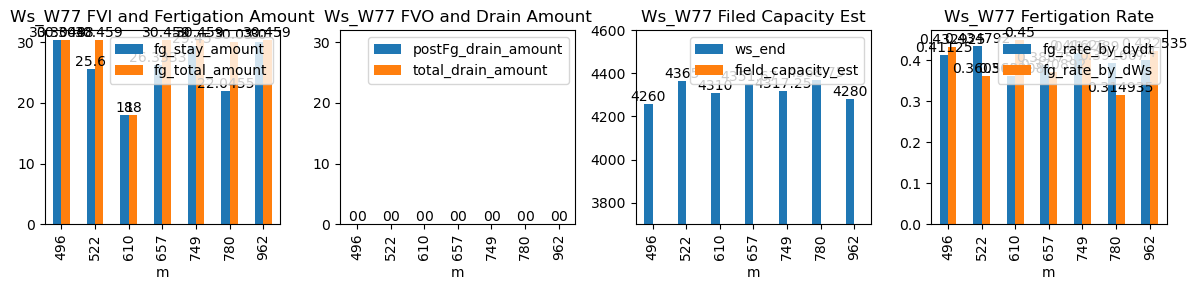

Figure figure_7.png

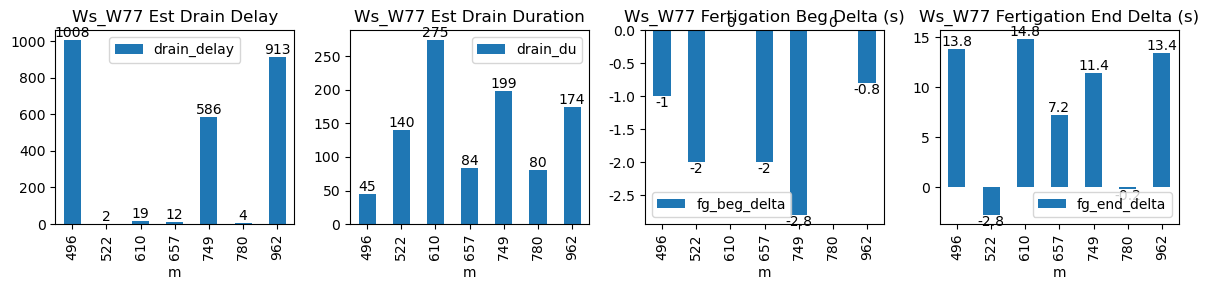

Figure figure_6.png

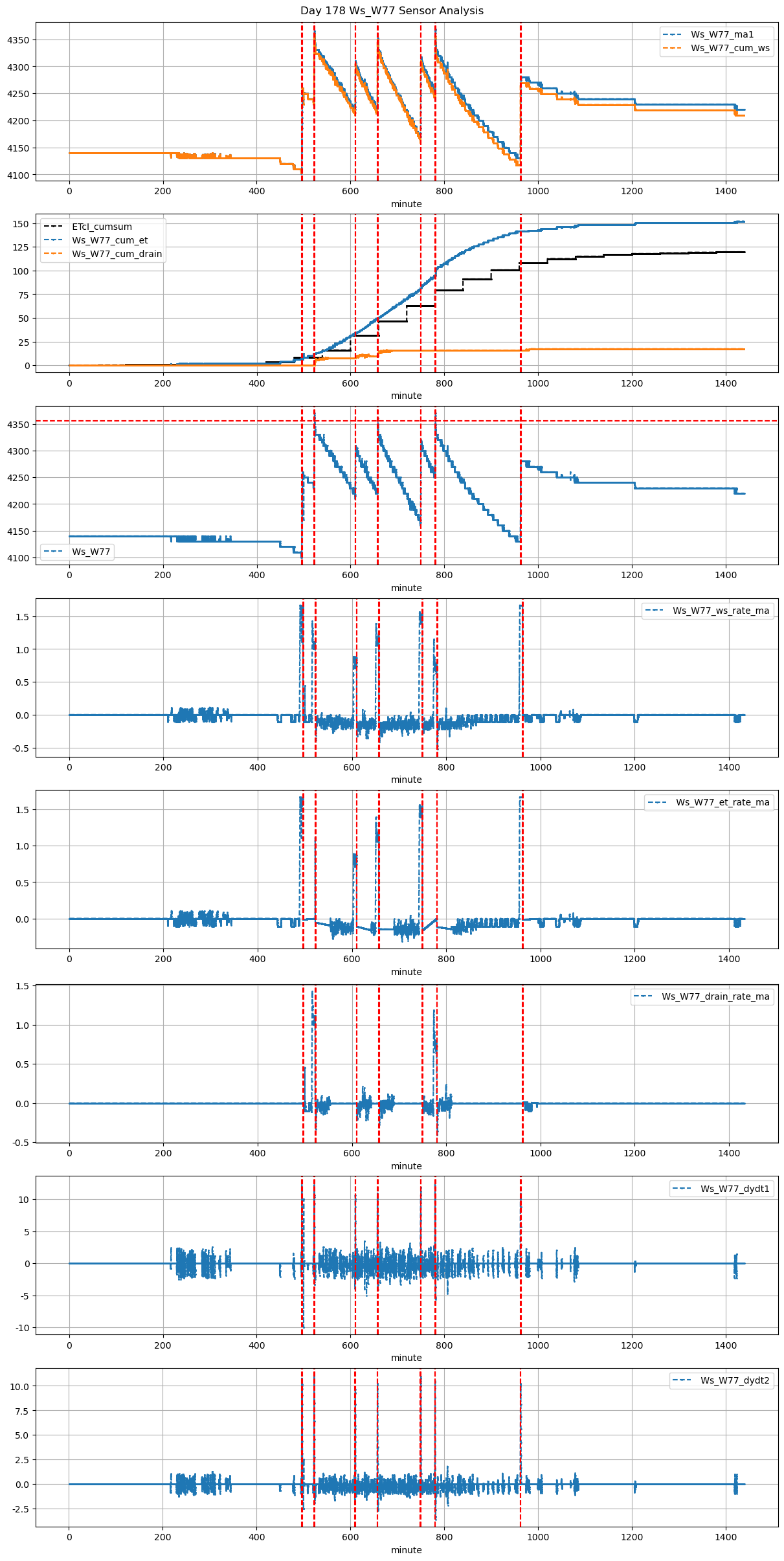

Figure figure_5.png

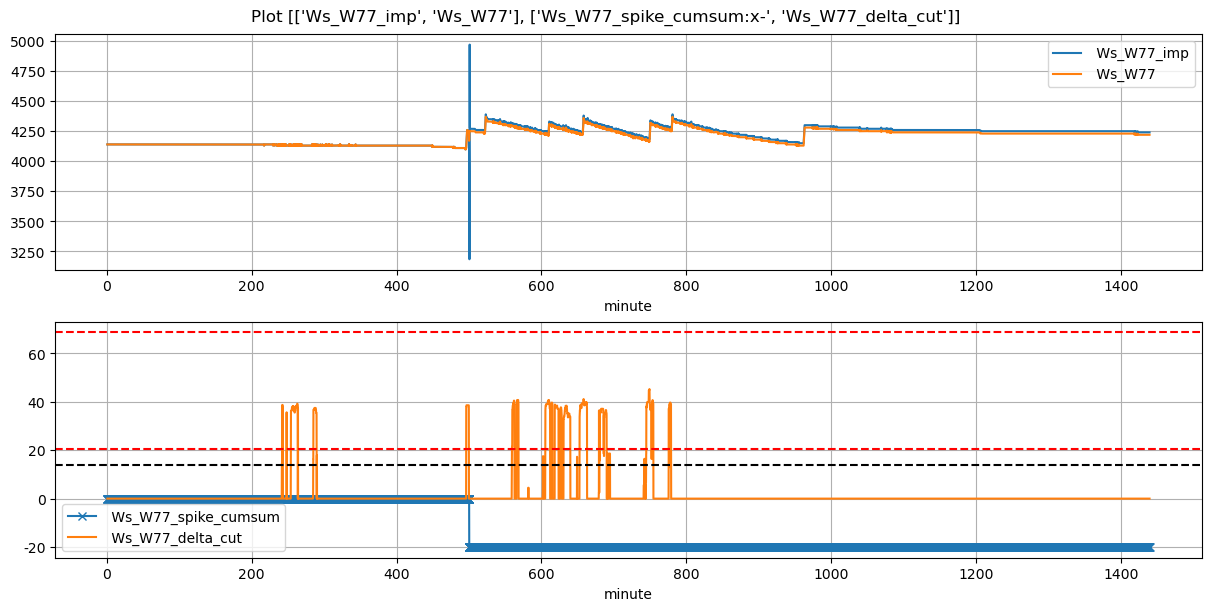

Figure figure_4.png
