Ws Sensor Analysis Report - Day 178

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 196.98 L
Avg Total Drain Amount: 34.43 L
Avg In-Fertigation Drain Amount: 3.20 L
Avg Post-Fertigation Drain Amount: 31.23 L
Avg Drainage Rate: 17.48%

Detail Section

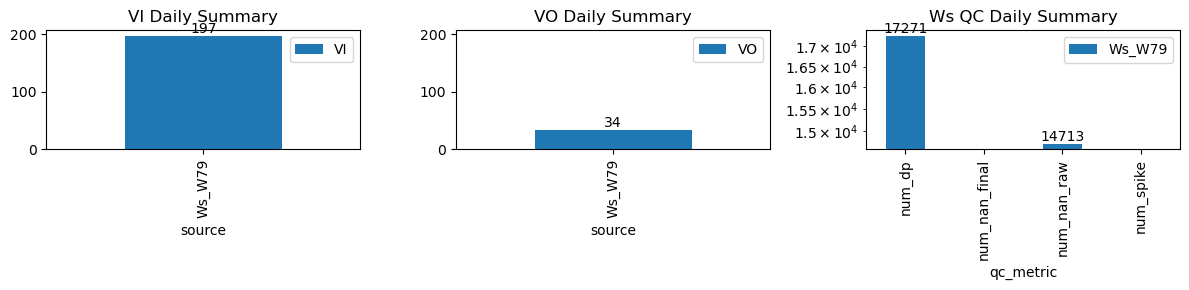

VI and VO Daily Summary

Summary Statistics - Ws_W79

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 196.98 L
Total Drain Amount: 34.43 L
In-Fertigation Drain Amount: 3.20 L
Post-Fertigation Drain Amount: 31.23 L
Drainage Rate: 17.48%

Ws Cleaning Summary Table - Ws_W79

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W79	17,271	14,713	0	0	0.00

Fertigation Events Details Table - Ws_W79

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est
2026-04-02 08:13:54+08:00	178	493	Ws_W79	1.215134	30	493.90	493.750000	495.08	495.333333	4370.333333	4530.000000	71	-0.044874	-0.021193	0.000000	0.401250	0.449765	31.933333	True	-9.0	15.2	31.933333	0.0	0.000000	0.000000	174	1450	-0.106861	NaN
2026-04-02 08:50:01+08:00	178	530	Ws_W79	1.215134	30	530.02	529.916667	531.19	531.333333	4500.000000	4645.000000	70	-0.052438	-0.206481	-0.122572	0.395455	0.414286	29.000000	True	-6.2	8.6	29.050000	0.0	8.285514	8.285514	780	13	-0.181929	4603.572432
2026-04-02 09:55:00+08:00	178	595	Ws_W79	1.215134	30	595.00	594.916667	595.67	595.916667	4523.433333	4610.000000	40	-0.120820	-0.182202	0.000000	0.321591	0.432833	17.313333	True	-5.0	14.8	17.313333	0.0	2.629961	2.629961	129	19	-0.180572	4596.850194
2026-04-02 10:26:42+08:00	178	626	Ws_W79	1.215134	30	626.70	626.666667	627.88	628.000000	4546.300000	4680.000000	71	-0.100152	-0.297801	-0.140783	0.386250	0.376620	26.740000	True	-2.0	7.2	29.465000	2.7	12.272860	14.972860	574	12	-0.275250	4618.635700
2026-04-02 11:45:00+08:00	178	705	Ws_W79	1.215134	30	705.00	704.833333	706.17	706.333333	4490.000000	4632.500000	70	-0.161543	-0.227840	-0.172134	0.391875	0.407143	28.500000	True	-10.0	9.8	29.050000	0.5	4.675435	5.175435	180	14	-0.170934	4609.122826
2026-04-02 12:57:12+08:00	178	777	Ws_W79	1.215134	30	777.20	777.166667	778.38	778.666667	4465.000000	4615.833333	71	-0.180243	-0.223328	-0.161077	0.389583	0.424883	30.166667	True	-2.0	17.2	30.166667	0.0	3.365372	3.365372	180	22	-0.153605	4599.006475
2026-04-02 16:00:01+08:00	178	960	Ws_W79	1.215134	30	960.02	959.916667	961.19	961.416667	4360.000000	4510.000000	70	-0.076604	-0.050309	-0.025103	0.393182	0.428571	30.000000	True	-6.2	13.6	30.000000	0.0	0.000000	0.000000	80	988	-0.073645	NaN

Figures - Ws_W79

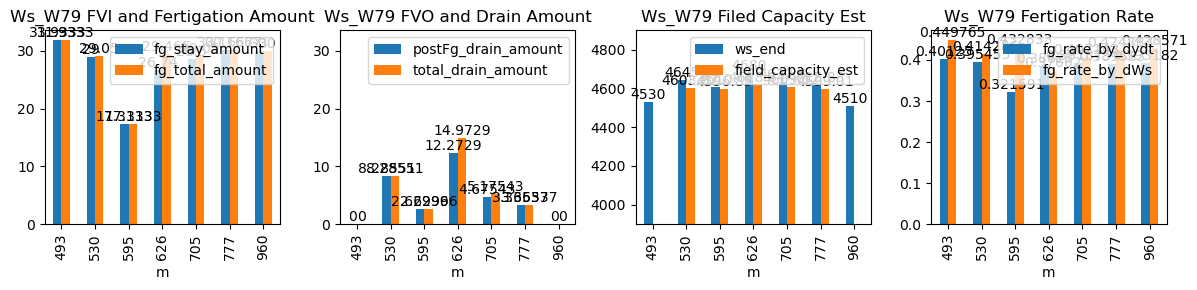

Figure figure_7.png

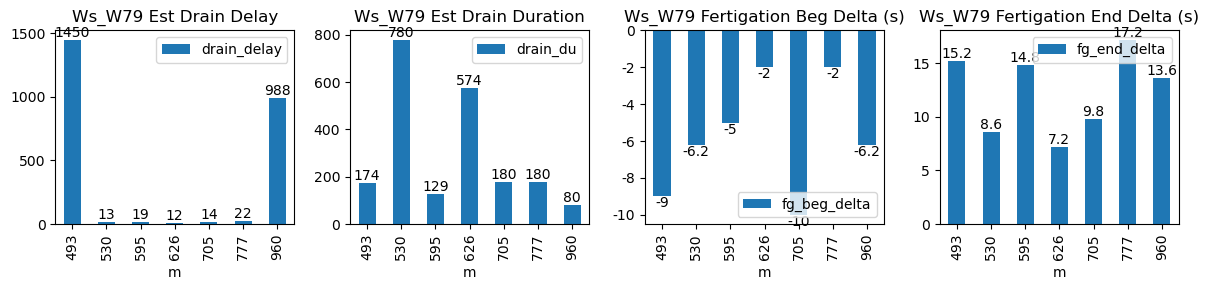

Figure figure_6.png

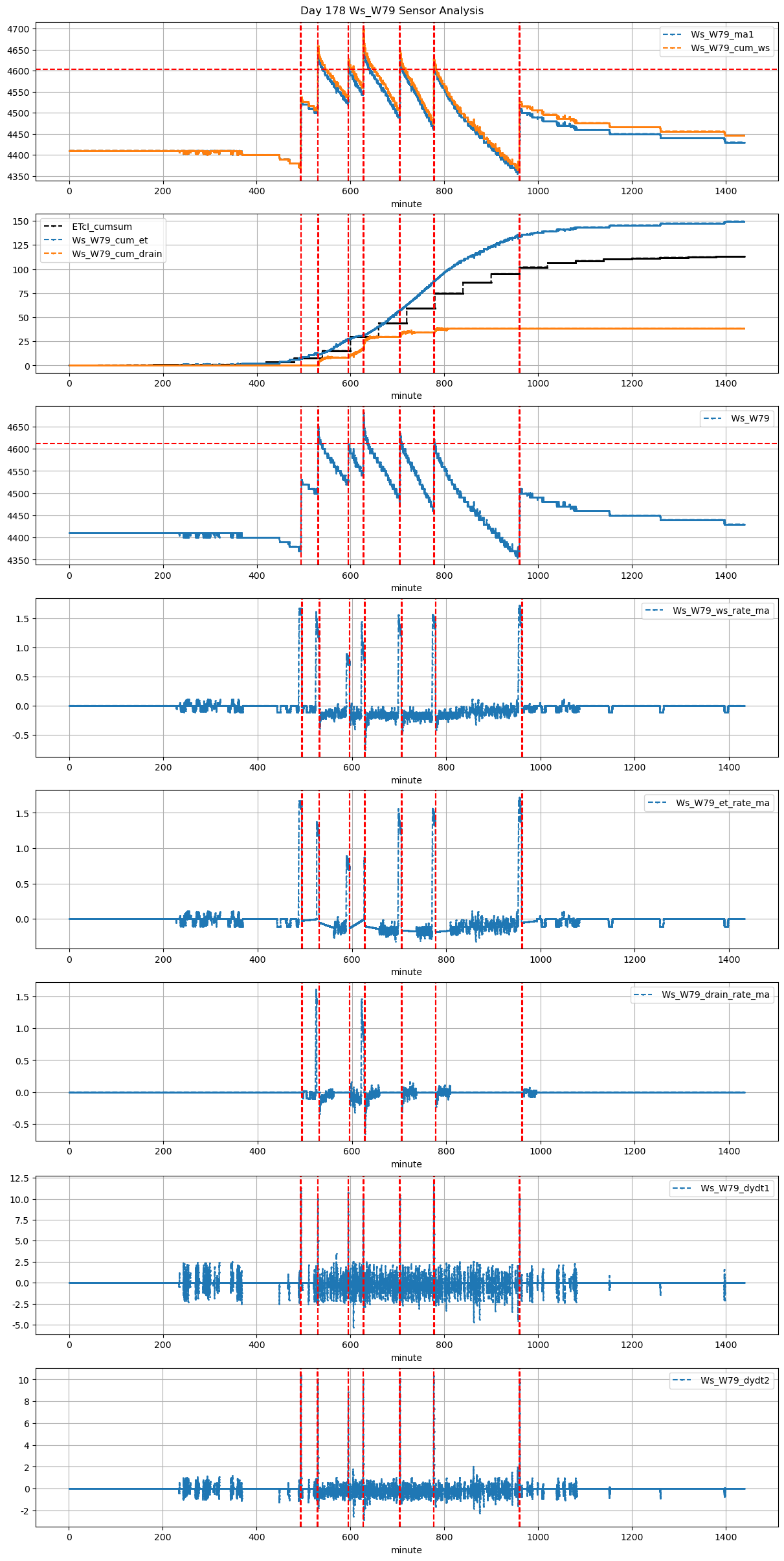

Figure figure_5.png

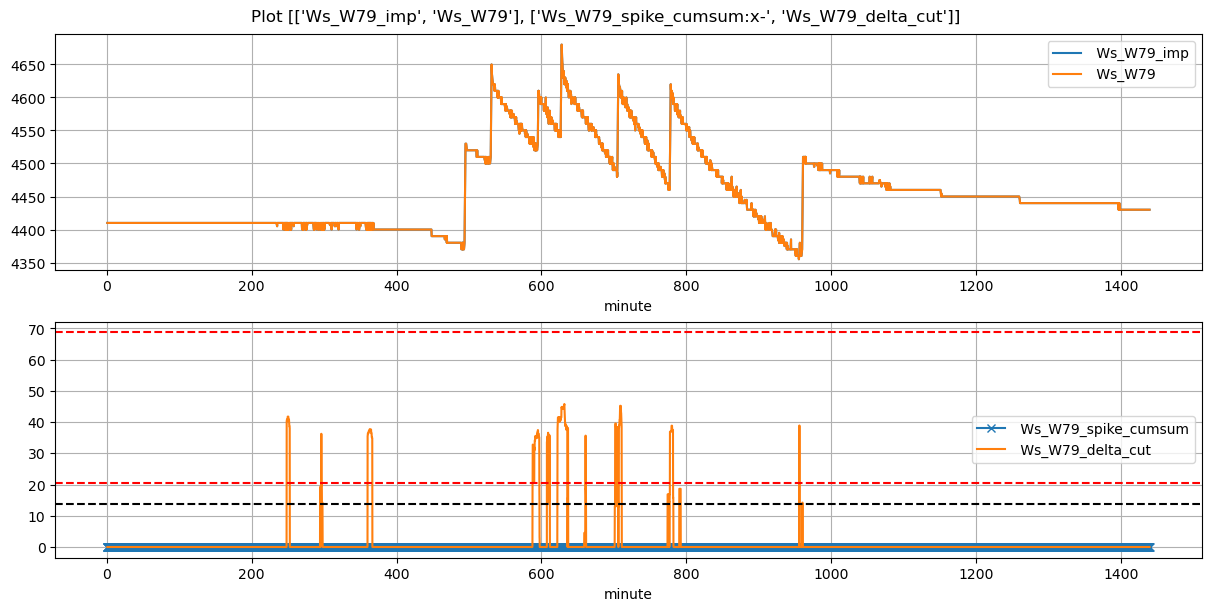

Figure figure_4.png
