Ws Sensor Analysis Report - Day 14

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 2
Avg Number of Fertigation Events: 1.0
Avg Fertigation Amount: 476.62 L
Avg Total Drain Amount: 164.61 L
Avg In-Fertigation Drain Amount: 7.15 L
Avg Post-Fertigation Drain Amount: 157.46 L
Avg Drainage Rate: 34.54%

Detail Section

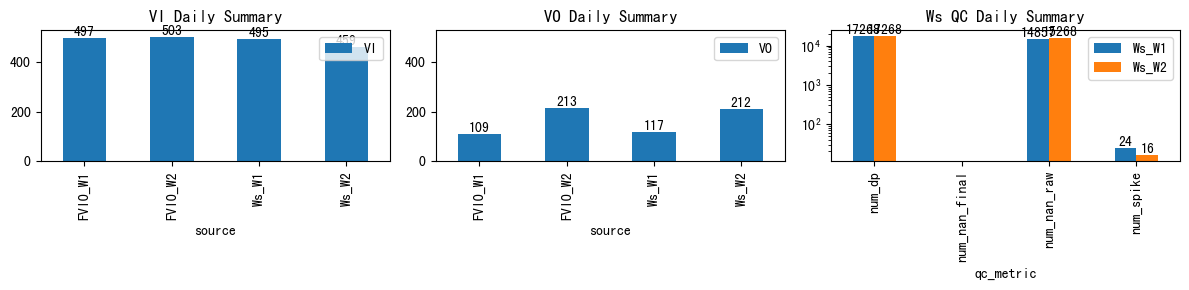

VI and VO Daily Summary

Summary Statistics - Ws_W1

Number of Fertigation Events: 1
Number of Fertigation Events detected: 1
Total Fertigation Amount: 494.66 L
Total Drain Amount: 116.73 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 116.73 L
Drainage Rate: 23.60%

Ws Cleaning Summary Table - Ws_W1

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W1	17,268	14,857	0	24	0.00

Fertigation Events Details Table - Ws_W1

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-03-15 11:00:01+08:00	14	660	Ws_W1	0.916515	60	660.02	659.25	667.04	667.333333	17561.2	18055.857143	421	-0.02941	-0.41408	-0.17275	1.1684	1.174958	494.657143	True	-46.2	17.6	494.657143	0.0	116.734983	116.734983	1059	537	-0.655008	17939.12216	497.0	109.0	NaN	NaN

Figures - Ws_W1

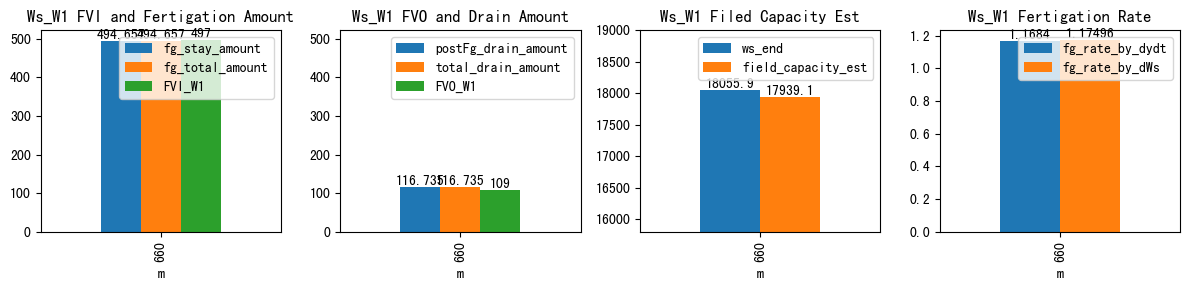

Figure figure_7.png

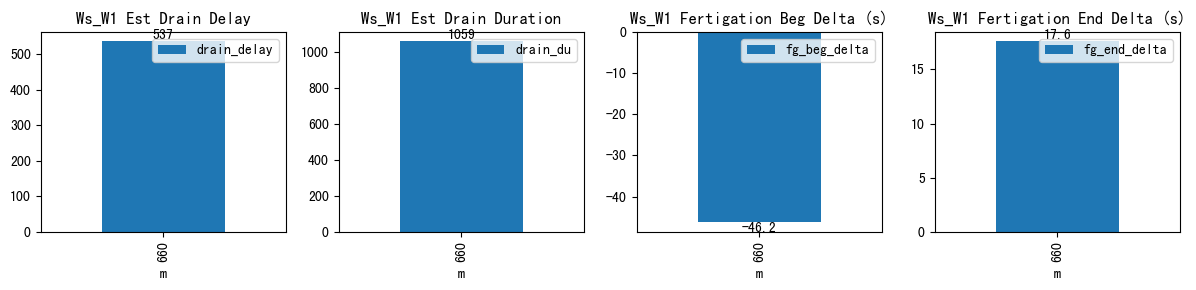

Figure figure_6.png

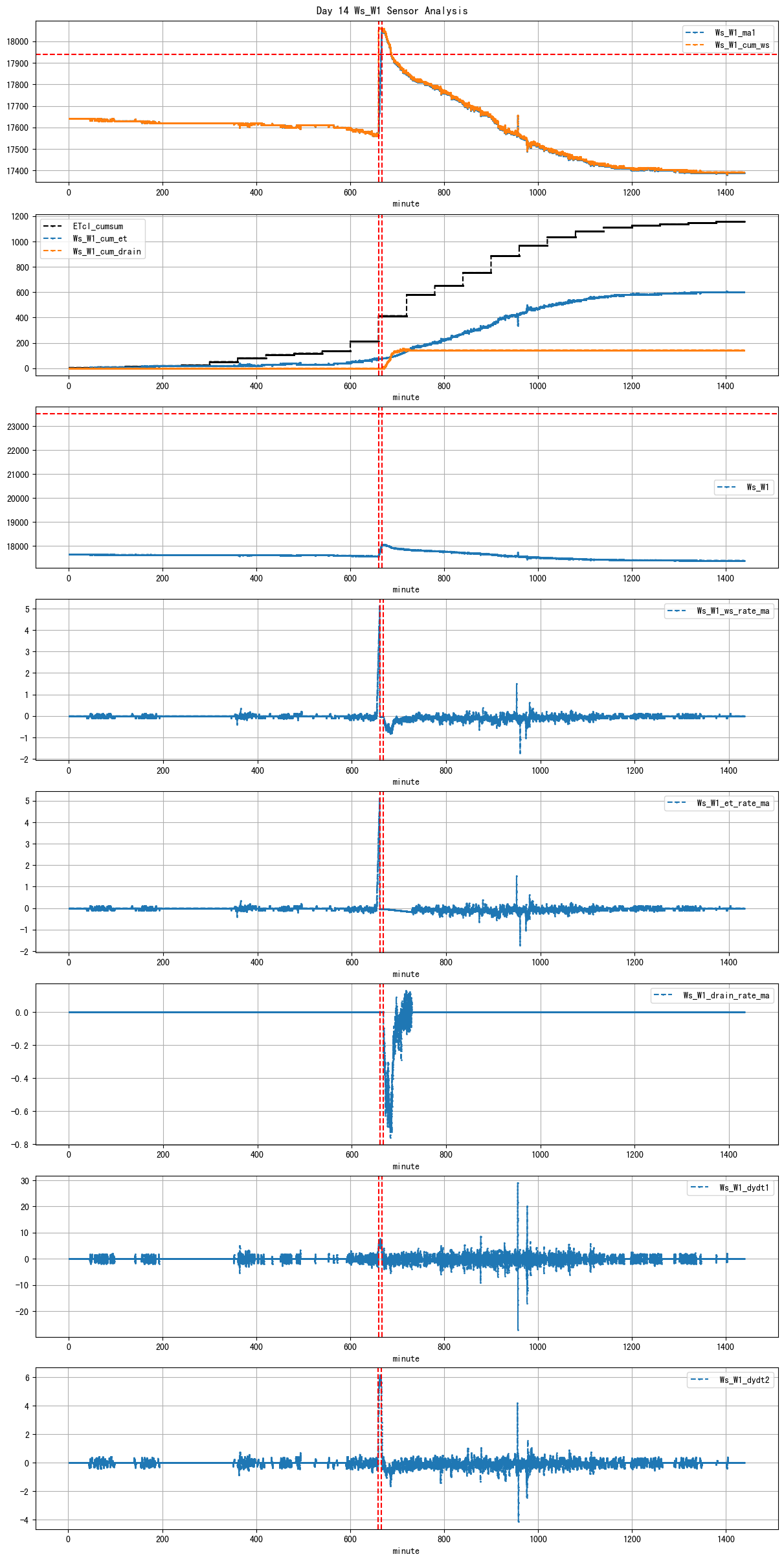

Figure figure_5.png

Figure figure_3.png

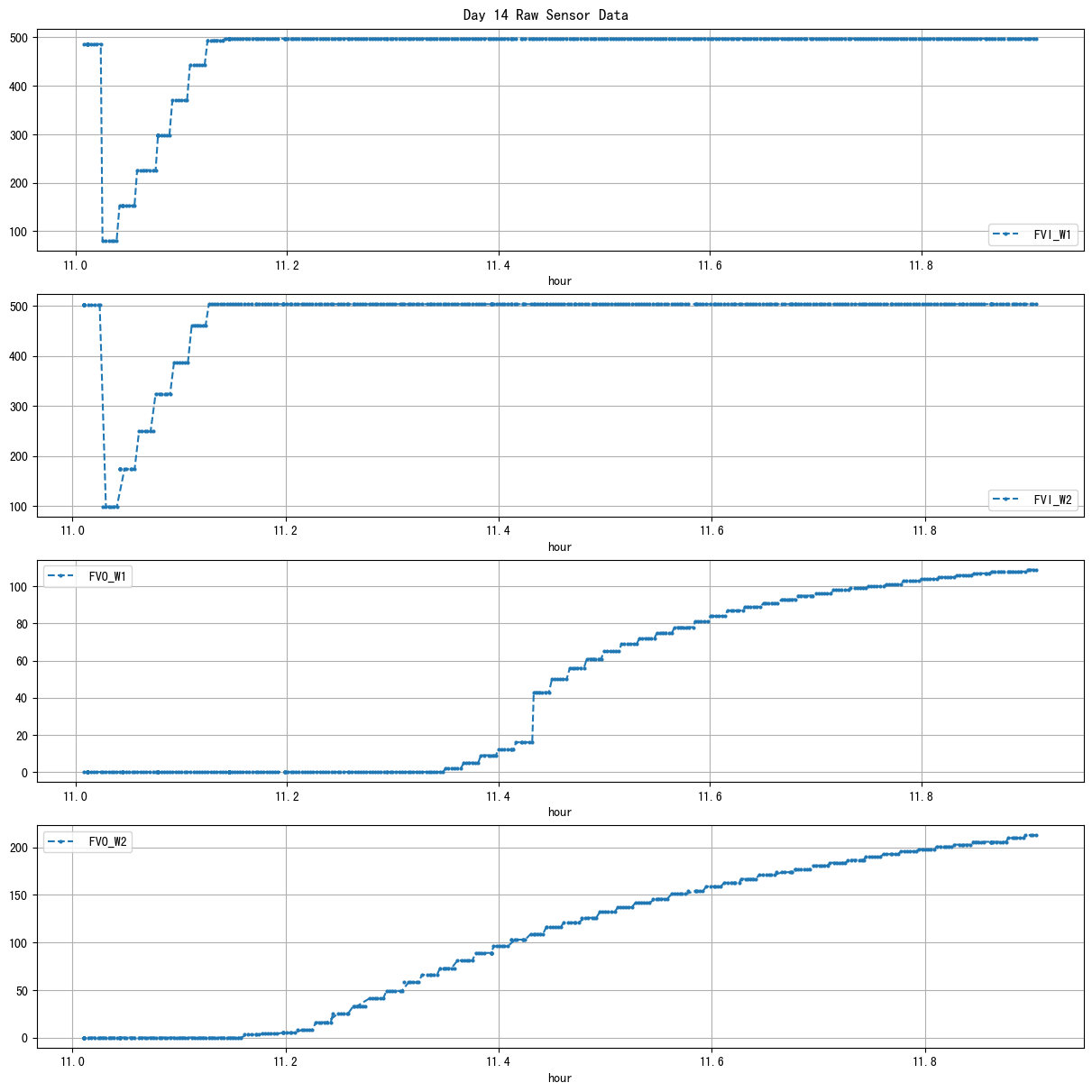

Figure figure_2.png

Summary Statistics - Ws_W2

Number of Fertigation Events: 1
Number of Fertigation Events detected: 1
Total Fertigation Amount: 458.57 L
Total Drain Amount: 212.48 L
In-Fertigation Drain Amount: 14.30 L
Post-Fertigation Drain Amount: 198.18 L
Drainage Rate: 46.34%

Ws Cleaning Summary Table - Ws_W2

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W2	17,268	15,268	0	16	21.67

Fertigation Events Details Table - Ws_W2

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-03-15 11:00:01+08:00	14	660	Ws_W2	0.738437	60	660.02	659.333333	667.04	667.25	14893.830303	15338.066667	421	0.0	-0.686465	-0.202531	1.066667	1.055193	444.236364	True	-41.2	12.6	458.57425	14.3	198.182541	212.482541	2265	87	-0.704807	15139.884126	NaN	NaN	503.0	213.0

Figures - Ws_W2

Figure figure_10.png

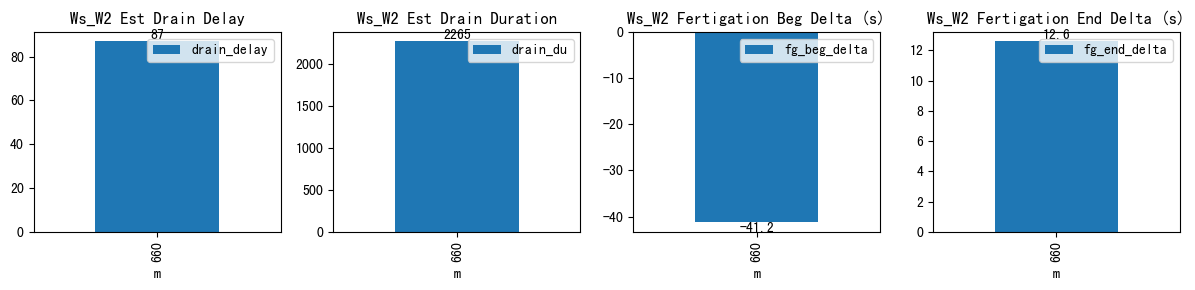

Figure figure_9.png

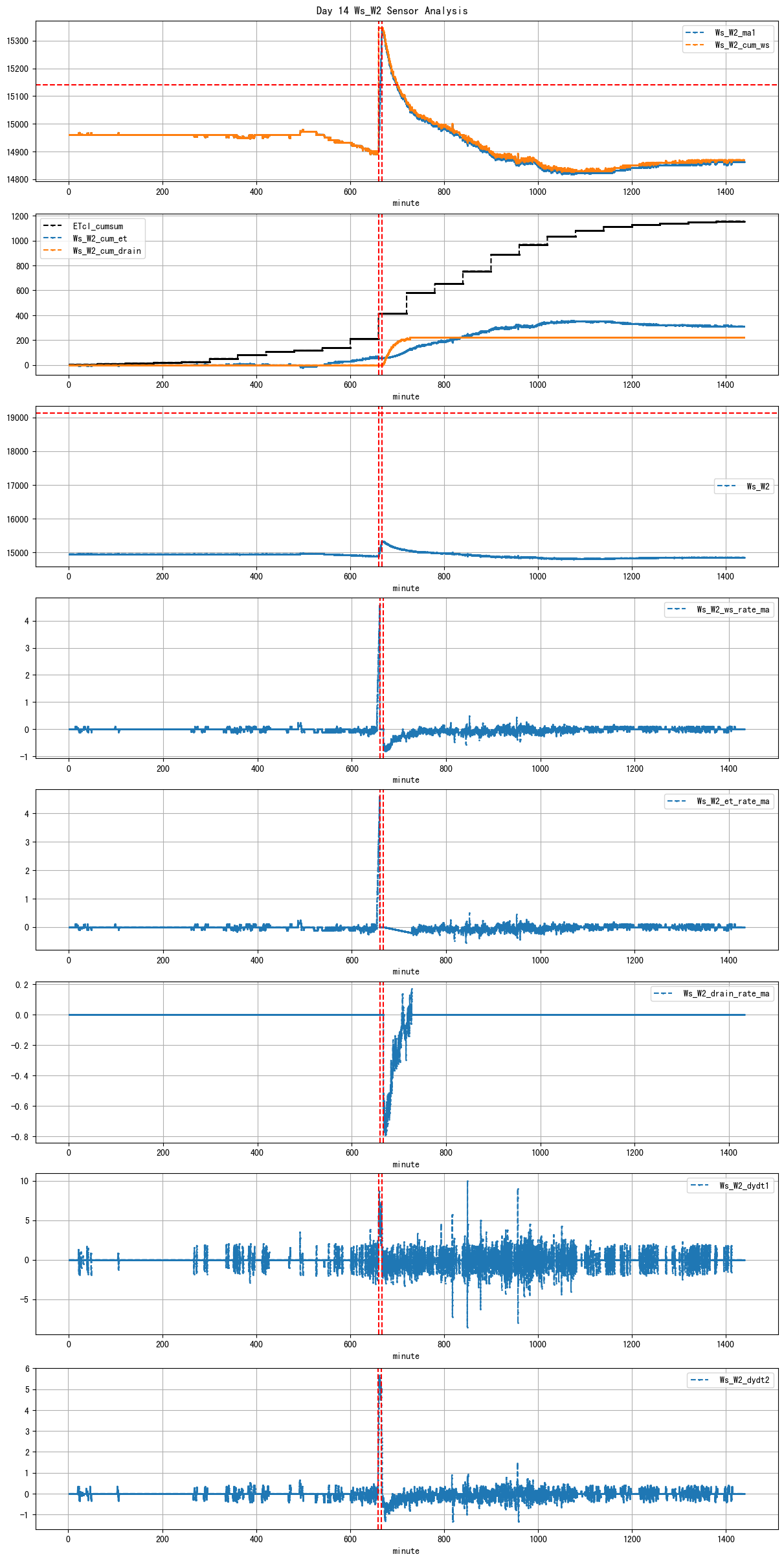

Figure figure_8.png

Figure figure_4.png

Figure figure_2.png
