Ws Sensor Analysis Report - Day 26

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 2
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 2360.08 L
Avg Total Drain Amount: 432.84 L
Avg In-Fertigation Drain Amount: 64.77 L
Avg Post-Fertigation Drain Amount: 368.07 L
Avg Drainage Rate: 18.34%

Detail Section

VI and VO Daily Summary

Summary Statistics - Ws_W1

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2397.39 L
Total Drain Amount: 230.82 L
In-Fertigation Drain Amount: 9.50 L
Post-Fertigation Drain Amount: 221.32 L
Drainage Rate: 9.63%

Ws Cleaning Summary Table - Ws_W1

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W1	17,269	13,571	0	67	0.00

Fertigation Events Details Table - Ws_W1

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-03-27 09:00:00+08:00	26	540	Ws_W1	1.494213	53.750000	540.0	539.333333	545.00	546.250000	17023.333333	17372.285714	300	-0.083512	-0.120361	0.000000	1.151200	1.163175	348.952381	True	-40.0	75.0	348.952381	0.0	0.000000	0.000000	495	819	-0.404393	NaN	349.0	0.0	NaN	NaN
2026-03-27 10:00:00+08:00	26	600	Ws_W1	1.494213	51.666667	600.0	599.333333	605.02	608.333333	17226.866667	17588.000000	301	-0.164580	-0.185401	0.000000	1.167000	1.199779	361.133333	True	-40.0	198.8	361.133333	0.0	0.000000	0.000000	45	513	-0.246788	NaN	354.0	0.0	NaN	NaN
2026-03-27 11:00:00+08:00	26	660	Ws_W1	1.494213	51.500000	660.0	659.583333	665.02	668.500000	17434.600000	17790.000000	301	-0.254879	-0.272119	0.000000	1.086667	1.180731	355.400000	True	-25.0	208.8	355.400000	0.0	0.000000	0.000000	10	218	-0.194633	NaN	352.0	0.0	NaN	NaN
2026-03-27 12:00:00+08:00	26	720	Ws_W1	1.494213	54.250000	720.0	719.500000	725.00	725.750000	17605.750000	17933.166667	300	-0.278882	-0.264630	0.000000	1.133000	1.091389	327.416667	True	-30.0	45.0	331.350000	0.0	0.000000	0.000000	279	620	-0.278238	NaN	350.0	0.0	NaN	NaN
2026-03-27 13:00:00+08:00	26	780	Ws_W1	1.494213	54.916667	780.0	779.416667	785.00	785.083333	17712.166667	18042.000000	300	-0.370339	-0.680247	0.000000	1.139905	1.099444	329.833333	True	-35.0	5.0	331.350000	1.5	70.765147	72.265147	454	320	-0.593643	17971.234853	351.0	34.0	NaN	NaN
2026-03-27 14:00:00+08:00	26	840	Ws_W1	1.494213	54.916667	840.0	839.583333	845.00	845.083333	17721.000000	18057.750000	300	-0.383791	-0.697188	0.000000	1.203733	1.122500	336.750000	True	-25.0	5.0	336.750000	0.0	75.485464	75.485464	725	300	-0.535517	17982.264536	349.0	46.0	NaN	NaN
2026-03-27 15:00:00+08:00	26	900	Ws_W1	1.494213	60.000000	900.0	899.500000	905.02	905.750000	17730.000000	18054.500000	301	-0.292447	-0.731070	-0.438889	1.098095	1.078073	324.500000	True	-30.0	43.8	332.454500	8.0	75.066347	83.066347	490	248	-0.556715	17979.433653	351.0	46.0	NaN	NaN

Figures - Ws_W1

Figure figure_7.png

Figure figure_6.png

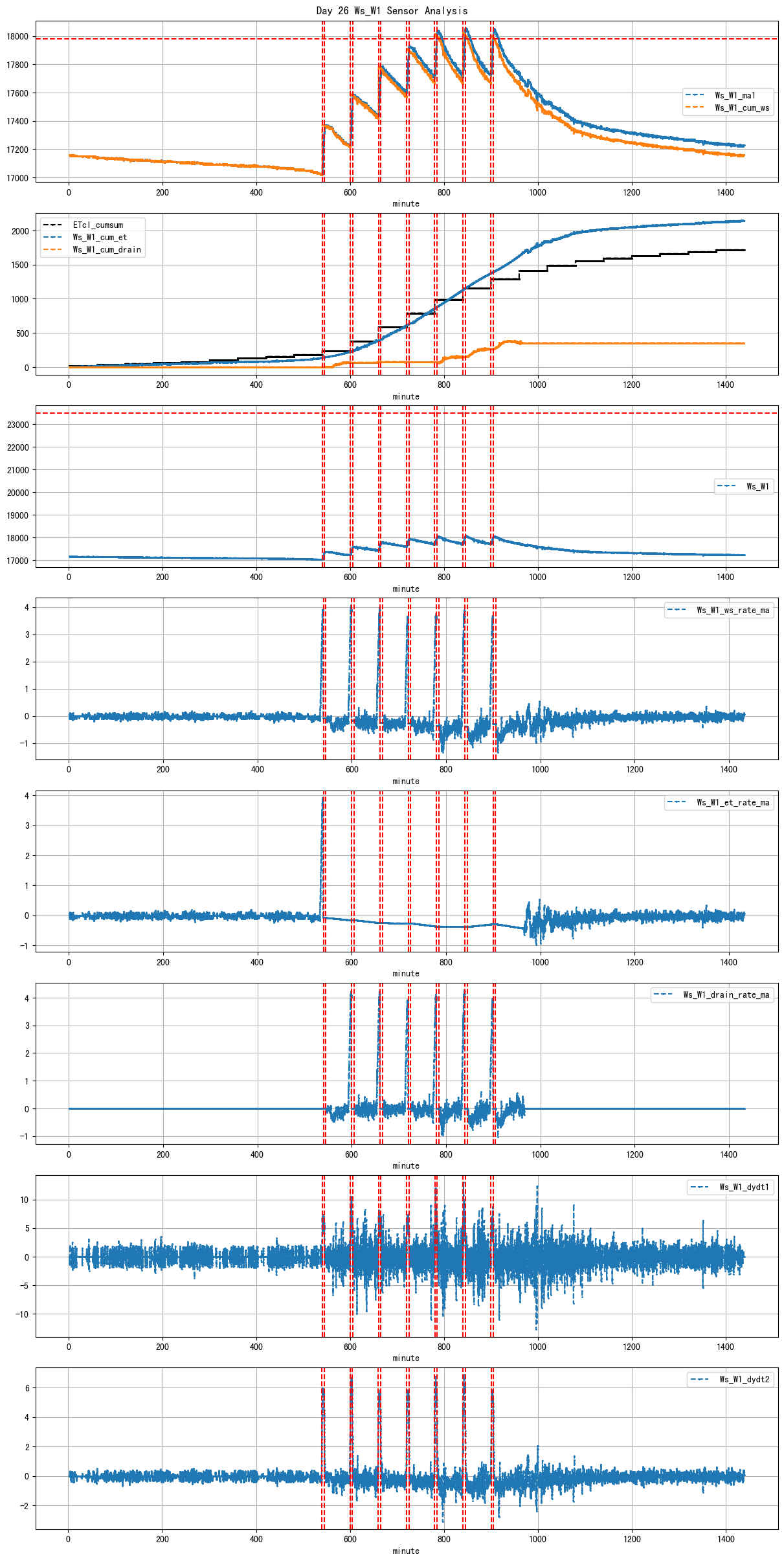

Figure figure_5.png

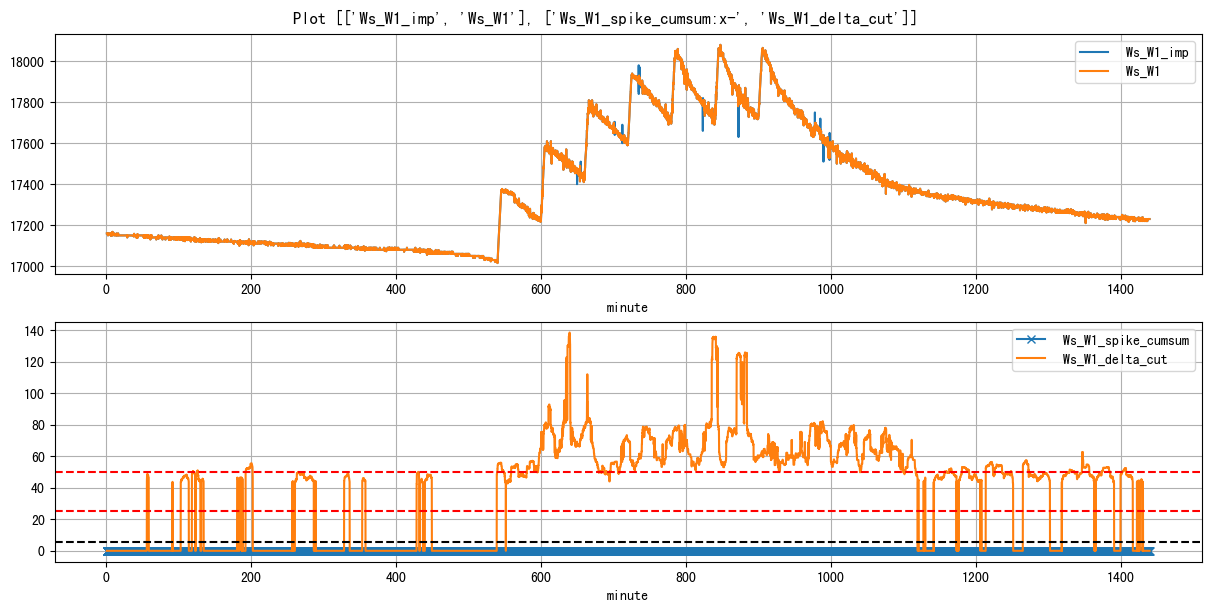

Figure figure_3.png

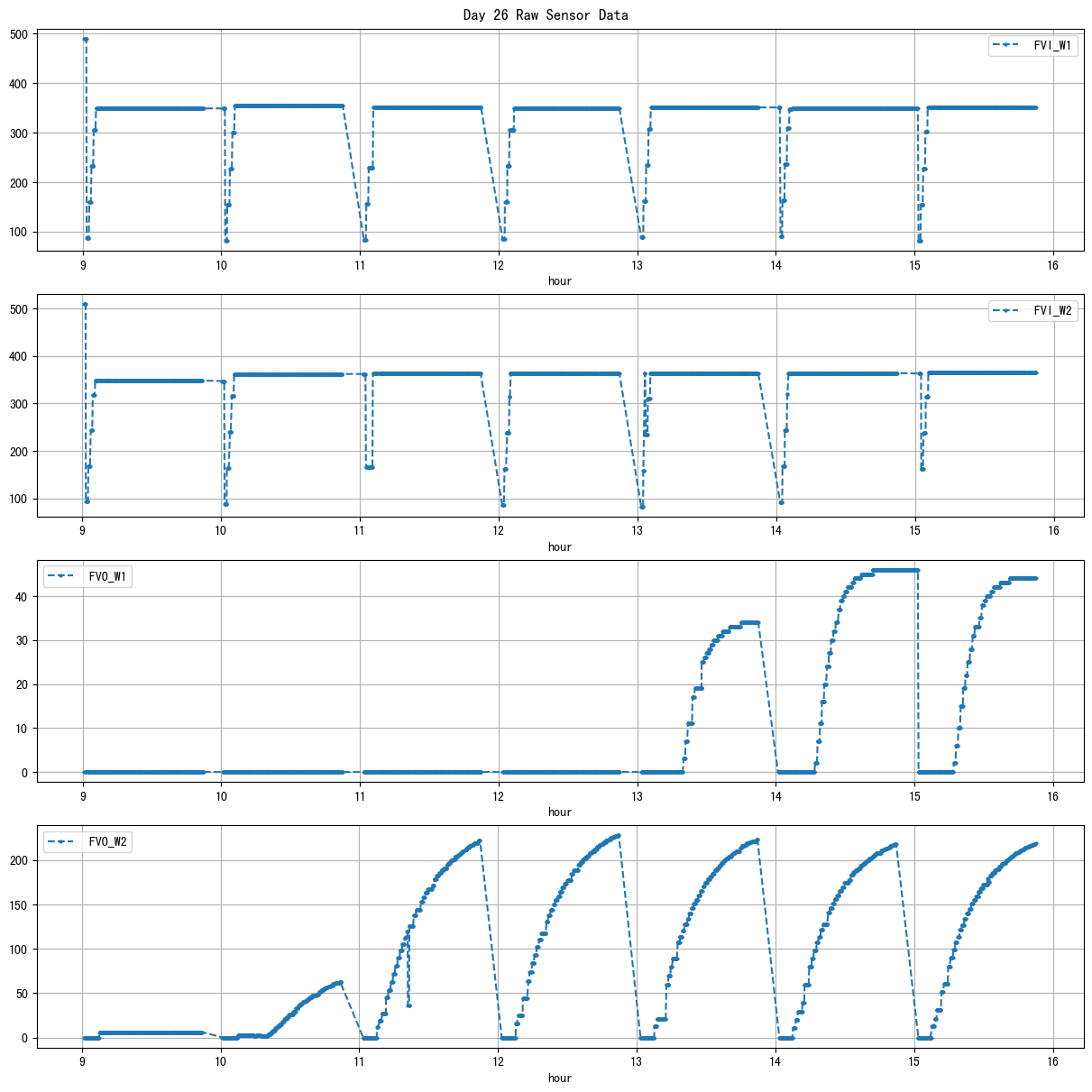

Figure figure_2.png

Summary Statistics - Ws_W2

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2322.76 L
Total Drain Amount: 634.87 L
In-Fertigation Drain Amount: 120.04 L
Post-Fertigation Drain Amount: 514.82 L
Drainage Rate: 27.33%

Ws Cleaning Summary Table - Ws_W2

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W2	17,269	14,382	0	53	-43.33

Fertigation Events Details Table - Ws_W2

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-03-27 09:00:00+08:00	26	540	Ws_W2	1.425564	54.916667	540.0	539.250000	545.00	545.083333	14630.000000	14940.000000	300	-0.139530	-0.122840	0.000000	1.015000	1.033333	310.000000	True	-45.0	5.0	331.3500	0.000000	0.000000	0.000000	405	930	-0.195460	NaN	NaN	NaN	348.0	6.0
2026-03-27 10:00:00+08:00	26	600	Ws_W2	1.425564	54.833333	600.0	599.333333	605.02	605.166667	14847.800000	15173.100000	301	-0.127133	-0.153333	0.000000	1.130000	1.080731	325.300000	True	-40.0	8.8	332.4545	7.200000	17.049429	24.249429	450	588	-0.303828	15156.050571	NaN	NaN	362.0	63.0
2026-03-27 11:00:00+08:00	26	660	Ws_W2	1.425564	54.833333	660.0	659.416667	665.02	665.166667	15000.000000	15315.800000	301	-0.258342	-0.820329	0.000000	1.066629	1.049169	315.800000	True	-35.0	8.8	332.4545	16.700000	118.278948	134.978948	1239	13	-0.620412	15197.521052	NaN	NaN	364.0	222.0
2026-03-27 12:00:00+08:00	26	720	Ws_W2	1.425564	54.916667	720.0	719.166667	725.00	725.083333	15000.000000	15316.500000	300	-0.312344	-0.959465	0.000000	1.078667	1.055000	316.500000	True	-50.0	5.0	331.3500	14.900000	119.023792	133.923792	1209	150	-0.738069	15197.476208	NaN	NaN	363.0	228.0
2026-03-27 13:00:00+08:00	26	780	Ws_W2	1.425564	54.916667	780.0	779.750000	785.00	785.083333	14995.666667	15308.333333	300	-0.227736	-0.887149	0.000000	1.087000	1.042222	312.666667	True	-15.0	5.0	331.3500	18.700000	60.627176	79.327176	444	60	-0.711245	15247.706157	NaN	NaN	364.0	223.0
2026-03-27 14:00:00+08:00	26	840	Ws_W2	1.425564	54.250000	840.0	839.583333	845.00	845.750000	14973.333333	15285.333333	300	-0.298863	-0.942490	0.000000	1.122667	1.040000	312.000000	True	-25.0	45.0	331.3500	19.400000	113.551001	132.951001	999	140	-0.710722	15171.782332	NaN	NaN	364.0	218.0
2026-03-27 15:00:00+08:00	26	900	Ws_W2	1.425564	60.000000	900.0	899.416667	905.02	905.583333	14960.714286	15228.166667	301	-0.282106	-0.840939	-0.100986	1.006000	0.888546	267.452381	True	-35.0	33.8	332.4545	43.144892	86.289785	129.434677	645	93	-0.655691	15141.876882	NaN	NaN	365.0	219.0

Figures - Ws_W2

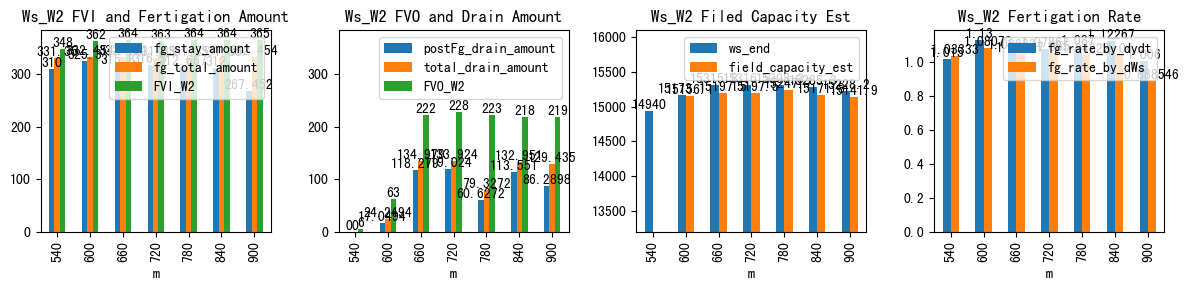

Figure figure_10.png

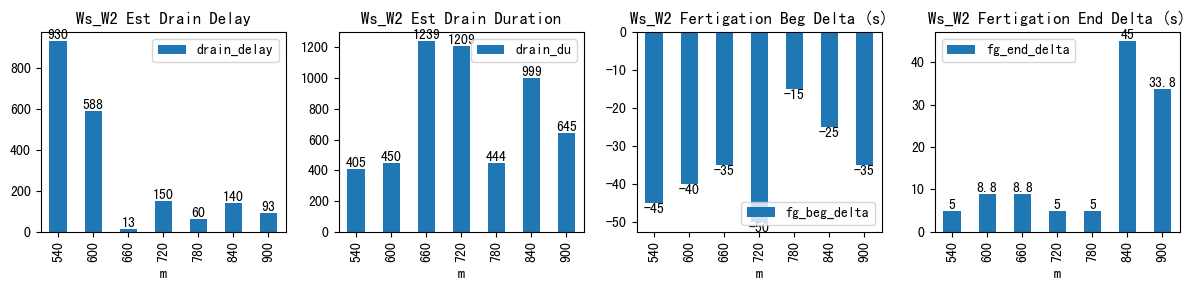

Figure figure_9.png

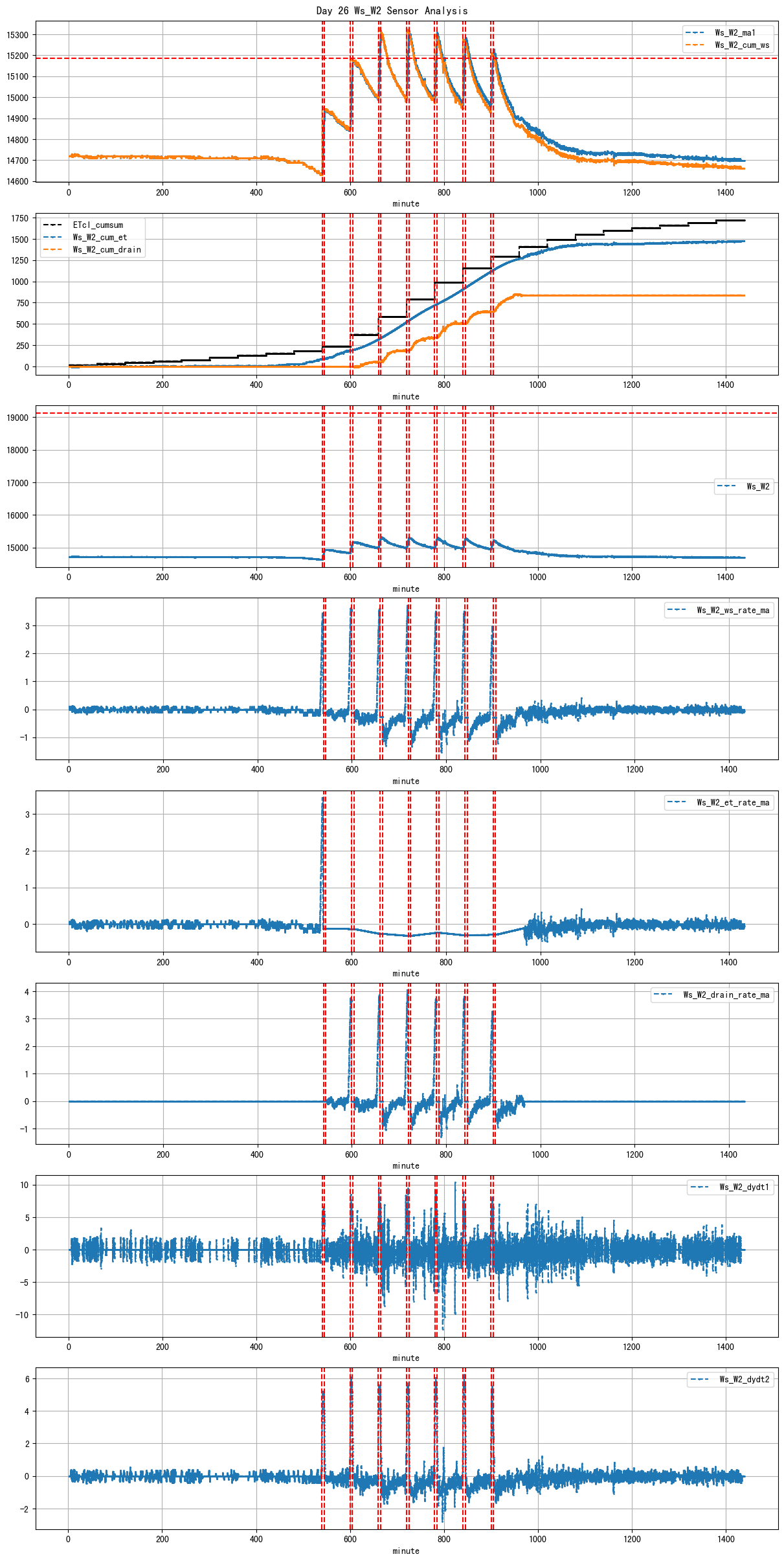

Figure figure_8.png

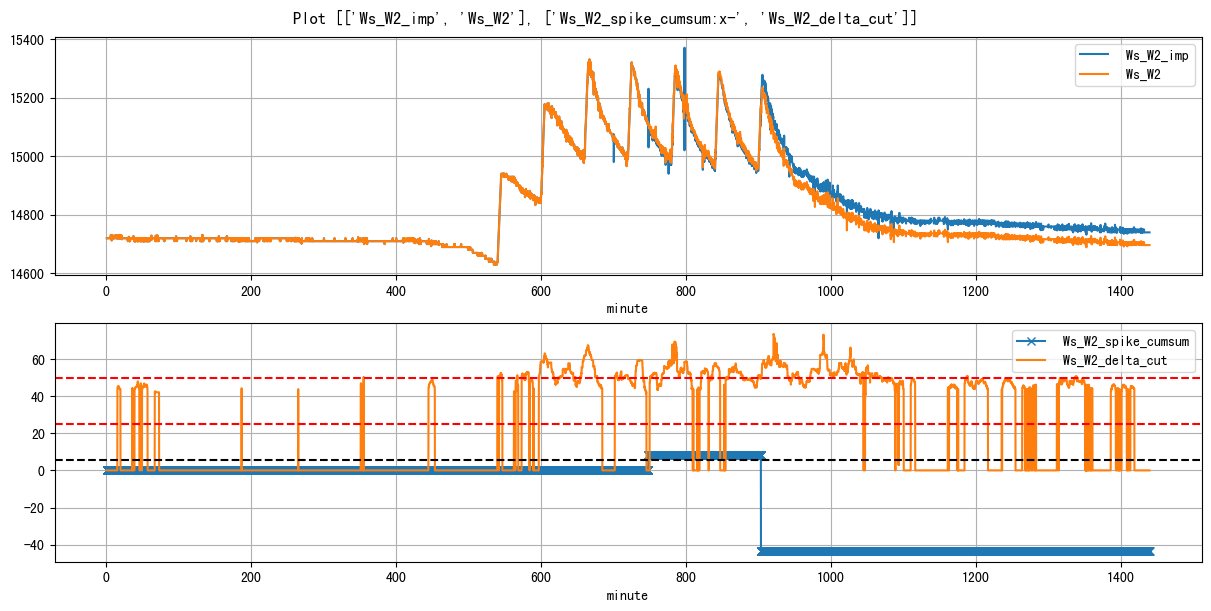

Figure figure_4.png

Figure figure_2.png
