Ws Sensor Analysis Report - Day 136

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 145.01 L
Avg Total Drain Amount: 28.41 L
Avg In-Fertigation Drain Amount: 0.30 L
Avg Post-Fertigation Drain Amount: 28.11 L
Avg Drainage Rate: 19.59%

Detail Section

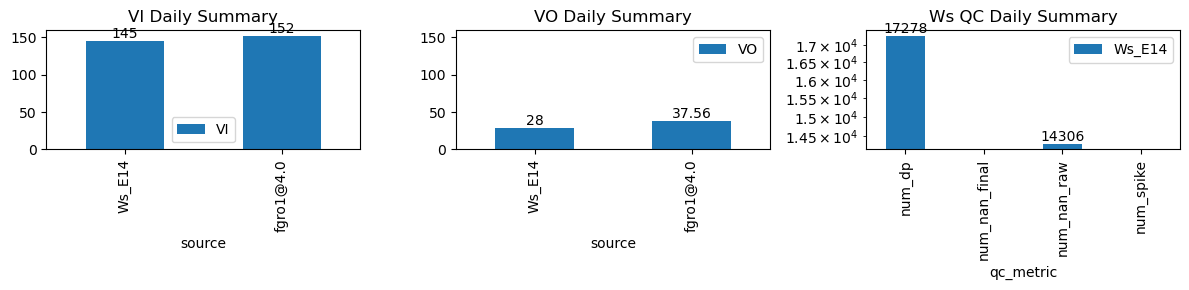

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 145.01 L
Total Drain Amount: 28.41 L
In-Fertigation Drain Amount: 0.30 L
Post-Fertigation Drain Amount: 28.11 L
Drainage Rate: 19.59%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,278	14,306	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-19 08:18:14+08:00	136	498	Ws_E14	0.419837	30.000000	498.23	498.666667	498.85	499.416667	14338.000000	14440.0	37	0.000000	-0.008264	0.000000	0.456229	0.551351	20.400000	True	26.2	34.0	20.400000	0.0	0.000000	0.000000	15	453	-0.277778	NaN	NaN	NaN
2026-02-19 08:50:00+08:00	136	530	Ws_E14	0.419837	28.750000	530.00	530.333333	530.62	531.250000	14435.000000	14540.0	37	-0.021429	-0.016528	0.000000	0.442408	0.567568	21.000000	True	20.0	37.8	21.000000	0.0	0.000000	0.000000	15	732	-0.282711	NaN	NaN	NaN
2026-02-19 09:20:00+08:00	136	560	Ws_E14	0.419837	28.750000	560.00	560.083333	560.62	561.250000	14534.288889	14639.0	37	-0.007274	-0.024306	0.000000	0.395929	0.566006	20.942222	True	5.0	37.8	20.942222	0.0	0.000000	0.000000	15	617	-0.279954	NaN	NaN	NaN
2026-02-19 09:50:00+08:00	136	590	Ws_E14	0.419837	28.750000	590.00	590.333333	590.62	591.250000	14629.000000	14734.0	37	-0.036900	-0.042917	0.000000	0.425000	0.567568	21.000000	True	20.0	37.8	21.000000	0.0	0.000000	0.000000	15	197	-0.248670	NaN	NaN	NaN
2026-02-19 10:20:00+08:00	136	620	Ws_E14	0.419837	28.833333	620.00	620.083333	620.62	621.166667	14723.000000	14828.0	37	-0.026613	-0.034583	0.000000	0.396929	0.567568	21.000000	True	5.0	32.8	21.000000	0.0	0.000000	0.000000	9	192	-0.236821	NaN	NaN	NaN
2026-02-19 10:50:00+08:00	136	650	Ws_E14	0.419837	29.833333	650.00	650.333333	650.62	651.166667	14815.000000	14919.0	37	-0.032289	-0.416250	0.000000	0.447857	0.562162	20.800000	True	20.0	32.8	20.800000	0.0	13.400790	13.400790	439	42	-0.968715	14851.996051	NaN	NaN
2026-02-19 11:21:12+08:00	136	681	Ws_E14	0.419837	30.000000	681.20	681.583333	681.82	682.333333	14844.000000	14942.0	37	-0.037153	-0.470213	-0.035278	0.424714	0.529730	19.600000	True	23.0	30.8	19.869000	0.3	14.708946	15.008946	555	35	-1.117079	14868.455269	NaN	NaN

Figures - Ws_E14

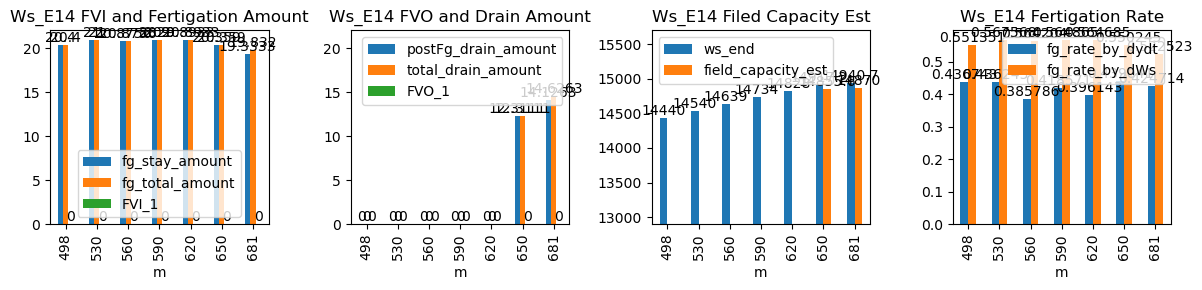

Figure figure_8.png

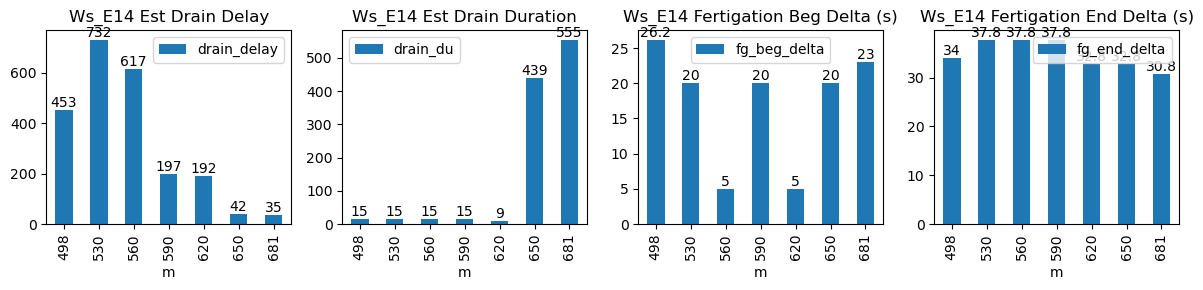

Figure figure_7.png

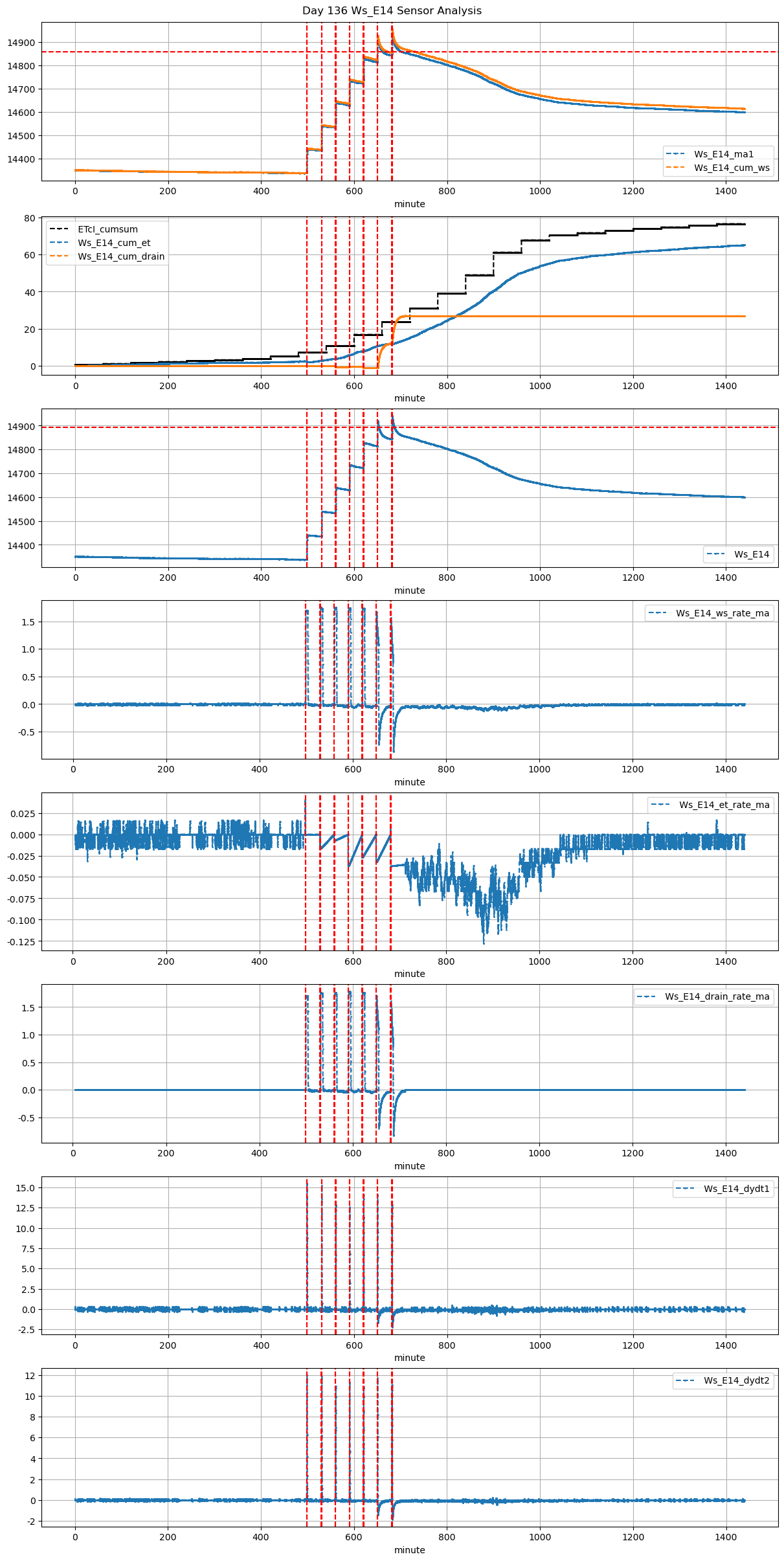

Figure figure_6.png

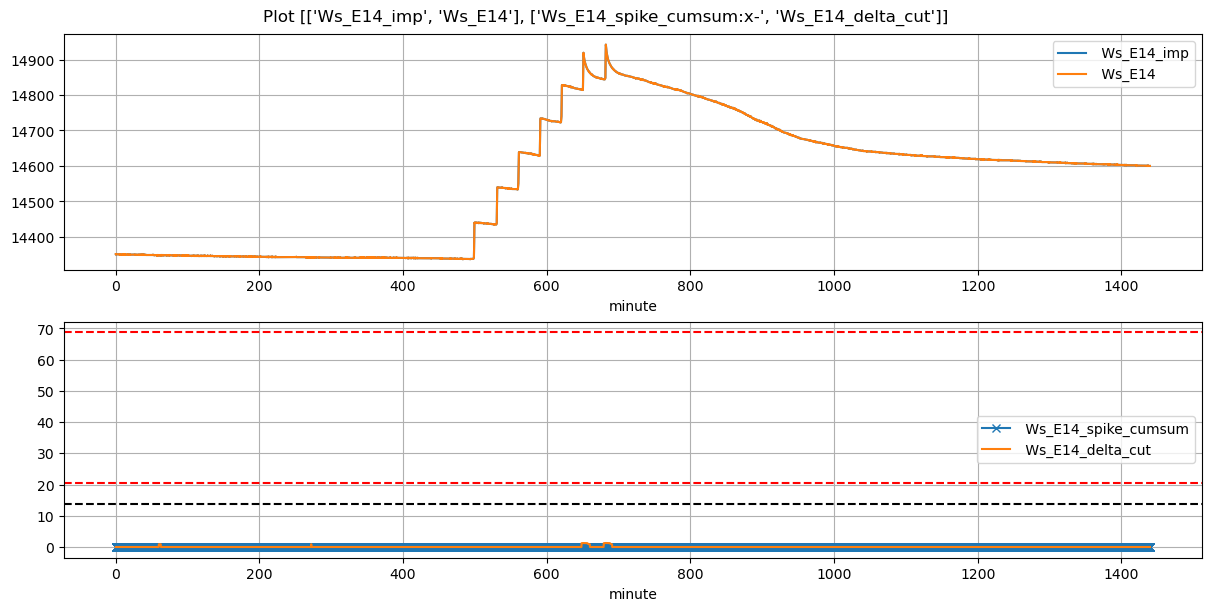

Figure figure_5.png

Figure figure_4.png
