Ws Sensor Analysis Report - Day 142

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 181.16 L
Avg Total Drain Amount: 144.17 L
Avg In-Fertigation Drain Amount: 18.80 L
Avg Post-Fertigation Drain Amount: 125.37 L
Avg Drainage Rate: 79.58%

Detail Section

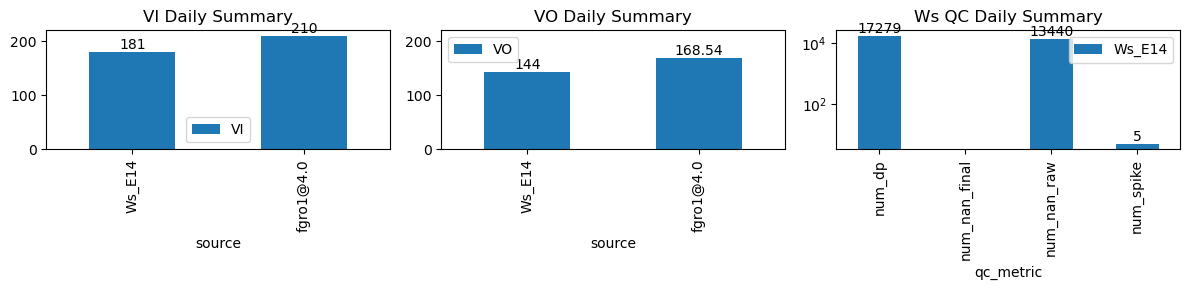

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 181.16 L
Total Drain Amount: 144.17 L
In-Fertigation Drain Amount: 18.80 L
Post-Fertigation Drain Amount: 125.37 L
Drainage Rate: 79.58%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,279	13,440	0	5	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-25 08:14:17+08:00	142	494	Ws_E14	0.976864	30.000000	494.28	494.500000	495.21	495.750000	14568.0	14722.0	56	-0.001023	-0.363861	-0.020972	0.452841	0.550000	30.8	True	13.2	32.4	30.800	0.0	9.510886	9.510886	649	77	-0.647788	14674.445568	NaN	NaN
2026-02-25 08:56:22+08:00	142	536	Ws_E14	0.976864	28.250000	536.37	536.500000	537.30	537.750000	14667.0	14801.0	56	-0.014491	-0.726875	0.000000	0.393030	0.478571	26.8	True	7.8	27.0	30.072	3.3	23.367748	26.667748	925	37	-1.571135	14684.161261	NaN	NaN
2026-02-25 09:26:22+08:00	142	566	Ws_E14	0.976864	28.166667	566.37	566.583333	567.30	567.833333	14676.0	14807.0	56	-0.049306	-0.746458	0.000000	0.391818	0.467857	26.2	True	12.8	32.0	30.072	3.9	23.390439	27.290439	865	37	-1.610865	14690.047805	NaN	NaN
2026-02-25 09:56:22+08:00	142	596	Ws_E14	0.976864	28.250000	596.37	596.583333	597.30	597.750000	14677.0	14808.0	56	-0.052431	-0.771111	0.000000	0.392818	0.467857	26.2	True	12.8	27.0	30.072	3.9	23.515901	27.415901	760	37	-1.650028	14690.420497	NaN	NaN
2026-02-25 10:26:22+08:00	142	626	Ws_E14	0.976864	28.250000	626.37	626.583333	627.30	627.750000	14676.0	14808.0	56	-0.064583	-0.768542	0.000000	0.394242	0.471429	26.4	True	12.8	27.0	30.072	3.7	23.283924	26.983924	485	37	-1.633397	14691.580381	NaN	NaN
2026-02-25 10:56:22+08:00	142	656	Ws_E14	0.976864	30.000000	656.37	656.583333	657.30	657.750000	14673.5	14804.0	56	-0.053750	-0.757222	-0.042574	0.395000	0.466071	26.1	True	12.8	27.0	30.072	4.0	22.302386	26.302386	405	37	-1.521882	14692.488068	NaN	NaN

Figures - Ws_E14

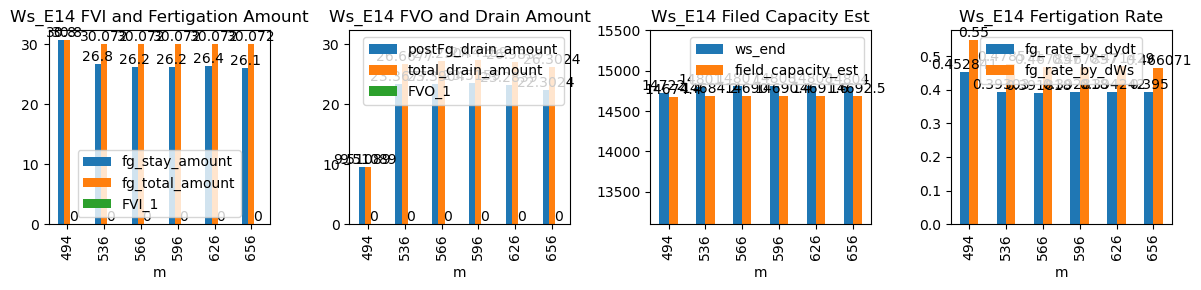

Figure figure_8.png

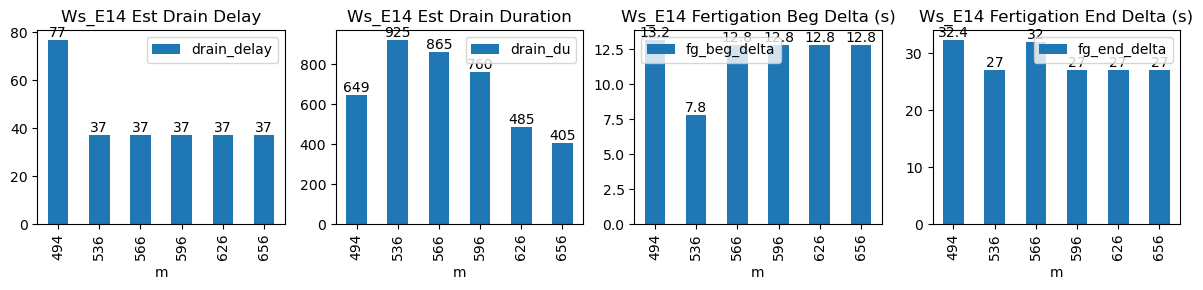

Figure figure_7.png

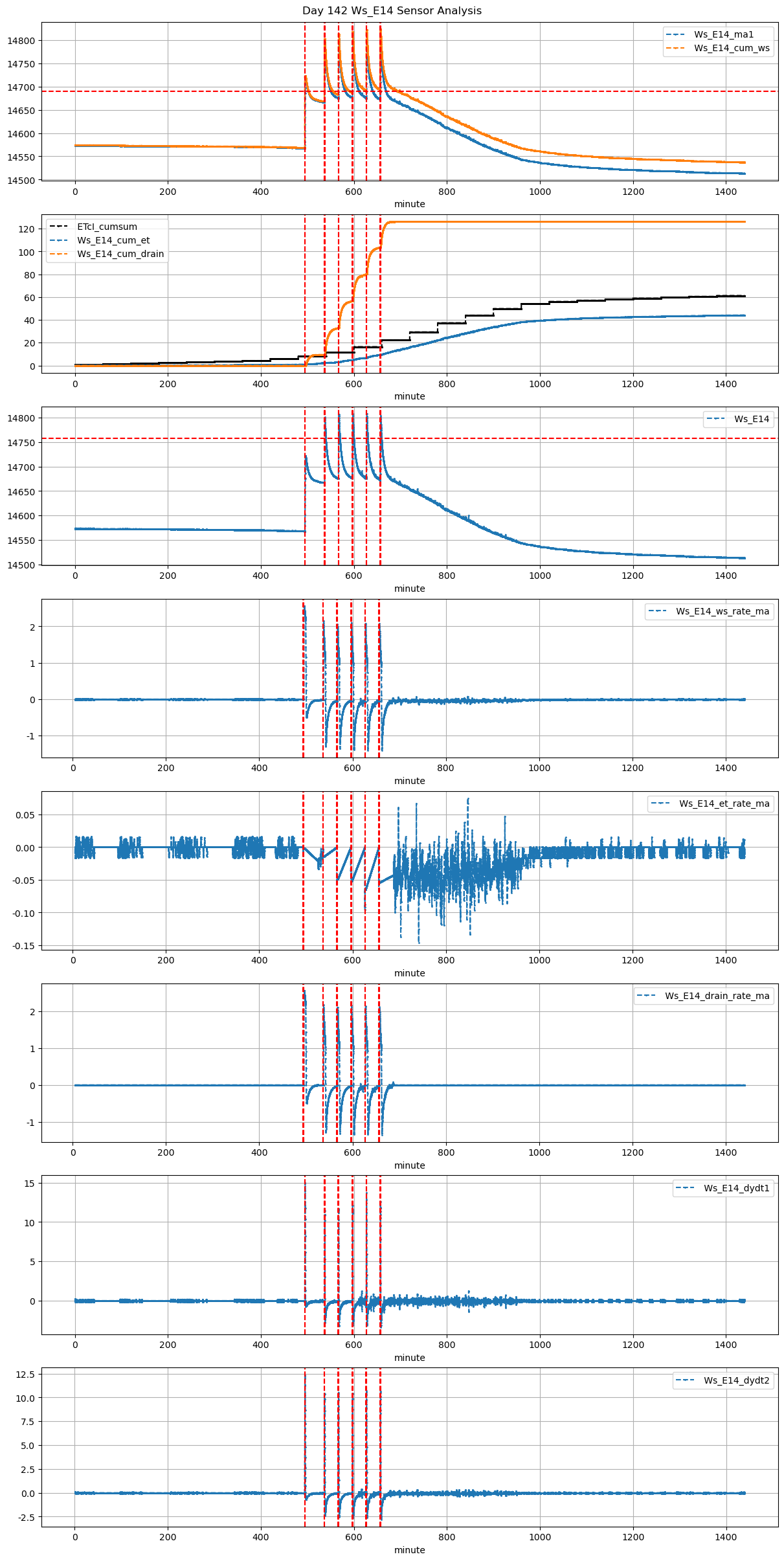

Figure figure_6.png

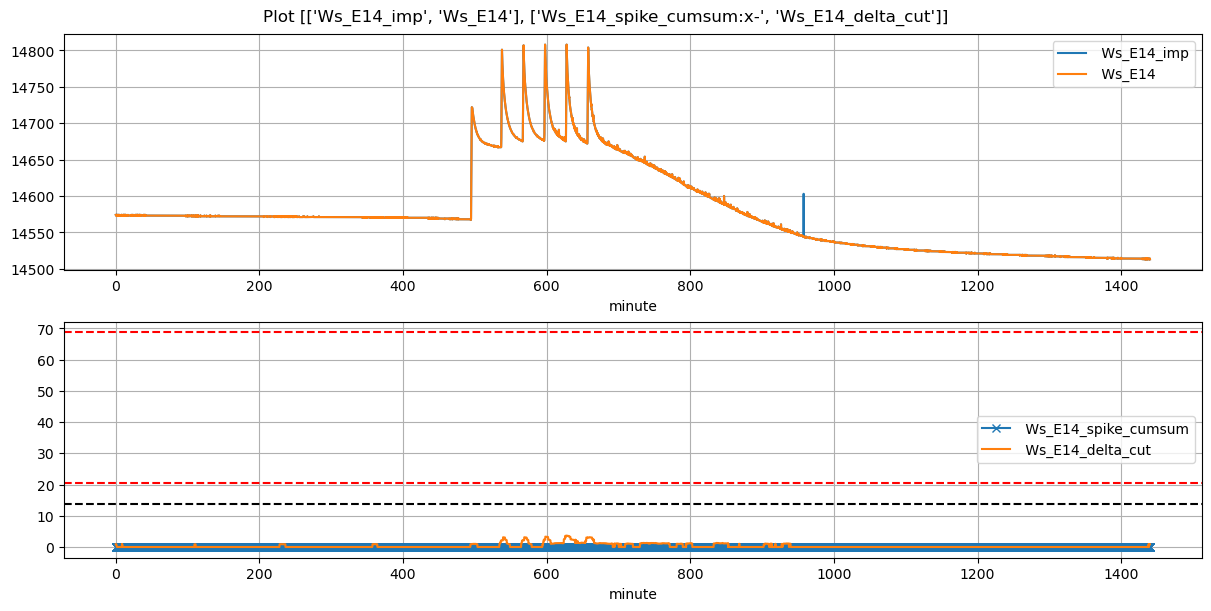

Figure figure_5.png

Figure figure_4.png
