Ws Sensor Analysis Report - Day 144

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 179.76 L
Avg Total Drain Amount: 141.50 L
Avg In-Fertigation Drain Amount: 17.90 L
Avg Post-Fertigation Drain Amount: 123.60 L
Avg Drainage Rate: 78.72%

Detail Section

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 179.76 L
Total Drain Amount: 141.50 L
In-Fertigation Drain Amount: 17.90 L
Post-Fertigation Drain Amount: 123.60 L
Drainage Rate: 78.72%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,267	14,178	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-02-27 08:09:20+08:00	144	489	Ws_E14	1.191976	24.250000	489.33	489.583333	490.26	490.750000	14666.000000	14820.0	56	0.000000	-0.408657	0.00000	0.446982	0.550000	30.800000	True	15.2	29.4	30.800	0.0	11.012000	11.012000	500	64	-0.796000	14764.940000	NaN	NaN
2026-02-27 08:35:00+08:00	144	515	Ws_E14	1.191976	19.583333	515.00	515.166667	515.93	516.416667	14760.000000	14893.0	56	-0.034181	-0.738264	0.00000	0.382727	0.475000	26.600000	True	10.0	29.2	29.792	3.2	22.208880	25.408880	1065	39	-1.802952	14781.955601	NaN	NaN
2026-02-27 08:56:25+08:00	144	536	Ws_E14	1.191976	28.166667	536.42	536.666667	537.35	537.833333	14772.483333	14904.0	56	-0.121171	-0.766435	0.00000	0.389909	0.469702	26.303333	True	14.8	29.0	29.792	3.5	20.829386	24.329386	935	38	-1.699187	14799.853071	NaN	NaN
2026-02-27 09:26:25+08:00	144	566	Ws_E14	1.191976	28.166667	566.42	566.666667	567.35	567.833333	14772.000000	14903.0	56	-0.044028	-0.755023	0.00000	0.394818	0.467857	26.200000	True	14.8	29.0	29.792	3.6	23.110928	26.710928	755	38	-1.638141	14787.445360	NaN	NaN
2026-02-27 09:56:25+08:00	144	596	Ws_E14	1.191976	28.166667	596.42	596.666667	597.35	597.833333	14774.000000	14904.0	56	-0.043194	-0.755861	0.00000	0.400545	0.464286	26.000000	True	14.8	29.0	29.792	3.8	23.588923	27.388923	875	38	-1.538856	14786.055385	NaN	NaN
2026-02-27 10:26:25+08:00	144	626	Ws_E14	1.191976	30.000000	626.42	626.583333	627.35	627.833333	14773.800000	14904.0	56	-0.047604	-0.770069	-0.01794	0.372727	0.465000	26.040000	True	9.8	29.0	29.792	3.8	22.852510	26.652510	1025	38	-1.553648	14789.737452	NaN	NaN

Figures - Ws_E14

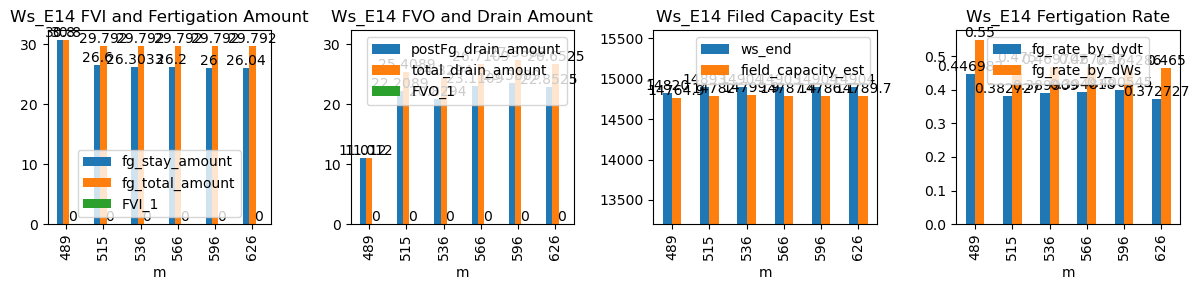

Figure figure_8.png

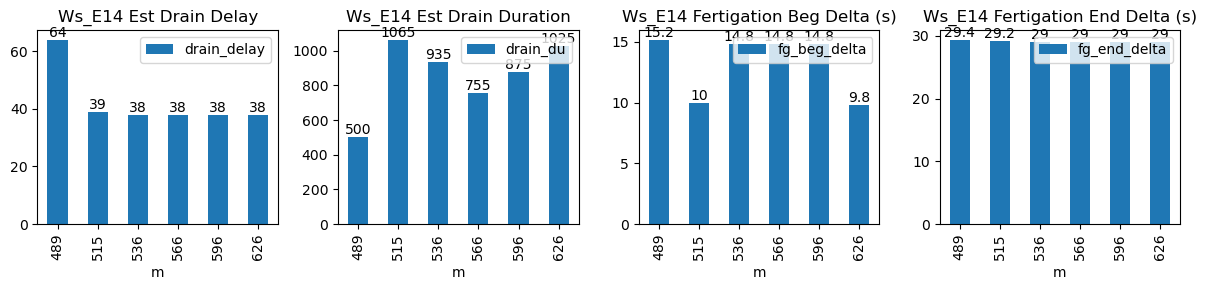

Figure figure_7.png

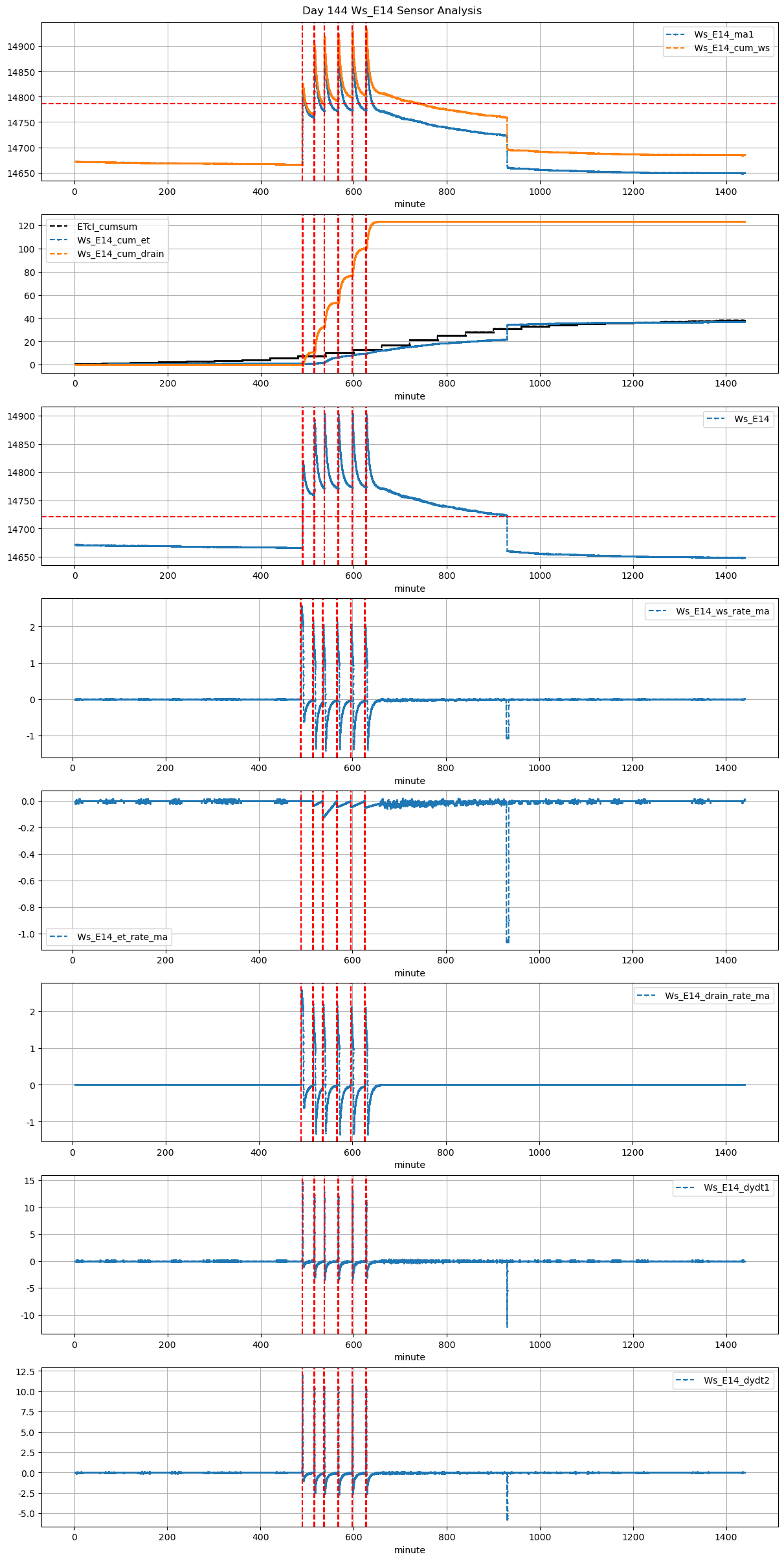

Figure figure_6.png

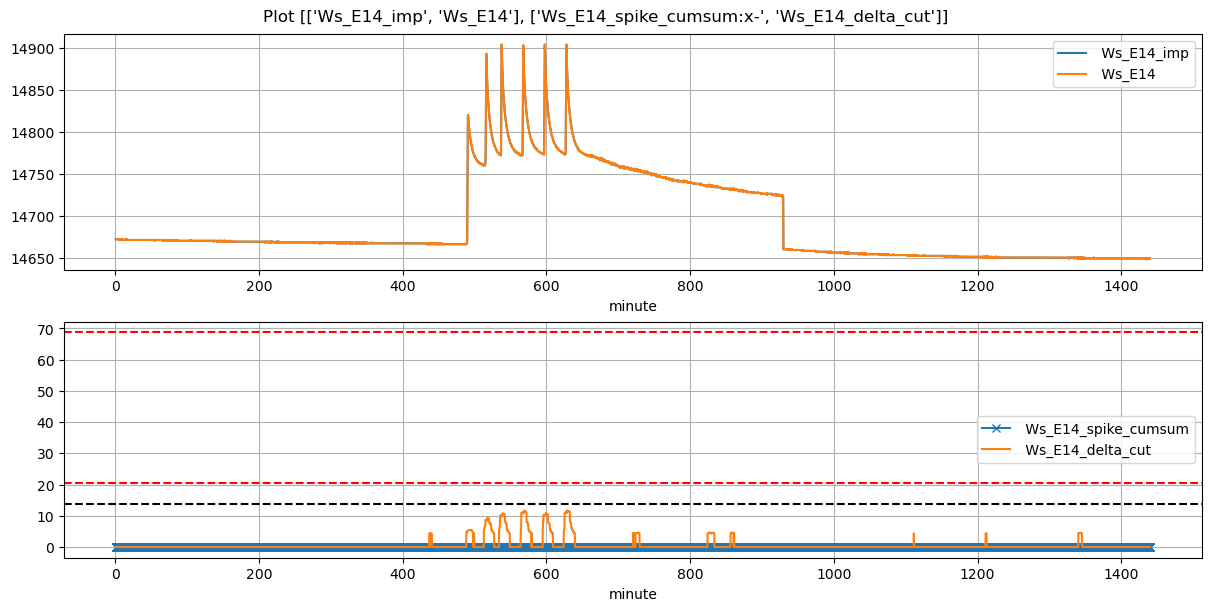

Figure figure_5.png

Figure figure_4.png
