Ws Sensor Analysis Report - Day 156

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 6.0
Avg Fertigation Amount: 181.28 L
Avg Total Drain Amount: 0.00 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 0.00 L
Avg Drainage Rate: 0.00%

Detail Section

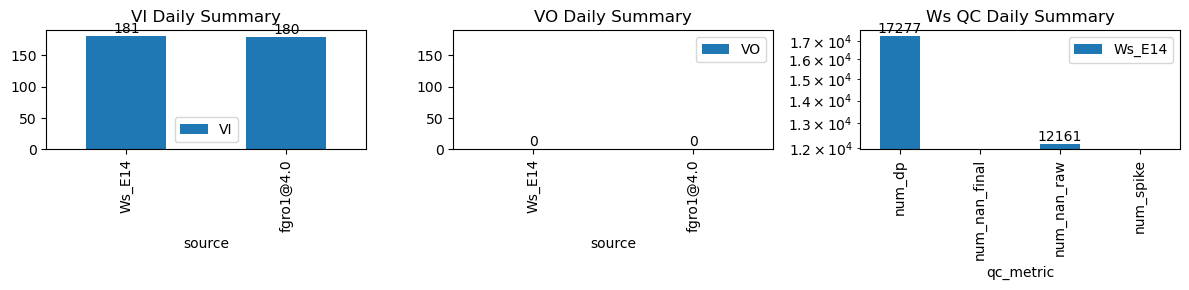

VI and VO Daily Summary

Summary Statistics - Ws_E14

Number of Fertigation Events: 6
Number of Fertigation Events detected: 6
Total Fertigation Amount: 181.28 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_E14

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_E14	17,277	12,161	0	0	0.00

Fertigation Events Details Table - Ws_E14

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_1	FVO_1
2026-03-11 08:40:00+08:00	156	520	Ws_E14	0.288546	30	520.00	520.333333	520.90	522.083333	13330.628571	13482.0	54	-0.036135	-0.014753	-0.042708	0.443422	0.560635	30.274286	True	20.0	71.0	30.274286	0.0	0	0.0	20	186	-0.197105	NaN	NaN	NaN
2026-03-11 09:25:00+08:00	156	565	Ws_E14	0.288546	30	565.00	565.333333	565.90	566.416667	13455.500000	13607.0	54	-0.110857	-0.064907	-0.095028	0.475633	0.561111	30.300000	True	20.0	31.0	30.300000	0.0	0	0.0	15	105	-0.202994	NaN	NaN	NaN
2026-03-11 10:11:26+08:00	156	611	Ws_E14	0.288546	30	611.43	611.750000	612.33	612.833333	13561.675000	13712.0	54	-0.099066	-0.090630	-0.104514	0.474479	0.556759	30.065000	True	19.2	30.2	30.176182	0.0	0	0.0	25	80	-0.153948	NaN	NaN	NaN
2026-03-11 10:55:00+08:00	156	655	Ws_E14	0.288546	30	655.00	655.333333	655.90	657.916667	13663.933333	13799.0	54	-0.124035	-0.125255	-0.092083	0.357700	0.500247	27.013333	True	20.0	121.0	30.176182	0.0	0	0.0	15	681	-0.244263	NaN	NaN	NaN
2026-03-11 11:40:00+08:00	156	700	Ws_E14	0.288546	30	700.00	700.333333	700.90	701.833333	13739.000000	13847.0	54	-0.160621	-0.096944	-0.146667	0.328417	0.400000	21.600000	True	20.0	56.0	30.176182	0.0	0	0.0	25	915	-0.251234	NaN	NaN	NaN
2026-03-11 15:15:00+08:00	156	915	Ws_E14	0.288546	30	915.00	915.333333	915.90	916.416667	13577.600000	13728.0	54	-0.055250	-0.040718	-0.018461	0.476633	0.557037	30.080000	True	20.0	31.0	30.176182	0.0	0	0.0	10	45	-0.125146	NaN	NaN	NaN

Figures - Ws_E14

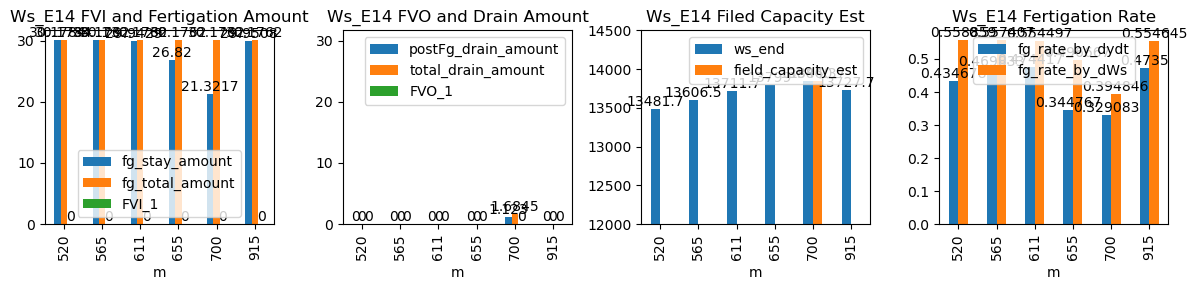

Figure figure_8.png

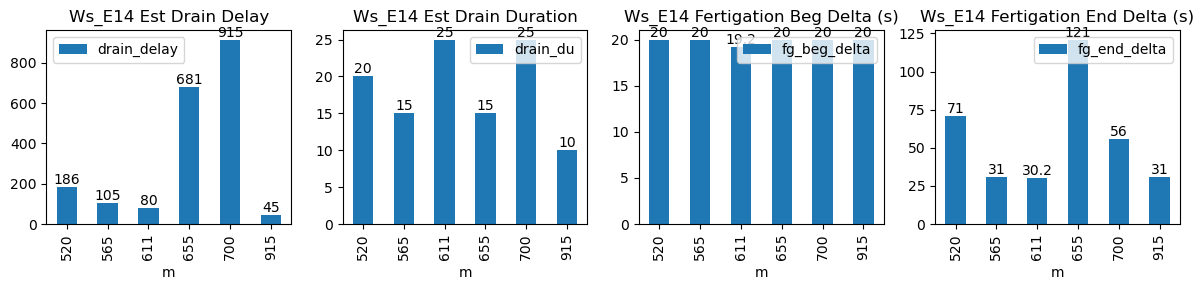

Figure figure_7.png

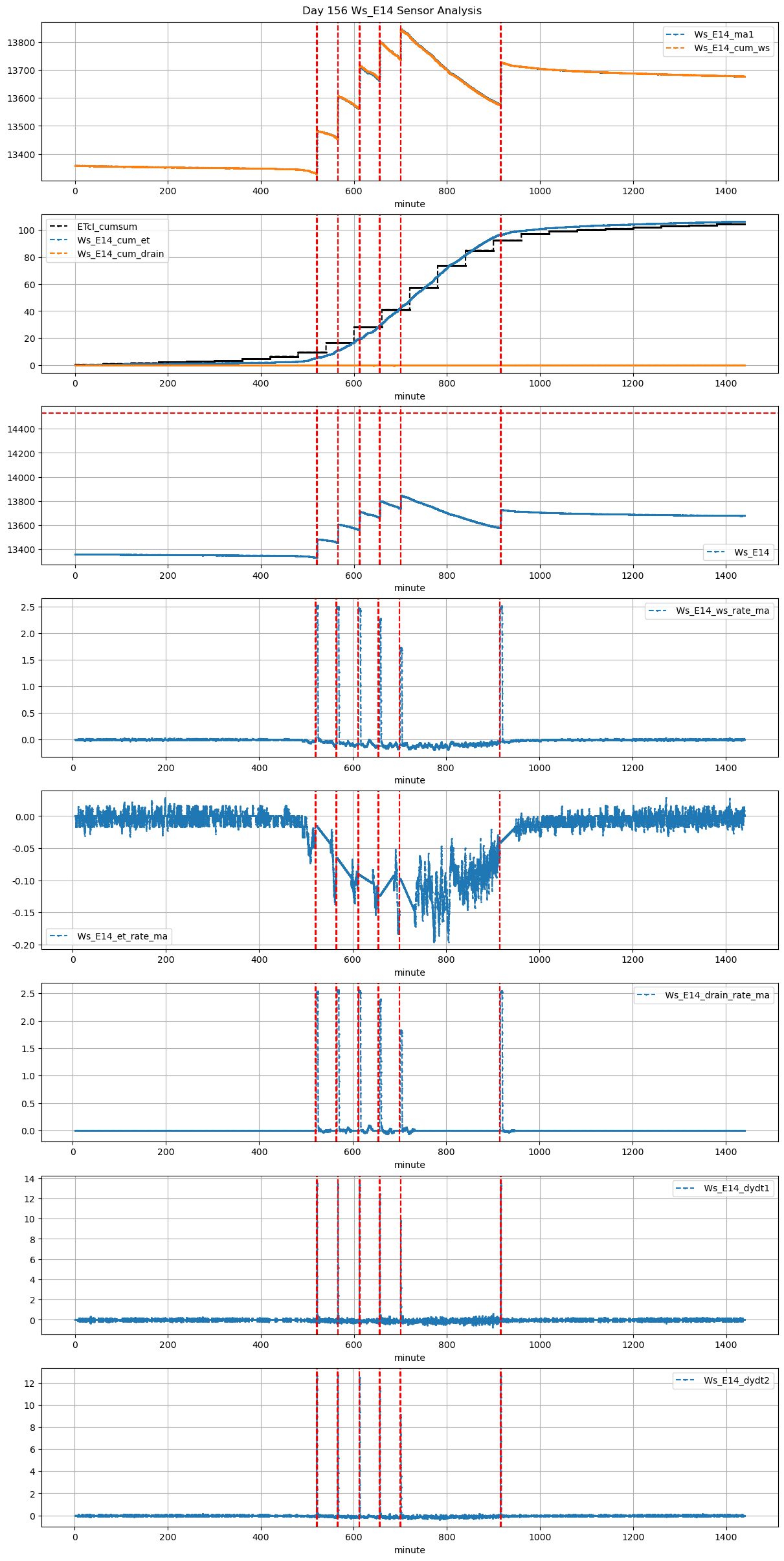

Figure figure_6.png

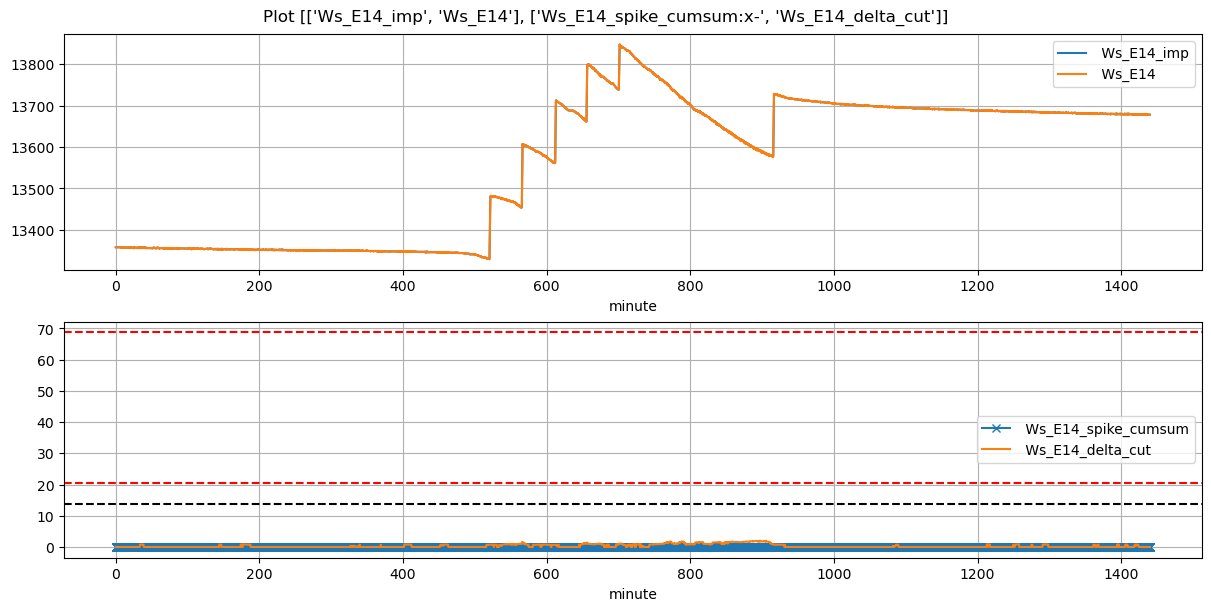

Figure figure_5.png

Figure figure_4.png
