Ws Sensor Analysis Report - Day 101

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 136.90 L
Avg Total Drain Amount: 5.89 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 5.89 L
Avg Drainage Rate: 4.30%

Detail Section

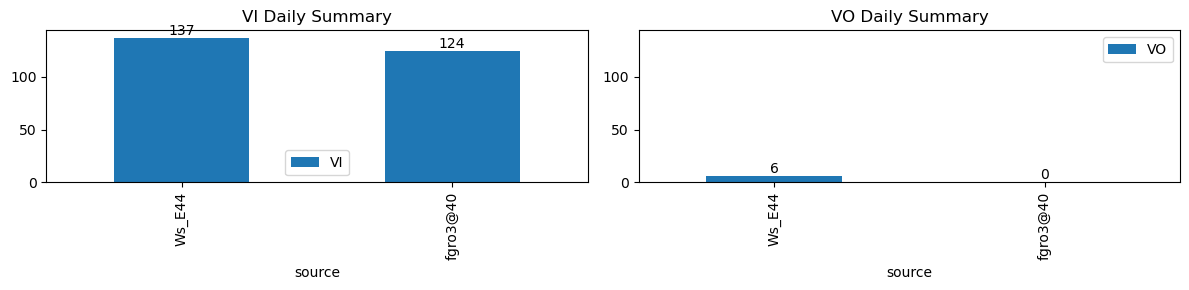

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 136.90 L
Total Drain Amount: 5.89 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 5.89 L
Drainage Rate: 4.30%

Ws Cleaning Summary Table - Ws_E44

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E44	17262	0	13660	0	2

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-15 08:06:12+08:00	101	486	Ws_E44	0.42019	30	486.20	486.583333	486.72	488.333333	NaN	NaN	NaN	3645.0	3747.0	31	-0.022639	-0.034444	-0.066816	0.326333	0.658065	20.4	23.0	96.8	20.4	0.0	-0.688019	NaN	-0.688019
2026-01-15 09:47:19+08:00	101	587	Ws_E44	0.42019	30	587.32	587.833333	587.84	589.666667	NaN	NaN	NaN	3662.5	3760.0	31	-0.127207	-0.098507	-0.137014	0.322667	0.629032	19.5	30.8	109.6	19.5	0.0	-0.068508	NaN	-0.068508
2026-01-15 11:00:00+08:00	101	660	Ws_E44	0.42019	30	660.00	660.416667	660.52	662.083333	NaN	NaN	NaN	3645.0	3740.0	31	-0.135734	-0.232500	-0.152963	0.355000	0.612903	19.0	25.0	93.8	19.0	0.0	0.925506	NaN	0.925506
2026-01-15 11:55:00+08:00	101	715	Ws_E44	0.42019	30	715.00	715.416667	715.52	717.250000	NaN	NaN	NaN	3640.0	3736.0	31	-0.152374	-0.243194	-0.146404	0.327000	0.619355	19.2	25.0	103.8	19.2	0.0	1.600937	NaN	1.600937
2026-01-15 12:50:00+08:00	101	770	Ws_E44	0.42019	30	770.00	770.500000	770.52	772.416667	NaN	NaN	NaN	3635.0	3730.0	31	-0.140866	-0.275556	-0.153611	0.309667	0.612903	19.0	30.0	113.8	19.0	0.0	2.114571	NaN	2.114571
2026-01-15 13:45:00+08:00	101	825	Ws_E44	0.42019	30	825.00	825.500000	825.52	827.333333	NaN	NaN	NaN	3625.0	3723.0	31	-0.155862	-0.219583	-0.128889	0.328333	0.632258	19.6	30.0	108.8	19.6	0.0	1.267677	NaN	1.267677
2026-01-15 14:40:00+08:00	101	880	Ws_E44	0.42019	30	880.00	880.500000	880.52	882.333333	NaN	NaN	NaN	3632.0	3733.0	31	-0.120789	-0.179583	-0.075735	0.329667	0.651613	20.2	30.0	108.8	20.2	0.0	0.733321	NaN	0.733321

Figures - Ws_E44

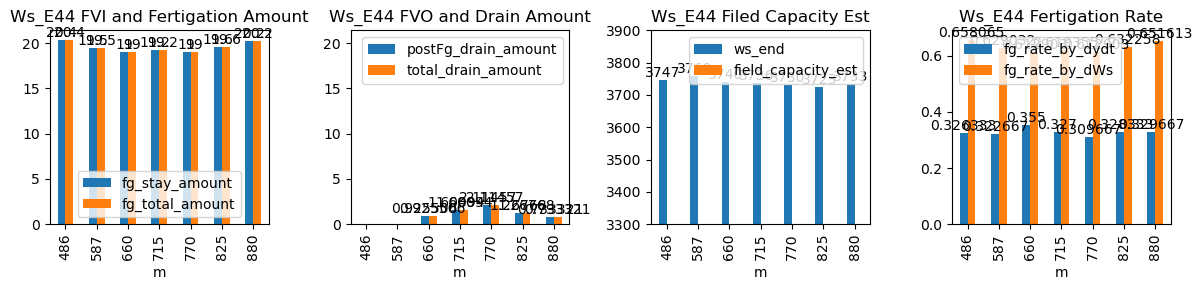

Figure figure_9.png

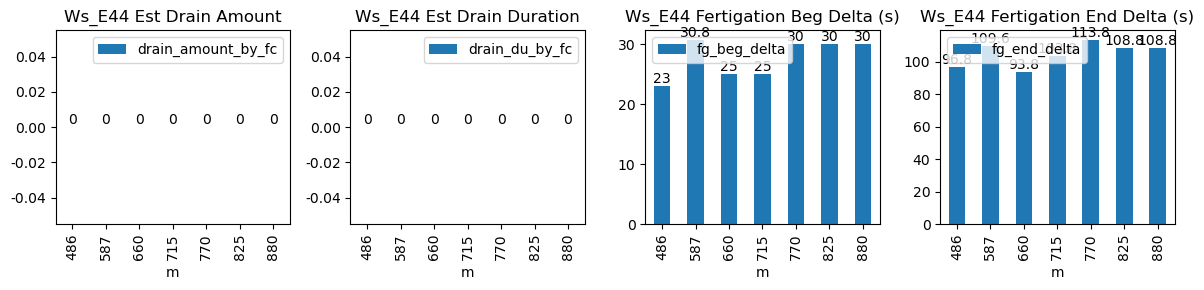

Figure figure_8.png

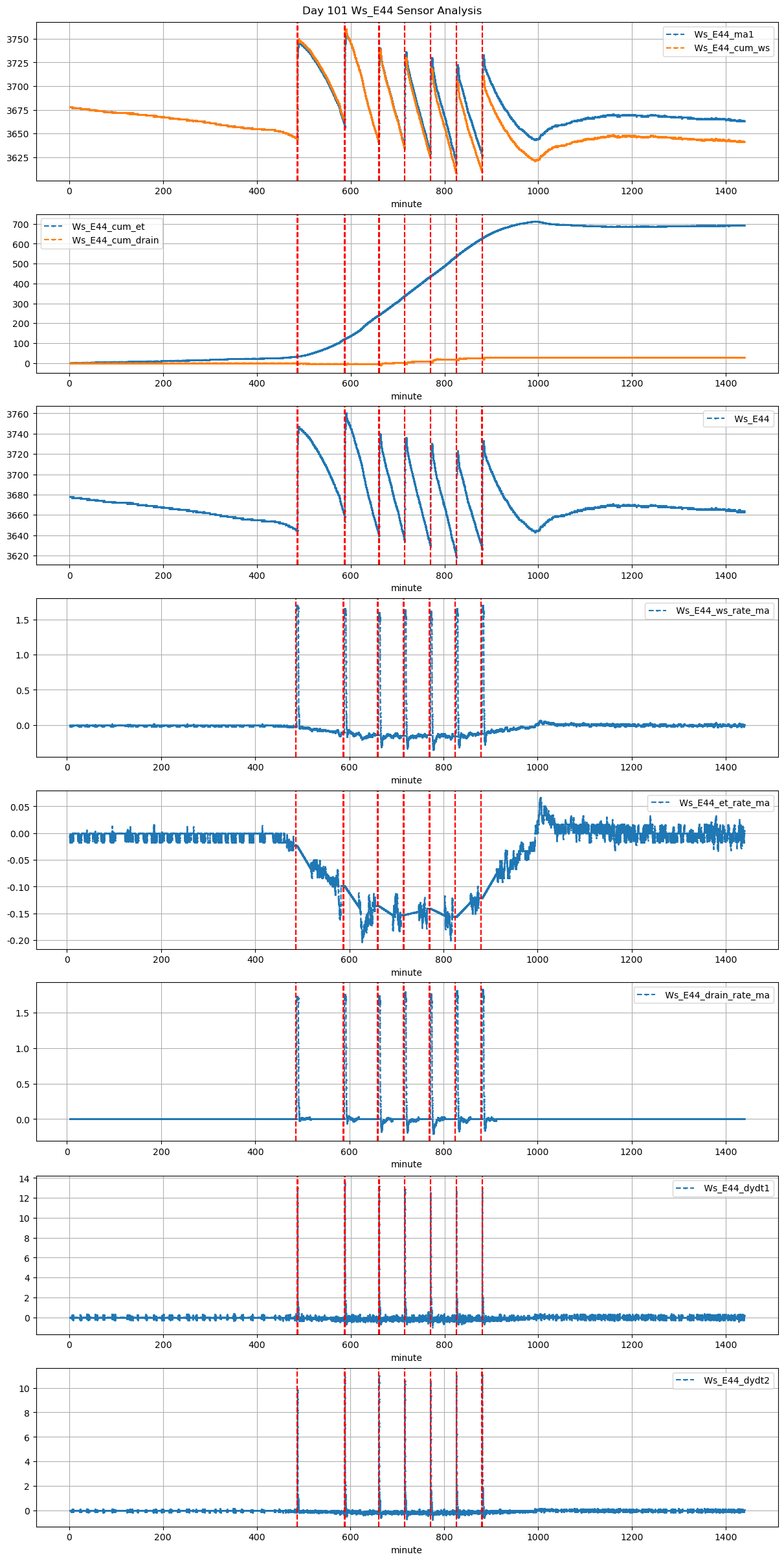

Figure figure_7.png

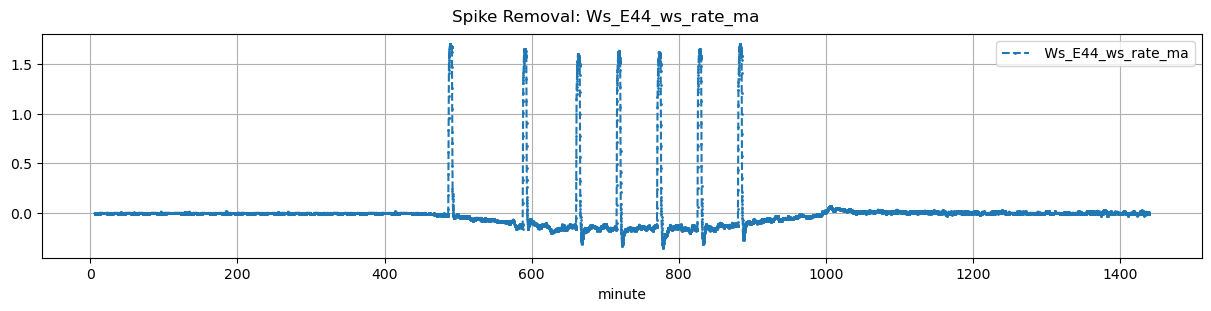

Figure figure_6.png

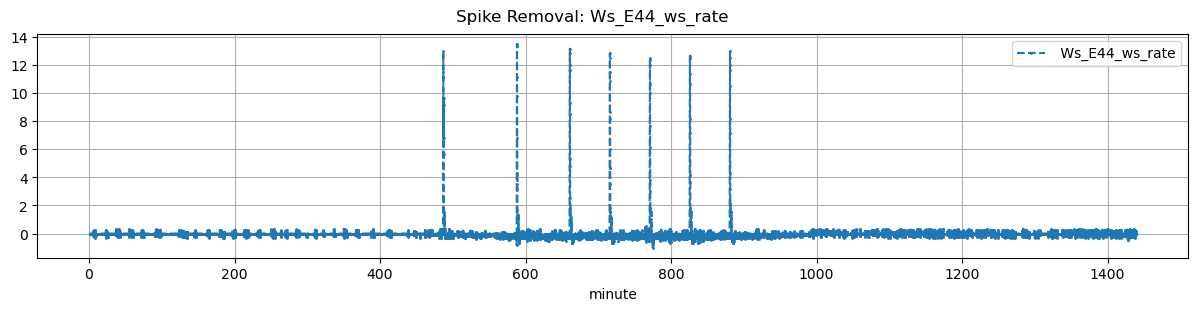

Figure figure_5.png

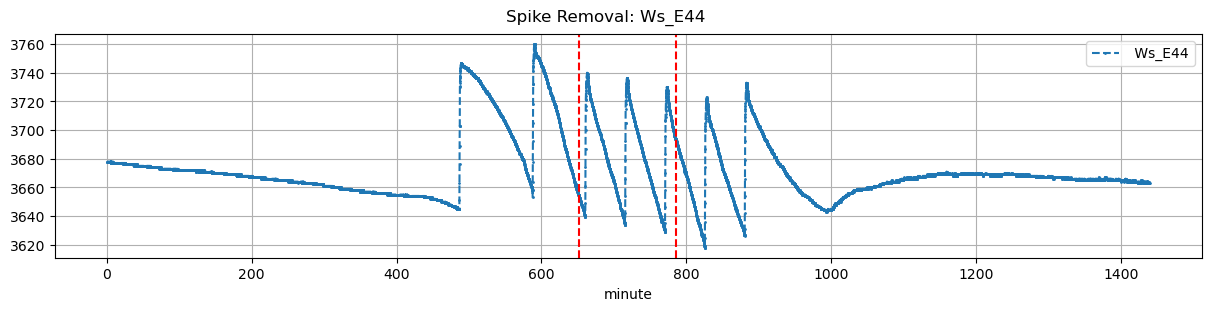

Figure figure_4.png
