Ws Sensor Analysis Report - Day 109

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 11.0
Avg Fertigation Amount: 307.10 L
Avg Total Drain Amount: 52.56 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 52.56 L
Avg Drainage Rate: 17.12%

Detail Section

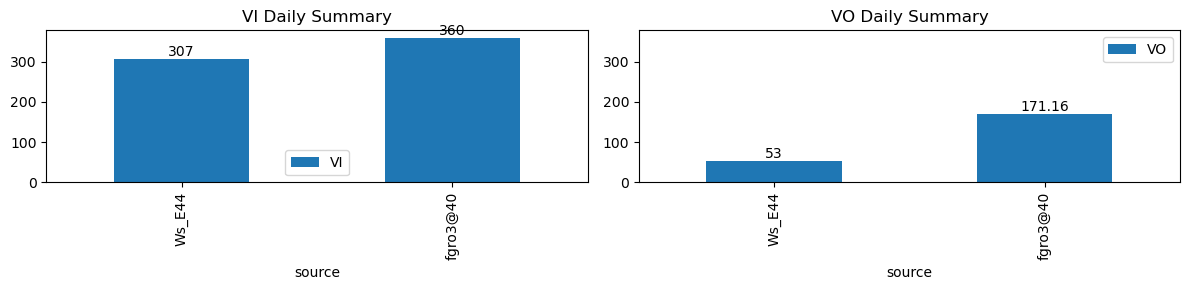

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 11
Number of Fertigation Events detected: 11
Total Fertigation Amount: 307.10 L
Total Drain Amount: 52.56 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 52.56 L
Drainage Rate: 17.12%

Ws Cleaning Summary Table - Ws_E44

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E44	17271	0	13768	0	0

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-23 08:06:17+08:00	109	486	Ws_E44	0.92036	30.000000	486.28	485.333333	486.81	487.416667	NaN	NaN	NaN	3822.0	3963.0	32	-0.027754	-0.041944	-0.044965	0.370000	0.881250	28.2	-56.8	36.4	28.2	0.0	-0.109383	NaN	-0.109383
2026-01-23 10:00:00+08:00	109	600	Ws_E44	0.92036	30.000000	600.00	600.000000	600.53	601.583333	NaN	NaN	NaN	3974.0	4122.0	32	-0.110765	-0.250972	-0.152361	0.487667	0.925000	29.6	0.0	63.2	29.6	0.0	4.494477	NaN	4.494477
2026-01-23 10:47:23+08:00	109	647	Ws_E44	0.92036	30.000000	647.38	647.500000	647.91	649.083333	NaN	NaN	NaN	4028.5	4159.0	32	-0.222970	-0.205556	0.000000	0.463333	0.815625	26.1	7.2	70.4	26.1	0.0	0.261866	NaN	0.261866
2026-01-23 11:20:00+08:00	109	680	Ws_E44	0.92036	30.000000	680.00	680.083333	680.53	681.583333	NaN	NaN	NaN	4096.0	4240.0	32	-0.156603	-0.281806	0.000000	0.494000	0.900000	28.8	5.0	63.2	28.8	0.0	4.080863	NaN	4.080863
2026-01-23 11:55:00+08:00	109	715	Ws_E44	0.92036	30.000000	715.00	715.000000	715.53	716.583333	NaN	NaN	NaN	4159.0	4299.0	32	-0.173259	-0.296667	0.000000	0.480333	0.875000	28.0	0.0	63.2	28.0	0.0	5.234235	NaN	5.234235
2026-01-23 12:30:00+08:00	109	750	Ws_E44	0.92036	30.000000	750.00	750.083333	750.53	751.583333	NaN	NaN	NaN	4212.0	4352.0	32	-0.157045	-0.316528	-0.187292	0.493000	0.875000	28.0	5.0	63.2	28.0	0.0	5.931470	4322.342648	5.931470
2026-01-23 13:15:00+08:00	109	795	Ws_E44	0.92036	28.416667	795.00	795.083333	795.53	796.583333	NaN	NaN	NaN	4237.0	4385.0	32	-0.179275	-0.301111	0.000000	0.499000	0.925000	29.6	5.0	63.2	29.6	0.0	4.932277	NaN	4.932277
2026-01-23 13:45:00+08:00	109	825	Ws_E44	0.92036	28.583333	825.00	825.000000	825.53	826.416667	NaN	NaN	NaN	4310.0	4447.0	32	-0.153701	-0.323333	0.000000	0.499333	0.856250	27.4	0.0	53.2	27.4	0.0	6.715444	4413.422782	6.715444
2026-01-23 14:15:00+08:00	109	855	Ws_E44	0.92036	30.000000	855.00	855.000000	855.53	856.416667	NaN	NaN	NaN	4370.0	4503.0	32	-0.134665	-0.304167	0.000000	0.492333	0.831250	26.6	0.0	53.2	26.6	0.0	7.308929	4466.455355	7.308929
2026-01-23 14:50:00+08:00	109	890	Ws_E44	0.92036	30.000000	890.00	890.000000	890.53	891.416667	NaN	NaN	NaN	4423.0	4559.0	32	-0.107543	-0.254722	-0.075833	0.502333	0.850000	27.2	0.0	53.2	27.2	0.0	6.769074	4525.154629	6.769074
2026-01-23 15:40:00+08:00	109	940	Ws_E44	0.92036	30.000000	940.00	940.000000	940.53	941.500000	NaN	NaN	NaN	4481.0	4619.0	32	-0.061613	-0.220694	-0.019792	0.496333	0.862500	27.6	0.0	58.2	27.6	0.0	6.943612	4584.281940	6.943612

Figures - Ws_E44

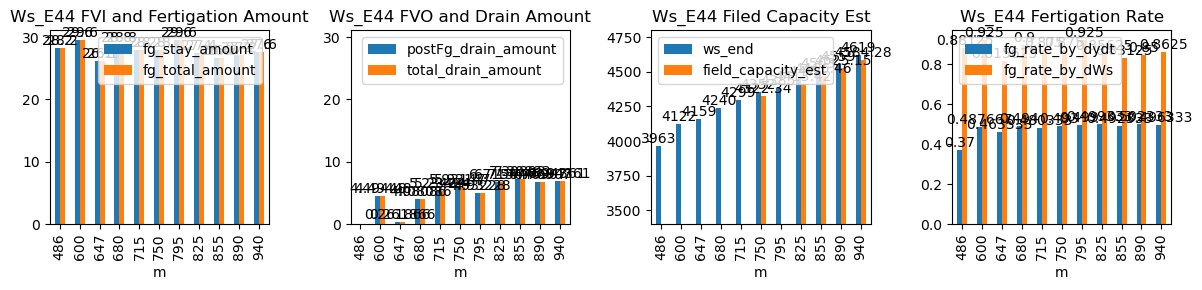

Figure figure_9.png

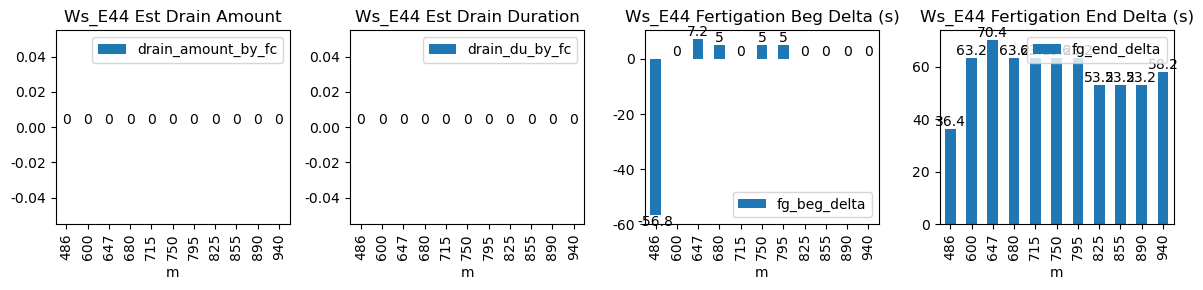

Figure figure_8.png

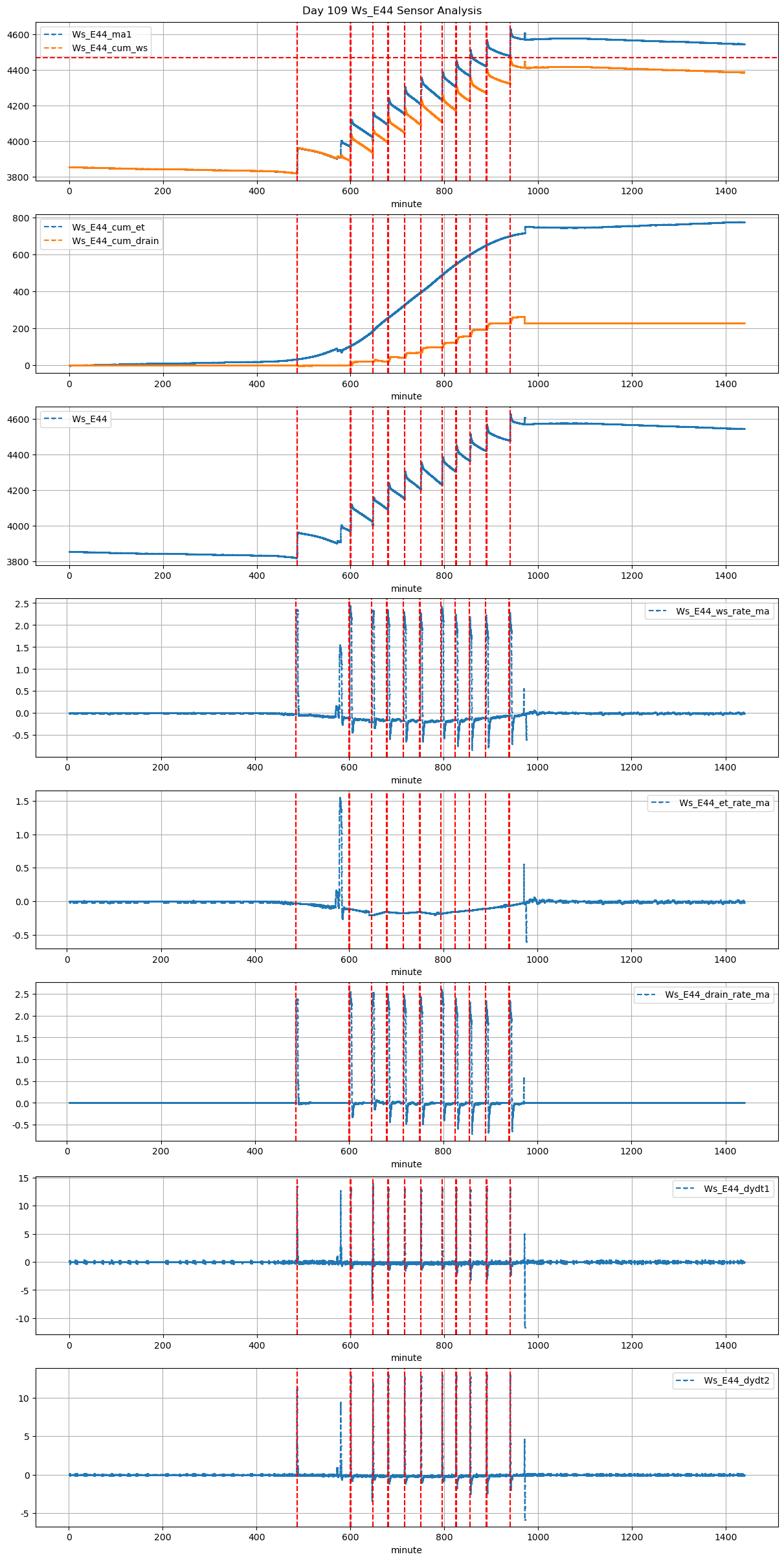

Figure figure_7.png

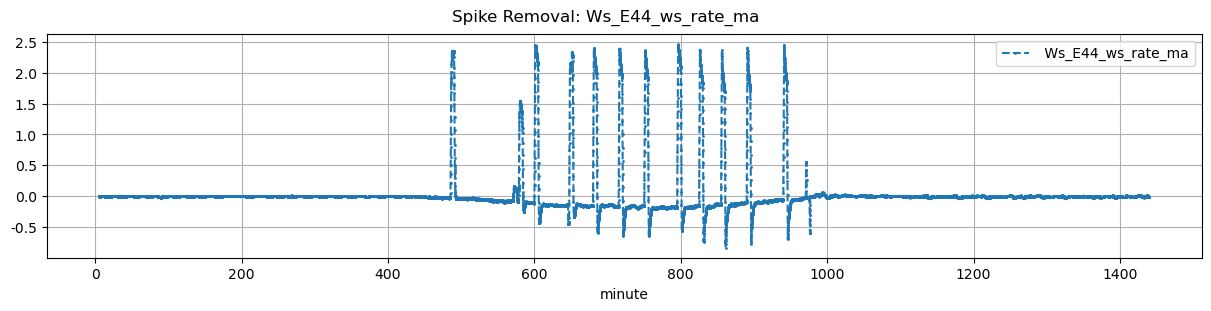

Figure figure_6.png

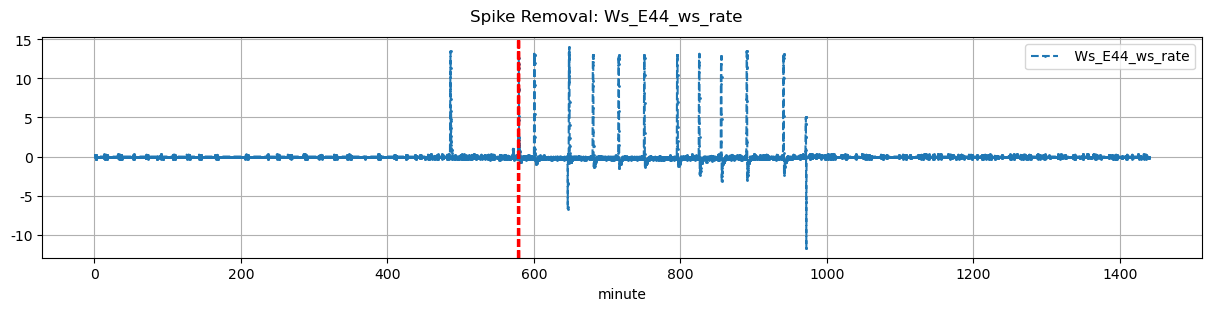

Figure figure_5.png

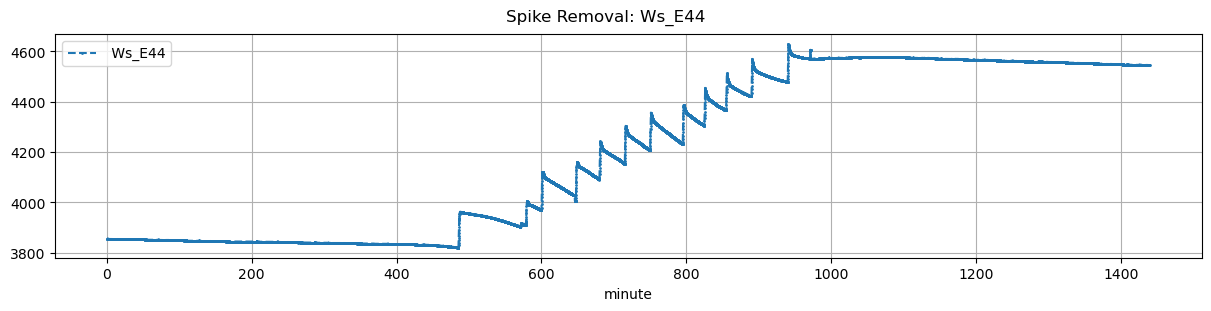

Figure figure_4.png
