Ws Sensor Analysis Report - Day 110

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 12.0
Avg Fertigation Amount: 302.30 L
Avg Total Drain Amount: 110.16 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 110.16 L
Avg Drainage Rate: 36.44%

Detail Section

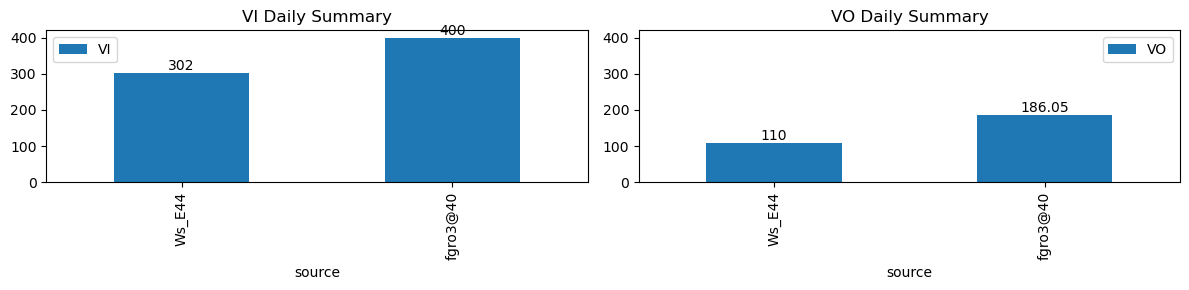

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 12
Number of Fertigation Events detected: 12
Total Fertigation Amount: 302.30 L
Total Drain Amount: 110.16 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 110.16 L
Drainage Rate: 36.44%

Ws Cleaning Summary Table - Ws_E44

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E44	17271	0	13544	0	1

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-24 09:11:17+08:00	110	551	Ws_E44	4.218648	30.000000	551.28	551.333333	551.80	553.083333	NaN	NaN	NaN	4461.0	4627.0	31	-0.076916	-0.117917	-0.089583	0.503333	1.070968	33.2	3.2	77.0	33.2	0.0	0.268635	NaN	0.268635
2026-01-24 09:55:00+08:00	110	595	Ws_E44	4.218648	30.000000	595.00	595.000000	595.52	596.416667	NaN	NaN	NaN	4579.0	4723.0	31	-0.101483	-0.312500	-0.201424	0.507333	0.929032	28.8	0.0	53.8	28.8	0.0	7.738764	4684.306178	7.738764
2026-01-24 10:45:00+08:00	110	645	Ws_E44	4.218648	29.583333	645.00	645.083333	645.52	646.416667	NaN	NaN	NaN	4597.0	4734.0	31	-0.122054	-0.327500	0.000000	0.501333	0.883871	27.4	5.0	53.8	27.4	0.0	8.939555	4689.302223	8.939555
2026-01-24 11:16:17+08:00	110	676	Ws_E44	4.218648	28.250000	676.28	676.333333	676.80	677.750000	NaN	NaN	NaN	4646.0	4785.0	31	-0.139722	-0.366111	0.000000	0.492667	0.896774	27.8	3.2	57.0	27.8	0.0	13.219935	4718.900324	13.219935
2026-01-24 11:46:17+08:00	110	706	Ws_E44	4.218648	28.250000	706.28	706.333333	706.80	707.750000	NaN	NaN	NaN	4669.5	4794.0	31	-0.148148	-0.395139	0.000000	0.487667	0.803226	24.9	3.2	57.0	24.9	0.0	11.865855	4734.670727	11.865855
2026-01-24 12:16:17+08:00	110	736	Ws_E44	4.218648	28.333333	736.28	736.333333	736.80	737.666667	NaN	NaN	NaN	4680.0	4799.0	31	-0.193694	-0.396111	0.000000	0.488667	0.767742	23.8	3.2	52.0	23.8	0.0	9.935633	4749.321833	9.935633
2026-01-24 12:46:17+08:00	110	766	Ws_E44	4.218648	28.333333	766.28	766.333333	766.80	767.666667	NaN	NaN	NaN	4697.0	4813.0	31	-0.166944	-0.365694	0.000000	0.486667	0.748387	23.2	3.2	52.0	23.2	0.0	10.767369	4759.163155	10.767369
2026-01-24 13:16:17+08:00	110	796	Ws_E44	4.218648	28.416667	796.28	796.250000	796.80	797.583333	NaN	NaN	NaN	4710.0	4827.0	31	-0.175787	-0.409444	0.000000	0.483000	0.754839	23.4	-1.8	47.0	23.4	0.0	9.783468	4778.082658	9.783468
2026-01-24 13:46:17+08:00	110	826	Ws_E44	4.218648	30.000000	826.28	826.333333	826.80	827.583333	NaN	NaN	NaN	4723.0	4841.0	31	-0.196431	-0.415139	0.000000	0.493333	0.761290	23.6	3.2	47.0	23.6	0.0	10.651248	4787.743759	10.651248
2026-01-24 14:20:00+08:00	110	860	Ws_E44	4.218648	30.000000	860.00	860.000000	860.52	861.333333	NaN	NaN	NaN	4733.0	4853.0	31	-0.127240	-0.364861	0.000000	0.480333	0.774194	24.0	0.0	48.8	24.0	0.0	10.964339	4798.178305	10.964339
2026-01-24 14:55:00+08:00	110	895	Ws_E44	4.218648	30.000000	895.00	895.000000	895.52	896.333333	NaN	NaN	NaN	4757.0	4873.0	31	-0.110231	-0.299722	-0.080972	0.482333	0.748387	23.2	0.0	48.8	23.2	0.0	9.553488	4825.232562	9.553488
2026-01-24 15:40:15+08:00	110	940	Ws_E44	4.218648	30.000000	940.25	940.500000	940.77	941.833333	NaN	NaN	NaN	4784.0	4879.0	31	-0.061033	-0.209167	0.000000	0.386333	0.612903	19.0	15.0	63.8	19.0	0.0	6.471723	4846.641384	6.471723

Figures - Ws_E44

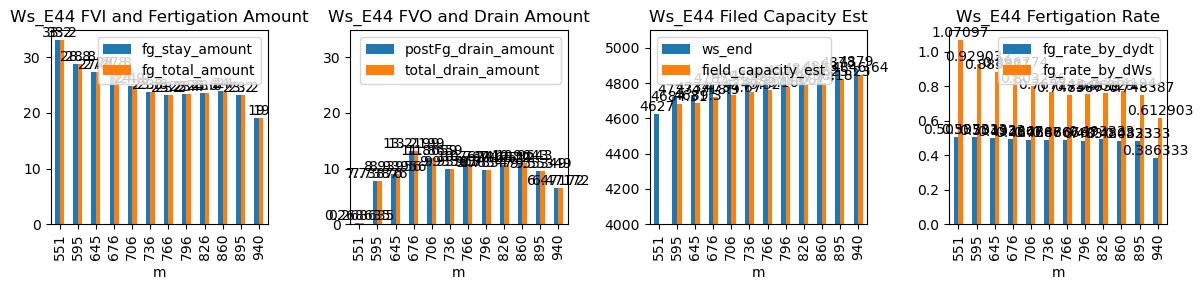

Figure figure_9.png

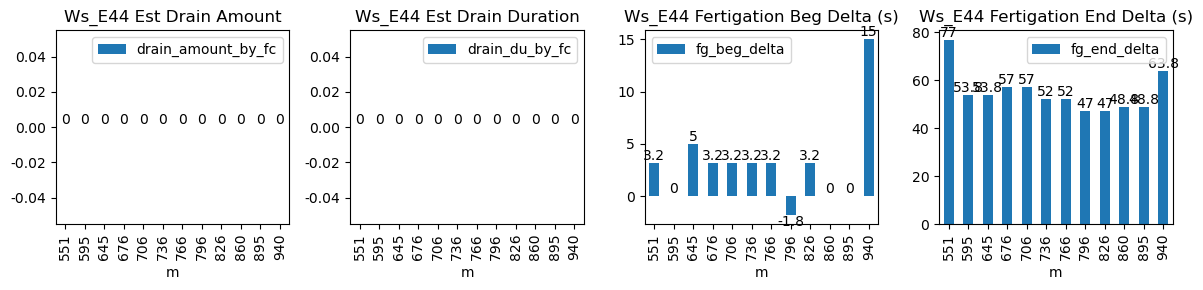

Figure figure_8.png

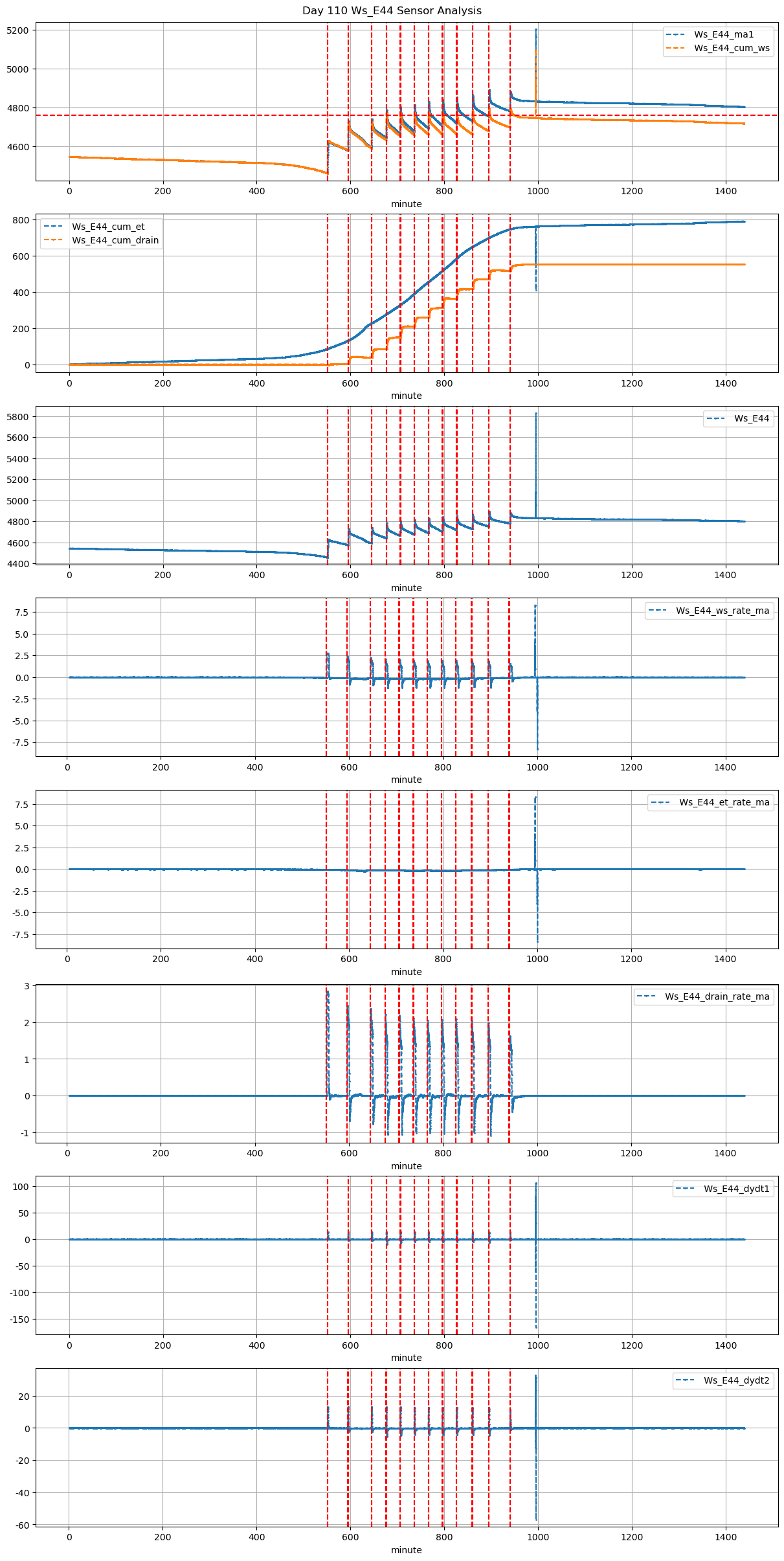

Figure figure_7.png

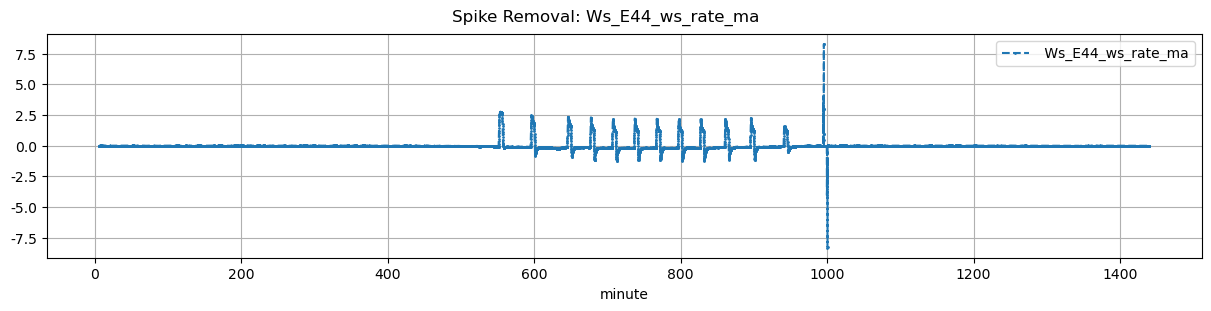

Figure figure_6.png

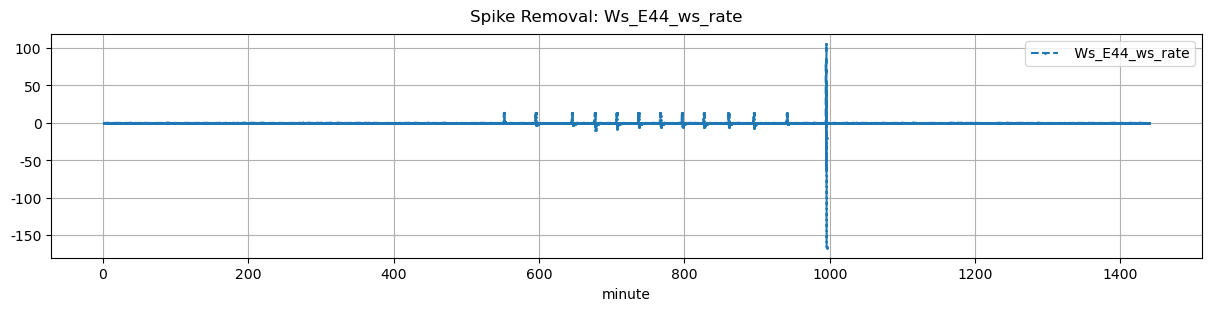

Figure figure_5.png

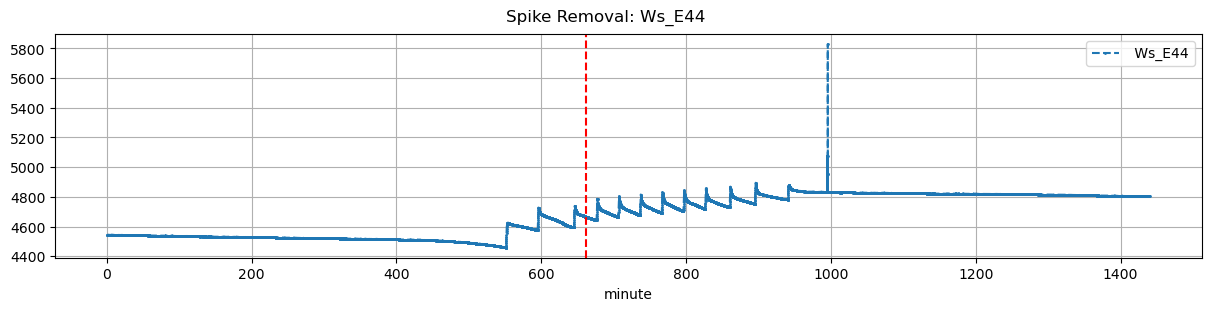

Figure figure_4.png
