Ws Sensor Analysis Report - Day 73

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 136.40 L
Avg Total Drain Amount: 35.19 L
Avg In-Fertigation Drain Amount: 0.00 L
Avg Post-Fertigation Drain Amount: 35.19 L
Avg Drainage Rate: 25.80%

Detail Section

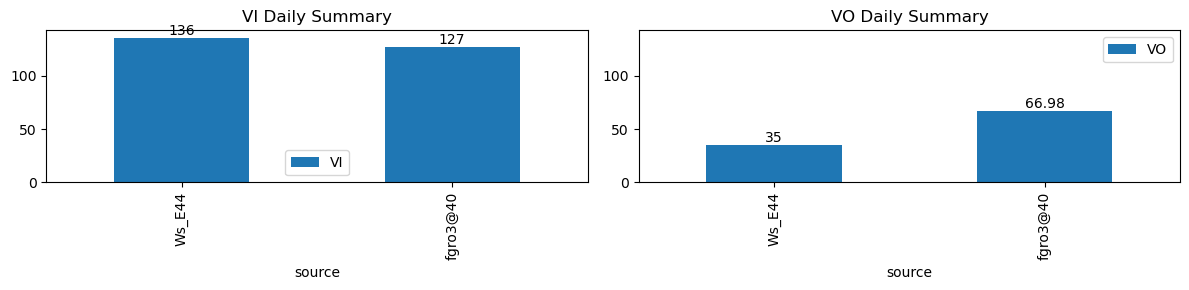

VI and VO Daily Summary

Summary Statistics - Ws_E44

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 136.40 L
Total Drain Amount: 35.19 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 35.19 L
Drainage Rate: 25.80%

Ws Cleaning Summary Table - Ws_E44

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_E44	17280	0	14275	0	5

Fertigation Events Details Table - Ws_E44

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-18 09:36:05+08:00	73	576	Ws_E44	0.48421	30	576.08	576.500000	576.65	578.000000	NaN	NaN	NaN	3719.0	3822.0	34	-0.043889	-0.094444	0.000000	0.393333	0.605882	20.6	25.2	81.0	20.6	0.0	1.081171	NaN	1.081171
2025-12-18 10:10:00+08:00	73	610	Ws_E44	0.48421	30	610.00	610.416667	610.57	611.583333	NaN	NaN	NaN	3793.0	3881.0	34	-0.083693	-0.227917	-0.086561	0.401667	0.517647	17.6	25.0	60.8	17.6	0.0	5.594543	3853.027283	5.594543
2025-12-18 11:06:07+08:00	73	666	Ws_E44	0.48421	30	666.12	666.583333	666.69	667.750000	NaN	NaN	NaN	3797.0	3892.0	34	-0.085264	-0.239583	-0.112976	0.425667	0.558824	19.0	27.8	63.6	19.0	0.0	5.977544	3862.112279	5.977544
2025-12-18 12:00:00+08:00	73	720	Ws_E44	0.48421	30	720.00	720.416667	720.57	721.666667	NaN	NaN	NaN	3802.0	3898.0	34	-0.102472	-0.267917	-0.112963	0.423333	0.564706	19.2	25.0	65.8	19.2	0.0	6.177508	3867.112460	6.177508
2025-12-18 12:45:00+08:00	73	765	Ws_E44	0.48421	30	765.00	765.416667	765.57	766.666667	NaN	NaN	NaN	3814.0	3909.0	34	-0.119256	-0.265556	-0.121577	0.420000	0.558824	19.0	25.0	65.8	19.0	0.0	5.182790	3883.086048	5.182790
2025-12-18 13:35:00+08:00	73	815	Ws_E44	0.48421	30	815.00	815.416667	815.57	816.666667	NaN	NaN	NaN	3819.0	3920.0	34	-0.102231	-0.270000	-0.089969	0.423333	0.594118	20.2	25.0	65.8	20.2	0.0	6.059760	3889.701199	6.059760
2025-12-18 14:30:00+08:00	73	870	Ws_E44	0.48421	30	870.00	870.416667	870.57	871.750000	NaN	NaN	NaN	3835.0	3939.0	34	-0.065372	-0.210278	-0.057685	0.421667	0.611765	20.8	25.0	70.8	20.8	0.0	5.120313	3913.398437	5.120313

Figures - Ws_E44

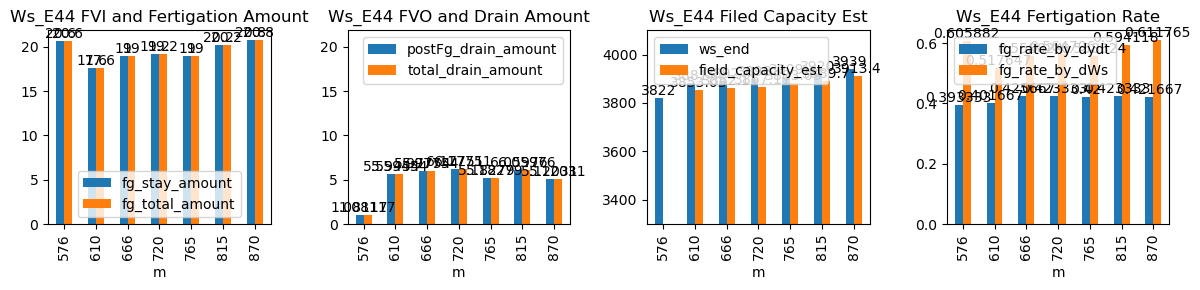

Figure figure_9.png

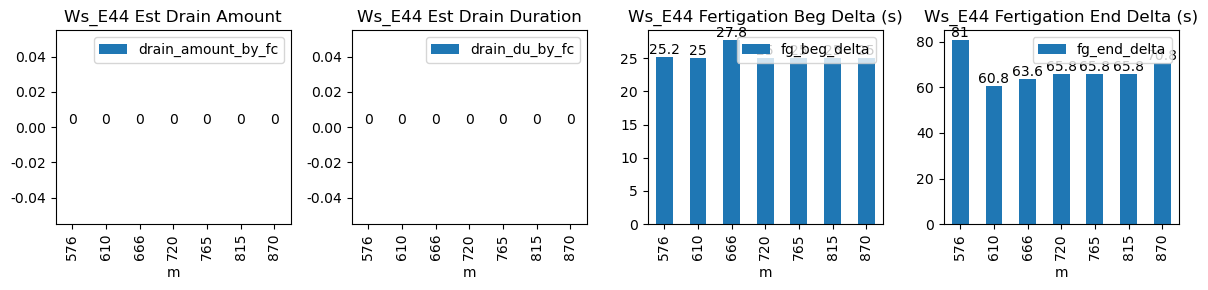

Figure figure_8.png

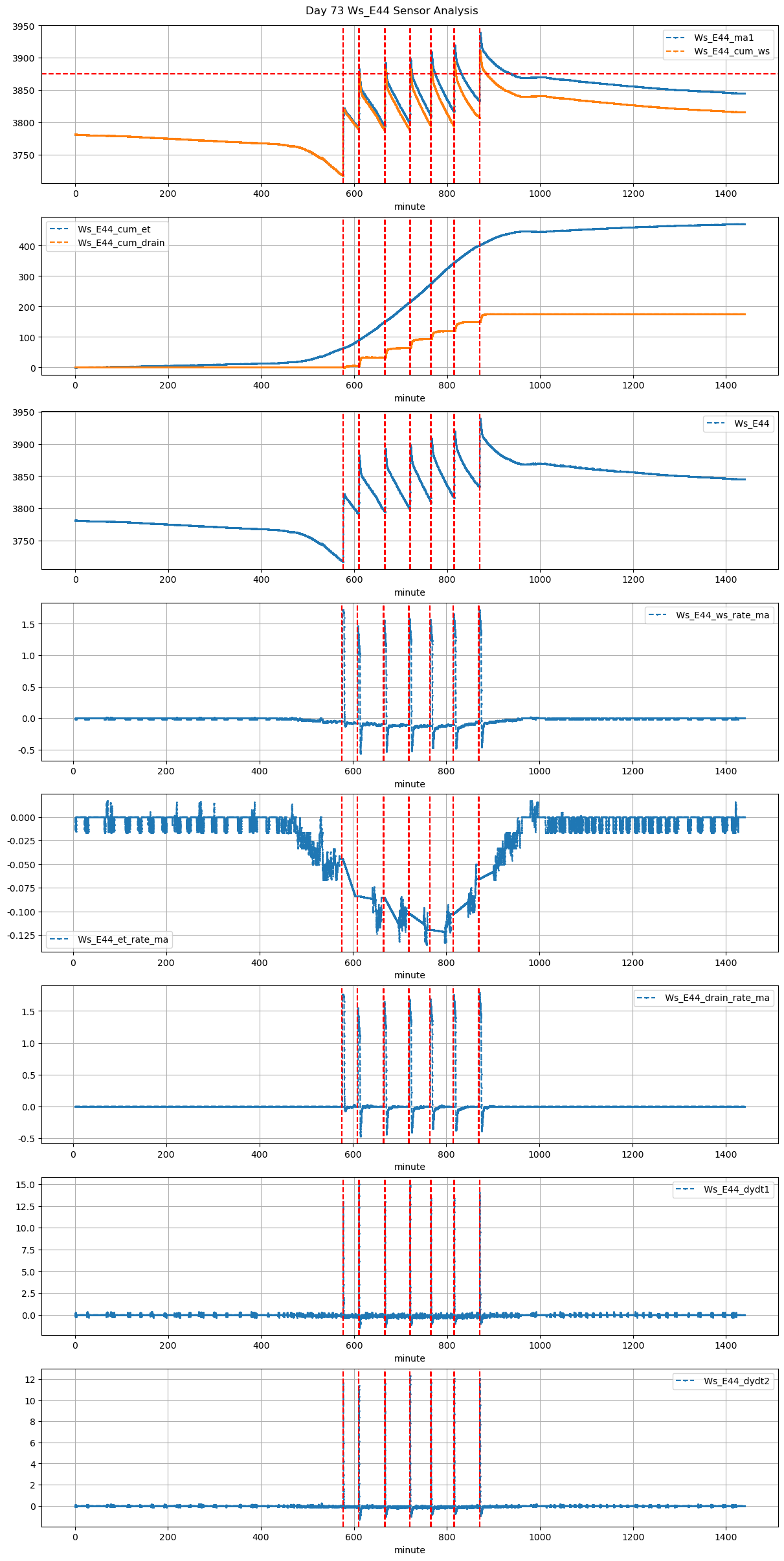

Figure figure_7.png

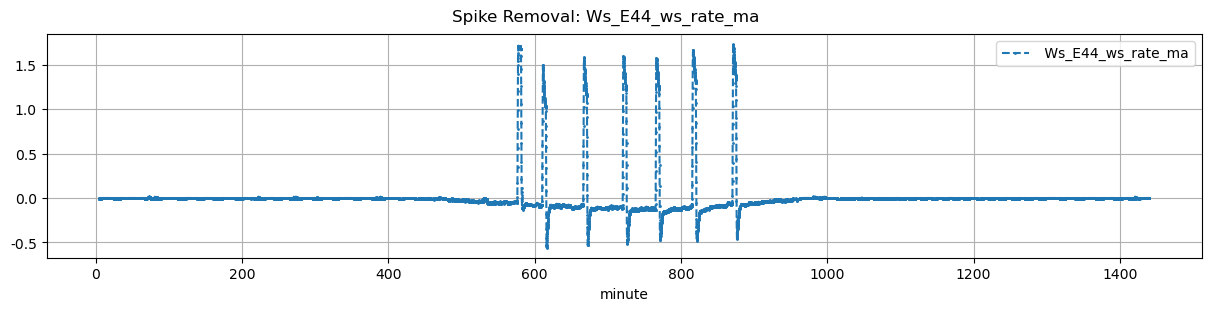

Figure figure_6.png

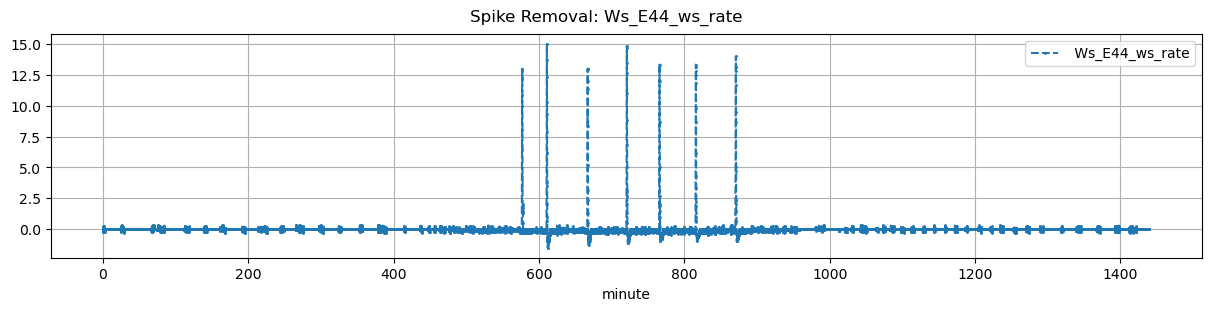

Figure figure_5.png

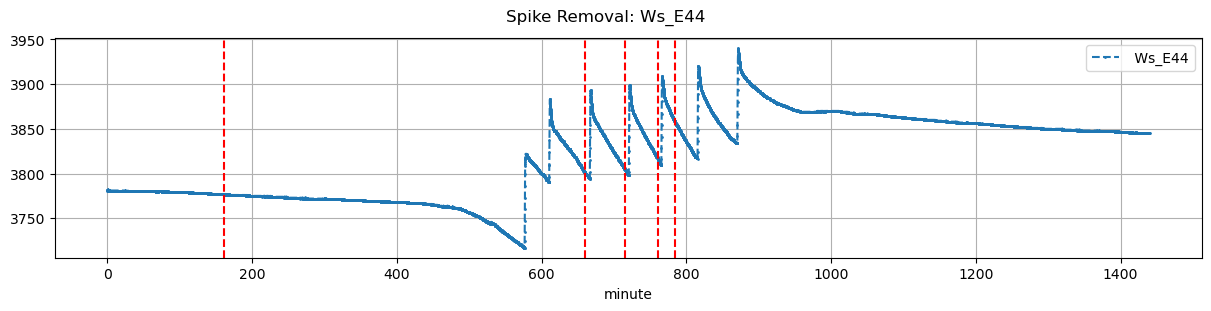

Figure figure_4.png
