Ws Sensor Analysis Report - Day 99

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 8.0
Avg Fertigation Amount: 172.00 L
Avg Total Drain Amount: 24.36 L
Avg In-Fertigation Drain Amount: 14.60 L
Avg Post-Fertigation Drain Amount: 9.76 L
Avg Drainage Rate: 14.17%

Detail Section

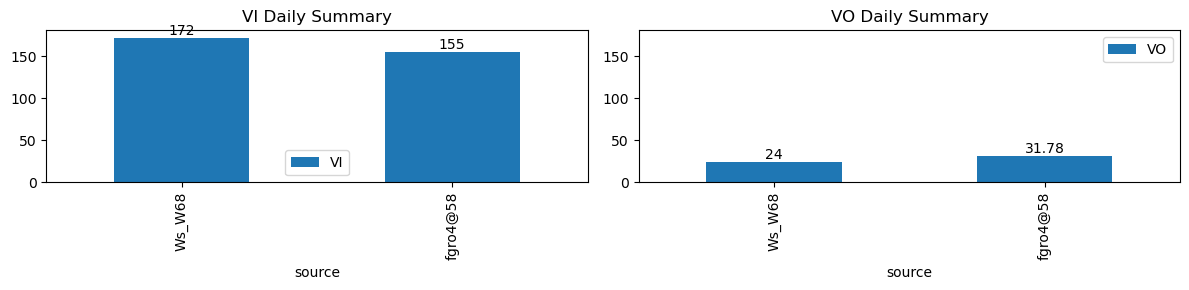

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 8
Number of Fertigation Events detected: 8
Total Fertigation Amount: 172.00 L
Total Drain Amount: 24.36 L
In-Fertigation Drain Amount: 14.60 L
Post-Fertigation Drain Amount: 9.76 L
Drainage Rate: 14.17%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17271	0	13984	0	0

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-13 08:05:00+08:00	99	485	Ws_W68	0.384812	30	485.0	485.416667	485.72	487.000000	NaN	NaN	NaN	4767.0	4850.0	43	-0.001836	0.000000	-0.001265	0.24225	0.386047	16.6	25.0	76.8	21.5	4.9	-1.692086	NaN	3.207914
2026-01-13 09:45:00+08:00	99	585	Ws_W68	0.384812	30	585.0	585.333333	585.72	586.750000	NaN	NaN	NaN	4790.0	4887.0	43	-0.115678	-0.235417	-0.133322	0.36575	0.451163	19.4	20.0	61.8	21.5	2.1	3.537006	NaN	5.637006
2026-01-13 10:55:00+08:00	99	655	Ws_W68	0.384812	30	655.0	655.333333	655.72	656.916667	NaN	NaN	NaN	4761.0	4862.0	43	-0.156497	-0.208472	-0.157073	0.34500	0.469767	20.2	20.0	71.8	21.5	1.3	2.486487	NaN	3.786487
2026-01-13 11:50:00+08:00	99	710	Ws_W68	0.384812	30	710.0	710.416667	710.72	711.916667	NaN	NaN	NaN	4753.0	4856.0	43	-0.177331	-0.200694	-0.177492	0.36075	0.479070	20.6	25.0	71.8	21.5	0.9	1.757851	NaN	2.657851
2026-01-13 12:40:00+08:00	99	760	Ws_W68	0.384812	30	760.0	760.333333	760.72	761.916667	NaN	NaN	NaN	4750.0	4851.0	43	-0.184689	-0.217500	-0.183831	0.34825	0.469767	20.2	20.0	71.8	21.5	1.3	1.794607	NaN	3.094607
2026-01-13 13:30:00+08:00	99	810	Ws_W68	0.384812	30	810.0	810.416667	810.72	811.916667	NaN	NaN	NaN	4743.0	4843.0	43	-0.176153	-0.197222	-0.168750	0.34850	0.465116	20.0	25.0	71.8	21.5	1.5	1.115098	NaN	2.615098
2026-01-13 14:20:00+08:00	99	860	Ws_W68	0.384812	30	860.0	860.333333	860.72	861.916667	NaN	NaN	NaN	4741.0	4841.0	43	-0.166525	-0.173796	-0.115486	0.35025	0.465116	20.0	20.0	71.8	21.5	1.5	0.320422	NaN	1.820422
2026-01-13 15:25:00+08:00	99	925	Ws_W68	0.384812	30	925.0	925.333333	925.72	926.916667	NaN	NaN	NaN	4744.0	4846.0	43	-0.109093	-0.085833	-0.070833	0.34400	0.474419	20.4	20.0	71.8	21.5	1.1	0.444923	NaN	1.544923

Figures - Ws_W68

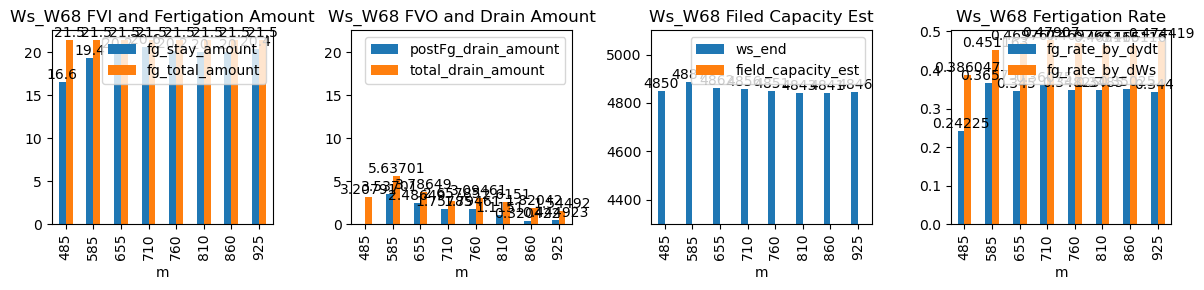

Figure figure_9.png

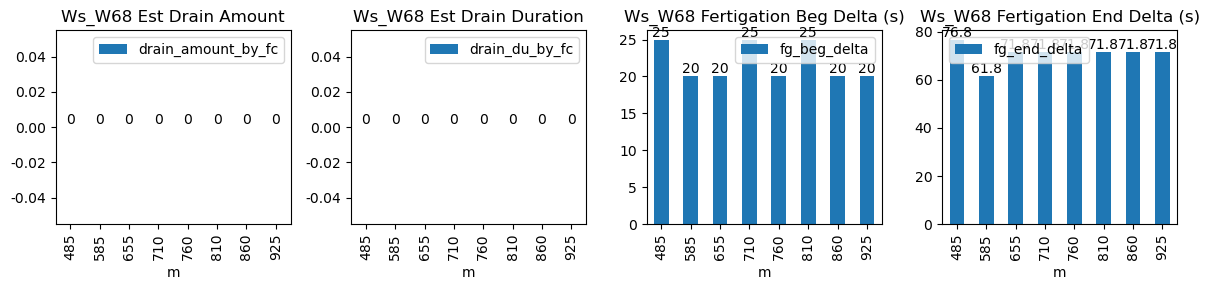

Figure figure_8.png

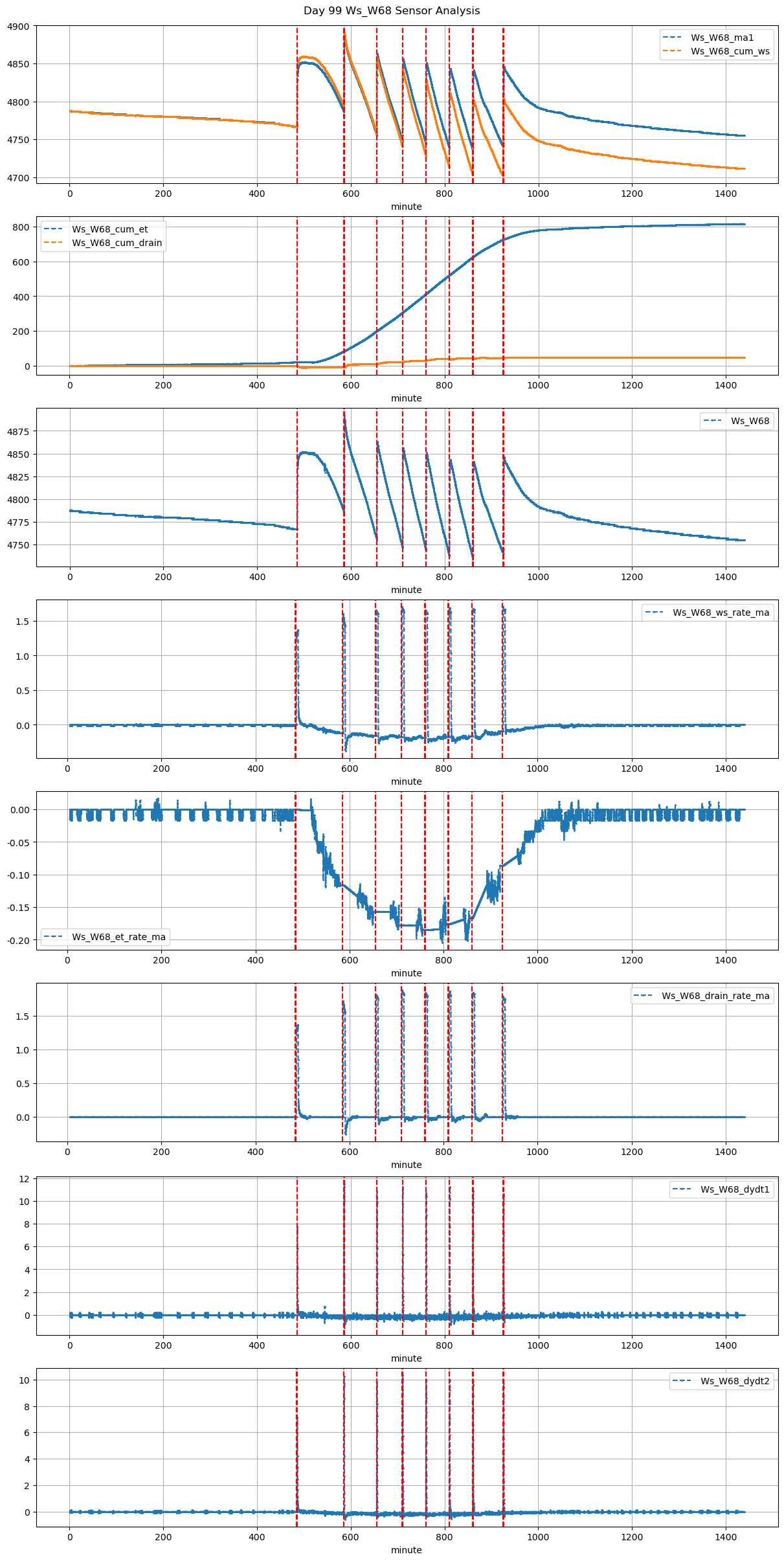

Figure figure_7.png

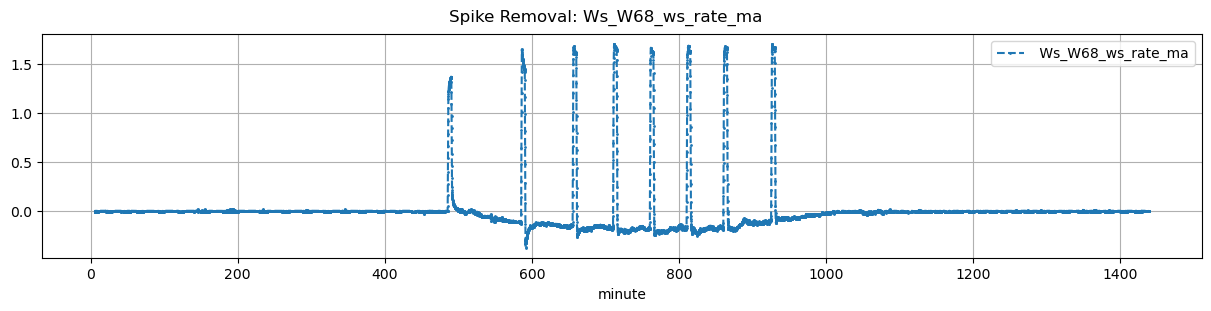

Figure figure_6.png

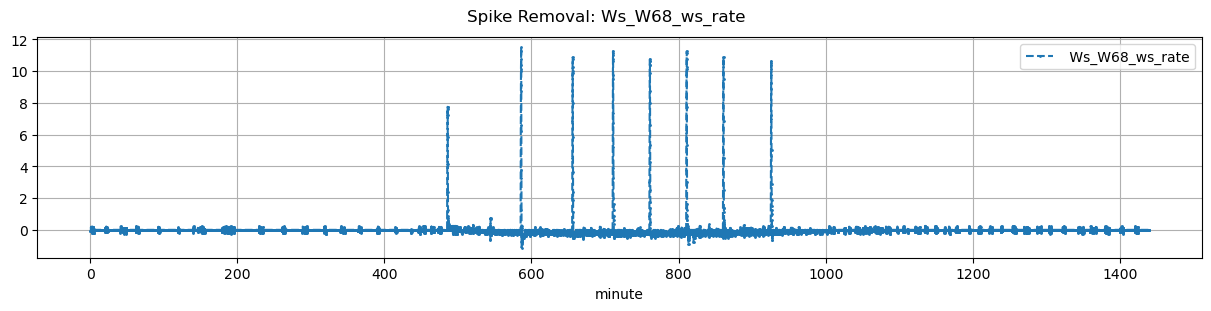

Figure figure_5.png

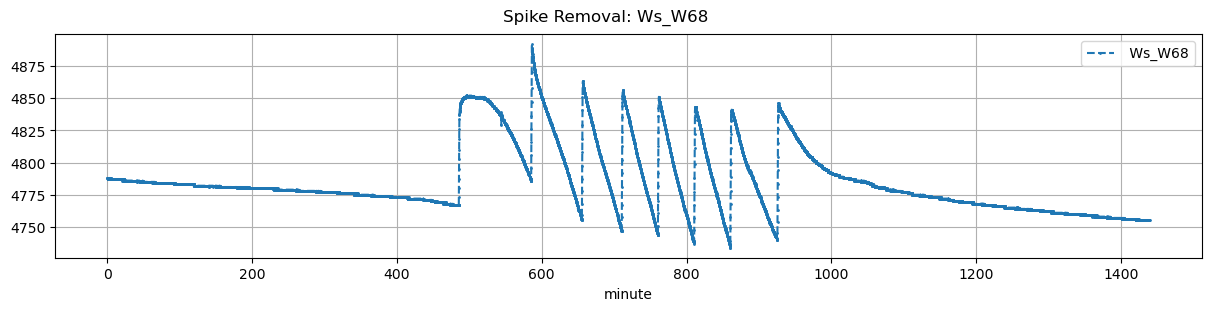

Figure figure_4.png
