Ws Sensor Analysis Report - Day 98

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 193.50 L
Avg Total Drain Amount: 35.42 L
Avg In-Fertigation Drain Amount: 13.80 L
Avg Post-Fertigation Drain Amount: 21.62 L
Avg Drainage Rate: 18.31%

Detail Section

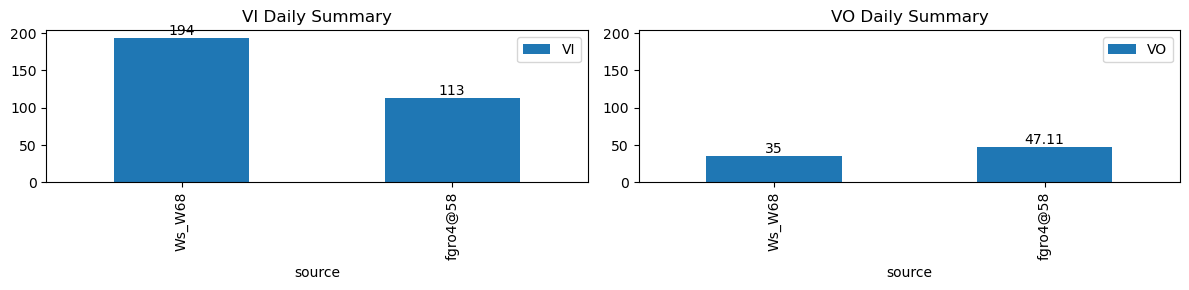

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 6
Total Fertigation Amount: 193.50 L
Total Drain Amount: 35.42 L
In-Fertigation Drain Amount: 13.80 L
Post-Fertigation Drain Amount: 21.62 L
Drainage Rate: 18.31%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17267	6567	8573	6567	0

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-12 09:15:00+08:00	98	555	Ws_W68	0.499135	29.28	555.0	NaN	555.72	NaN	NaN	NaN	NaN	NaN	NaN	43	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	21.5	NaN	NaN	NaN	NaN
2026-01-12 09:45:00+08:00	98	585	Ws_W68	0.499135	30.00	585.0	NaN	585.72	NaN	NaN	NaN	NaN	NaN	NaN	43	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	21.5	NaN	NaN	NaN	NaN
2026-01-12 11:00:00+08:00	98	660	Ws_W68	0.499135	30.00	660.0	NaN	660.72	NaN	NaN	NaN	NaN	NaN	NaN	43	NaN	NaN	-0.103569	NaN	NaN	NaN	NaN	NaN	21.5	NaN	NaN	NaN	NaN
2026-01-12 12:05:00+08:00	98	725	Ws_W68	0.499135	30.00	725.0	725.416667	725.72	726.833333	NaN	NaN	NaN	4677.0	4772.0	43	-0.103467	-0.169861	-0.173444	0.34250	0.441860	19.0	25.0	66.8	21.5	2.5	2.855150	NaN	5.355150
2026-01-12 12:45:00+08:00	98	765	Ws_W68	0.499135	30.00	765.0	765.333333	765.72	766.750000	NaN	NaN	NaN	4697.0	4791.0	43	-0.149982	-0.225417	-0.127024	0.35025	0.437209	18.8	20.0	61.8	21.5	2.7	3.991404	NaN	6.691404
2026-01-12 13:25:00+08:00	98	805	Ws_W68	0.499135	30.00	805.0	805.333333	805.72	806.833333	NaN	NaN	NaN	4712.0	4810.0	43	-0.153513	-0.190417	-0.143403	0.35275	0.455814	19.6	20.0	66.8	21.5	1.9	2.597287	NaN	4.497287
2026-01-12 14:10:00+08:00	98	850	Ws_W68	0.499135	30.00	850.0	850.333333	850.72	851.833333	NaN	NaN	NaN	4726.0	4822.0	43	-0.133098	-0.205139	-0.105896	0.34325	0.446512	19.2	20.0	66.8	21.5	2.3	4.624743	4798.876284	6.924743
2026-01-12 14:50:00+08:00	98	890	Ws_W68	0.499135	30.00	890.0	890.416667	890.72	891.833333	NaN	NaN	NaN	4750.0	4848.0	43	-0.100565	-0.177083	-0.091825	0.36075	0.455814	19.6	25.0	66.8	21.5	1.9	3.528039	NaN	5.428039
2026-01-12 15:40:00+08:00	98	940	Ws_W68	0.499135	30.00	940.0	940.333333	940.72	941.750000	NaN	NaN	NaN	4783.0	4878.0	43	-0.073707	-0.141389	-0.049506	0.35775	0.441860	19.0	20.0	61.8	21.5	2.5	4.024130	NaN	6.524130

Figures - Ws_W68

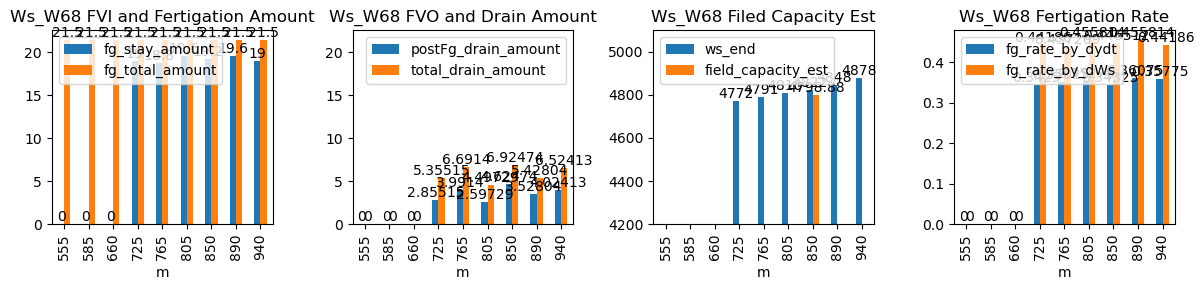

Figure figure_9.png

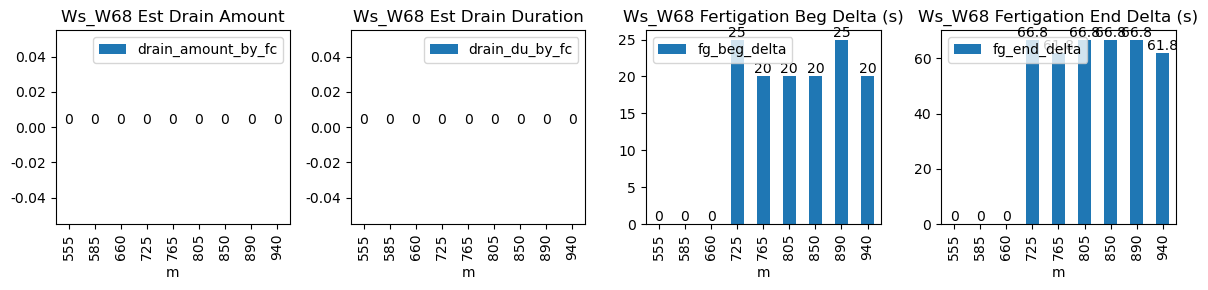

Figure figure_8.png

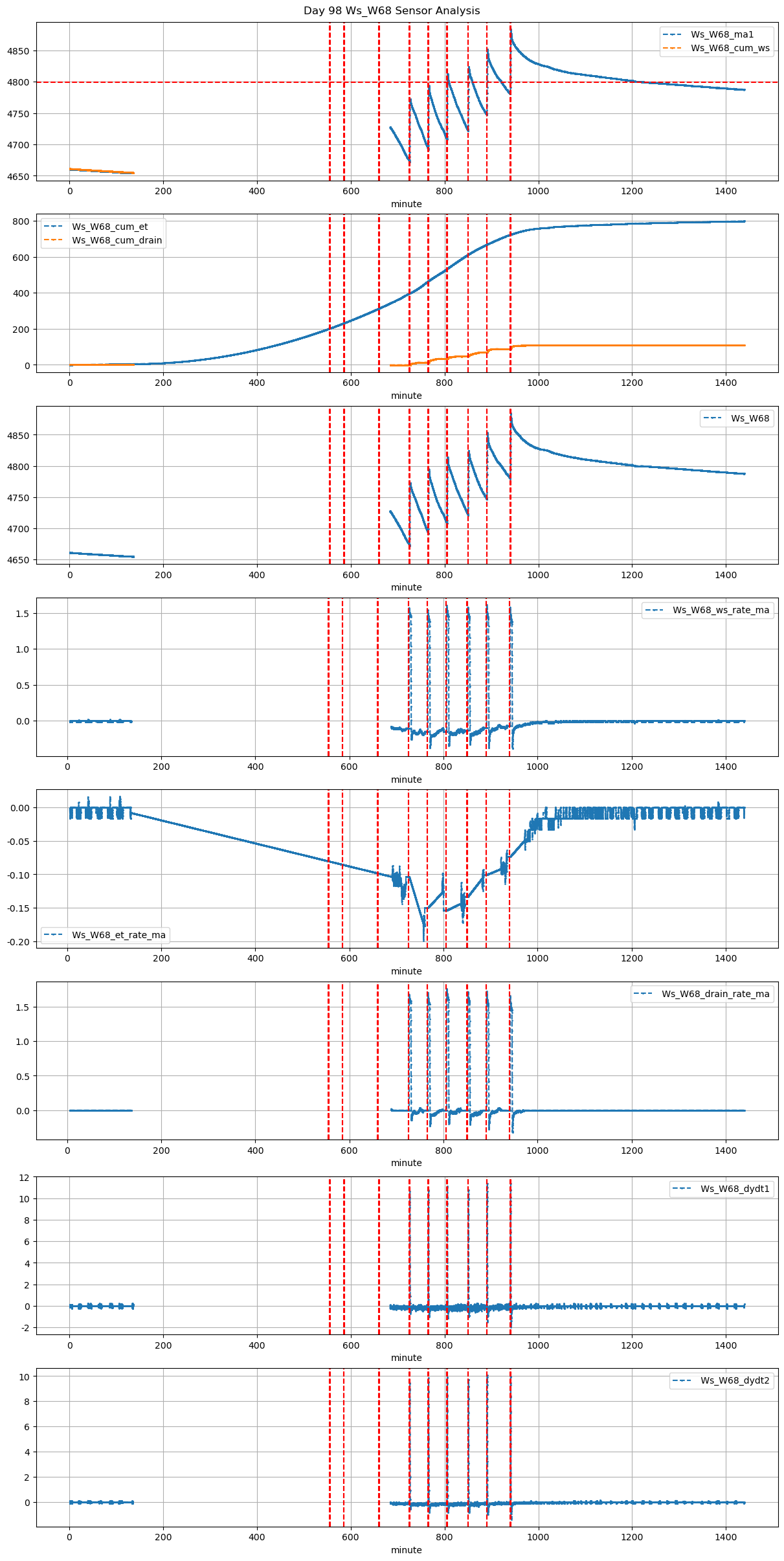

Figure figure_7.png

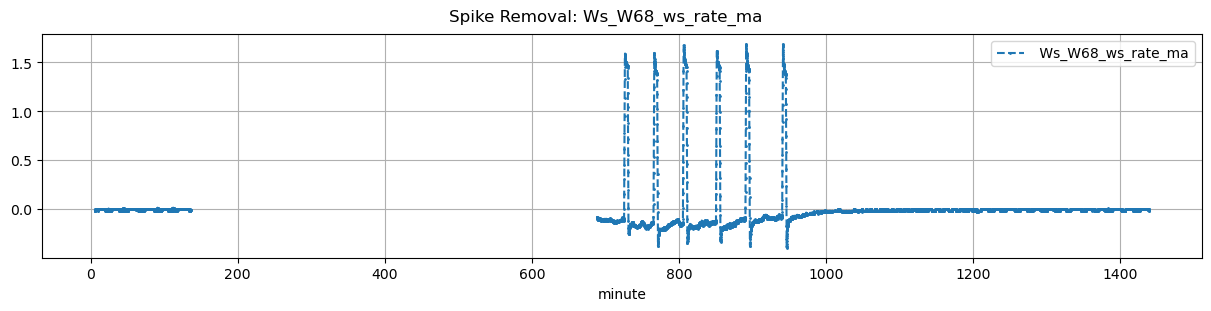

Figure figure_6.png

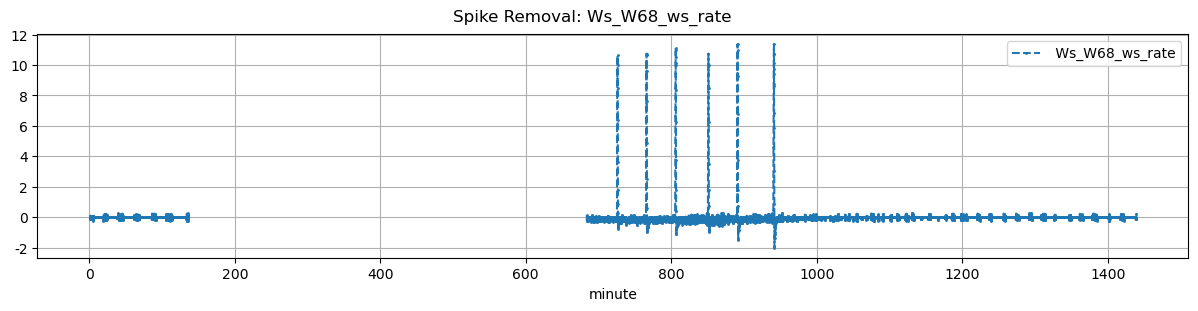

Figure figure_5.png

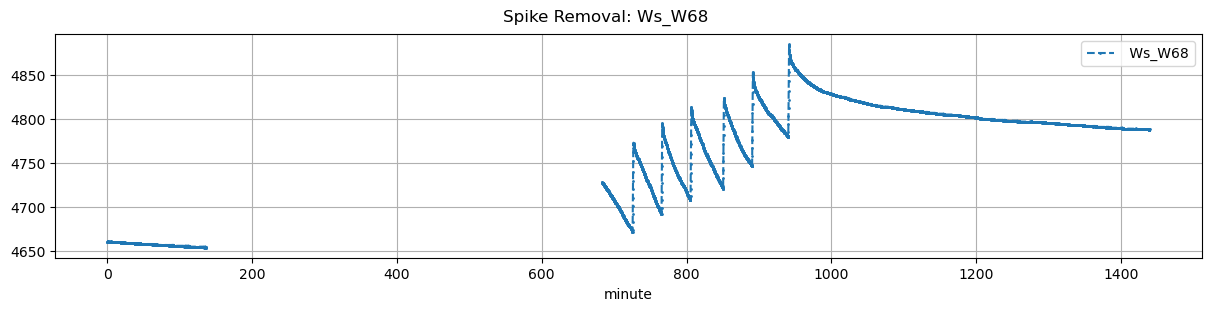

Figure figure_4.png
