Ws Sensor Analysis Report - Day 100

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 193.50 L
Avg Total Drain Amount: 27.55 L
Avg In-Fertigation Drain Amount: 17.90 L
Avg Post-Fertigation Drain Amount: 9.65 L
Avg Drainage Rate: 14.24%

Detail Section

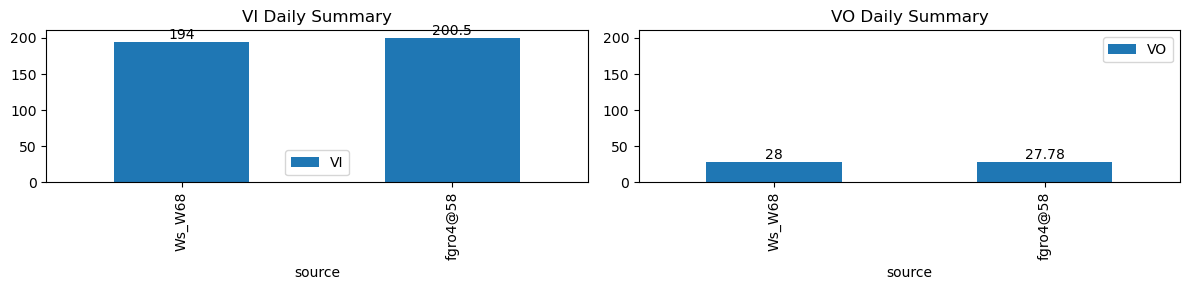

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 193.50 L
Total Drain Amount: 27.55 L
In-Fertigation Drain Amount: 17.90 L
Post-Fertigation Drain Amount: 9.65 L
Drainage Rate: 14.24%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17276	0	13495	0	1

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-14 08:05:00+08:00	100	485	Ws_W68	0.398002	30	485.0	485.416667	485.72	486.916667	NaN	NaN	NaN	4730.0	4810.0	43	-0.009181	0.000000	-0.007042	0.25850	0.372093	16.0	25.0	71.8	21.5	5.5	-1.293880	NaN	4.206120
2026-01-14 09:40:00+08:00	100	580	Ws_W68	0.398002	30	580.0	580.333333	580.72	581.833333	NaN	NaN	NaN	4754.0	4855.0	43	-0.098305	-0.144444	-0.123611	0.35825	0.469767	20.2	20.0	66.8	21.5	1.3	2.457979	NaN	3.757979
2026-01-14 10:45:00+08:00	100	645	Ws_W68	0.398002	30	645.0	645.333333	645.72	646.916667	NaN	NaN	NaN	4748.0	4845.0	43	-0.164018	-0.215000	-0.161620	0.33650	0.451163	19.4	20.0	71.8	21.5	2.1	2.884840	NaN	4.984840
2026-01-14 11:35:00+08:00	100	695	Ws_W68	0.398002	30	695.0	695.333333	695.72	697.000000	NaN	NaN	NaN	4746.0	4842.0	43	-0.188806	-0.248056	-0.186574	0.32875	0.446512	19.2	20.0	76.8	21.5	2.3	0.958837	NaN	3.258837
2026-01-14 12:25:00+08:00	100	745	Ws_W68	0.398002	30	745.0	745.333333	745.72	746.916667	NaN	NaN	NaN	4731.0	4826.0	43	-0.204078	-0.235417	-0.206722	0.33150	0.441860	19.0	20.0	71.8	21.5	2.5	-0.443144	NaN	2.056856
2026-01-14 13:10:00+08:00	100	790	Ws_W68	0.398002	30	790.0	790.333333	790.72	791.916667	NaN	NaN	NaN	4729.0	4832.0	43	-0.171457	-0.201944	-0.183796	0.35575	0.479070	20.6	20.0	71.8	21.5	0.9	1.100624	NaN	2.000624
2026-01-14 13:55:00+08:00	100	835	Ws_W68	0.398002	30	835.0	835.416667	835.72	837.000000	NaN	NaN	NaN	4744.0	4848.0	43	-0.133157	-0.177778	-0.141404	0.34500	0.483721	20.8	25.0	76.8	21.5	0.7	2.473753	NaN	3.173753
2026-01-14 14:50:00+08:00	100	890	Ws_W68	0.398002	30	890.0	890.416667	890.72	891.916667	NaN	NaN	NaN	4751.0	4851.0	43	-0.178238	-0.222500	-0.123958	0.34825	0.465116	20.0	25.0	71.8	21.5	1.5	1.095942	NaN	2.595942
2026-01-14 15:50:00+08:00	100	950	Ws_W68	0.398002	30	950.0	950.416667	950.72	952.083333	NaN	NaN	NaN	4755.0	4857.0	43	-0.099576	-0.105833	-0.054292	0.32125	0.474419	20.4	25.0	81.8	21.5	1.1	0.417549	NaN	1.517549

Figures - Ws_W68

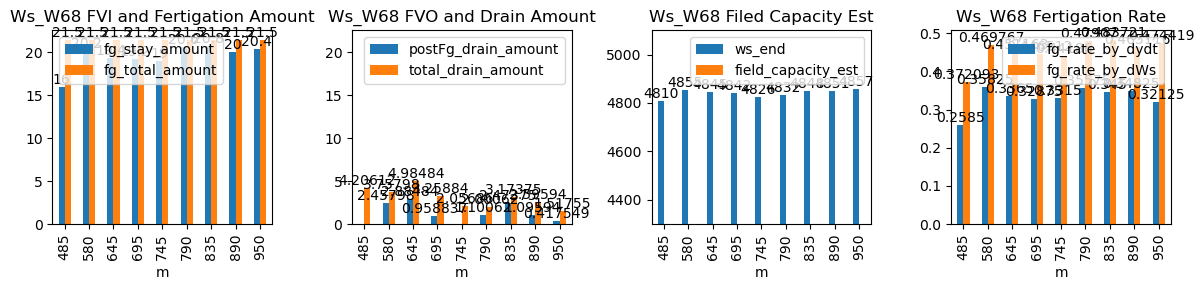

Figure figure_9.png

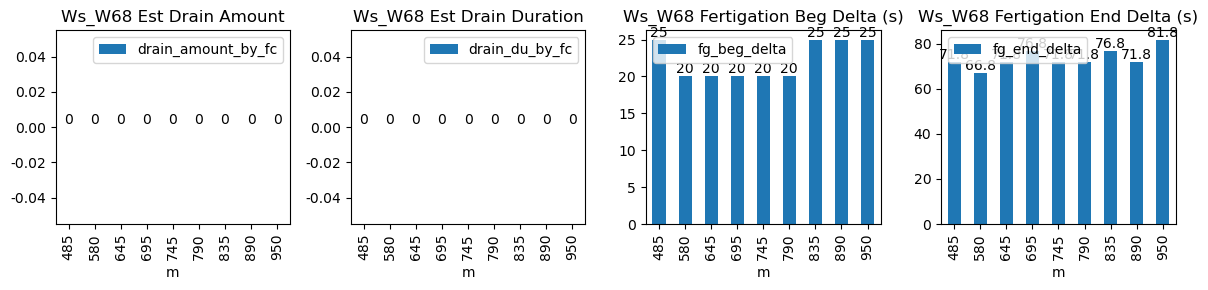

Figure figure_8.png

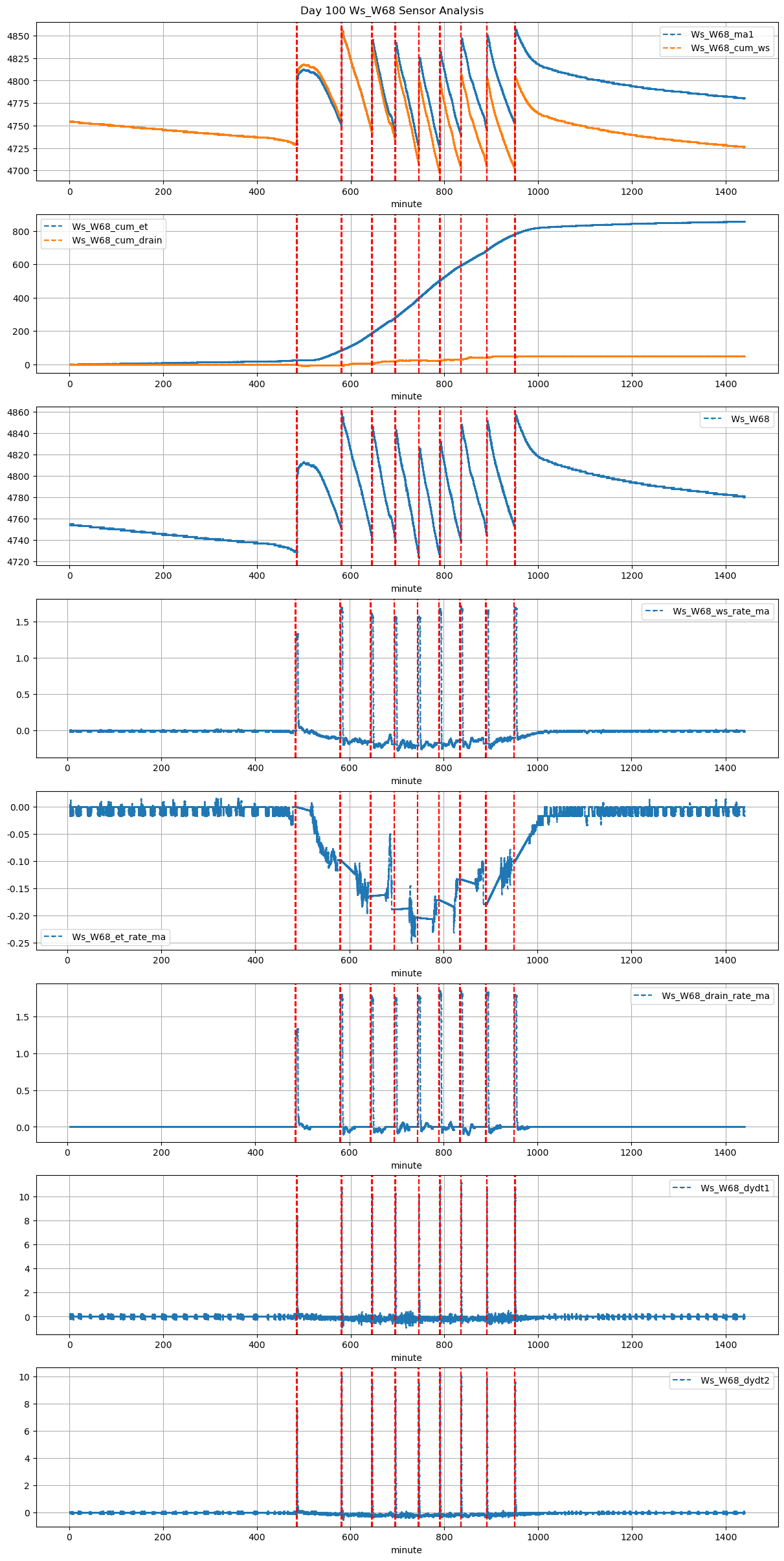

Figure figure_7.png

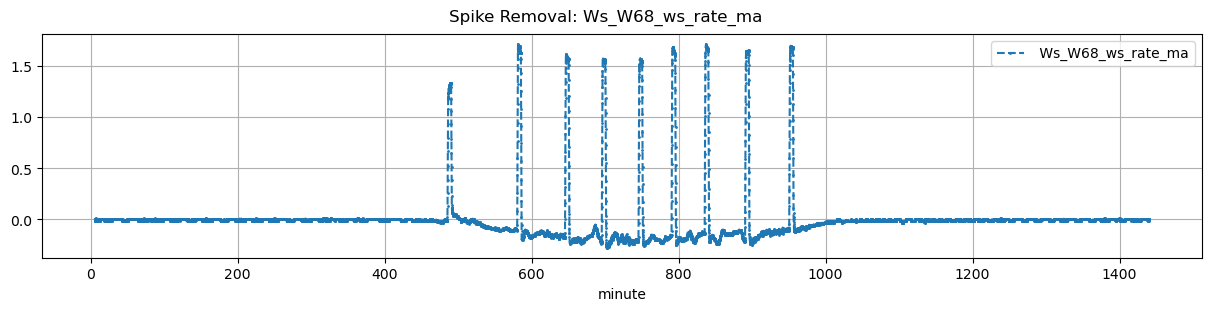

Figure figure_6.png

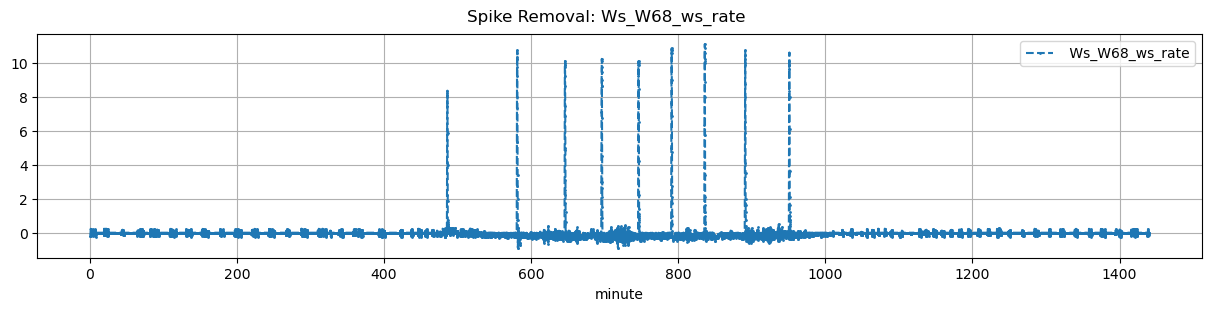

Figure figure_5.png

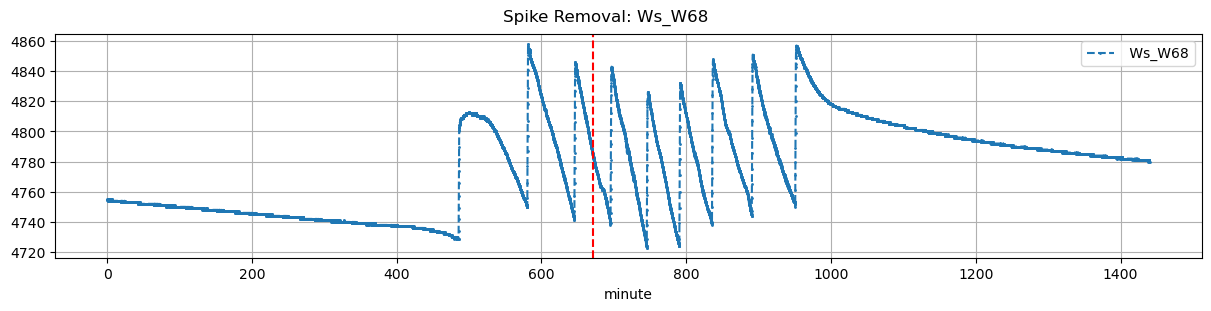

Figure figure_4.png
