Ws Sensor Analysis Report - Day 101

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 193.50 L
Avg Total Drain Amount: 35.43 L
Avg In-Fertigation Drain Amount: 17.50 L
Avg Post-Fertigation Drain Amount: 17.93 L
Avg Drainage Rate: 18.31%

Detail Section

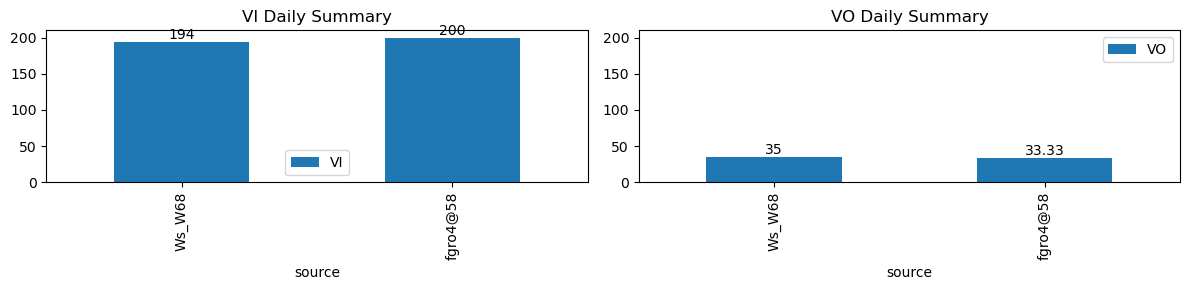

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 193.50 L
Total Drain Amount: 35.43 L
In-Fertigation Drain Amount: 17.50 L
Post-Fertigation Drain Amount: 17.93 L
Drainage Rate: 18.31%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17277	0	13609	0	3

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2026-01-15 08:05:00+08:00	101	485	Ws_W68	0.453317	30	485.0	485.416667	485.72	486.916667	NaN	NaN	NaN	4756.0	4837.0	43	-0.014124	0.000000	-0.007882	0.25600	0.376744	16.2	25.0	71.8	21.5	5.3	-1.338654	NaN	3.961346
2026-01-15 09:45:00+08:00	101	585	Ws_W68	0.453317	30	585.0	585.500000	585.72	586.833333	NaN	NaN	NaN	4777.0	4880.0	43	-0.135223	-0.186250	-0.142583	0.39550	0.479070	20.6	30.0	66.8	21.5	0.9	2.484615	NaN	3.384615
2026-01-15 10:40:00+08:00	101	640	Ws_W68	0.453317	30	640.0	640.333333	640.72	641.916667	NaN	NaN	NaN	4783.0	4882.0	43	-0.157044	-0.230556	-0.183278	0.34250	0.460465	19.8	20.0	71.8	21.5	1.7	2.753598	NaN	4.453598
2026-01-15 11:30:00+08:00	101	690	Ws_W68	0.453317	30	690.0	690.416667	690.72	692.000000	NaN	NaN	NaN	4775.0	4874.0	43	-0.163742	-0.224167	-0.191065	0.33900	0.460465	19.8	25.0	76.8	21.5	1.7	2.185355	NaN	3.885355
2026-01-15 12:15:00+08:00	101	735	Ws_W68	0.453317	30	735.0	735.333333	735.72	737.000000	NaN	NaN	NaN	4776.0	4874.0	43	-0.173118	-0.239861	-0.200639	0.33375	0.455814	19.6	20.0	76.8	21.5	1.9	2.529942	NaN	4.429942
2026-01-15 12:55:00+08:00	101	775	Ws_W68	0.453317	30	775.0	775.416667	775.72	776.916667	NaN	NaN	NaN	4781.0	4877.0	43	-0.200840	-0.249583	-0.195833	0.34975	0.446512	19.2	25.0	71.8	21.5	2.3	1.543451	NaN	3.843451
2026-01-15 13:35:00+08:00	101	815	Ws_W68	0.453317	30	815.0	815.416667	815.72	816.916667	NaN	NaN	NaN	4785.0	4885.0	43	-0.190631	-0.248889	-0.188765	0.34925	0.465116	20.0	25.0	71.8	21.5	1.5	2.315950	NaN	3.815950
2026-01-15 14:20:00+08:00	101	860	Ws_W68	0.453317	30	860.0	860.416667	860.72	861.916667	NaN	NaN	NaN	4779.0	4876.0	43	-0.160558	-0.187917	-0.115417	0.34575	0.451163	19.4	25.0	71.8	21.5	2.1	2.575608	NaN	4.675608
2026-01-15 15:05:00+08:00	101	905	Ws_W68	0.453317	30	905.0	905.333333	905.72	907.000000	NaN	NaN	NaN	4799.0	4906.0	43	-0.107006	-0.165972	-0.084389	0.34250	0.497674	21.4	20.0	76.8	21.5	0.1	2.878651	NaN	2.978651

Figures - Ws_W68

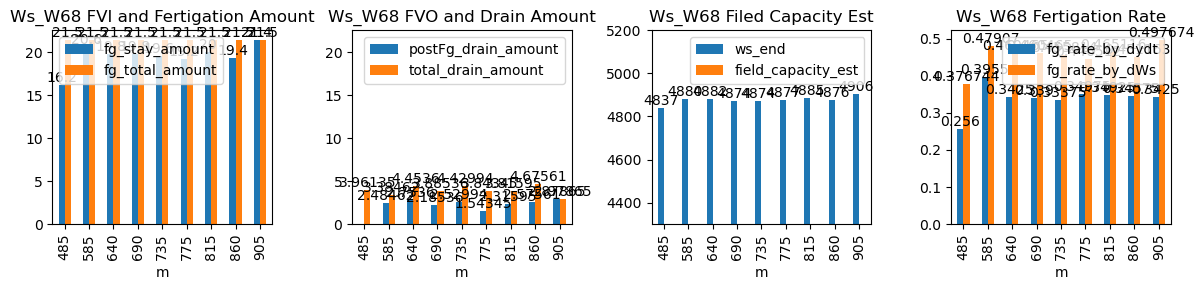

Figure figure_9.png

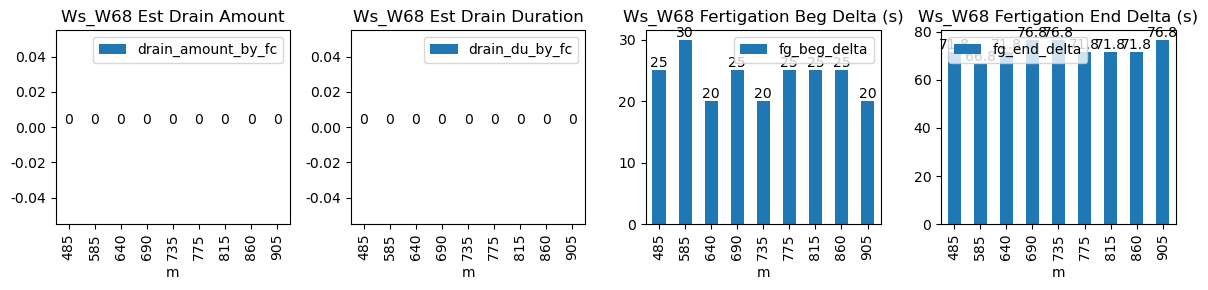

Figure figure_8.png

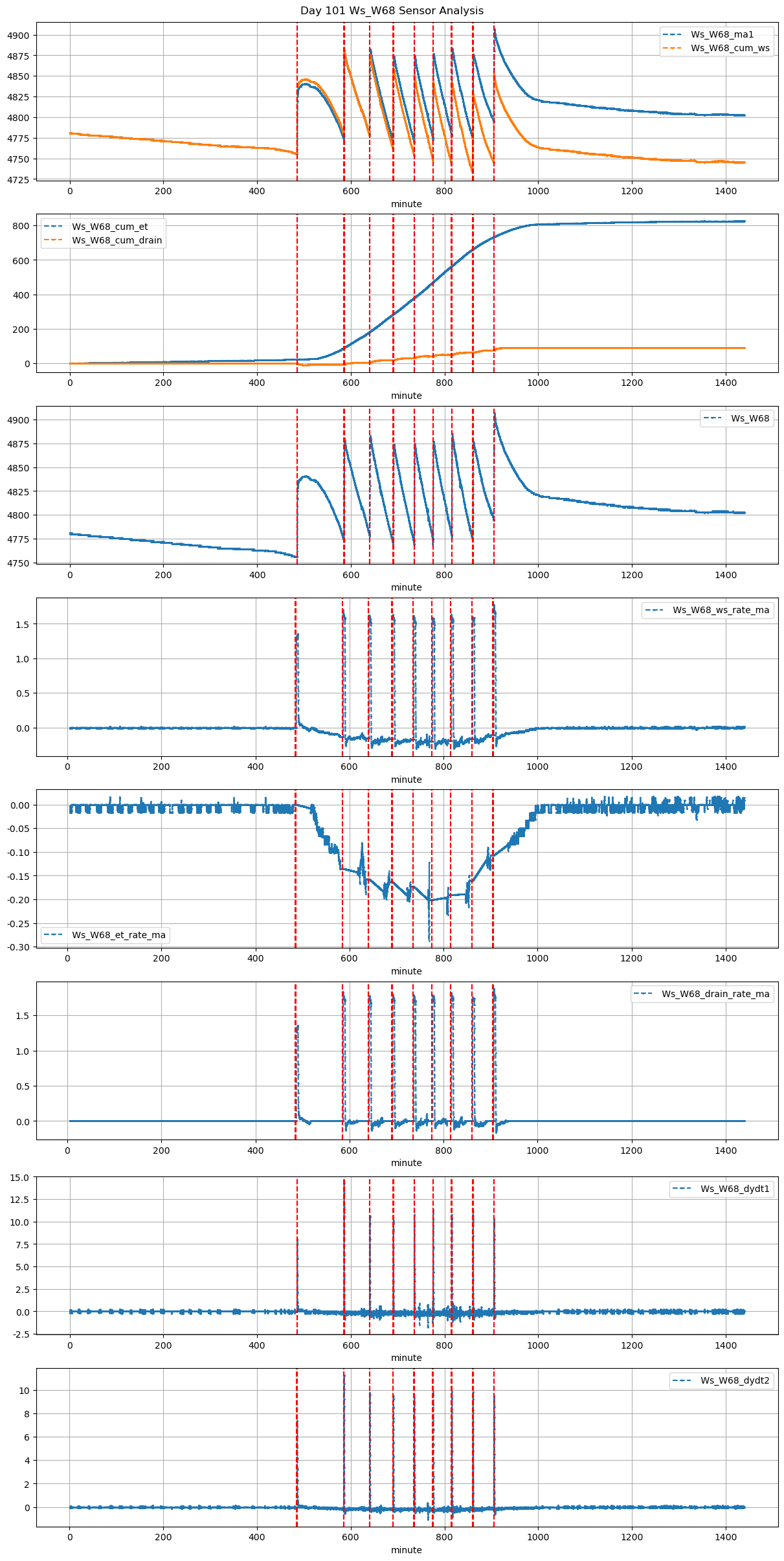

Figure figure_7.png

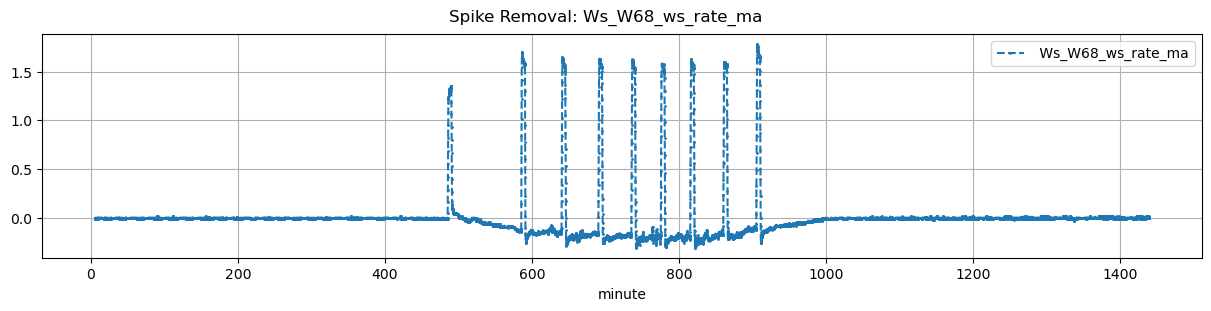

Figure figure_6.png

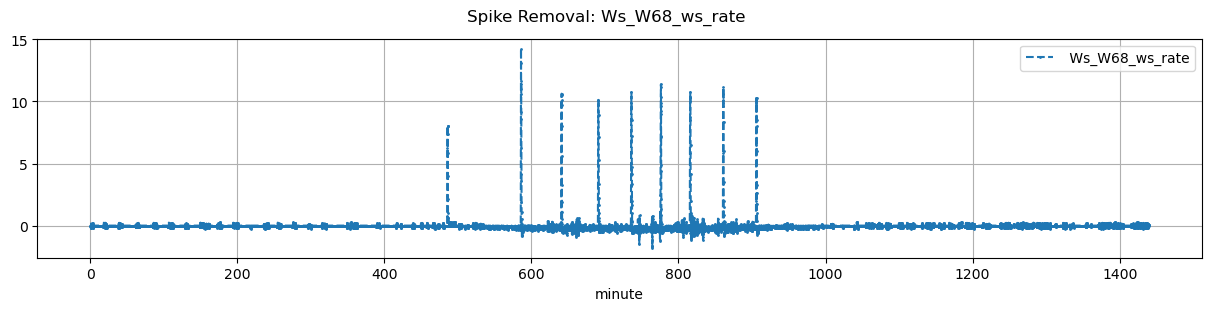

Figure figure_5.png

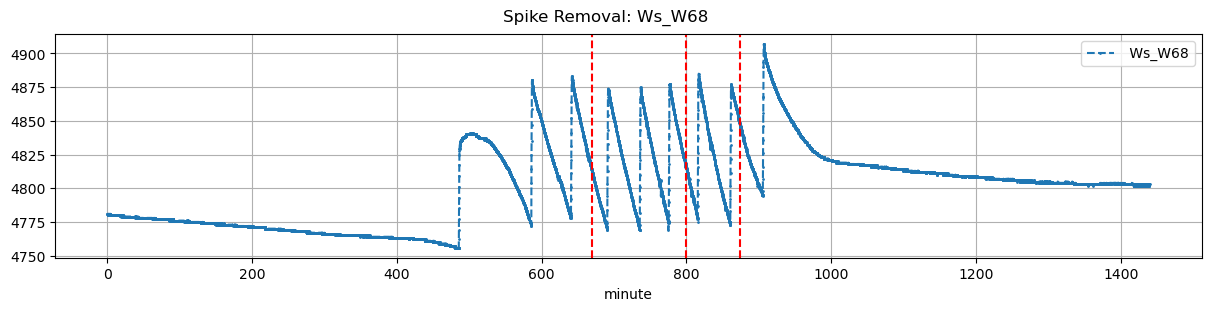

Figure figure_4.png
