Ws Sensor Analysis Report - Day 80

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 1
Avg Number of Fertigation Events: 9.0
Avg Fertigation Amount: 158.60 L
Avg Total Drain Amount: 76.79 L
Avg In-Fertigation Drain Amount: 24.07 L
Avg Post-Fertigation Drain Amount: 52.73 L
Avg Drainage Rate: 48.42%

Detail Section

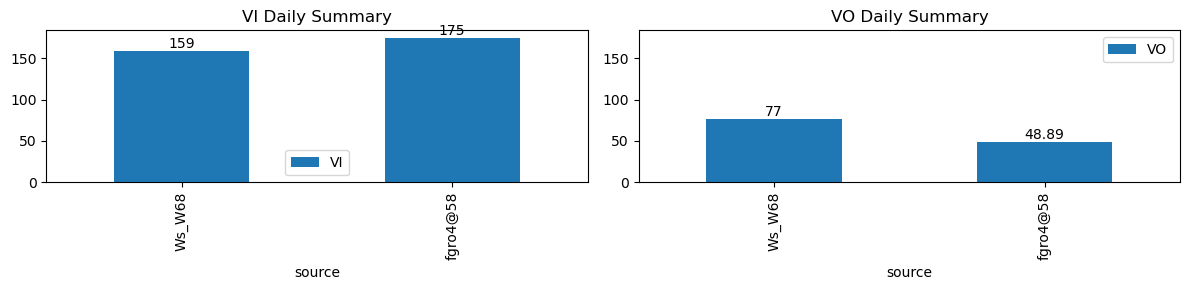

VI and VO Daily Summary

Summary Statistics - Ws_W68

Number of Fertigation Events: 9
Number of Fertigation Events detected: 9
Total Fertigation Amount: 158.60 L
Total Drain Amount: 76.79 L
In-Fertigation Drain Amount: 24.07 L
Post-Fertigation Drain Amount: 52.73 L
Drainage Rate: 48.42%

Ws Cleaning Summary Table - Ws_W68

ws_name	total_dp	nan_dp	nan_filled_dp	long_gap_dp	num_spike
Ws_W68	17274	202	12813	202	4

Fertigation Events Details Table - Ws_W68

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	drain_amount_by_fc	drain_du_by_fc	drain_rate_by_fc	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	field_capacity_est	total_drain_amount
2025-12-25 10:05:00+08:00	80	605	Ws_W68	0.793812	30	605.0	605.333333	605.58	606.583333	NaN	NaN	NaN	4740.000000	4821.0	35	-0.077966	-0.128056	0.000000	0.358571	0.462857	16.200000	20.0	60.2	17.5	1.300000	2.374290	NaN	3.674290
2025-12-25 10:40:00+08:00	80	640	Ws_W68	0.793812	30	640.0	640.333333	640.58	641.416667	NaN	NaN	NaN	4784.000000	4857.0	35	-0.064528	-0.215972	-0.125278	0.372000	0.417143	14.600000	20.0	50.2	17.5	2.900000	8.695150	4813.524251	11.595150
2025-12-25 11:20:00+08:00	80	680	Ws_W68	0.793812	30	680.0	680.333333	680.58	681.500000	NaN	NaN	NaN	4775.333333	4846.0	35	-0.080720	-0.170972	-0.141944	0.335714	0.403810	14.133333	20.0	55.2	17.5	3.366667	5.560536	4818.197322	8.927202
2025-12-25 12:00:00+08:00	80	720	Ws_W68	0.793812	30	720.0	720.333333	720.58	721.500000	NaN	NaN	NaN	4770.000000	4842.0	35	-0.123258	-0.171111	-0.128030	0.343714	0.411429	14.400000	20.0	55.2	17.5	3.100000	4.776274	4818.118632	7.876274
2025-12-25 12:35:00+08:00	80	755	Ws_W68	0.793812	30	755.0	752.083333	755.58	756.500000	NaN	NaN	NaN	4780.000000	4848.0	35	-0.115843	NaN	0.000000	0.362857	0.388571	13.600000	-175.0	55.2	17.5	3.900000	7.889845	4808.550777	11.789845
2025-12-25 13:10:00+08:00	80	790	Ws_W68	0.793812	30	790.0	790.333333	790.58	792.000000	NaN	NaN	NaN	4778.000000	4871.0	35	-0.117349	-0.205833	0.000000	0.324286	0.531429	18.600000	20.0	85.2	18.6	0.000000	6.081940	4840.590301	6.081940
2025-12-25 13:45:00+08:00	80	825	Ws_W68	0.793812	30	825.0	825.333333	825.58	826.416667	NaN	NaN	NaN	4795.000000	4863.0	35	-0.137818	-0.207083	-0.108889	0.350571	0.388571	13.600000	20.0	50.2	17.5	3.900000	7.211768	4826.941161	11.111768
2025-12-25 14:25:00+08:00	80	865	Ws_W68	0.793812	30	865.0	865.333333	865.58	866.500000	NaN	NaN	NaN	4782.000000	4856.0	35	-0.083192	-0.153472	-0.089912	0.358286	0.422857	14.800000	20.0	55.2	17.5	2.700000	5.447871	4828.760646	8.147871
2025-12-25 15:10:00+08:00	80	910	Ws_W68	0.793812	30	910.0	910.250000	910.58	911.500000	NaN	NaN	NaN	4790.000000	4863.0	35	-0.067910	-0.126250	-0.058611	0.345714	0.417143	14.600000	15.0	55.2	17.5	2.900000	4.687760	4839.561201	7.587760

Figures - Ws_W68

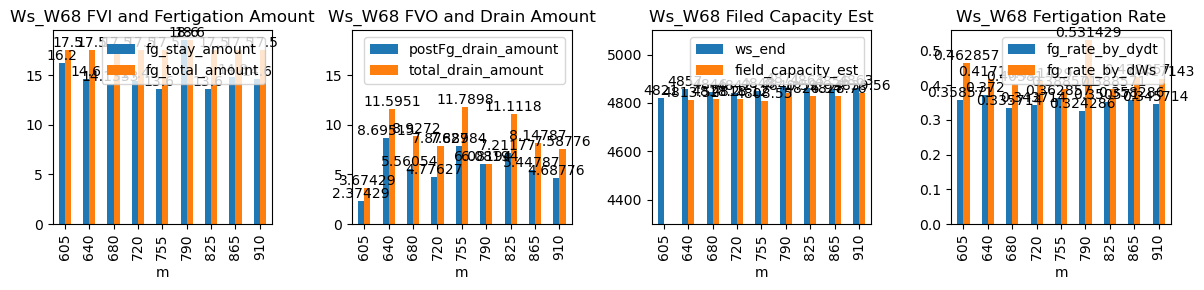

Figure figure_9.png

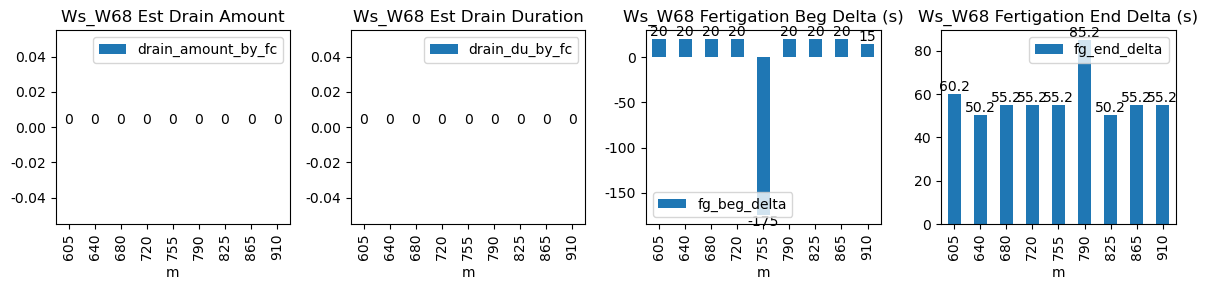

Figure figure_8.png

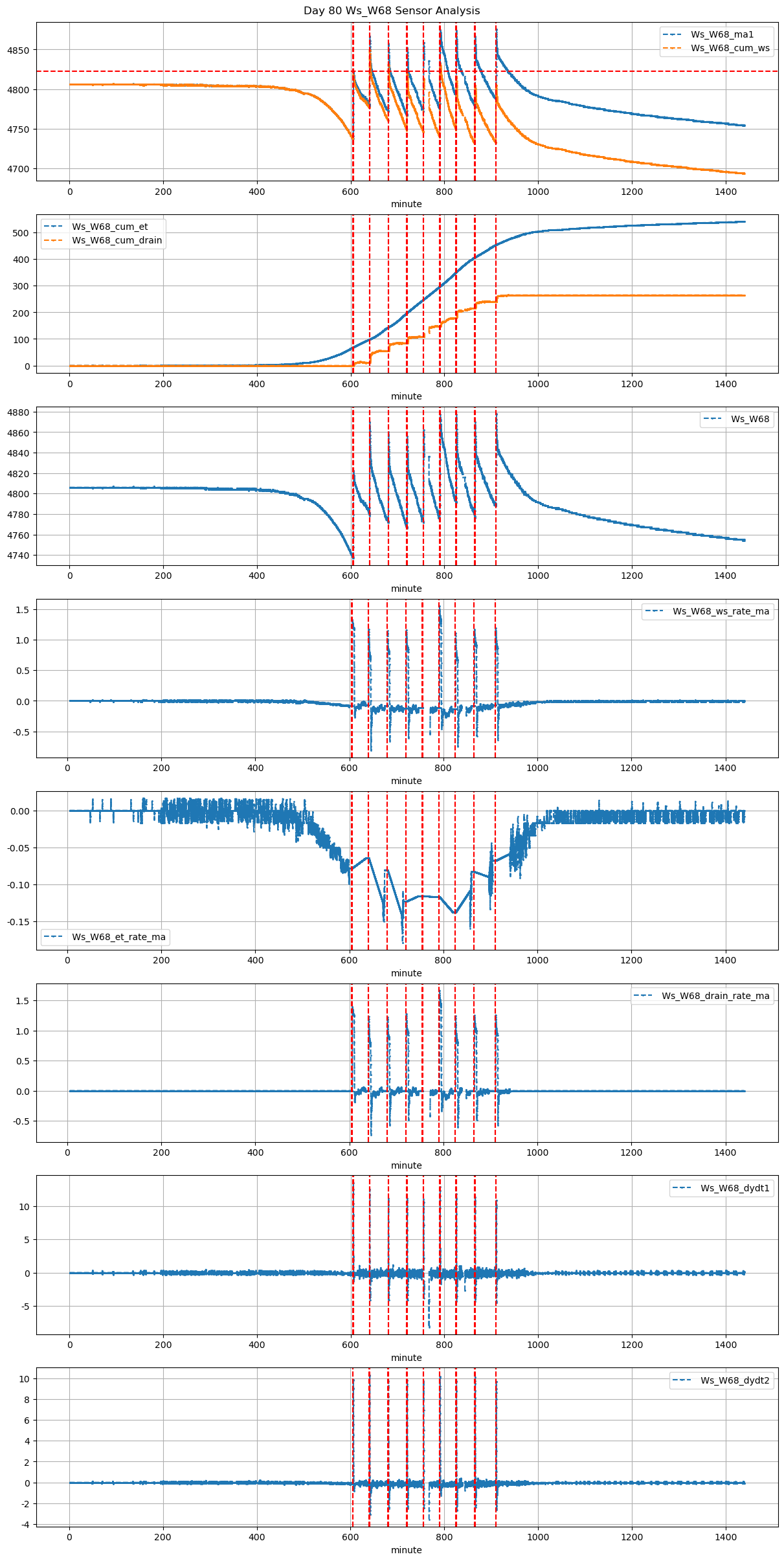

Figure figure_7.png

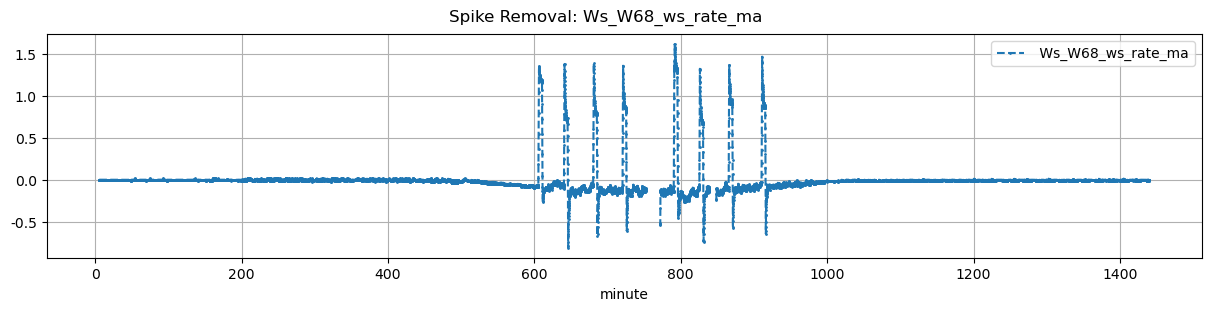

Figure figure_6.png

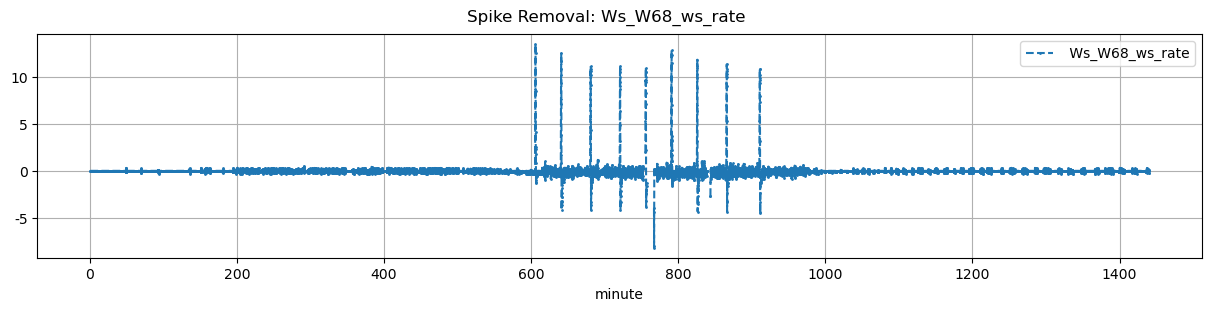

Figure figure_5.png

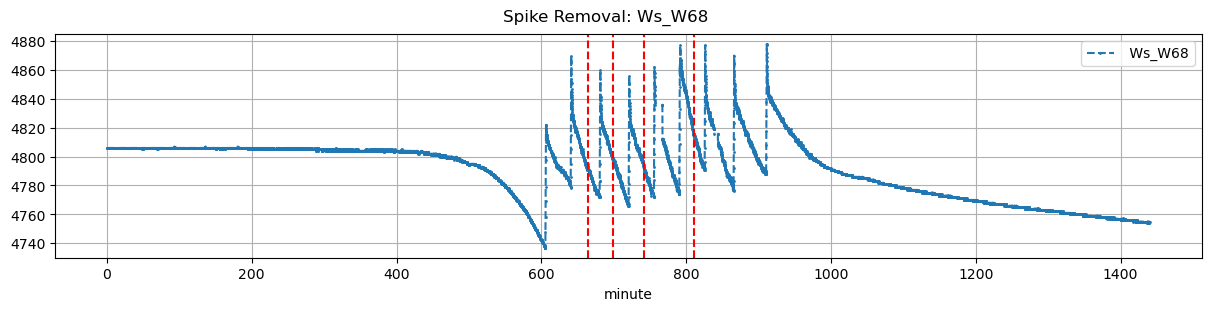

Figure figure_4.png
