Ws Sensor Analysis Report - Day 35

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 2
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 2321.97 L
Avg Total Drain Amount: 218.05 L
Avg In-Fertigation Drain Amount: 42.05 L
Avg Post-Fertigation Drain Amount: 176.00 L
Avg Drainage Rate: 9.39%

Detail Section

VI and VO Daily Summary

Summary Statistics - Ws_W1

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2332.84 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_W1

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W1	17,276	12,490	0	179	-81.67

Fertigation Events Details Table - Ws_W1

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-04-05 09:00:00+08:00	35	540	Ws_W1	1.879914	52.083333	540.0	539.416667	545.00	547.916667	16910.000000	17251.142857	300	-0.190808	-0.377087	0.000000	1.129667	1.137143	341.142857	True	-35.0	175.0	341.142857	0.0	0.0	0.0	140	210	-0.269069	NaN	348.0	0.0	NaN	NaN
2026-04-05 10:00:00+08:00	35	600	Ws_W1	1.879914	54.916667	600.0	599.416667	605.00	605.083333	17076.900000	17404.000000	300	-0.215429	-0.357069	0.000000	1.095467	1.090333	327.100000	True	-35.0	5.0	330.000000	0.0	0.0	0.0	35	849	-0.488367	NaN	347.0	0.0	NaN	NaN
2026-04-05 11:00:00+08:00	35	660	Ws_W1	1.879914	54.750000	660.0	659.750000	665.00	665.250000	17170.000000	17507.600000	300	-0.275943	-0.398580	0.000000	1.083429	1.125333	337.600000	True	-15.0	15.0	337.600000	0.0	0.0	0.0	110	615	-0.680500	NaN	348.0	0.0	NaN	NaN
2026-04-05 12:00:00+08:00	35	720	Ws_W1	1.879914	54.833333	720.0	719.583333	725.00	725.166667	17280.000000	17613.000000	300	0.000000	-0.318056	0.000000	1.115086	1.110000	333.000000	True	-25.0	10.0	333.000000	0.0	0.0	0.0	860	234	-0.537497	NaN	348.0	0.0	NaN	NaN
2026-04-05 13:00:00+08:00	35	780	Ws_W1	1.879914	54.916667	780.0	779.500000	785.00	785.083333	17370.000000	17603.333333	300	-0.344985	-0.397016	0.000000	0.924364	0.777778	233.333333	True	-30.0	5.0	330.000000	0.0	0.0	0.0	45	174	-0.446225	NaN	348.0	0.0	NaN	NaN
2026-04-05 14:00:00+08:00	35	840	Ws_W1	1.879914	50.416667	840.0	839.666667	845.00	849.583333	17334.333333	17639.333333	300	-0.389305	-0.604856	0.000000	0.976952	1.016667	305.000000	True	-20.0	275.0	330.000000	0.0	0.0	0.0	54	455	-0.457716	NaN	349.0	0.0	NaN	NaN
2026-04-05 15:00:00+08:00	35	900	Ws_W1	1.879914	60.000000	900.0	899.583333	905.02	906.666667	17358.333333	17661.333333	301	-0.479401	-0.510494	-0.336908	1.050000	1.006645	303.000000	True	-25.0	98.8	331.100000	0.0	0.0	0.0	19	153	-0.430385	NaN	348.0	0.0	NaN	NaN

Figures - Ws_W1

Figure figure_7.png

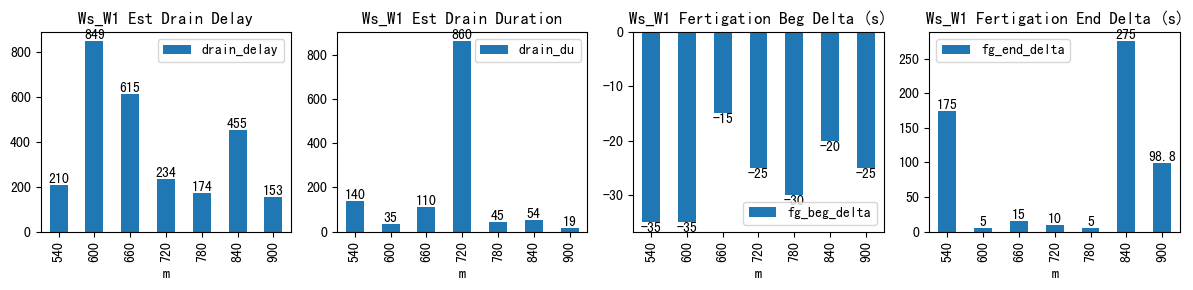

Figure figure_6.png

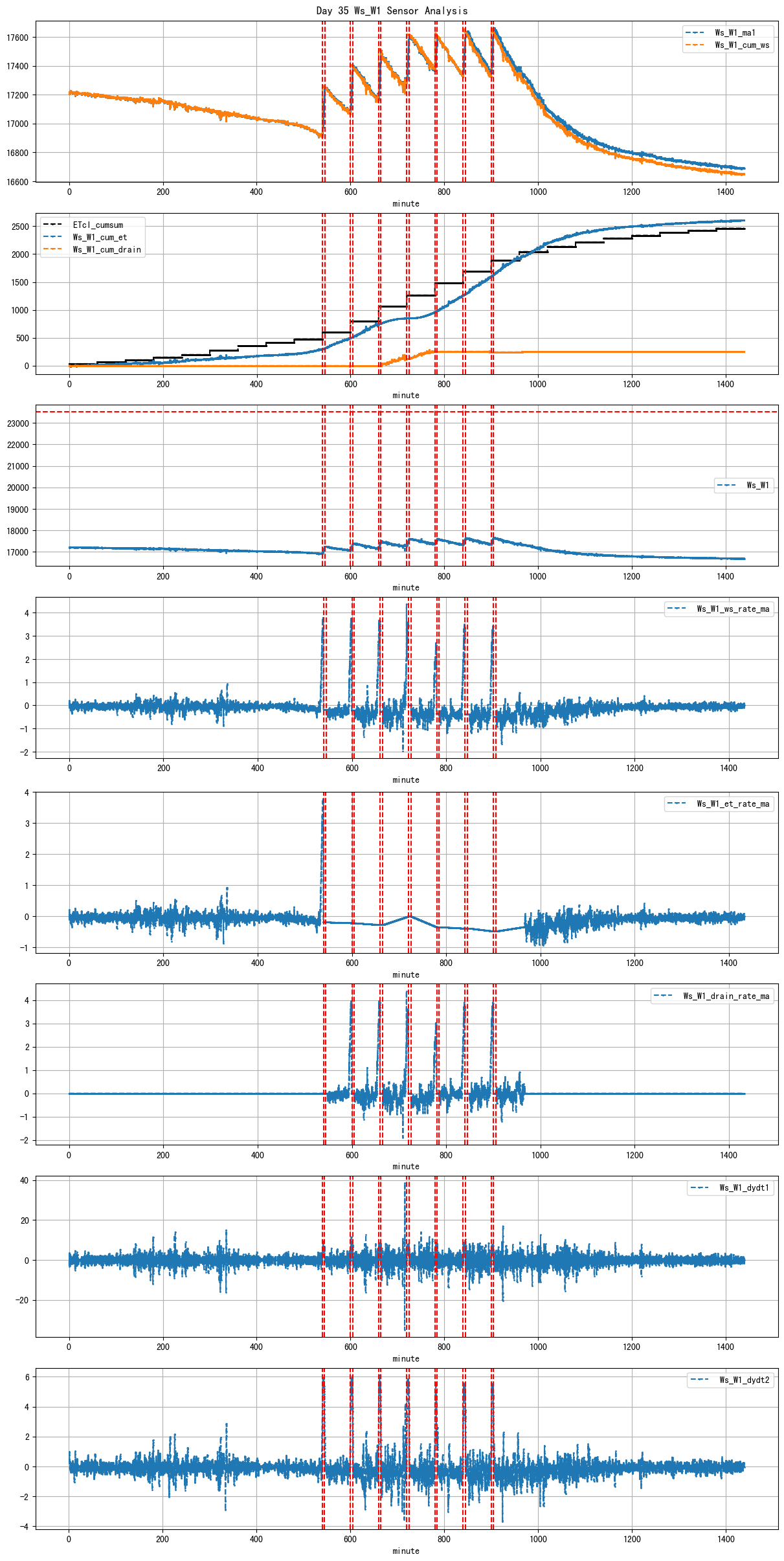

Figure figure_5.png

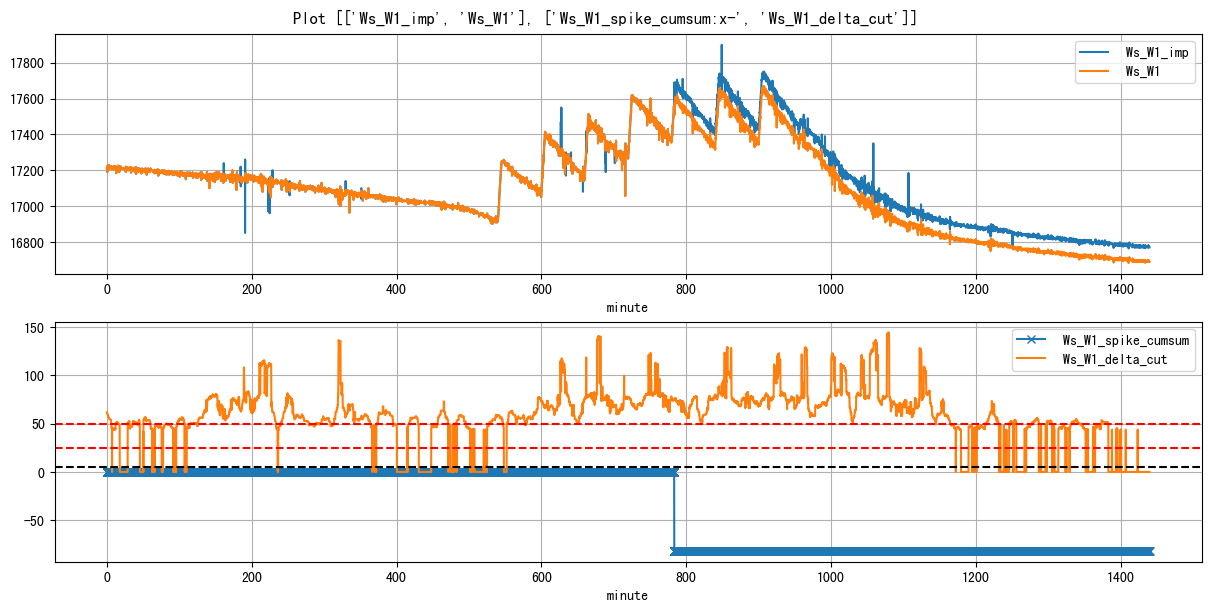

Figure figure_3.png

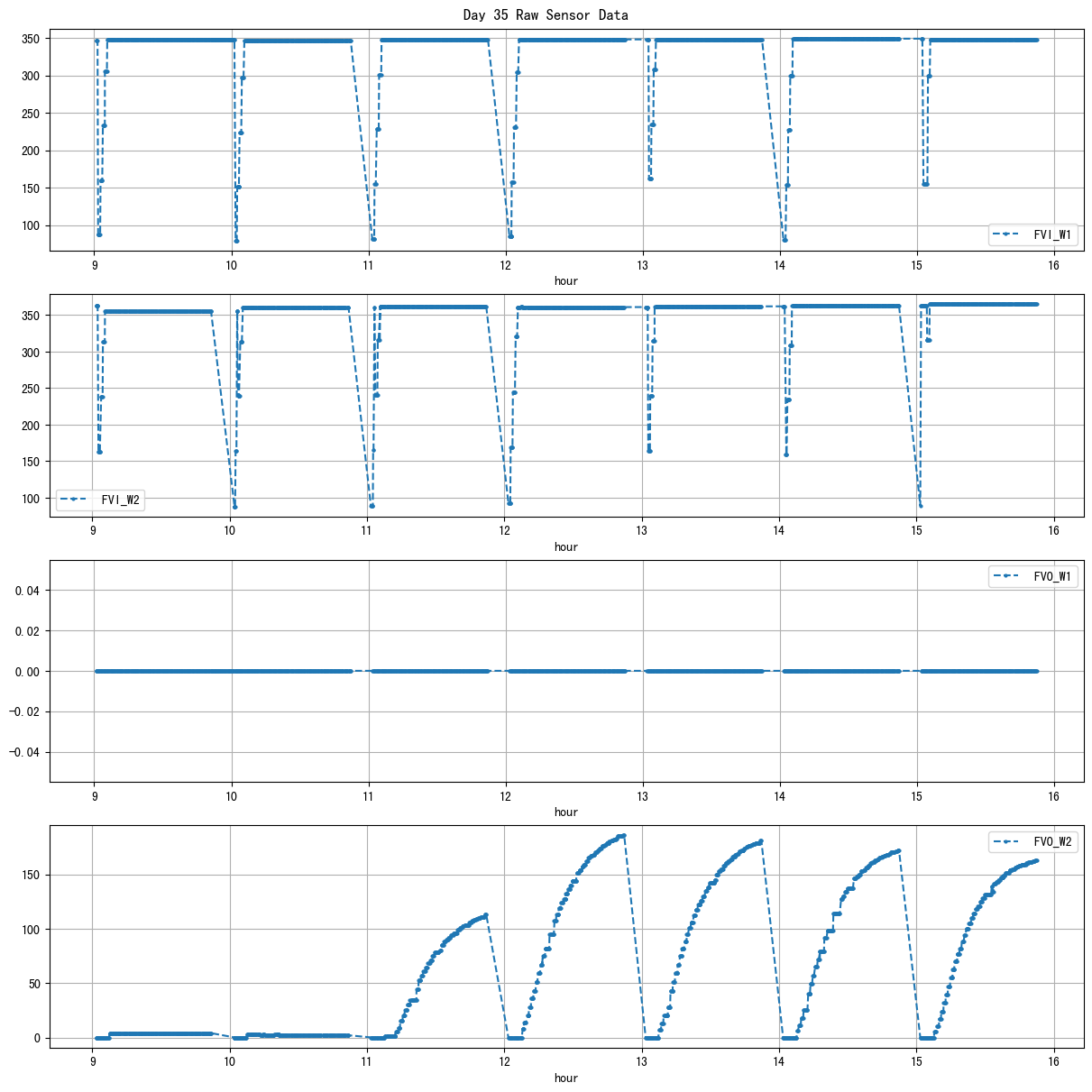

Figure figure_2.png

Summary Statistics - Ws_W2

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2311.10 L
Total Drain Amount: 436.10 L
In-Fertigation Drain Amount: 84.10 L
Post-Fertigation Drain Amount: 352.00 L
Drainage Rate: 18.87%

Ws Cleaning Summary Table - Ws_W2

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W2	17,276	13,458	0	135	8.33

Fertigation Events Details Table - Ws_W2

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-04-05 09:00:00+08:00	35	540	Ws_W2	1.572542	54.750000	540.0	539.500000	545.00	545.250000	14770.000000	15078.800000	300	-0.152780	-0.159877	0.000000	1.053841	1.029333	308.800000	True	-30.0	15.0	330.0	0.0	0.000000	0.000000	35	399	-0.156932	NaN	NaN	NaN	356.0	4.0
2026-04-05 10:00:00+08:00	35	600	Ws_W2	1.572542	55.000000	600.0	599.583333	605.00	605.000000	14957.916667	15270.000000	300	-0.260565	-0.187963	0.000000	1.067500	1.040278	312.083333	True	-25.0	0.0	330.0	0.0	0.000000	0.000000	144	915	-0.354066	NaN	NaN	NaN	361.0	3.0
2026-04-05 11:00:00+08:00	35	660	Ws_W2	1.572542	53.750000	660.0	658.500000	665.00	666.250000	15148.833333	15466.476190	300	-0.262559	-0.545976	0.000000	0.991143	1.058810	317.642857	True	-90.0	75.0	330.0	0.0	0.000000	0.000000	225	339	-0.439560	NaN	NaN	NaN	362.0	113.0
2026-04-05 12:00:00+08:00	35	720	Ws_W2	1.572542	53.416667	720.0	719.416667	725.00	726.583333	15210.833333	15525.333333	300	-0.356586	-0.741681	0.000000	1.050400	1.048333	314.500000	True	-35.0	95.0	330.0	15.5	84.101219	99.601219	965	105	-0.453165	15441.232114	NaN	NaN	361.0	186.0
2026-04-05 13:00:00+08:00	35	780	Ws_W2	1.572542	54.250000	780.0	779.833333	785.00	785.750000	15208.333333	15528.500000	300	-0.313822	-0.957459	0.000000	1.091333	1.067222	320.166667	True	-10.0	45.0	330.0	9.8	86.166056	95.966056	459	135	-0.699593	15442.333944	NaN	NaN	362.0	181.0
2026-04-05 14:00:00+08:00	35	840	Ws_W2	1.572542	52.833333	840.0	839.583333	845.00	847.166667	15198.333333	15508.333333	300	-0.379034	-0.786626	0.000000	1.010000	1.033333	310.000000	True	-25.0	130.0	330.0	20.0	51.343850	71.343850	465	135	-0.547727	15456.989483	NaN	NaN	363.0	172.0
2026-04-05 15:00:00+08:00	35	900	Ws_W2	1.572542	60.000000	900.0	899.583333	905.02	905.166667	15187.733333	15480.047619	301	-0.218477	-0.830600	-0.256393	1.046667	0.971144	292.314286	True	-25.0	8.8	331.1	38.8	130.392636	169.192636	1340	103	-0.704014	15349.654983	NaN	NaN	365.0	163.0

Figures - Ws_W2

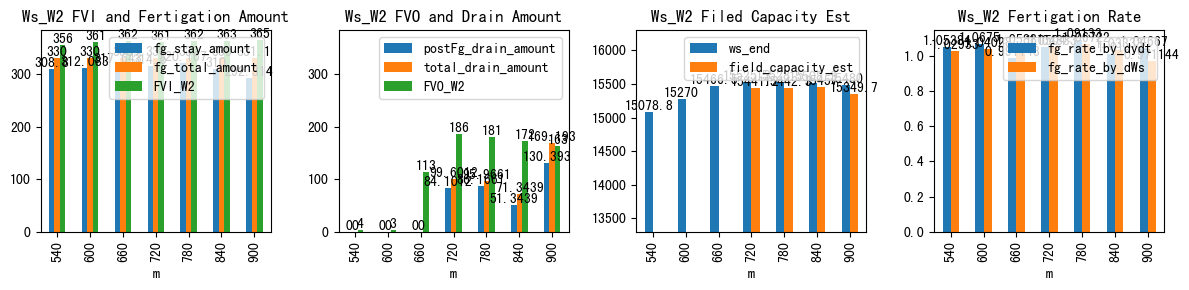

Figure figure_10.png

Figure figure_9.png

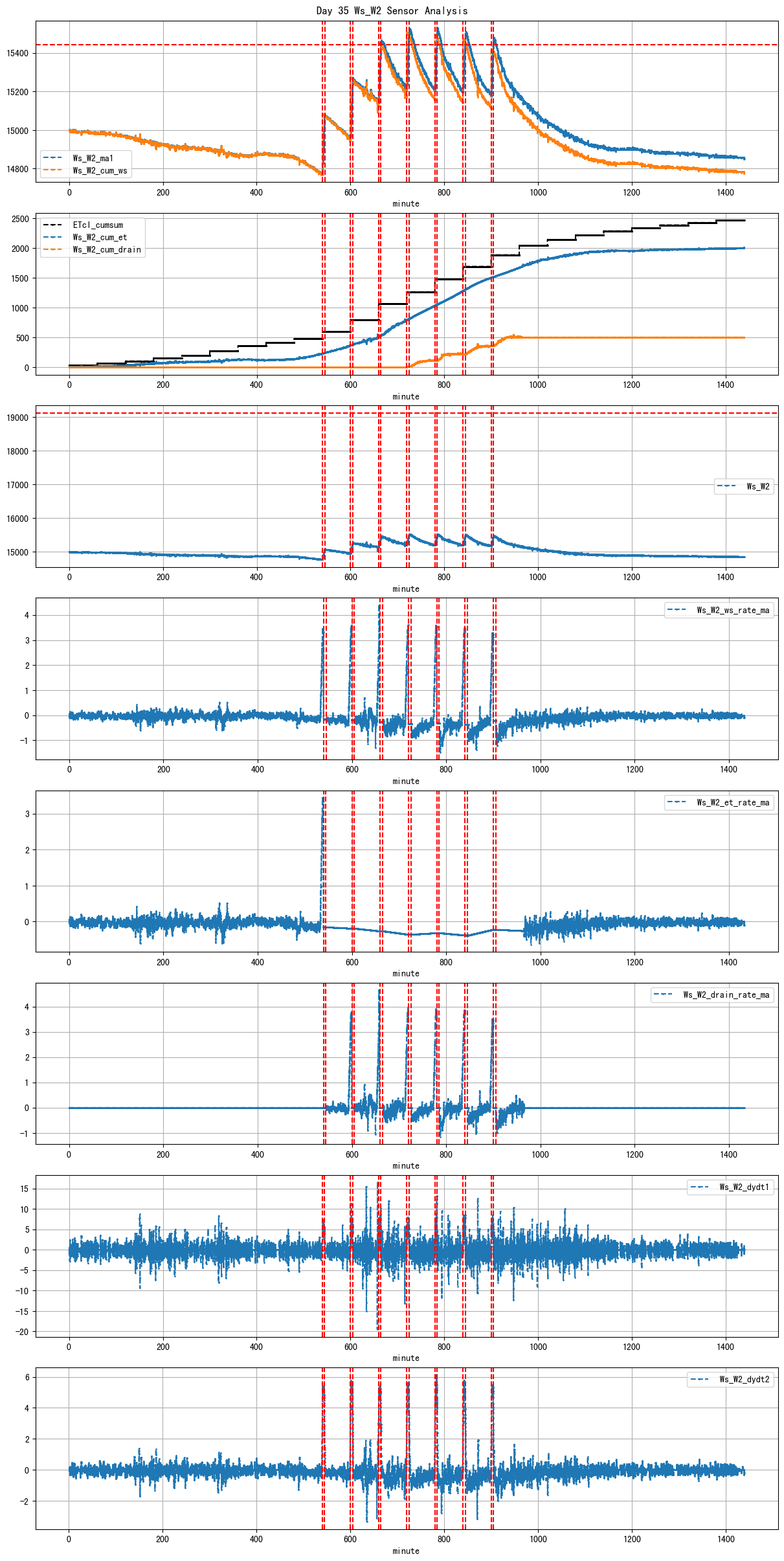

Figure figure_8.png

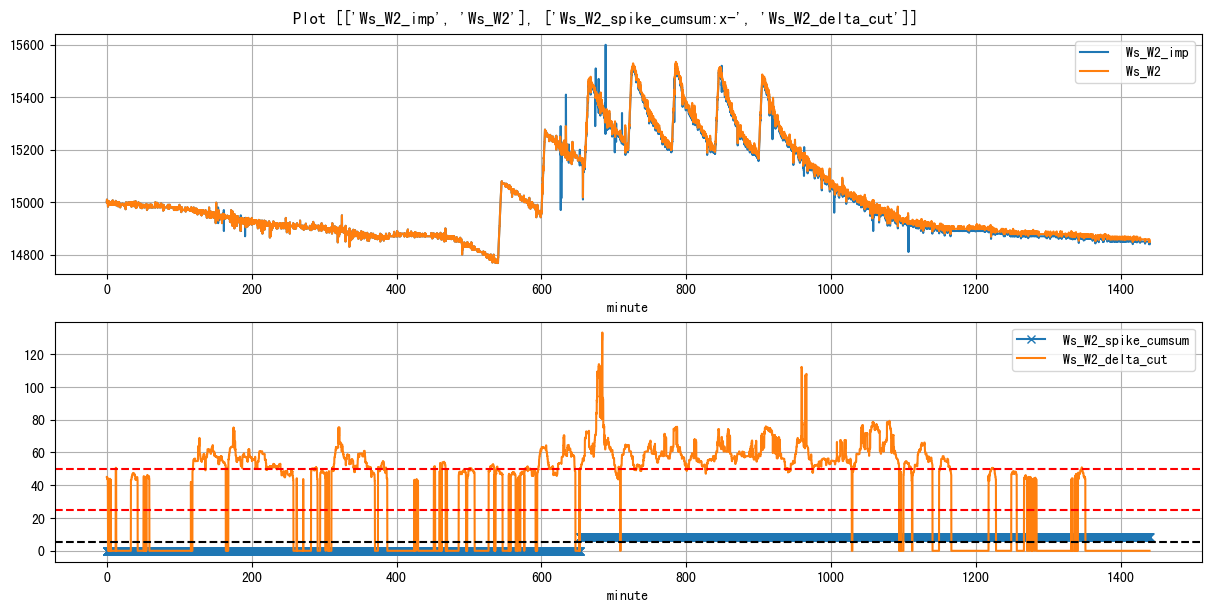

Figure figure_4.png

Figure figure_2.png
