Ws Sensor Analysis Report - Day 38

Summary Statistics (All Ws Sensors)

Number of Ws Sensors: 2
Avg Number of Fertigation Events: 7.0
Avg Fertigation Amount: 2333.30 L
Avg Total Drain Amount: 48.24 L
Avg In-Fertigation Drain Amount: 8.57 L
Avg Post-Fertigation Drain Amount: 39.68 L
Avg Drainage Rate: 2.07%

Detail Section

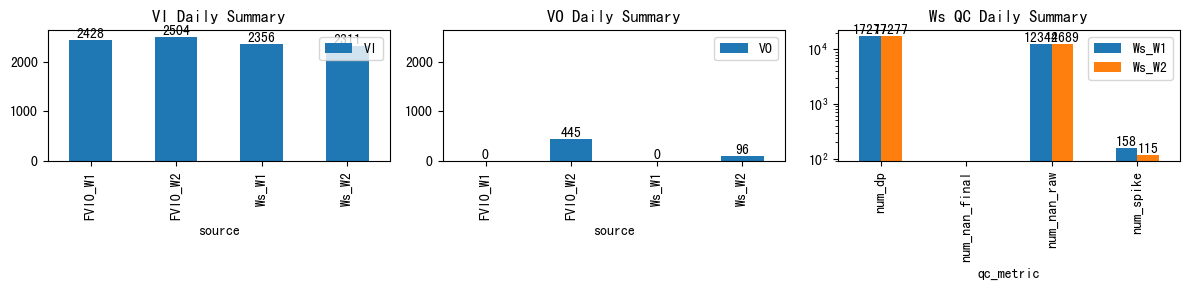

VI and VO Daily Summary

Summary Statistics - Ws_W1

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2355.50 L
Total Drain Amount: 0.00 L
In-Fertigation Drain Amount: 0.00 L
Post-Fertigation Drain Amount: 0.00 L
Drainage Rate: 0.00%

Ws Cleaning Summary Table - Ws_W1

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W1	17,277	12,344	0	158	0.00

Fertigation Events Details Table - Ws_W1

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-04-08 09:00:00+08:00	38	540	Ws_W1	2.708142	50.750000	540.0	539.333333	545.00	549.250000	16640.00	16965.333333	300	-0.124287	-0.602469	0.000000	1.020800	1.084444	325.333333	True	-40.0	255.0	330.0	0.0	0.0	0.0	675	260	-0.628734	NaN	345.0	0.0	NaN	NaN
2026-04-08 10:00:00+08:00	38	600	Ws_W1	2.708142	54.416667	600.0	599.666667	605.02	605.583333	16708.25	17029.000000	301	-0.344792	-0.321605	0.000000	1.044000	1.065615	320.750000	True	-20.0	33.8	331.1	0.0	0.0	0.0	39	328	-0.484206	NaN	351.0	0.0	NaN	NaN
2026-04-08 11:00:00+08:00	38	660	Ws_W1	2.708142	54.083333	660.0	659.666667	665.00	665.916667	16734.00	17058.000000	300	-0.475239	-0.505219	0.000000	1.120000	1.080000	324.000000	True	-20.0	55.0	330.0	0.0	0.0	0.0	60	504	-0.802105	NaN	348.0	0.0	NaN	NaN
2026-04-08 12:00:00+08:00	38	720	Ws_W1	2.708142	51.583333	720.0	718.500000	725.00	728.416667	16690.00	17030.000000	300	-0.717853	-0.559259	0.000000	1.098000	1.133333	340.000000	True	-90.0	205.0	340.0	0.0	0.0	0.0	35	330	-0.944090	NaN	345.0	0.0	NaN	NaN
2026-04-08 13:00:00+08:00	38	780	Ws_W1	2.708142	54.416667	780.0	778.750000	785.00	785.583333	16640.00	16938.000000	300	-0.362672	-0.545988	0.000000	1.109571	0.993333	298.000000	True	-75.0	35.0	330.0	0.0	0.0	0.0	30	65	-0.825700	NaN	347.0	0.0	NaN	NaN
2026-04-08 14:00:00+08:00	38	840	Ws_W1	2.708142	51.583333	840.0	838.666667	845.00	848.416667	16600.00	16954.000000	300	-0.713171	-0.497840	0.000000	1.100000	1.180000	354.000000	True	-80.0	205.0	354.0	0.0	0.0	0.0	15	270	-0.671123	NaN	346.0	0.0	NaN	NaN
2026-04-08 15:00:00+08:00	38	900	Ws_W1	2.708142	60.000000	900.0	899.333333	905.00	906.833333	16640.00	16980.400000	300	-0.447305	-0.265535	-0.158539	1.090000	1.134667	340.400000	True	-40.0	110.0	340.4	0.0	0.0	0.0	429	1515	-0.498127	NaN	346.0	0.0	NaN	NaN

Figures - Ws_W1

Figure figure_7.png

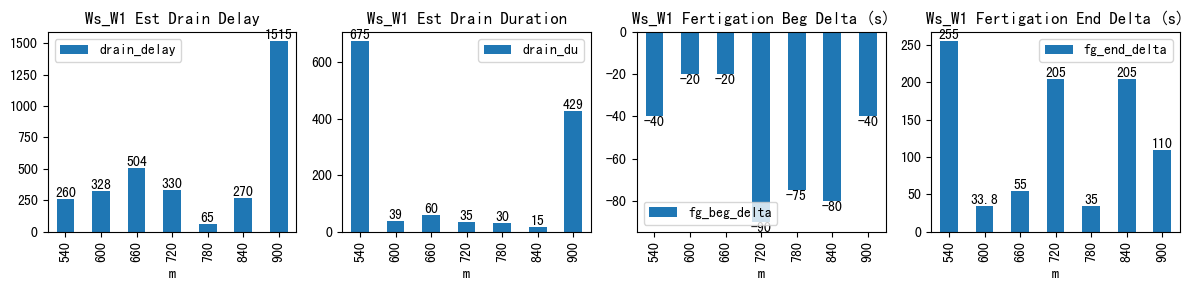

Figure figure_6.png

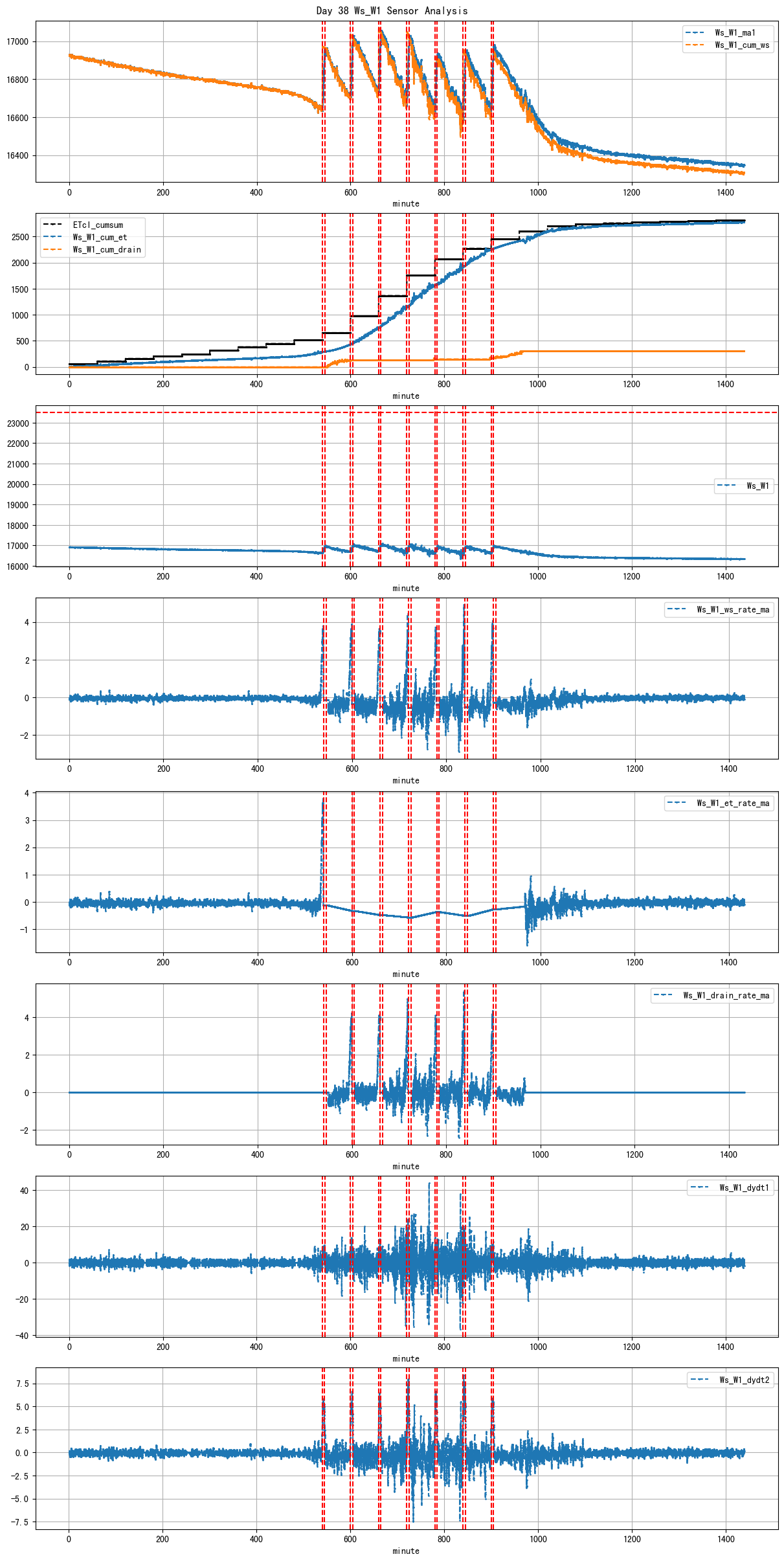

Figure figure_5.png

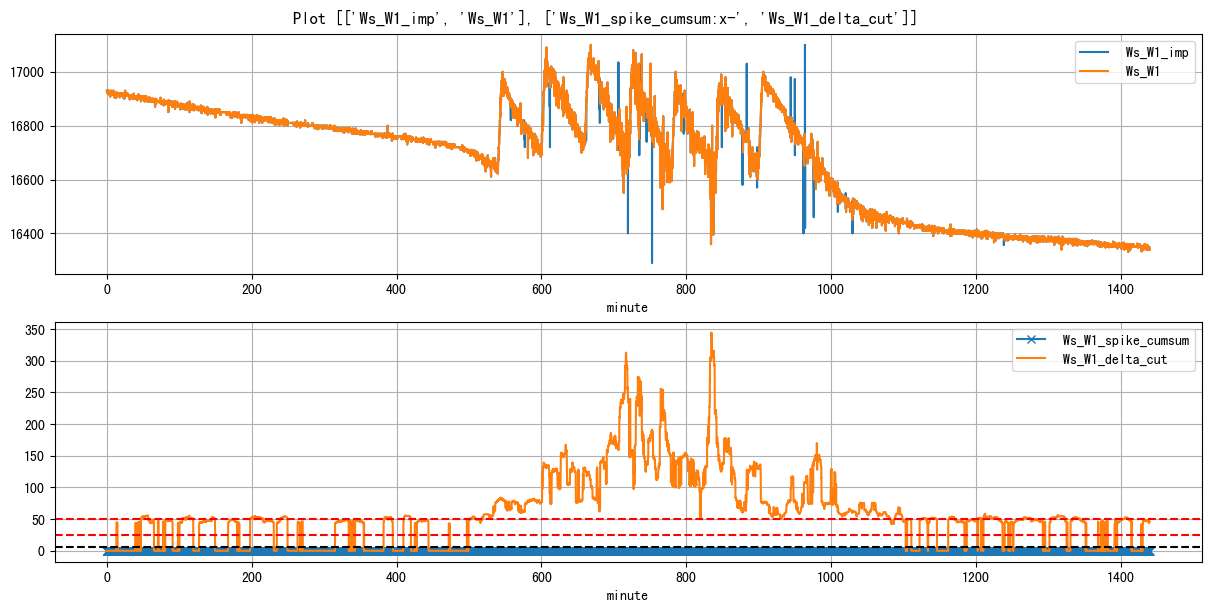

Figure figure_3.png

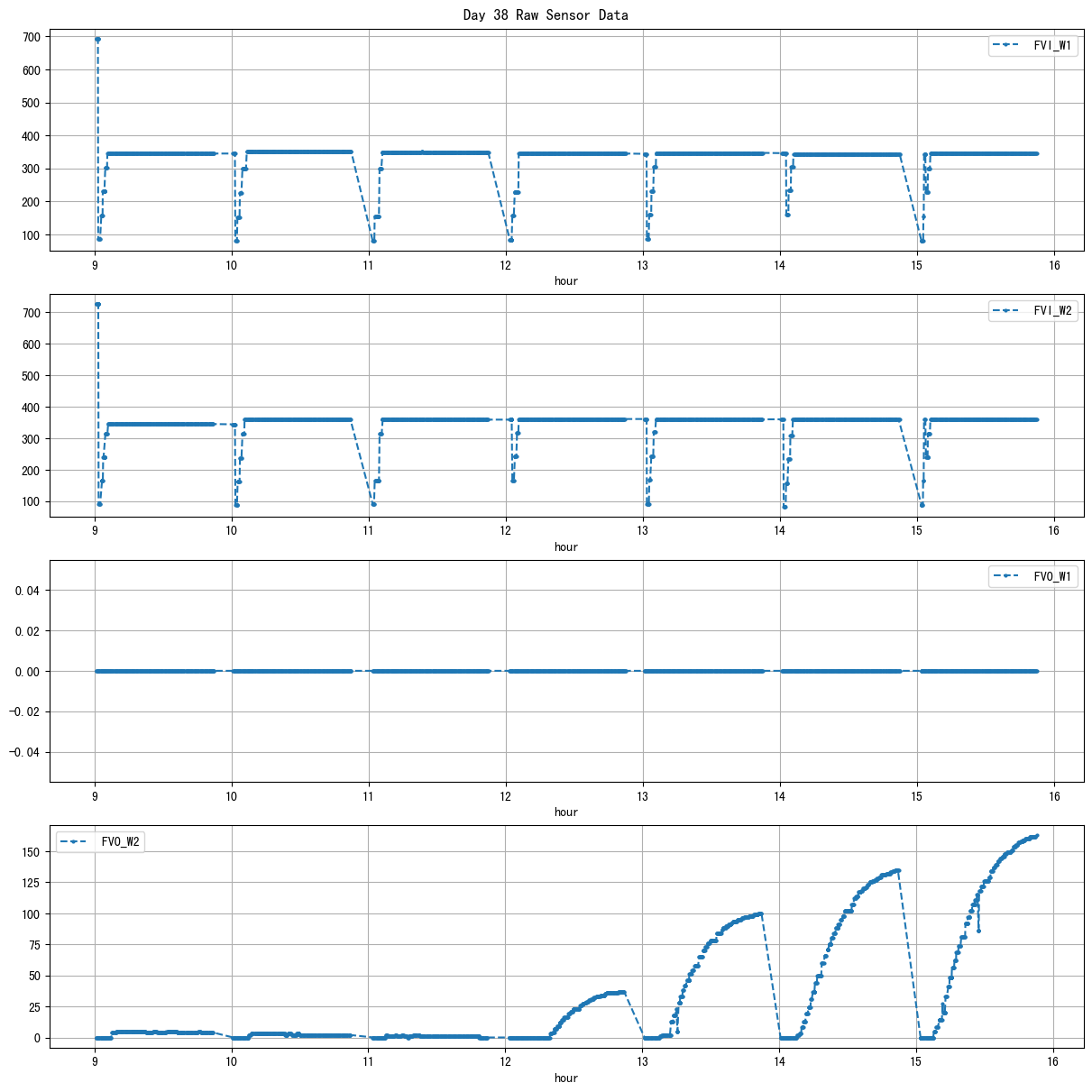

Figure figure_2.png

Summary Statistics - Ws_W2

Number of Fertigation Events: 7
Number of Fertigation Events detected: 7
Total Fertigation Amount: 2311.10 L
Total Drain Amount: 96.49 L
In-Fertigation Drain Amount: 17.13 L
Post-Fertigation Drain Amount: 79.36 L
Drainage Rate: 4.17%

Ws Cleaning Summary Table - Ws_W2

ws_name	num_dp	num_nan_raw	num_nan_final	num_spike	cum_step_adj
Ws_W2	17,277	12,689	0	115	0.00

Fertigation Events Details Table - Ws_W2

ds	d	m	ws_name	prominence_cut	max_drain_du	fg_beg	fg_beg_est	fg_end	fg_end_est	ws_beg	ws_end	duc	pre_fg_et	post_fg_ws	post_drn_et	fg_rate_by_dydt	fg_rate_by_dWs	fg_stay_amount	enough_data	fg_beg_delta	fg_end_delta	fg_total_amount	fg_drain_amount	postFg_drain_amount	total_drain_amount	drain_du	drain_delay	drain_rate	field_capacity_est	FVI_W1	FVO_W1	FVI_W2	FVO_W2
2026-04-08 09:00:00+08:00	38	540	Ws_W2	1.730948	53.916667	540.0	539.666667	545.00	546.083333	14750.0	15041.500000	300	-0.211402	-0.277315	0.000000	1.000000	0.971667	291.500000	True	-20.0	65.0	330.0	0.000000	0.000000	0.000000	45	290	-0.253605	NaN	NaN	NaN	345.0	5.0
2026-04-08 10:00:00+08:00	38	600	Ws_W2	1.730948	54.166667	600.0	599.583333	605.02	605.833333	14881.0	15199.000000	301	-0.243914	-0.227469	0.000000	1.015000	1.056478	318.000000	True	-25.0	48.8	331.1	0.000000	0.000000	0.000000	9	238	-0.264421	NaN	NaN	NaN	360.0	3.0
2026-04-08 11:00:00+08:00	38	660	Ws_W2	1.730948	53.833333	660.0	659.583333	665.00	666.166667	15010.0	15311.833333	300	-0.324407	-0.295765	0.000000	1.030000	1.006111	301.833333	True	-25.0	70.0	330.0	0.000000	0.000000	0.000000	90	980	-0.457049	NaN	NaN	NaN	359.0	2.0
2026-04-08 12:00:00+08:00	38	720	Ws_W2	1.730948	54.916667	720.0	718.416667	725.00	725.083333	15120.0	15421.000000	300	-0.320849	-0.387654	0.000000	1.060000	1.003333	301.000000	True	-95.0	5.0	330.0	0.000000	0.000000	0.000000	15	50	-0.494868	NaN	NaN	NaN	361.0	37.0
2026-04-08 13:00:00+08:00	38	780	Ws_W2	1.730948	53.000000	780.0	779.333333	785.00	787.000000	15180.0	15488.000000	300	-0.370787	-0.668827	0.000000	1.018000	1.026667	308.000000	True	-40.0	120.0	330.0	0.000000	0.000000	0.000000	34	185	-0.540845	NaN	NaN	NaN	360.0	100.0
2026-04-08 14:00:00+08:00	38	840	Ws_W2	1.730948	54.500000	840.0	838.666667	845.00	845.500000	15200.0	15530.000000	300	-0.400125	-0.795062	0.000000	1.060000	1.100000	330.000000	True	-80.0	30.0	330.0	0.000000	45.090538	45.090538	489	75	-0.543125	15484.909462	NaN	NaN	359.0	135.0
2026-04-08 15:00:00+08:00	38	900	Ws_W2	1.730948	60.000000	900.0	899.583333	905.00	905.166667	15230.0	15540.000000	300	-0.358354	-0.633848	-0.225905	1.030857	1.033333	310.000000	True	-25.0	10.0	330.0	17.132559	34.265117	51.397676	444	245	-0.438336	15505.734883	NaN	NaN	360.0	163.0

Figures - Ws_W2

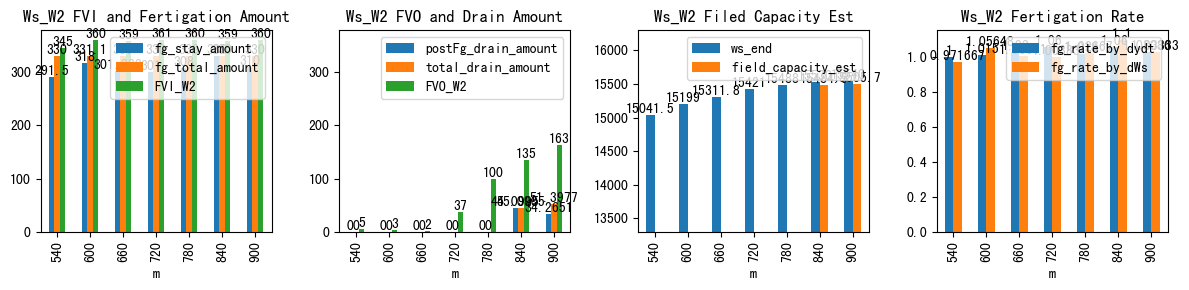

Figure figure_10.png

Figure figure_9.png

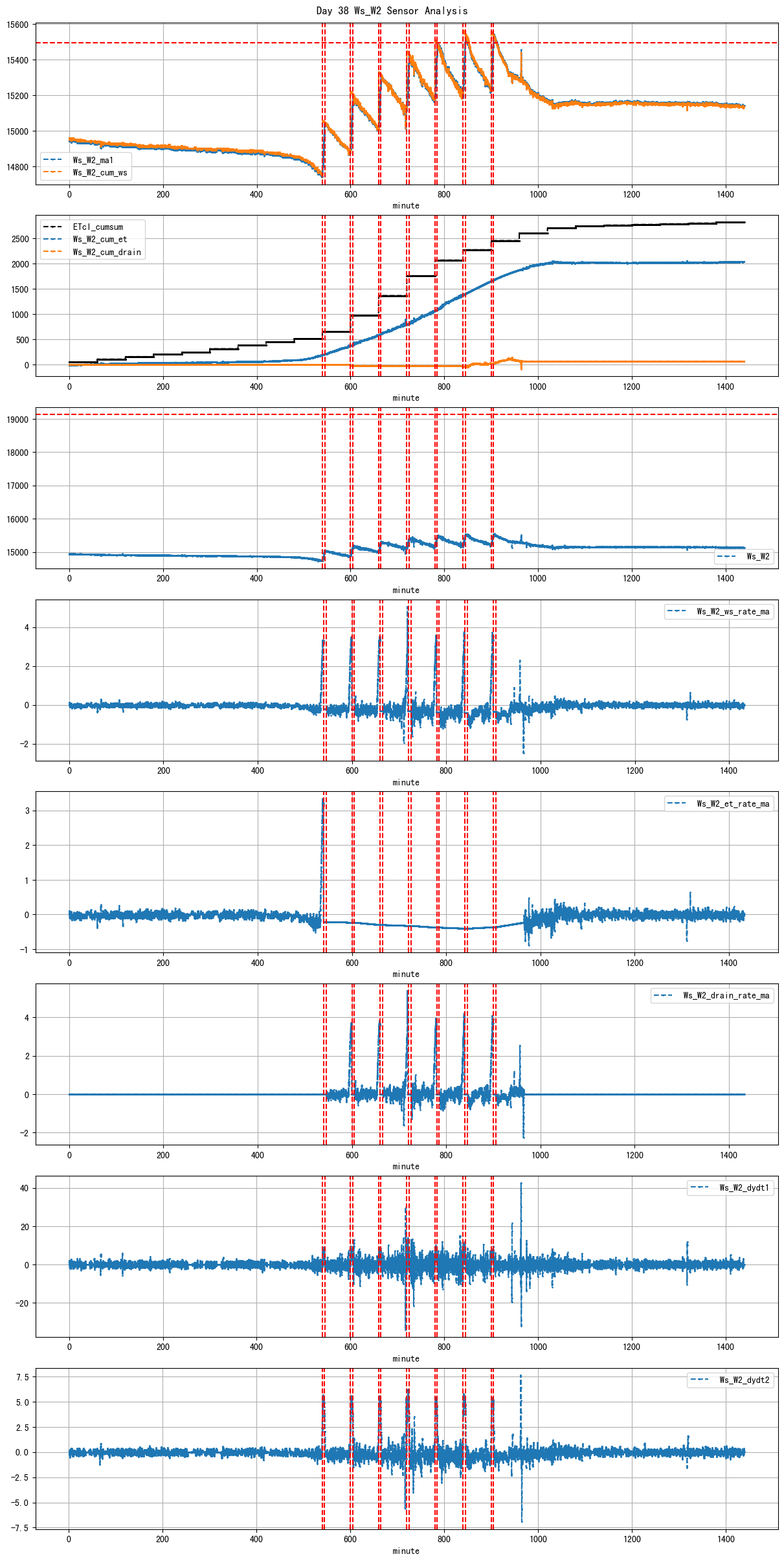

Figure figure_8.png

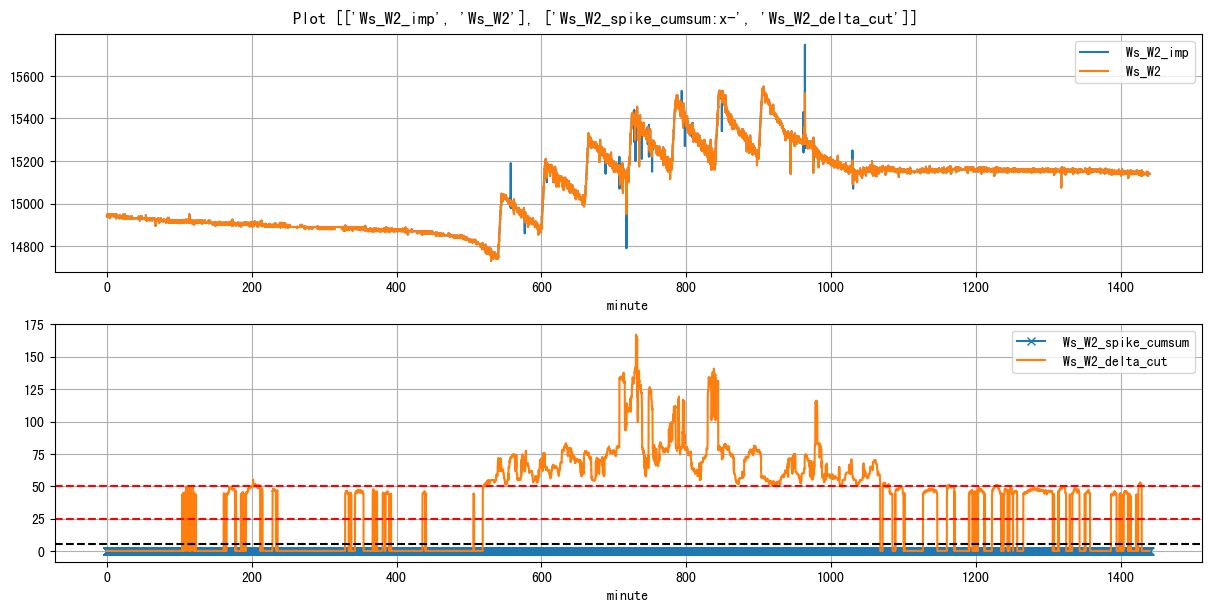

Figure figure_4.png

Figure figure_2.png
